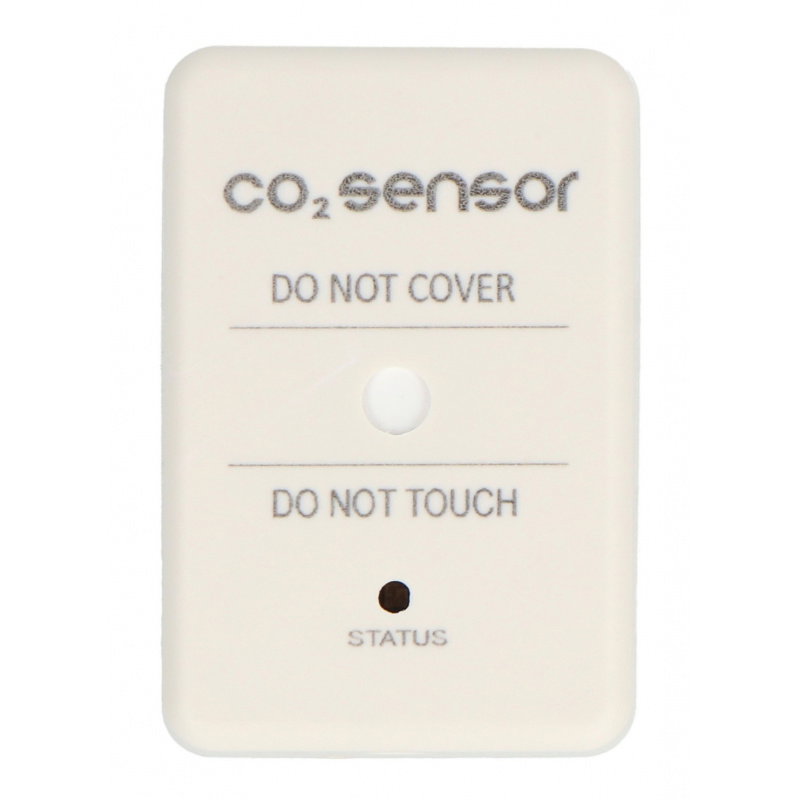

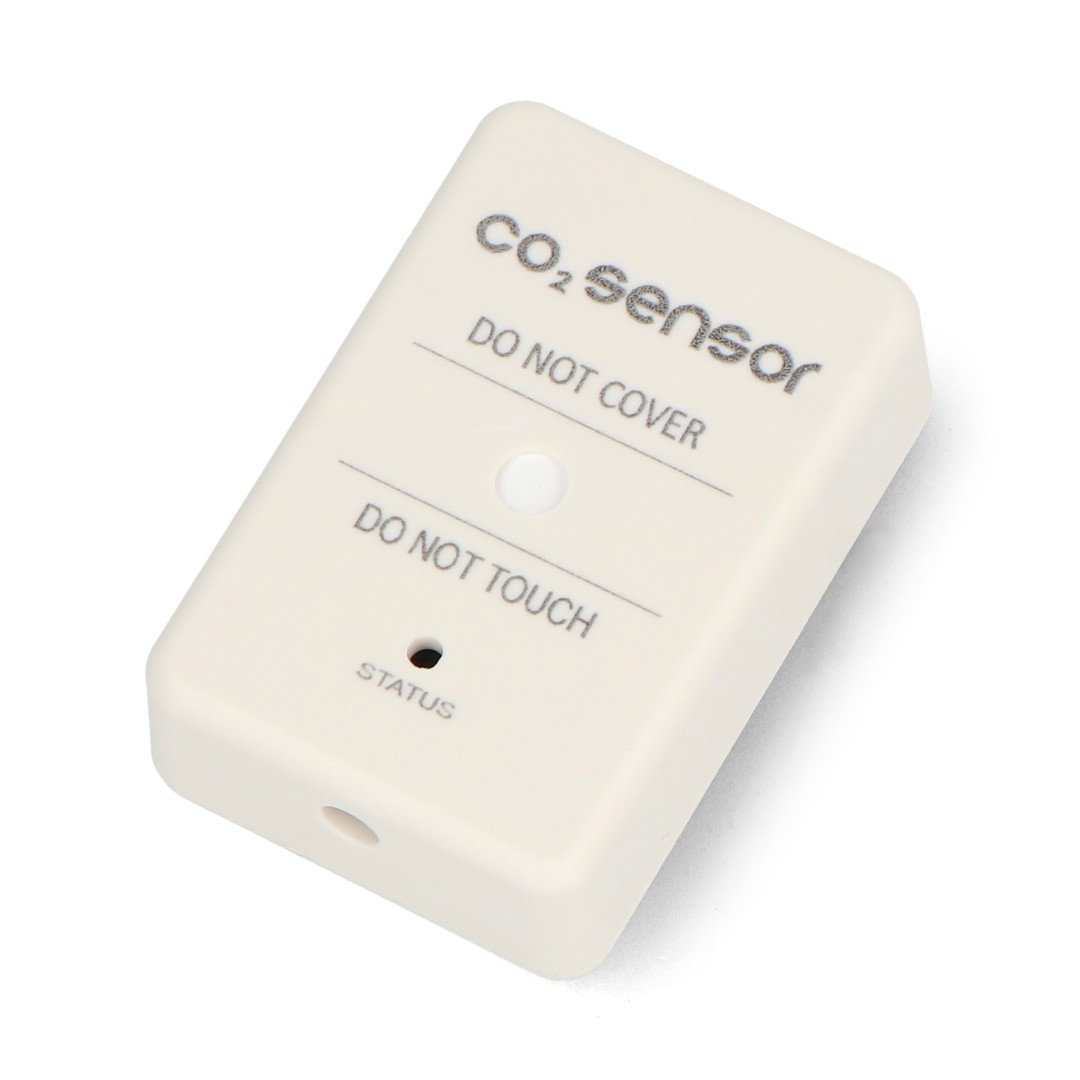

Product description: BleBox co2Sensor - intelligent carbon dioxide concentration sensor - WiFi
The BleBox co2Sensor is a smart sensor with WiFi connectivity designed to monitor carbon dioxide levels in indoor spaces. Push notifications , wireless communication, and integration with the wBox app allow users to check the status of measurements, both in real time and historically using archived data. Interactive charts are available for up to 12 months , and can be exported in either ".csv" or ".xlsx" (Excel) formats. The device is powered by a 5V USB-C port, and the sensor features a soft backlight that, depending on the current color (from green to red-purple), informs about the current air quality level. The BleBox co2Sensor offers direct, local, and remote communication, and thanks to the free cloud and wBox app, access to all data is extremely simple and accessible to multiple users.

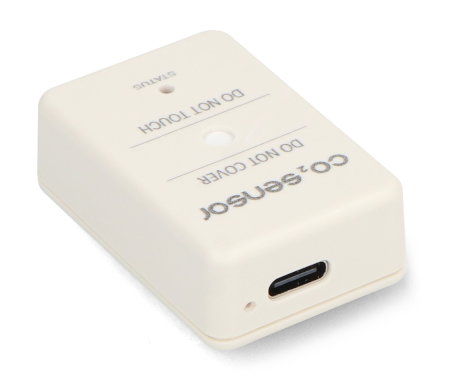

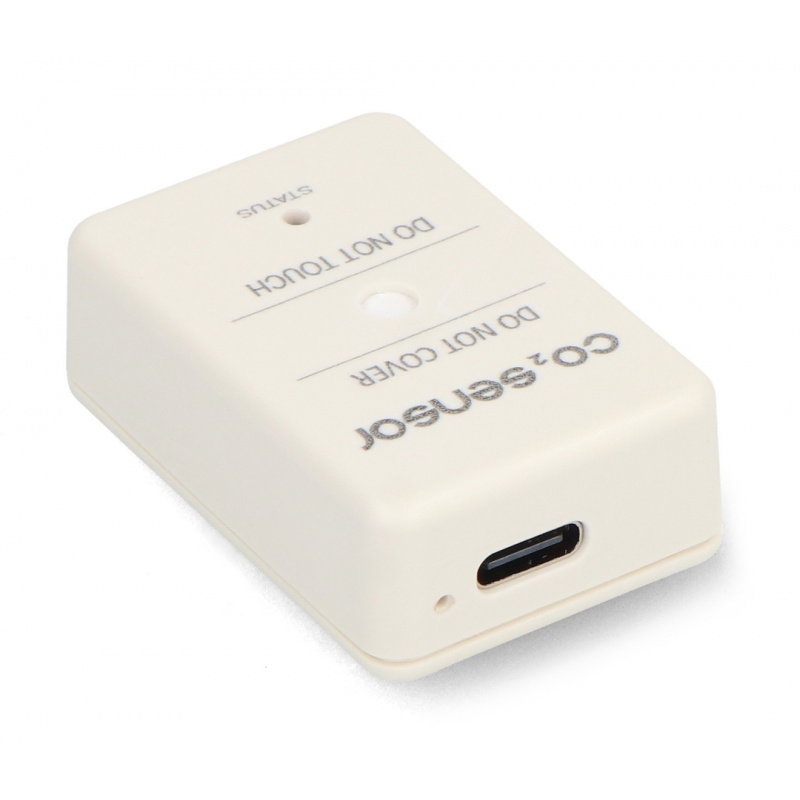

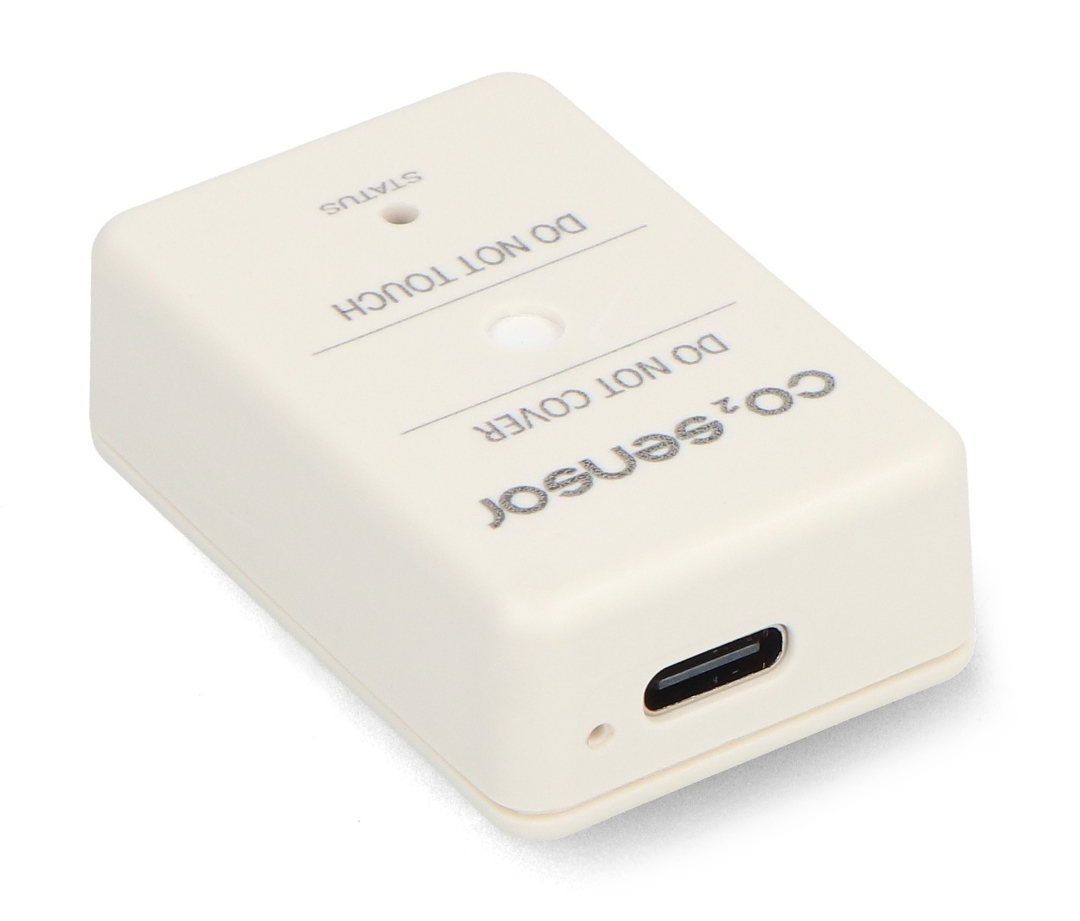

BleBox co2Sensor - intelligent carbon dioxide concentration sensor - WiFi.
Special features

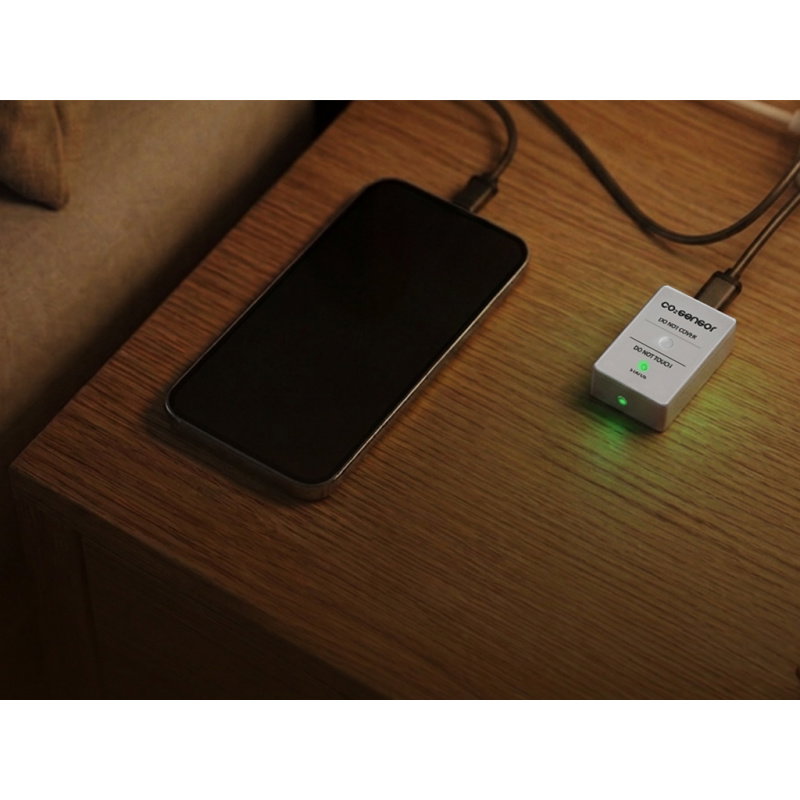

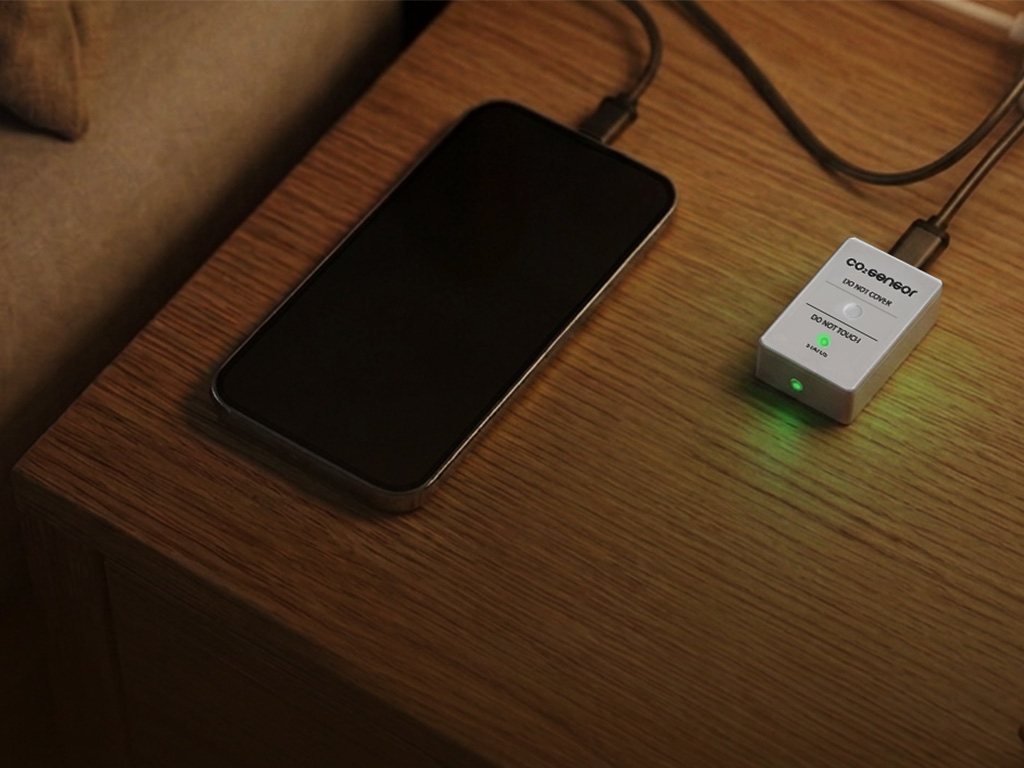

- Miniature sensor: compact dimensions allow for discreet mounting in various locations, such as on a bedside table, desk, shelf, under a countertop or under a wall cabinet
- Integration with the wBox app: real-time device status monitoring from anywhere in the world
- Push notifications: automatic alerts on your smartphone with the ability to personalize the content of messages
- Multi-color backlight: the LED changes color from green to red-violet, informing about the current level of carbon dioxide in the environment
- Historical data: data archiving for up to 12 months and export to .csv or .xlsx files
- BleBox automation: the ability to create advanced scenarios with other Smart Home devices
- Constant power supply: USB-C 5V voltage without the need to replace the battery periodically
- WiFi communication: direct, local or remote control via the BleBox cloud
Full control of air quality standards

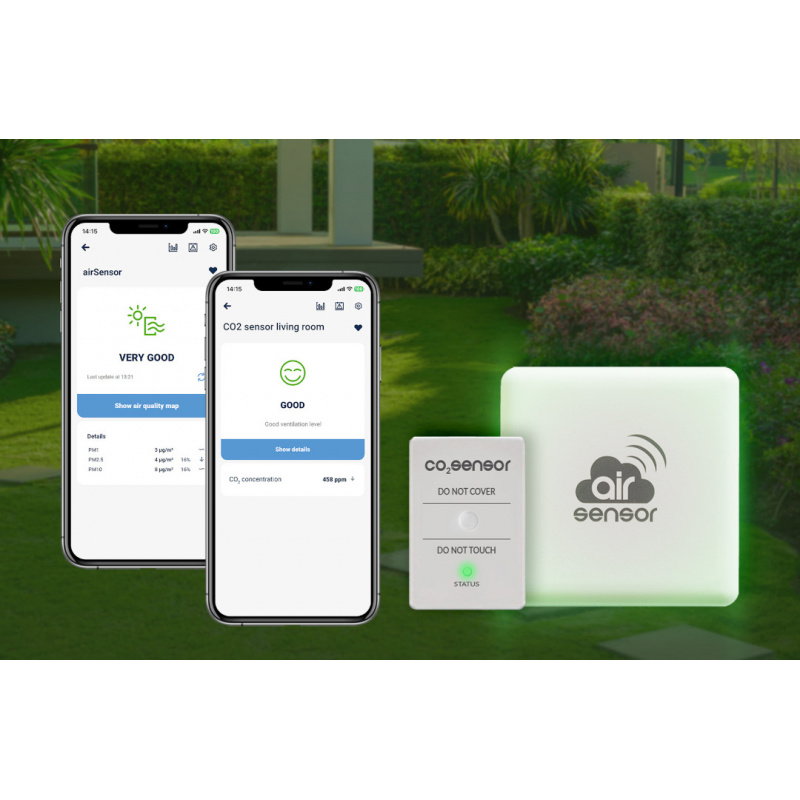

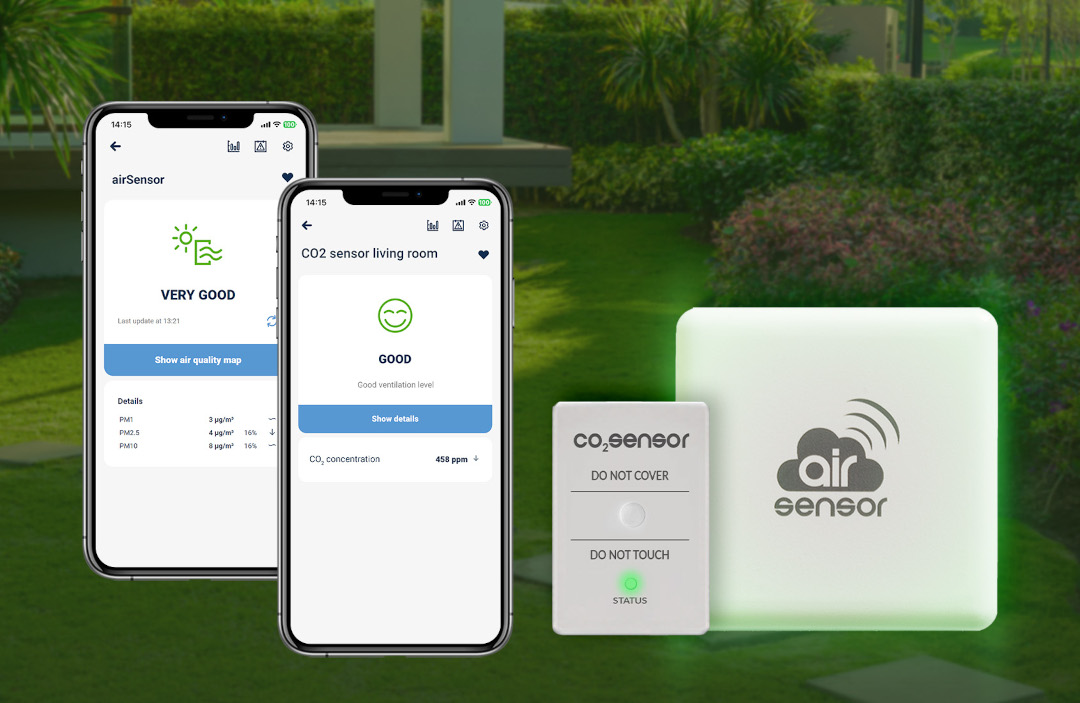

The BleBox co2Sensor carbon dioxide concentration sensor enables the creation of advanced home automation scenarios. An example of its use is the creation of a smart air quality monitoring station by combining the BleBox co2Sensor with the BleBox airSensor smog sensor. This solution can prove very useful in monitoring the effectiveness of natural ventilation and heat recovery systems. Thanks to the recorded carbon dioxide concentration measurements, The device determines the ventilation efficiency level, and the wBox app presents a detailed description of the possible effects of increased carbon dioxide concentration in the environment. Using the collected data, the user can determine whether air exchange is occurring properly and whether the room is receiving an adequate amount of fresh air, thus ensuring the health and well-being of its occupants.
Sensor technical specifications
- Power supply voltage: 5 V (USB C connector)
- Power consumption: < 1 W
- Ventilation efficiency index: an assessment based on the measured CO₂ concentration, presented in the form of an index, a verbal description and recommendations for improving ventilation
- Typical carbon dioxide measurement accuracy:
- 400 - 1000 ppm: ±(50 ppm + 2.5% of measured value)
- 1001 - 2000 ppm: ±(50 ppm + 3% of measured value)
- 2001 - 5000 ppm: ±(40 ppm + 5% of measured value)
- Measuring range: 400 - 40,000 ppm
- Measurement resolution: 1 ppm
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Compatible systems: iOS (e.g. iPhone, iPad), Android, macOS (ARM processors marked M1 or newer)
- Housing material: high-quality ABS plastic
- Housing colors: white
- Degree of protection: IP20 according to PN-EN 60529
- Operating temperature: -10°C to +50°C
- Operating humidity: 0% to 95% RH (non-condensing)
- Compatible systems: Android, iOS, macOS
- Dimensions: 45 x 30 x 15 mm
Contents of the set
- BleBox co2Sensor WiFi sensor
