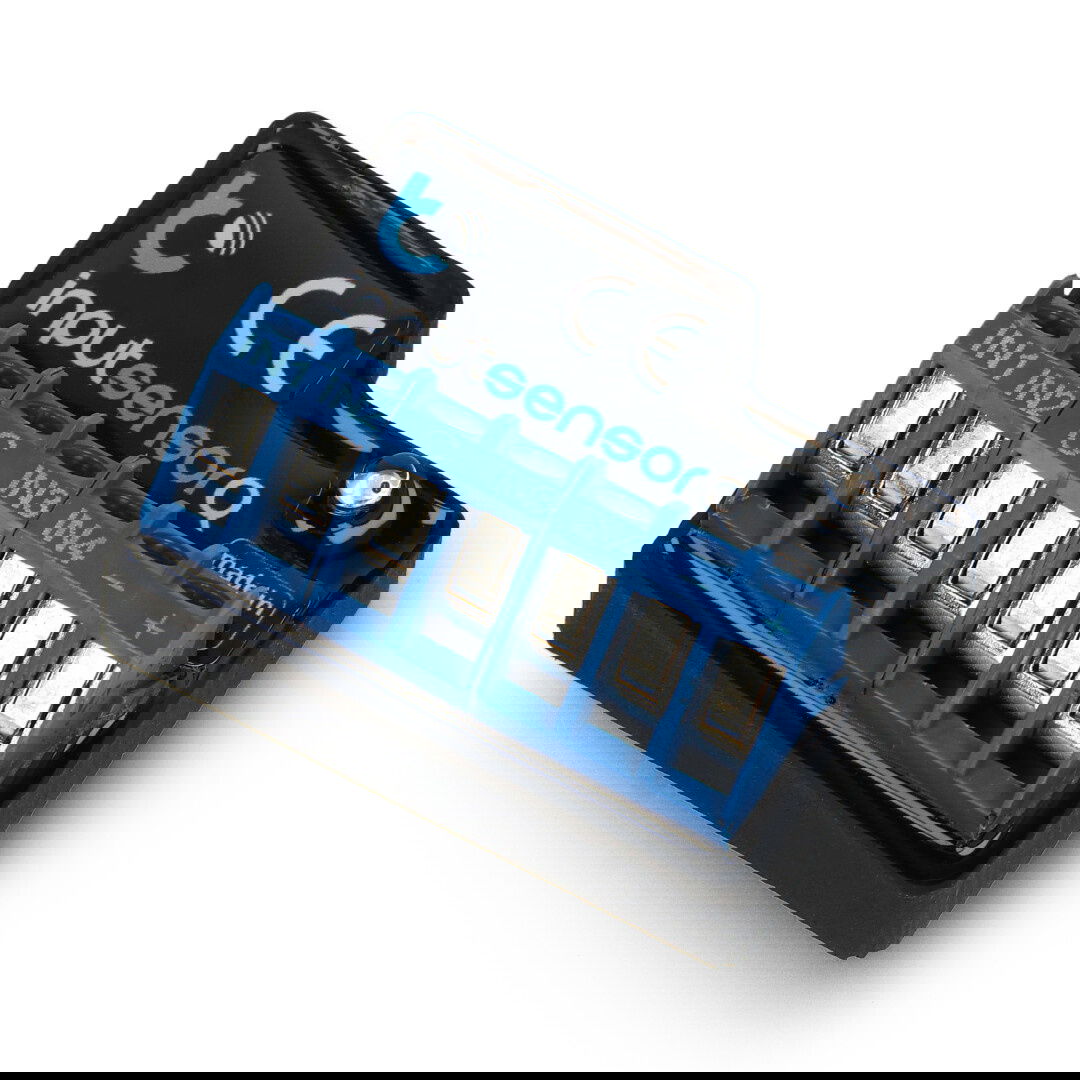

Product description: BleBox inputSensorQ - 4-channel WiFi input module, 5-24 V DC
BleBox inputSensorQ is a four-channel WiFi input module that It's an excellent tool for expanding the BleBox automation system with additional devices, including those from other Smart Home manufacturers . It allows you to read status and tamper signals from various sensors used in households, offices, and industries. By working with various sensors, users can create additional solutions that simplify everyday life, for example, a mail presence sensor in the mailbox. Furthermore, inputSensorQ can work with existing devices such as motion and presence sensors, liquid flow and pressure detectors, parking space occupancy sensors, tank fill level sensors, and septic tank level sensors. The module also allows you to monitor device operating times, window and door opening status, and integrate with alarms and industrial systems. The controller's operating voltage range is 5 V to 24 V DC . The durable, self-extinguishing housing meets safety standards for thermal class B (130°C) and offers an IP20 protection rating. Its miniature, ultra-compact dimensions allow for installation in walls, flush-mounted boxes, or inside the housing of another device or sensor. The free wBox app allows you to read data from anywhere in the world. With the BleBox inputSensorQ, expanding your smart home system becomes incredibly accessible and convenient.

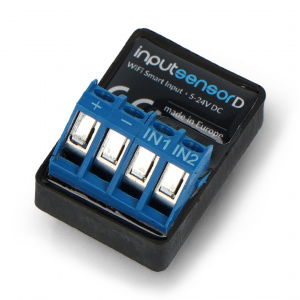

Unlike the BleBox inputSensorD , the BleBox inputSensorQ has four potential-free inputs that allow the user to connect virtually any sensor from 5 V to 24 V DC available on the market.

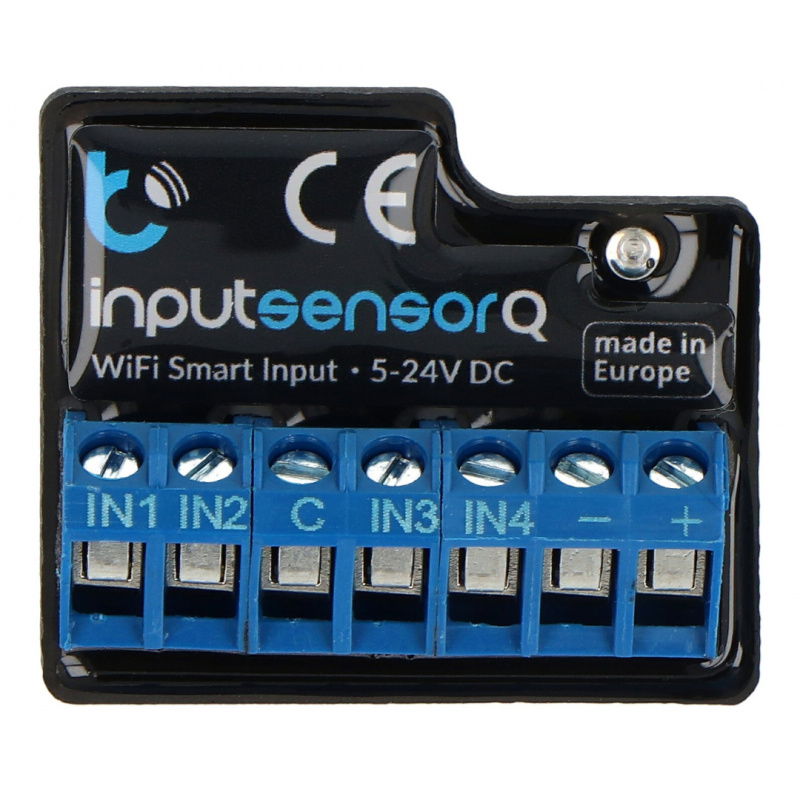

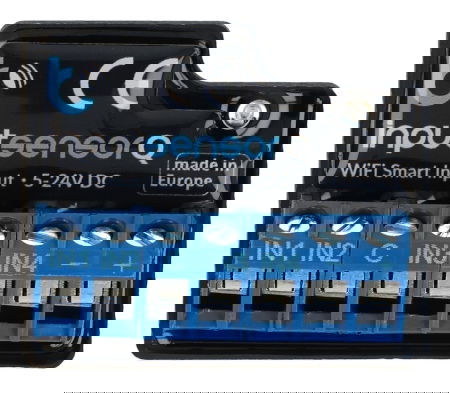

BleBox inputSensorQ - 4-channel WiFi input module, 5-24 V DC.
The module guarantees the protection of transmitted data thanks to WPA2-PSK and AEAD encryption.Main features of the BleBox inputSensorQ sensor
- Expansion of the Smart Home system: designing a module to integrate products from other manufacturers with BleBox automation
- Four-channel dry contact inputs: Allows simultaneous monitoring of four independent digital signals from virtually any 5V to 24V DC sensor available on the market
- Low power consumption: less than 1W for energy efficiency and long battery life
- Notifications and alerts: sending push notifications and personalizing their content depending on the user's needs and the type of connected device
- High quality in a small device: ensuring safety, work efficiency and versatile mounting options thanks to a miniature but very durable housing
- Data security: guaranteed protection of transmitted data thanks to WPA2-PSK and AEAD encryption
- Open API: integration with automation systems, IoT and Smart Home platforms
- Data archive: access to data collected in the wBox application for a period of 12 months, making it easier for the user to analyze changes over time
- Various communication methods: remote, local and direct communication, ensuring reliable operation even during limited Internet access
Home, farm and industrial applications
The versatility of the BleBox inputSensorQ module allows for compatibility with various existing devices. Examples of applications include fire, smoke, and gas sensors, motion and presence sensors, as well as liquid flow and pressure detectors, parking space occupancy sensors, and even tank fill sensors. The controller also allows for reading the status of reed switches and inductive sensors, which are factory-installed by window and door manufacturers. This allows for monitoring the opening status of windows, doors, gates, various types of cabinets and boxes, and even stables and other outbuildings.

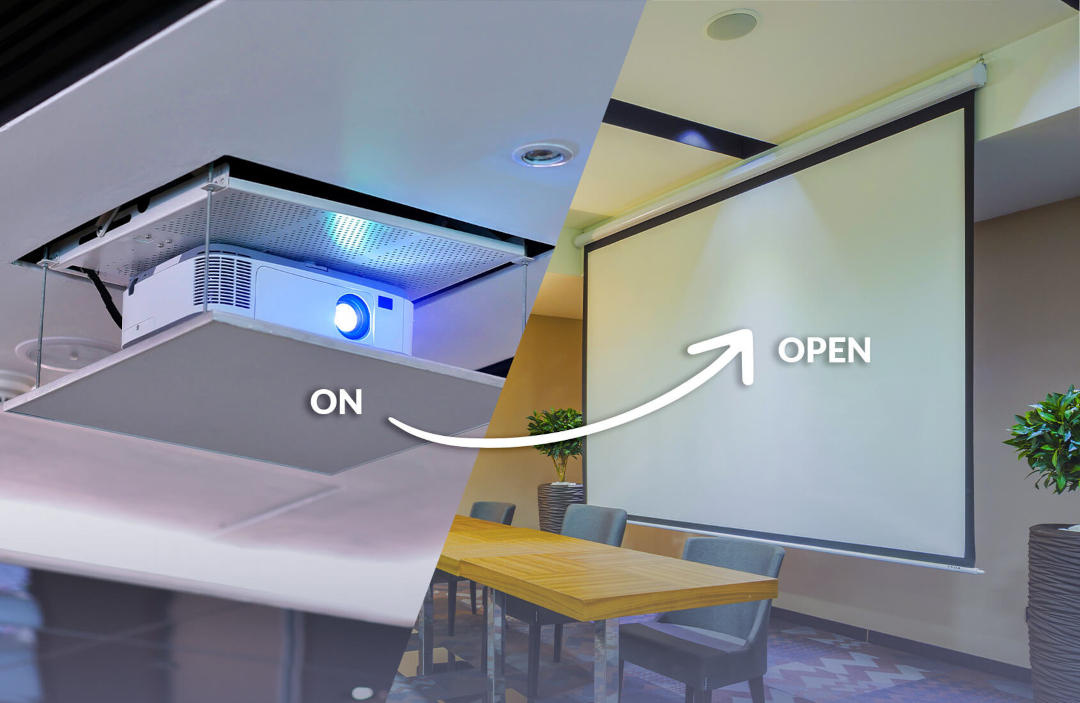

The example scenario enables automatic screen unfolding after reading the signal from the switched-on projector.
Functional home automation scenarios
The BleBox inputSensorQ smart sensor allows you to both monitor the status of devices and sensors and create functional home automation scenarios.
Example automation scenarios:
- After reading the alarm arming signal, automatically close all the blinds in the house
- After reading the alarm arming signal, automatically turn off all the lights in the house
- After reading the smoke detection signal, automatically activate the alarm siren and smoke extraction system
- After reading the gas detection signal, automatically activate the alarm siren, ventilation and close the gas valve
- After reading the signal from the projector - automatically expand the screen when it is turned on and collapse it when it is turned off
- After reading the window opening signal - if the window is open for more than 5 minutes, turn off the air conditioner
- After reading the balcony door opening signal - send a command to deactivate the roller shutter schedule (so as not to be locked out of the terrace, for example)
Connecting the BleBox inputSensorQ module

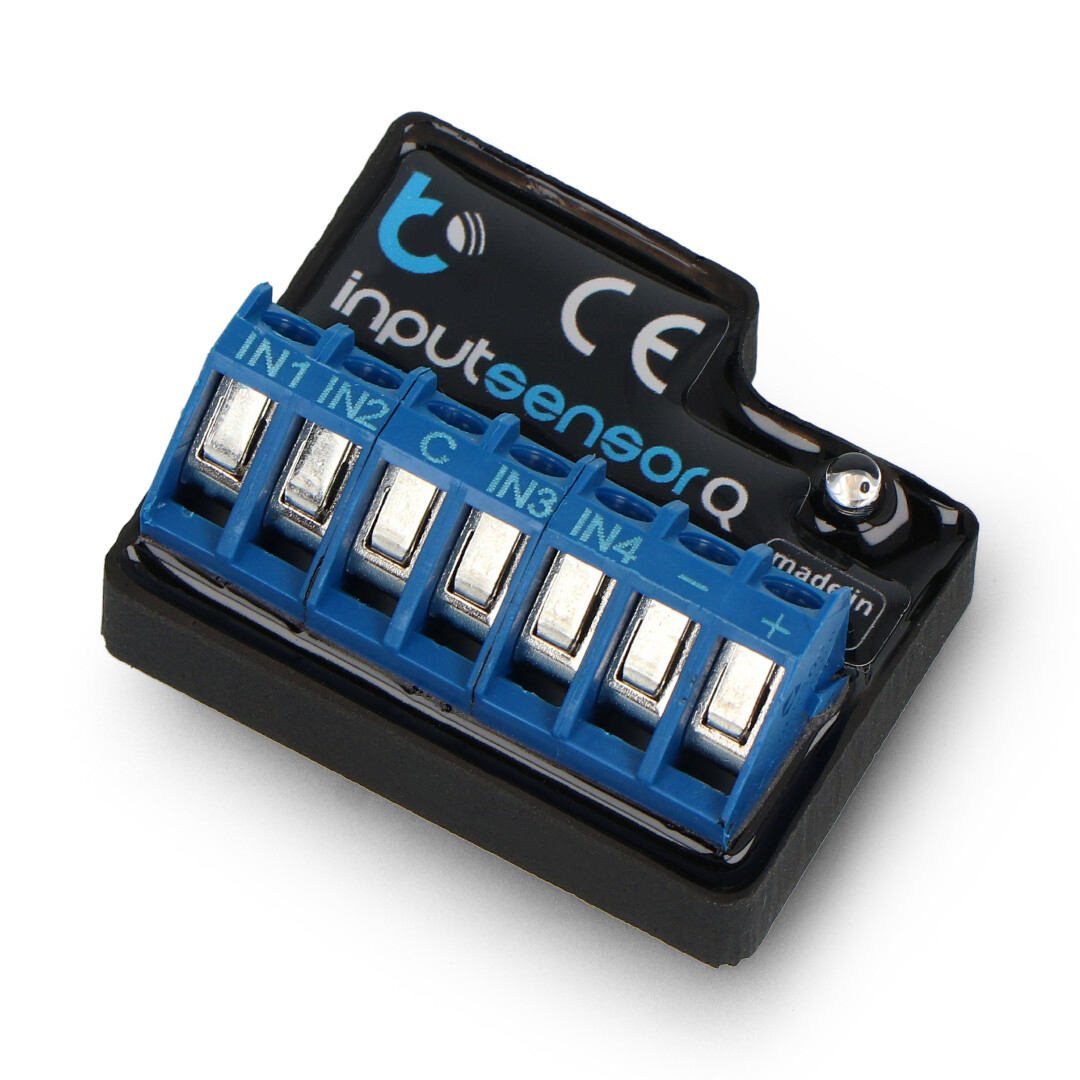

The controller should be mounted in a location protected from unauthorized access, either in a flush-mounted box, on a wall, or inside the housing of another device or sensor. The module is equipped with screw terminals and powered by a voltage of 5 V to 24 V DC. The controller's pins are:
- + - supply voltage from 5 V to 24 V DC
- - - power supply ground
- IN1 - sensor input
- IN2 - sensor input
- C - common plus
- IN3 - sensor input
- IN4 - sensor input

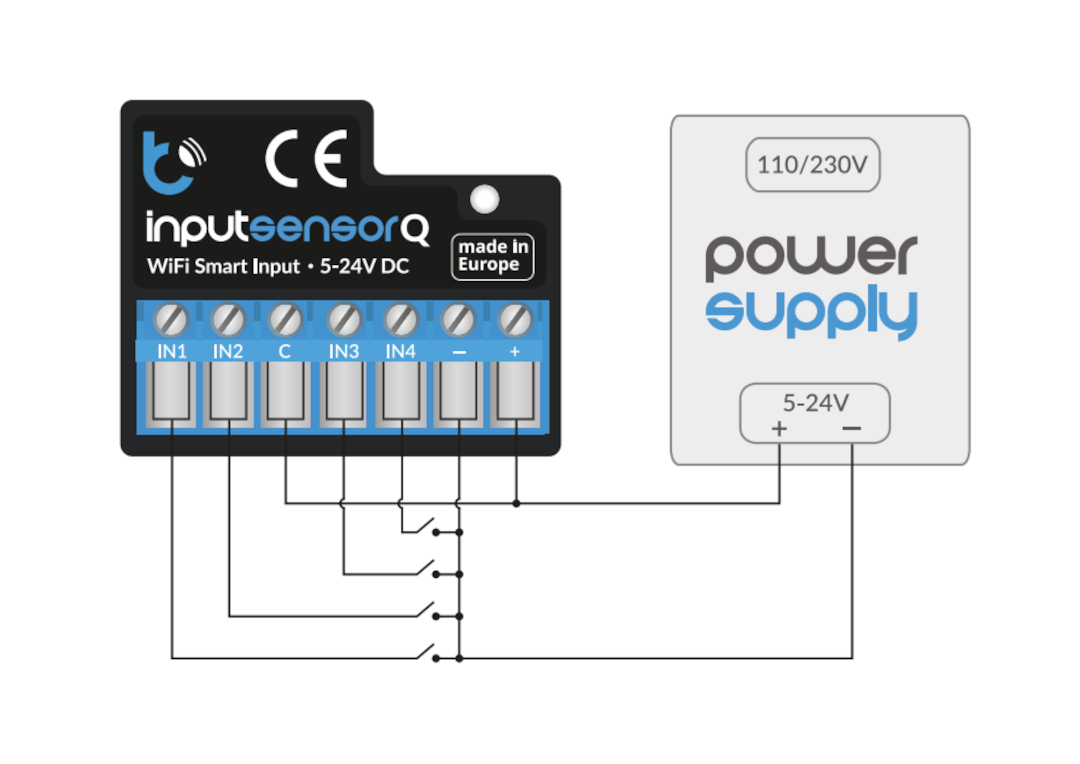

Connection diagram of the BleBox inputSensorQ module with a sensor.

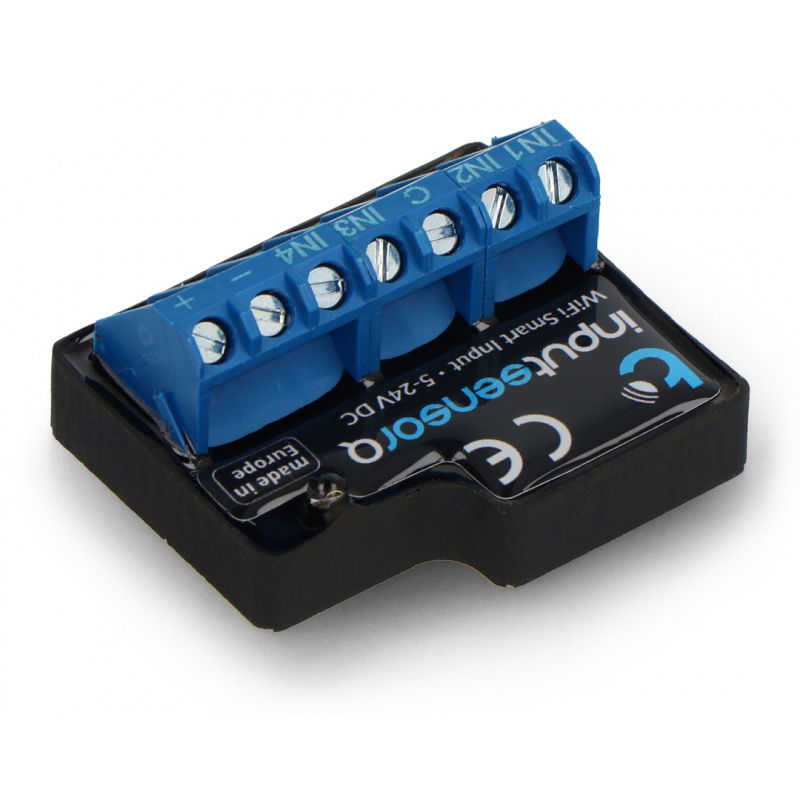

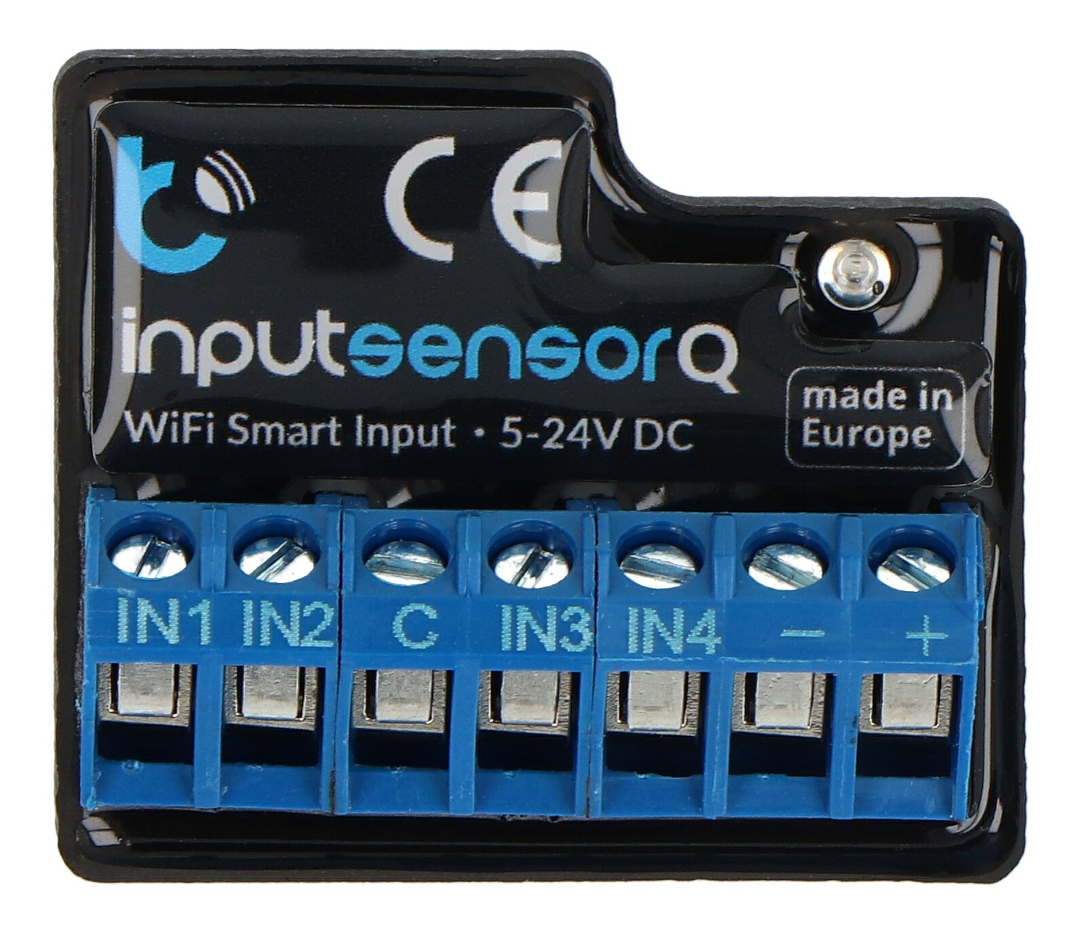

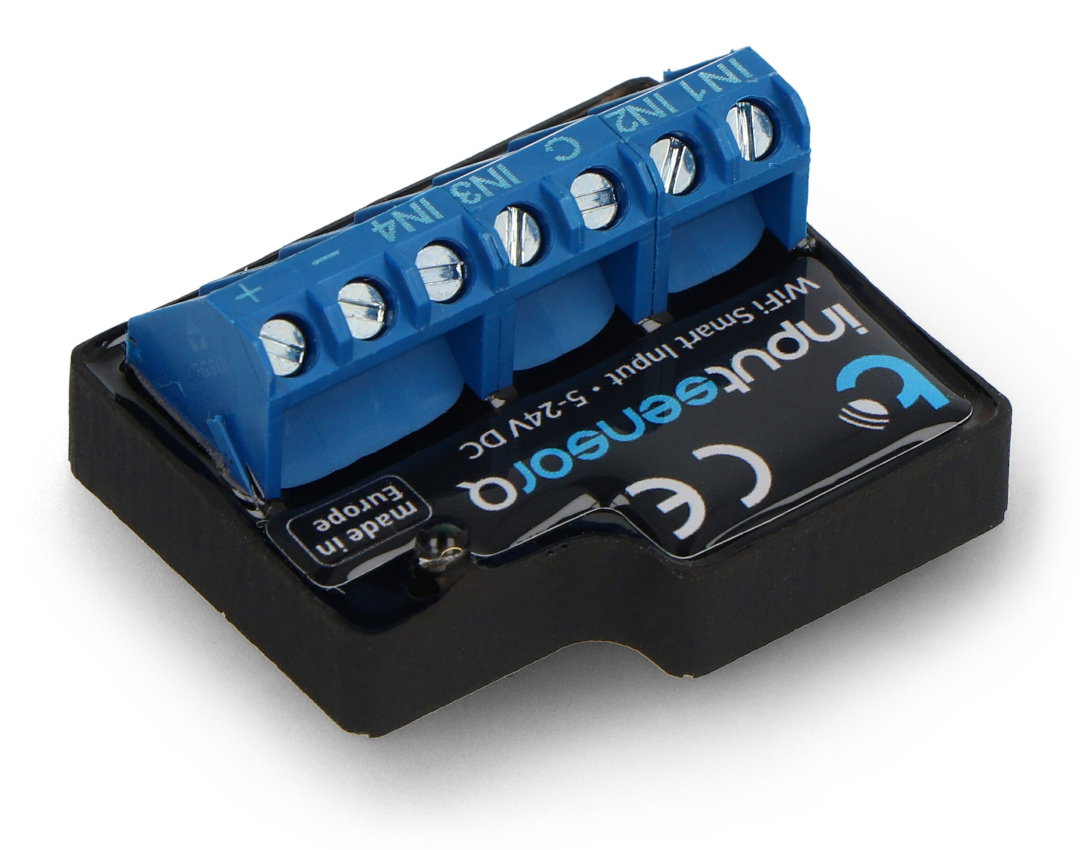

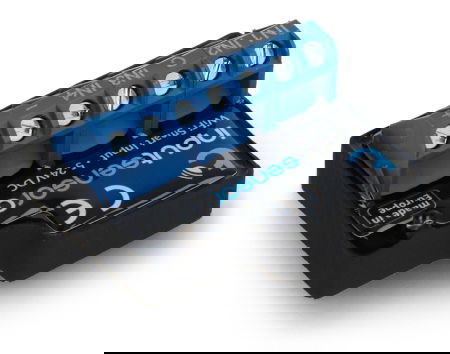

Seven screw connectors ensure stable connection of cables to the BleBox inputSensorQ.BleBox inputSensorQ module specification
- Supply voltage: 5 V to 24 V DC
- Power consumption: up to 1 W
- Number of inputs: 4
- Input type: low voltage, potential-free, shorted to the negative or positive supply (depending on the pole connected to connector C)
- Mounting method: in a box, in a wall, inside the housing of another device or sensor
- Housing: made of a halogen-free polyurethane composition, self-extinguishing for thermal class B (130°C)
- Degree of protection: IP20
- Controller operating temperature: -20°C to 50°C
- API: open https://technical.blebox.eu/
- Communication standard: μWiFi, compatible with WiFi, 802.11g
- Transmission type: two-way, encrypted
- Transmission frequency: 2.4 GHz
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Operating mode: direct connection (as Access Point), WiFi connection via a standard router, connection with access from anywhere in the world (only Internet access required)
- Compatible devices and systems: iOS (e.g. iPhone, iPad), Android, macOS (ARM processors marked M1 or newer)
- Dimensions: 41 x 39 x 17 mm
