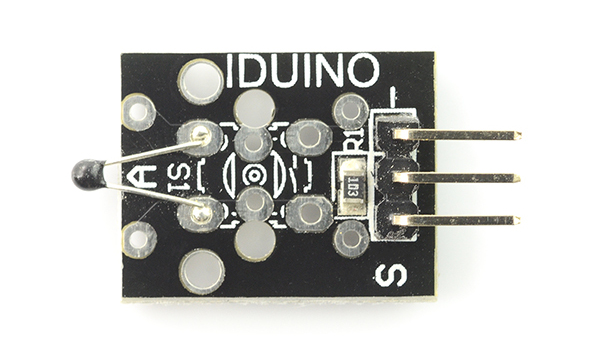

Product description: Iduino - temperature sensor - NTC thermistor-MF52
Module with temperature sensor equipped with a thermistorNTC-MF52. For control, used is ananalogue output. It detects the temperature in the rangefrom -55°C to 125°C. It is powered with the voltage of5 V.
Connection of NTC temperature sensor-5MF52
The sensor works any microcontroller with analog inputs, including Arduino. To read data, simply connect the power supply and output pin to any input of the microcontroller, and read its status.
Example of connecting toArduino.
| PIN | Description |
|---|---|
| VCC | Supply voltage is 5V. |
| GND | The ground of the system. |
| S | Analog signal. |
Specification of the temperature sensor NTC-MF52
- Supply voltage: 5 V
- Type: analog
- Thermistor:NTC 3950 MF52
- Measurement range: from -55°C to 125°C
- Accuracy: +/- 0.5°C
