Description

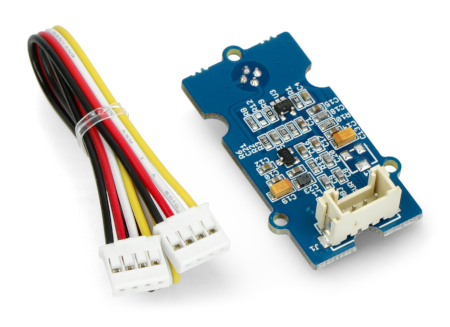

Module from the Grove series, based on a sensor OTP-538U which, to measure the temperature, is using the analysis of infrared radiation in the range from -10 °C to 100 °C. It communicates via an analog signal. It is working with the voltage from 3.0 V to 5.0 V.The kit also includes a cable adapted for Seeedstudio Base Shield v2.0.
|
The product is compatible with Arduino The manufacturer has prepared a user guide and sample code for Arduino. |
Connection
The sensor communicates with a microcontroller via an analog signal. The module is equipped with Grove connectors which allows you to directly connect it to Arduino using Seeedstudio Base Shield v2.0.
The module has 4-pin Grove cable
Specification
- Supply voltage: from 3.3 V to 5 V
- Sensor: OTP-538U
- Communications: the analog signal
- Measuring range: from -10 °C to 100 °C
- Operating temperature: 10 °C to 80 °C
- Storage temperature: -35 °C to 80 °C
- Measurement accuracy: ± 2 °C
- Nominal sensor's distance: 9 cm
- Dimensions: 110 x 85 x 15 mm
- Weight: 24 g
