Description
Analog sensor is compatible with Arduino and Raspberry Pi. It is powered with the voltage from 3.3 V to 5 V. It can measure temperature in the range from -40 °C to 125 °C with an accuracy of up to 1.5 °C. The sensor for measuring temperature, is using a NTC thermistor, the resistance of the thermistor changes accordingly to the ambient temperature that is used for its calculation.
|
Attention! This product is only available in our market in Poland and cannot be sold to other countries. |
Connection
The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0 or Raspberry with Hat and GrovePi+.

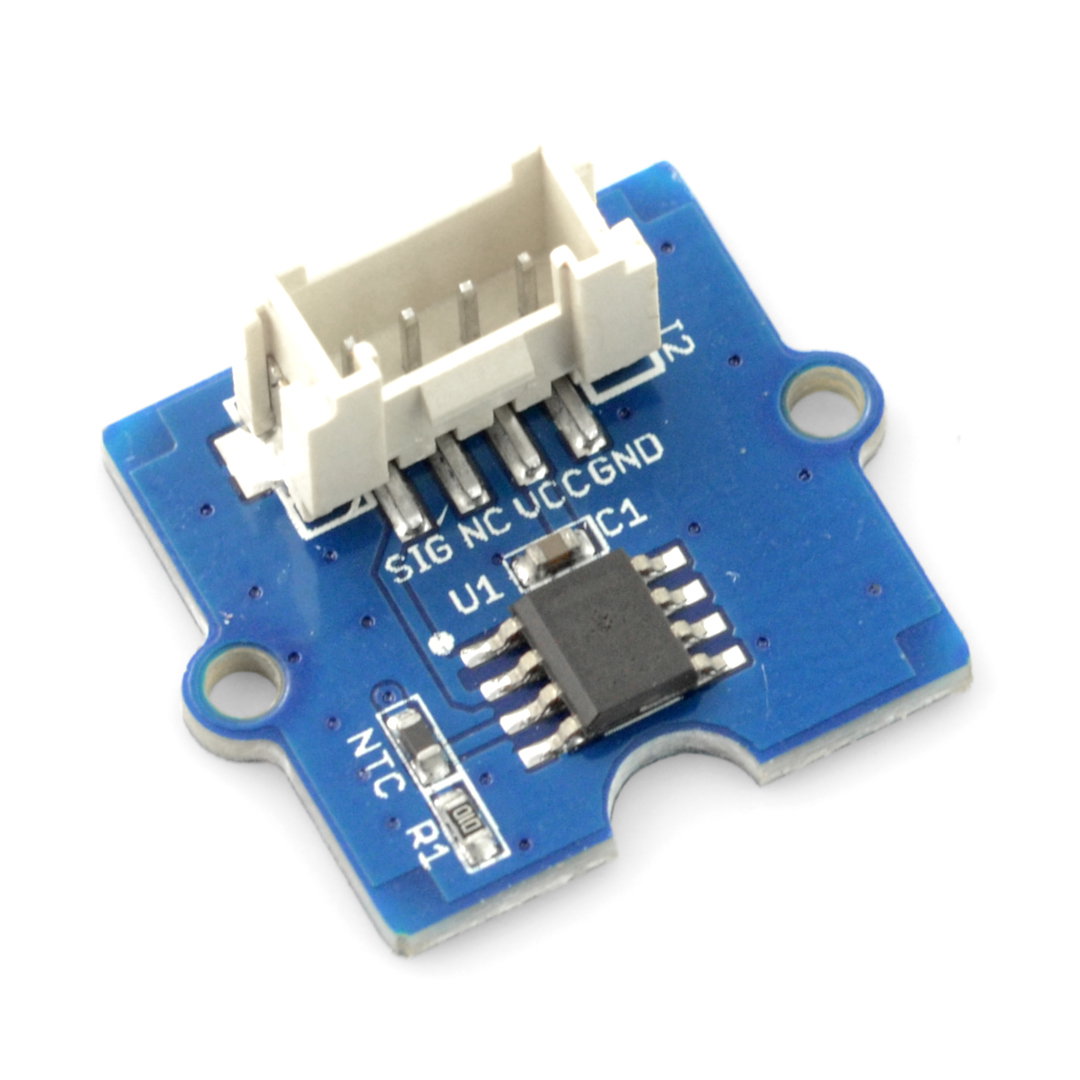

Analog temperature sensor with Grove interface.
|
The user manual A user's guide for Arduino and Raspberry. |
Specification
- Supply voltage: from 3.3 V to 5.0 V
- Resistance: 100 kΩ
- Resistance tolerance: +/- 1%
- Temperature range: -40 °C to 125 °C
- Dimensions: 24 x 20 x 9.8 mm
- Weight: 8 g
