Product description: Grove - SHT35 - temperature and humidity sensor - I2C.
Highly accurateSHT35temperature and humidity sensor. It measures temperaturefrom -40°C to 125°C withan accuracy of 0.1°Candhumidity from 0% to100% RH withan accuracy of 1.5% RH. It communicates through anI2Cinterfacewithaddress selection, communication speed is up to 1 MHz. It works with voltage of3.3 V and 5 V.
Main features of SHT35 sensor
- High accuracy: 1.5% RH and 0.01°C
- Fully calibrated
- I2C interface with 1 MHz speed and address selection
- Very quick time to start measuring
SHT35 temperature and humidity sensor, Grove cable also included.
|
Arduino compatible product The manufacturer providesa user guideshowing its connection and programming. |
Connection of temperature and humidity sensor
The SHT35 sensor module communicates via the I2C interface. It is equipped with Grove connector, for easier connection of the module with dedicated overlays for ArduinoorRaspberryPi.

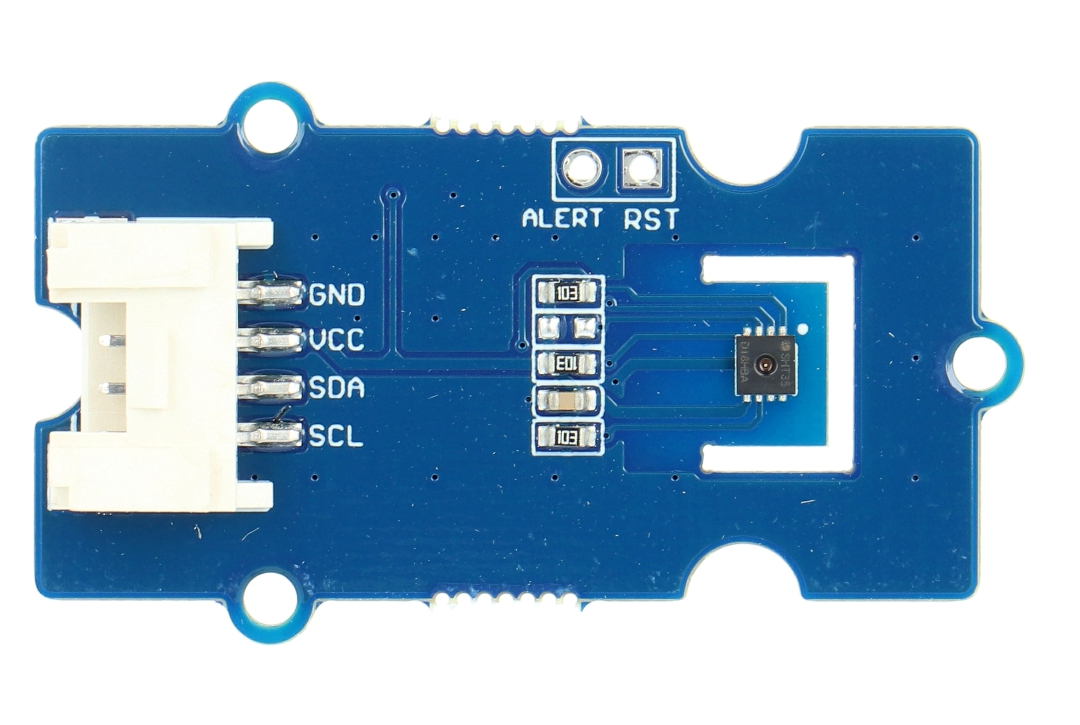

SHT35 temperature and humidity sensor.
| Pin . | Description |
|---|---|
| GND | The weight of the system. |
| VCC | The supply voltage is 5 V. |
| SDA | I2C bus data line. |
| SCL | I2C bus clock line. |
| ALERT | Interrupt pin for the user. |
| RST | Reset. |
Sensor specification SHT35
- Power supply voltage: 3.3 V or 5 V
- Temperature measurement:
- Range: -40°C to 125°C
- Resolution: 0.01°C
- Accuracy: 0.1°C
- Measuring humidity:
- Range: 0% RH to 100% RH
- Resolution: 0.01% RH
- Accuracy: 1.5% RH
- Interface: I2C
- I2C address: 0x45 (default) / 0x44 (optional)
- Connector: Grove
- Dimensions: 40 x 20 x 6 mm
- Weight: 3,1 g
