Settings
- Sensor AM2302 (DHT22)
- Supply voltage: from 3.3 V to 6 V
- It does not require additional external components
- Connecting cable included
- Module dimensions: 40 x 15 x 10 mm
- Temperature
- Measuring range: -40 °C to +80°C
- Resolution: 8 bits (0.1 °C)
- Accuracy: ± 0.5 °C
- Humidity:
*RH - relative humidity expressed in percents. It is the ratio of actual moisture in the air to the maximum amount of it that the air can keep at a given temperature.

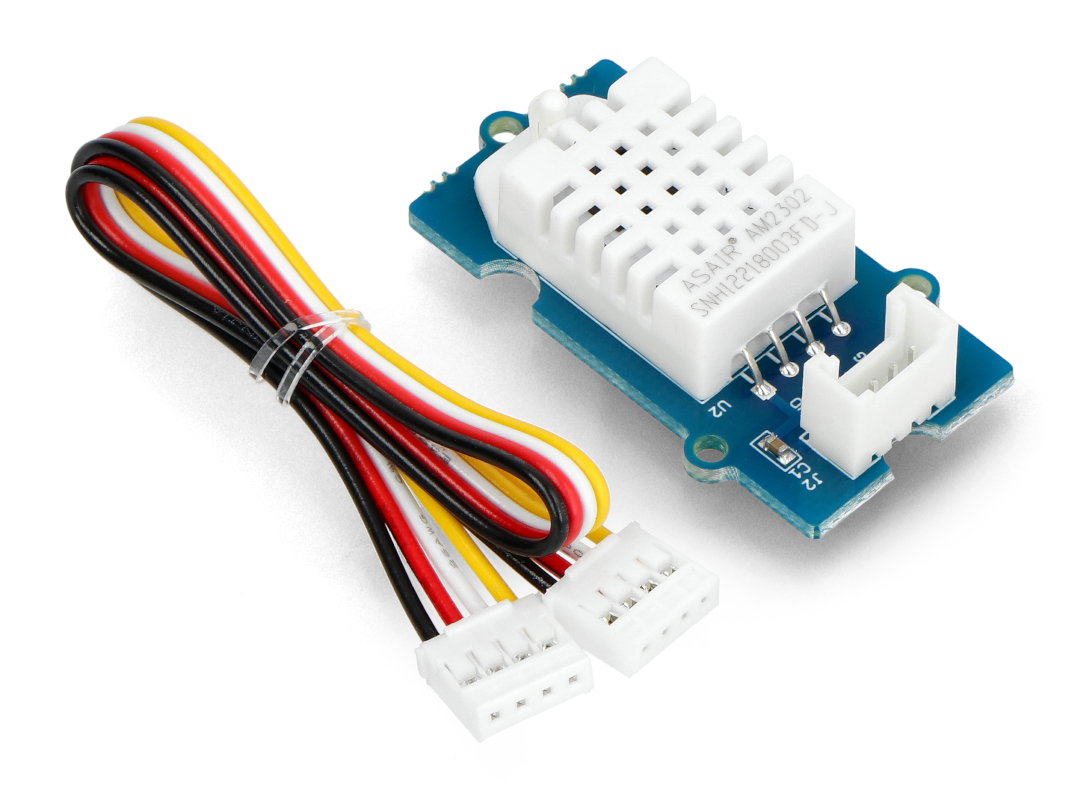

The module is with the connecting cable with the Grove contact.
Description
The module includes a popular sensor for measuring temperature and humidity. On the board are also: a resistor and a capacitor to filter the supply voltage - they are required for proper operation of the system. The sensor can be controlled using a microcontroller or any development kit, for example,Arduino. Before using, you need to check out thedocumentation.
|
The product is compatible with Arduino The manufacturer provides a sample program forArduino. User manual can be found onour website. |
The kit includes the connection cable with the Grove contact.
Connection example

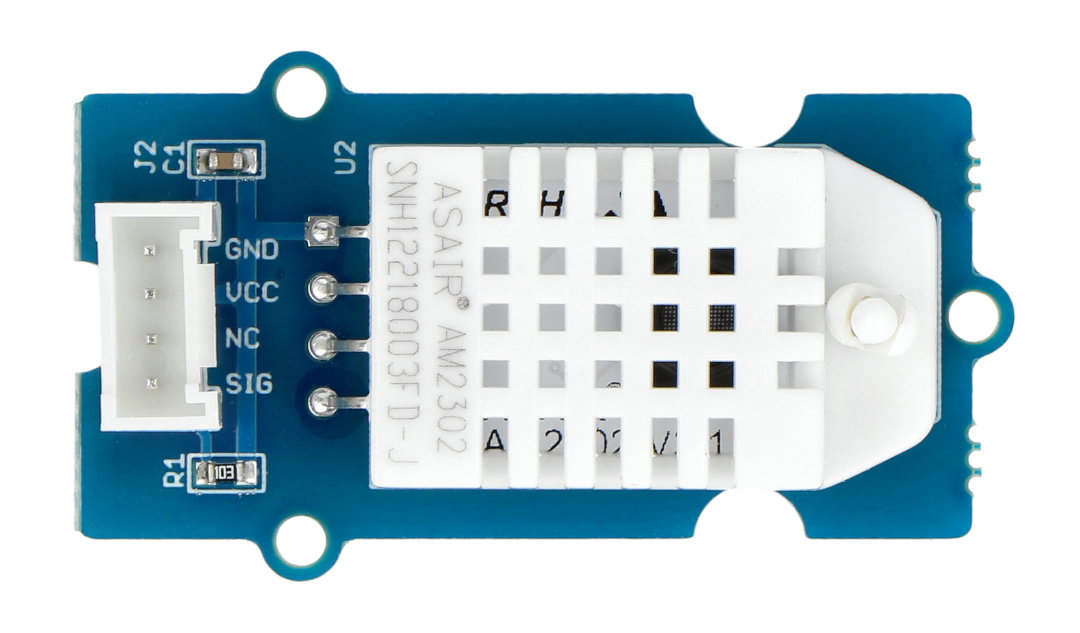

The system contains every passive component necessary for the proper operation of the sensor. The module has to be connected using the wires, to any microcontroller in the following way:
- VCC ( + )supply voltage in the range: from 3.3 V to 5.5 V
- GND ( - ) the ground of the system
- NC- not connected.
- SIG- digital output connected to the input of the microcontroller
