Description

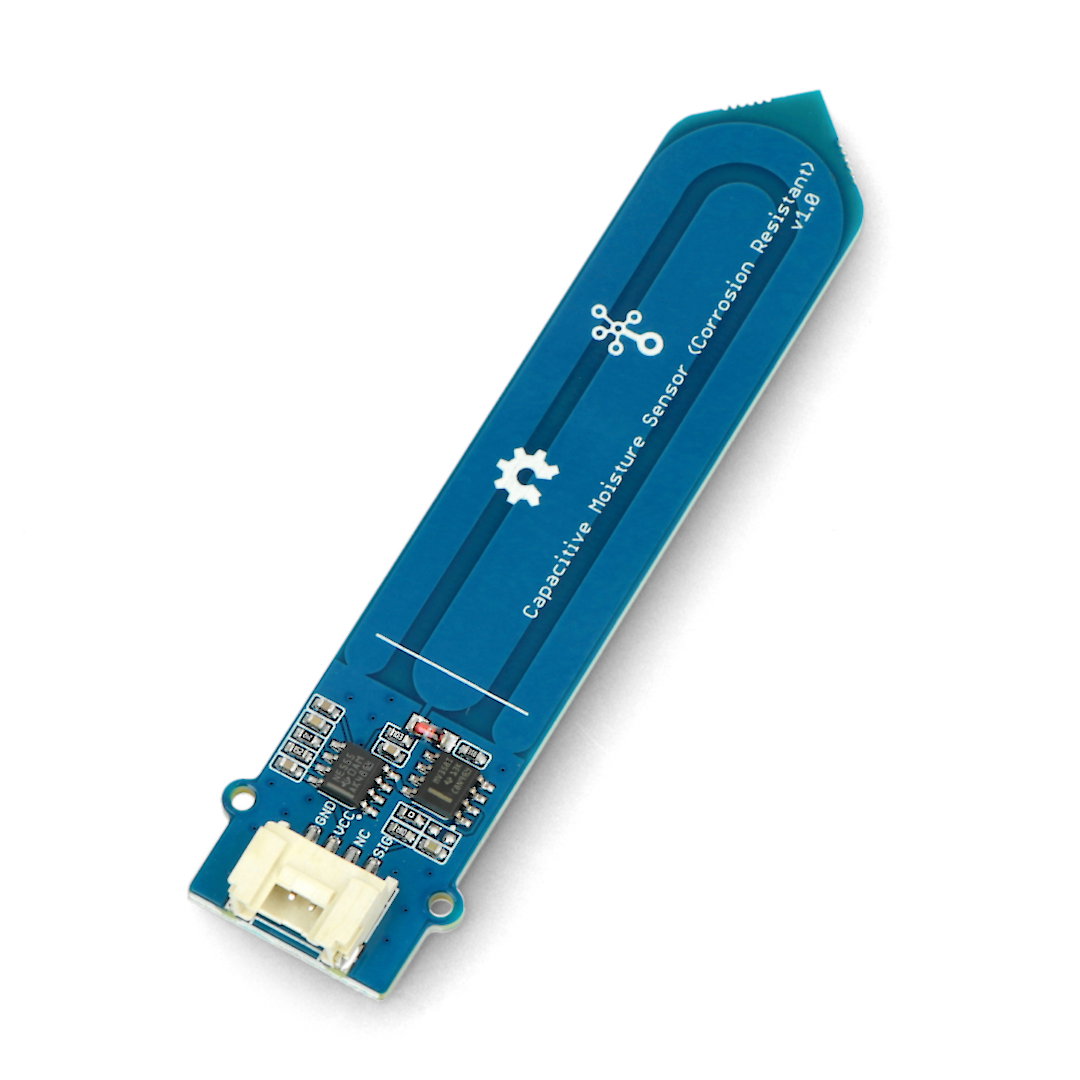

The device is usedto measure the soil moisturebythe capacitive detection. It has a built involtage regulatorwhich provides an operating voltage in the rangefrom 3.3 V to 5 V. Compared tothe resistance sensors,capacitive sensorsdo not require directexposure of metal electrodes,which can significantlyreduce the erosion of the electrodes.
|
The product is compatible withArduino The manufacturer has preparedthe user's guidefor Arduino and a library with a sample code. |
It is important to remember that this sensor can onlyaccurately check the humidity of the soiland cannotmeasure quantitatively. It means that when the soil moistureincreases, the output value decreases and vice versa, when the humidity decreases, the output value becomes higher.
Features
- Capacitive
- Corrosion resistant
- Built-in amplifier
Application
- Detection of moisture in the soil
- Automatic watering of plants

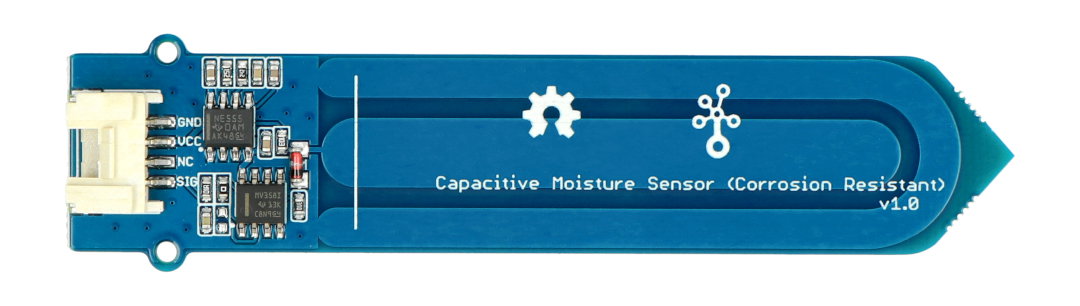

| Pin | Description |
|---|---|
| SIG | Analog output. |
| NC | Not connected |
| VCC | Supply voltage of 5V or 3.3 V |
| GND | The ground of the system. |
|
5 |
NE555DR IC |
|
6 |
LMV358ID IC |
|
7 |
Line of the top position |
Technical specification
| Attribute | The value |
|---|---|
|
Working voltage |
3.3 V / 5 V |
|
Interface |
Analog |
|
Length |
92.1 mm |
|
Width |
23.5 mm |
|
6.5 mm |
