Grove - TH02 - I2C temperature and humidity sensor

Index: SEE-04413 EAN: 5904422368906

Temperature and humidity sensor TH02 from Grove with I2C interface. The temperature measurement range is from 0 °C to 70 °C and humidity from 0 to 80% RH.

Grove - TH02 - I2C temperature and humidity sensor
€11.00
€8.94 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino

Description

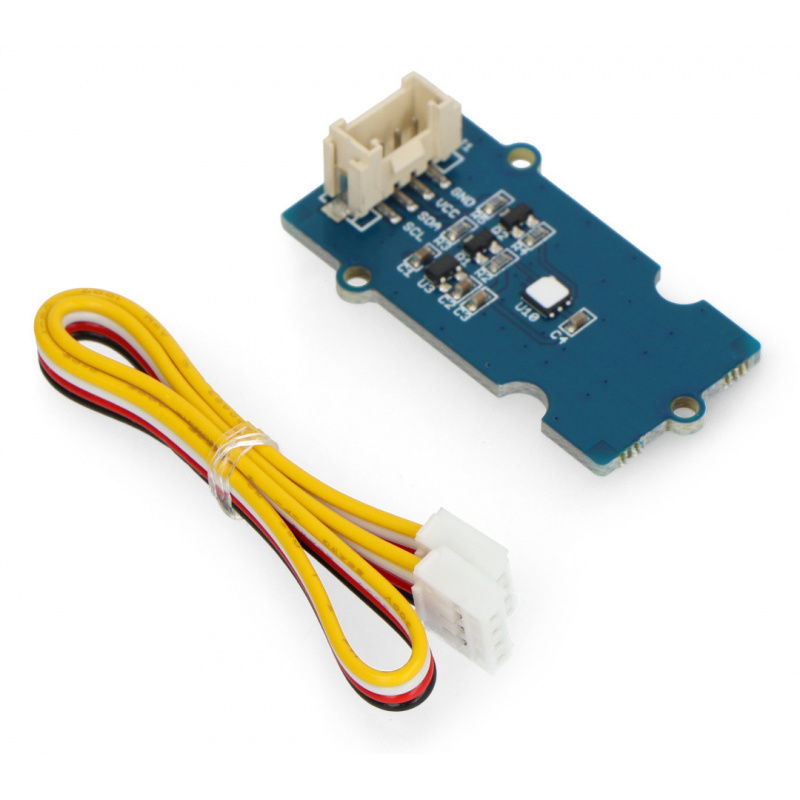

Temperature and humidity sensor TH02 from Grove with I2C interface. The temperature measurement range is from 0 °C to 70 °C and humidity from 0 to 80% RH. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.



Specification

  • Supply voltage: from 3.3 V to 5 V
  • Supply current: 350 µa
  • Measuring range:
    • Humidity: 0% to 80% RH
    • Temperature: 0 °C to 70 °C
  • Measurement accuracy:
    • Humidity: ± 4.5% of RH
    • Temperature: ± 0.5 °C
  • Communication: I2C
  • The kit includes a cable to connect toBase Shield v2.0



The product is compatible with Arduino

The manufacturer offers auser guide and GitHub, where you can findsample code for Arduino.



Outputs

The system has a four outputs, for which there is a cable included in the package.

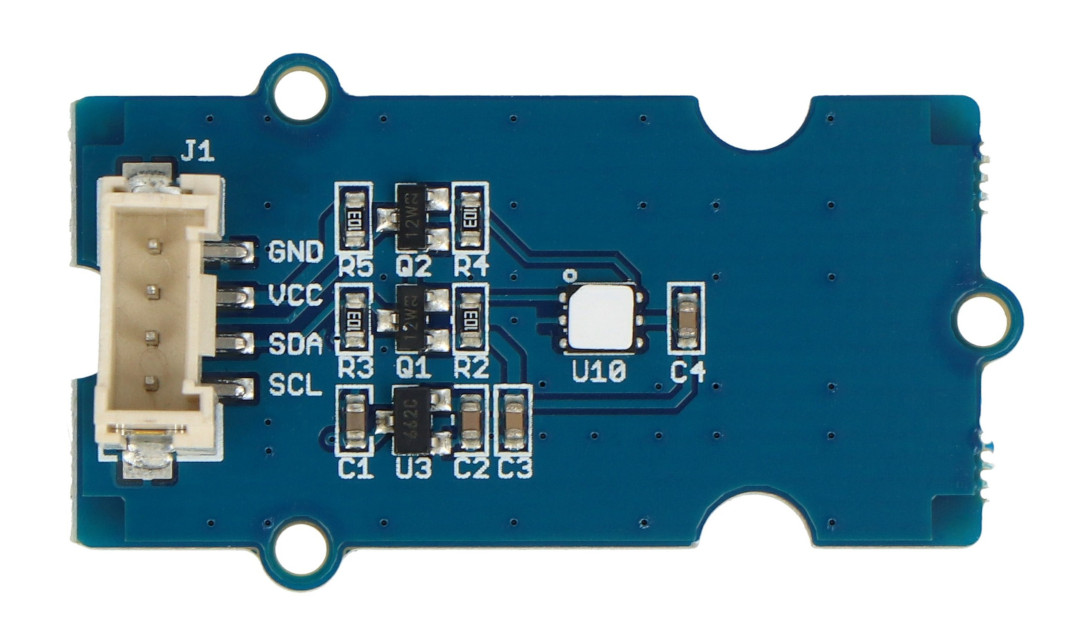

TH02 - czujnik temperatury i wilgotności I2CThe distribution of elements on the board.



Pin Description
VCC Supply voltage: from 3.3 V to 5 V.
GND The ground of the system.
SCL Clock line of I2C interface.
Traffic Data line of I2C interface.





Grove is a series of modules and sensors that are compatible with Base Shield boards working withArduinoandSTM32 Nucleo.





Interface I2C
Sensor - type temperature, humidity
Sensor - Temperature to 70 °C
Sensor - Temperature accuracy +/- 0.5 °C
Sensor - Temperature from 0 °C - 70 °C
Package width 6 cm
Package height 6.5 cm
Package depth 1 cm
Package weight 0.01 kg
