Description

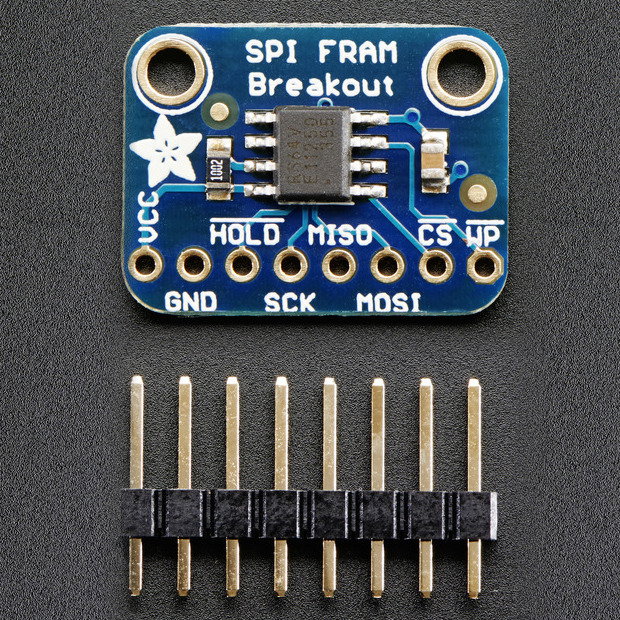

Module with non-volatile FRAM memory for data storage which is characterized by low power consumption and very high durability. Each byte can be read or saved 10 000 000 000 000 times. FRAMis also extremely stable in time, at room temperature, you can store the data even for 95 years.
The capacity of this system is 64 KB (8 KB), with the main microcontroller, it communicates via the SPI bus with the frequency of up to 20 MHz. The pins work with a voltage of 3.3 V and 5 V.
Pins
| Pin | Description |
|---|---|
| VCC | Supply voltage: 3 V to 5 V. |
| GND | The ground of the system. |
| HOLD | Indicating the low status, blocks the SPI bus operations. |
| CS | Chip select - selection of device on the SPI bus by the low status. |
| CCS | Clock line of the SPI bus. |
| MISO | The data line of the SPI bus. |
| MOSI | The data line of the SPI bus. |
| WP | Pin to protect the status registry. |
Specification
- Supply voltage: from 3.0 V to 5.0 V
- The operating voltage of the pins: from 3.3 V to 5.0 V
- Chip:MB85RS64V(documentation)
- Memory: 64 Kbit (8 KB)
- Memory type: FRAM
- Communication: SPI bus
- Pins: the holes for the goldpin connectors - 2.54 mm pitch (strap included in the set for self soldering)
- Board sizes: 15.5 x 20 x 2 mm
