Product description: Green Cell DC/AC step-up converter 12 V DC / 230 V AC 1000 W / 2000 W - with modified sine wave - car
The Green Cell brand converter is a practical device for powering equipment while traveling or camping. It allows you to convert the voltage of 12 V from a car battery to standard 230 V. It offers continuous power of 1000 W and instantaneous power of up to 2000 W. Thanks to the modified sine wave , it supports less demanding devices, such as laptops, kettles or chargers . The compact aluminum construction guarantees resistance to mechanical damage, and the built-in fan takes care of effective cooling and automatically turns on when the operating temperature exceeds the permitted one. Equipped with short-circuit, thermal and voltage monitoring protection, it ensures safe use. The converter has LED indicators and its efficiency is 85%. The set includes battery cables and spare fuses , making installation and use easier.

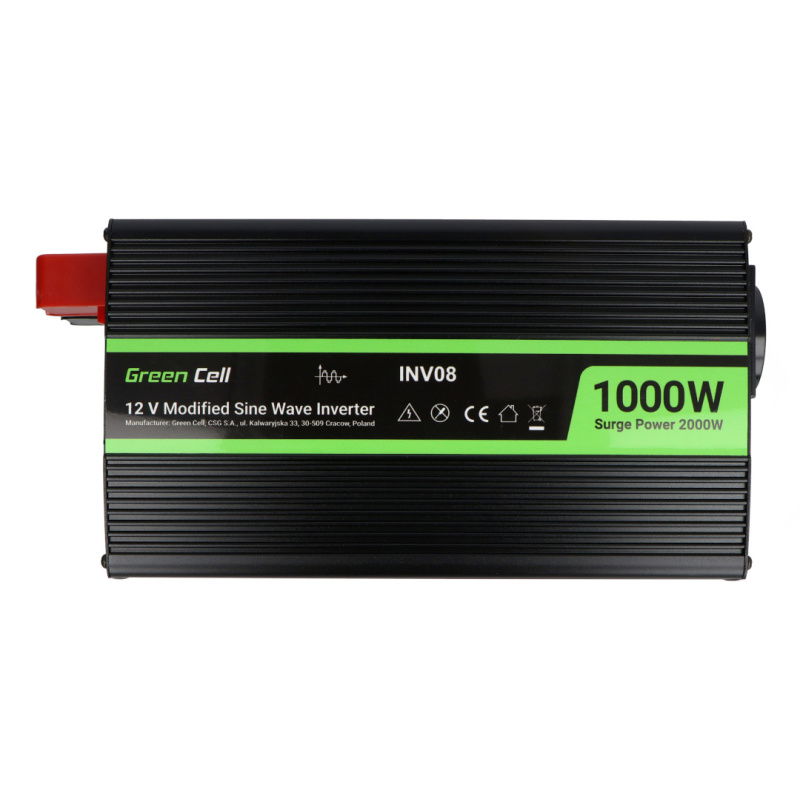

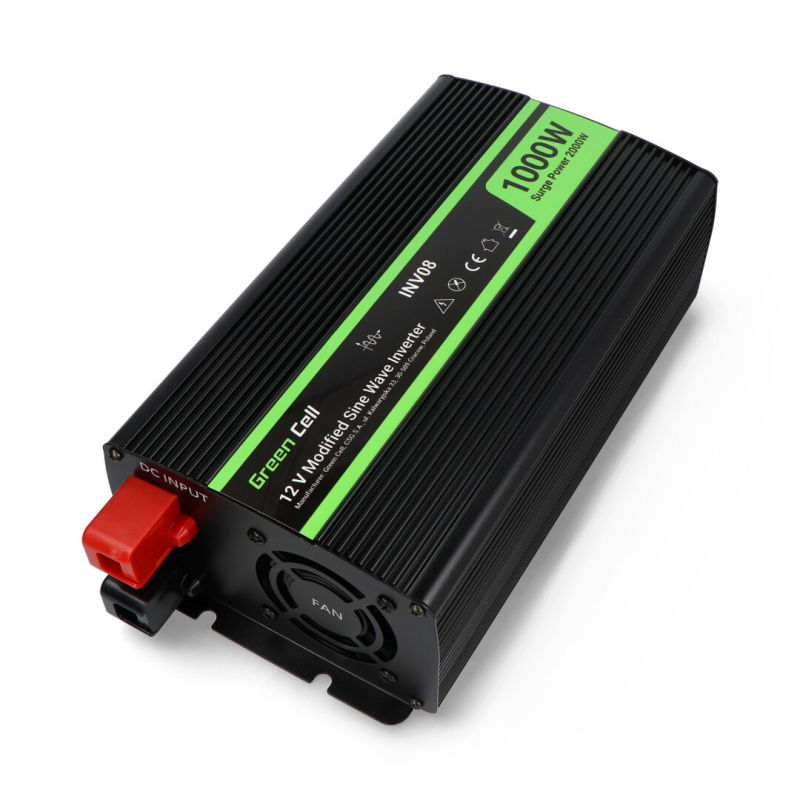

Green Cell DC/AC step-up converter 12 V DC / 230 V AC 1000 W / 2000 W - with modified sine wave - automotive.

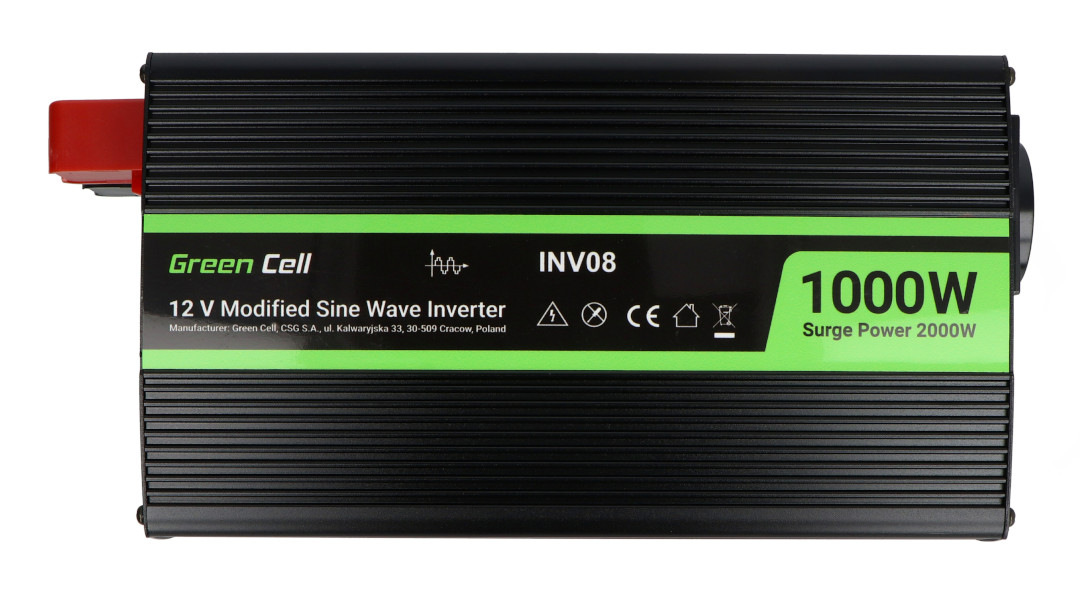

The converter allows you to convert the 12 V voltage from a car battery to standard 230 V.
Main features of the converter
- Voltage conversion : converts 12V DC from a car battery to 230V AC, allowing you to power your devices
- Output power : offers 1000W continuous and 2000W peak power, allowing you to drive a variety of devices
- Modified sine wave : ensures efficient operation of most electronic devices
- Safety : built-in short circuit, overload and overheating protection and replaceable fuse protect the converter and connected devices
- Built-in fan : intelligent cooling system starts at elevated operating temperatures, ensuring stable operation
- Versatile : can be used for camping, traveling or field work, powering devices with lower power consumption

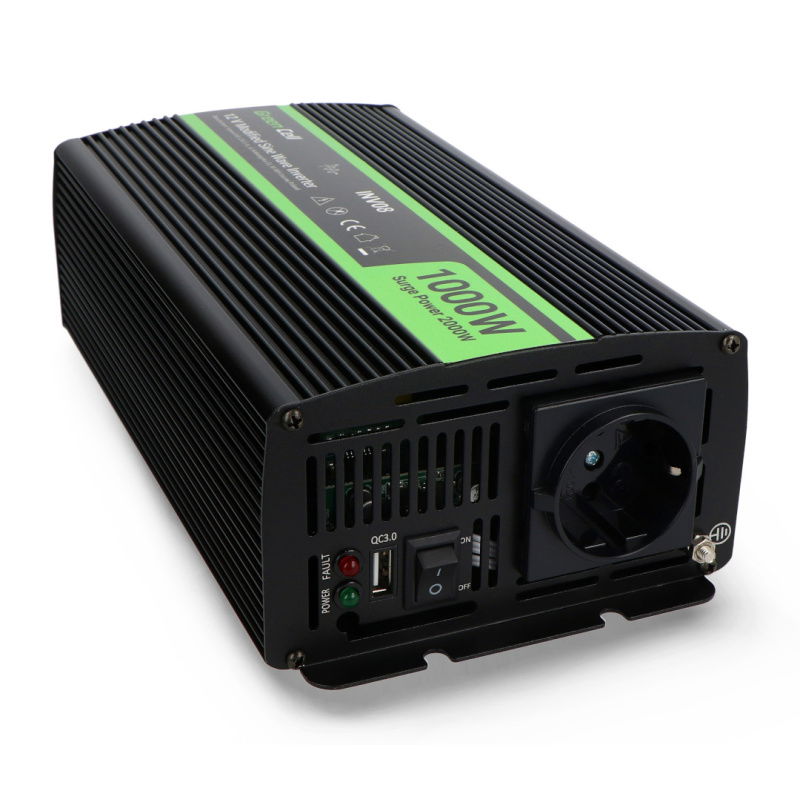

- USB port : additional USB port for charging mobile devices such as smartphones or tablets
- Solid construction : the aluminum housing is resistant to shocks and damage, and the compact dimensions make it easy to transport
How to choose a converter?
When selecting a converter, check the battery voltage (12 V or 24 V) and the power requirements of the devices (add them and choose a converter with a minimum margin of 15%). Devices with induction motors, such as refrigerators, require a pure sine wave , while those of a simpler nature, such as laptops or kettles, can operate on a modified sine wave. The converter will work well at the campsite, in delivery vehicles, for powering electronics or tools in the field.

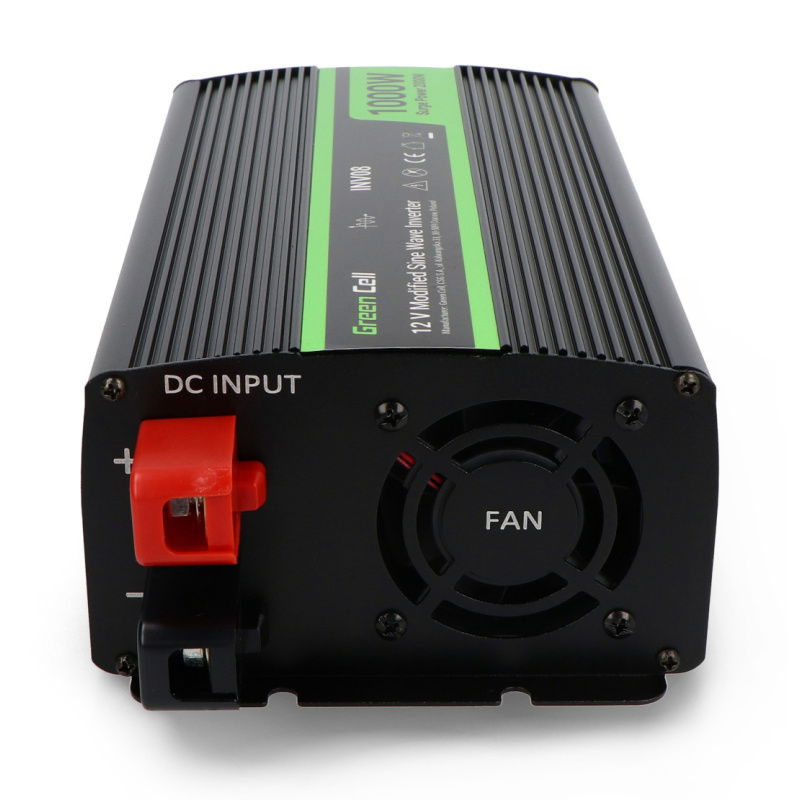

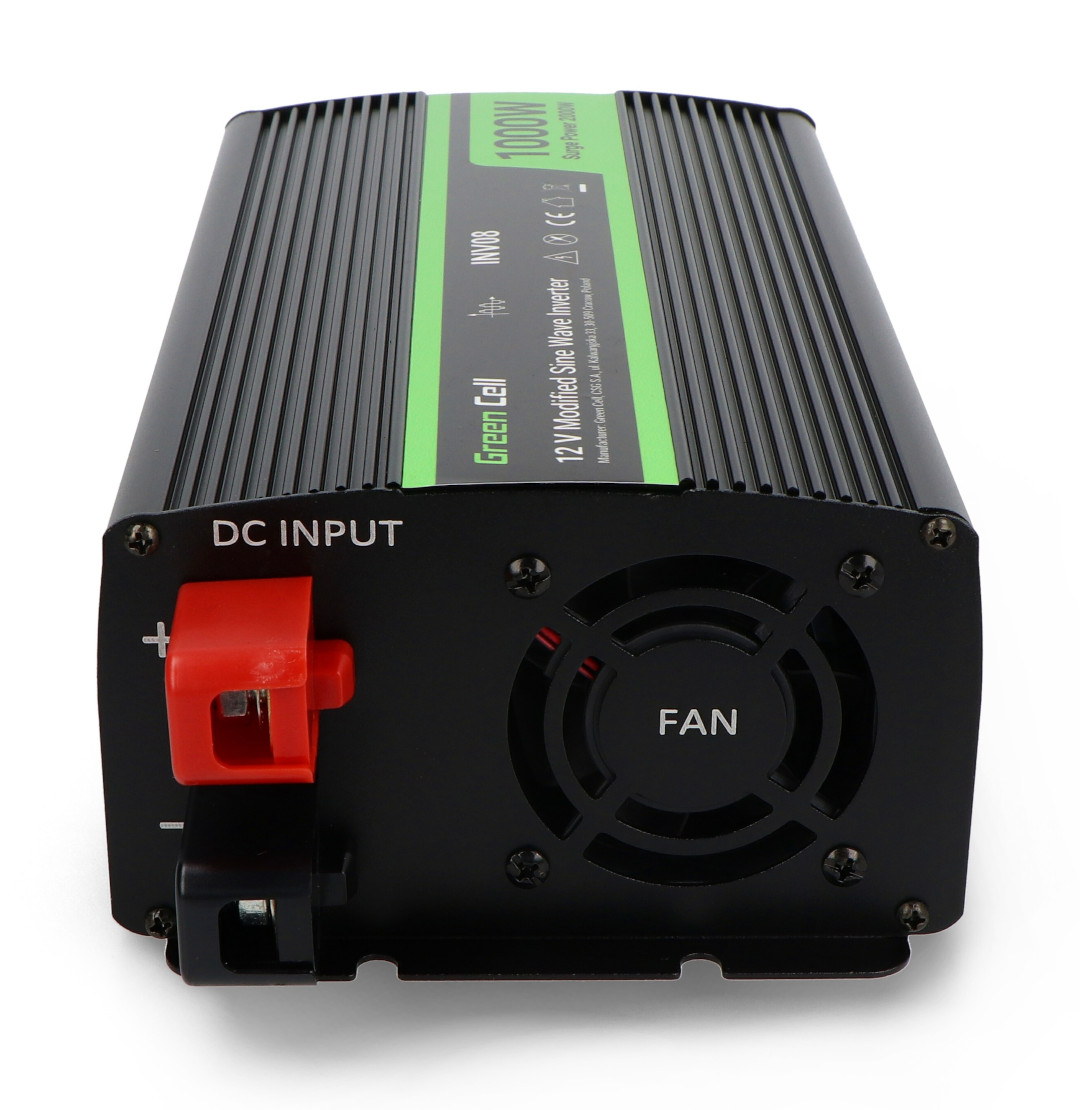

The converter has an intelligent fan that automatically turns on when the operating temperature exceeds the permitted level.

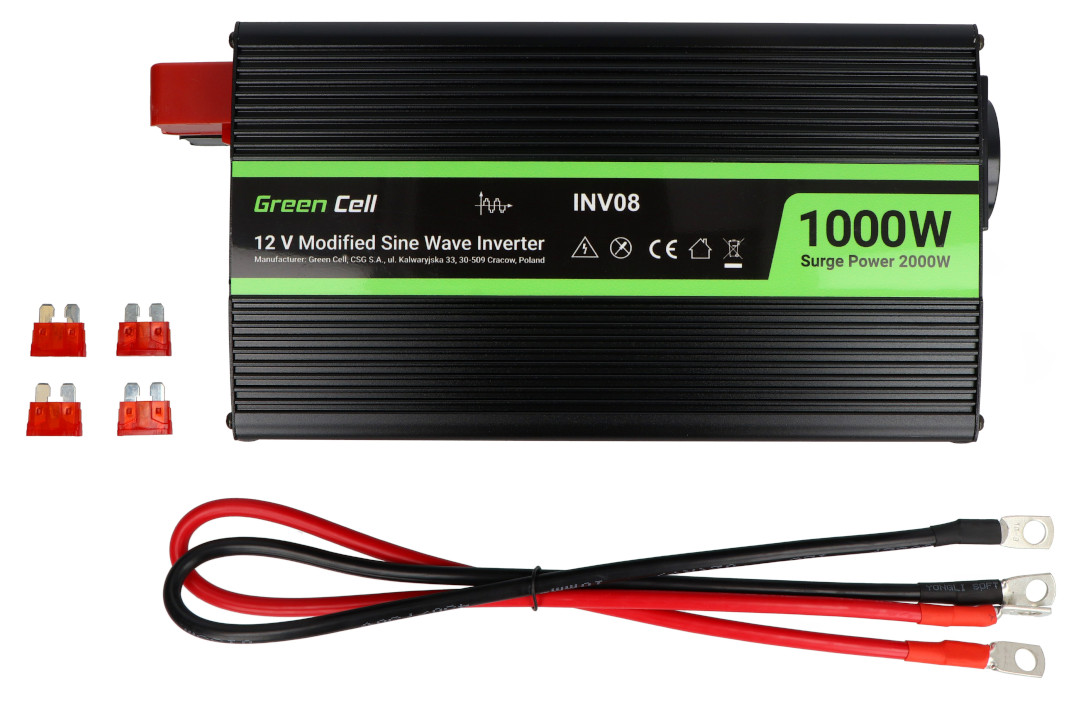

Items included in the set.
Technical specifications of the converter
- Model: INV08
- Input voltage: 12V DC
- Output voltage: 230V AC
- Output voltage shape: modified sine wave
- Rated power (continuous): 1000 W
- Overload power (instantaneous): 2000 W
- Efficiency: 85%
- Output frequency: 50 Hz
- No-load power consumption: 0.7 A
- Fuses: 30 A (4 pcs.)
- Dimensions: 264 x 135 x 76 mm
- Dimensions with mounting bracket: 272 x 135 x 78 mm
- Weight: 1.69 kg

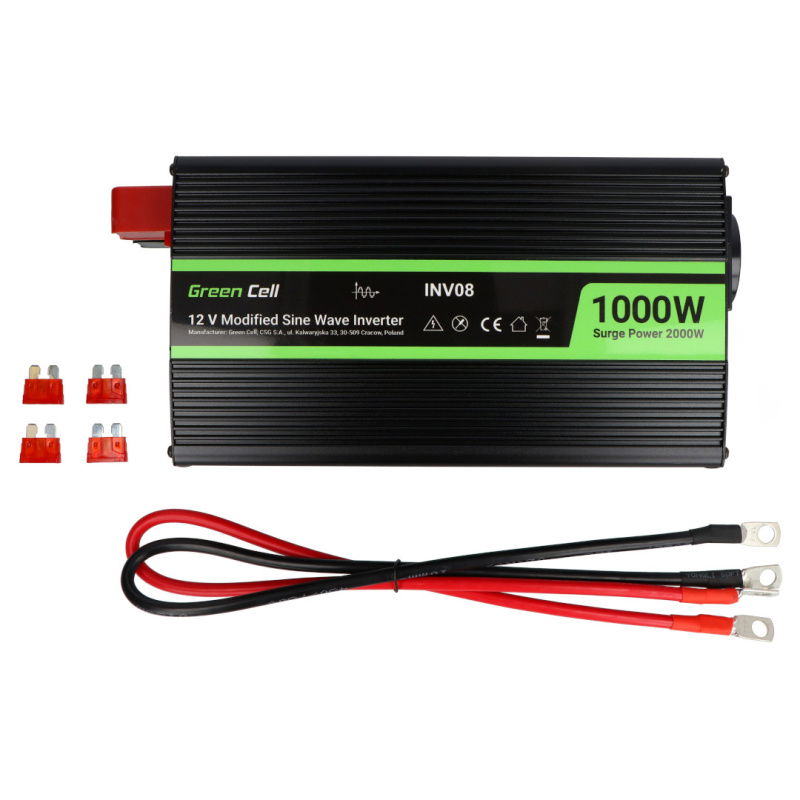

Kit Contents
- Green Cell 12V / 230V converter
- Battery connection cables
- Spare fuses
