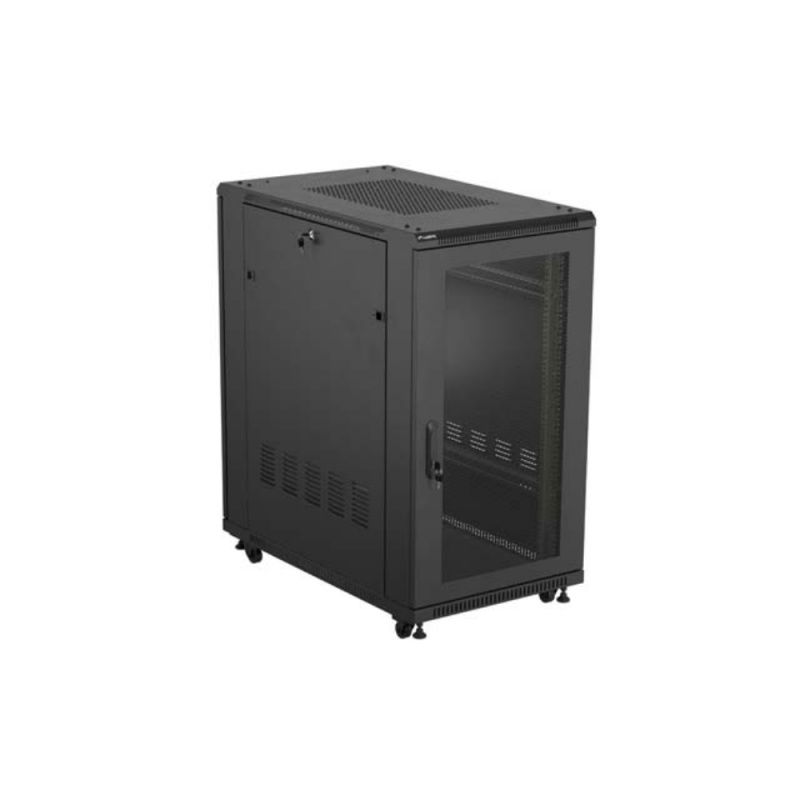

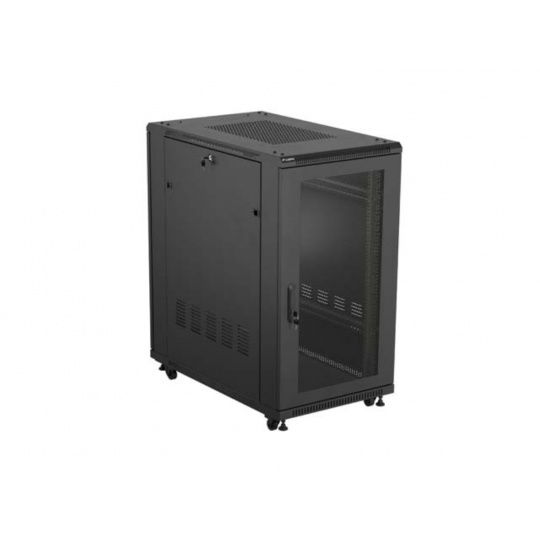

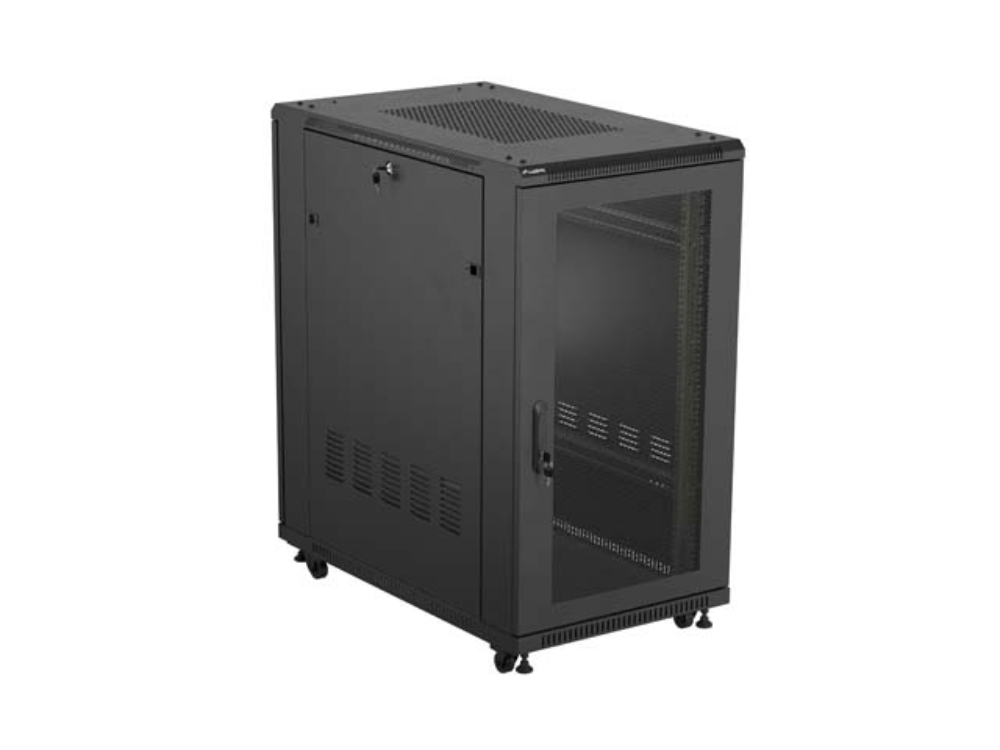

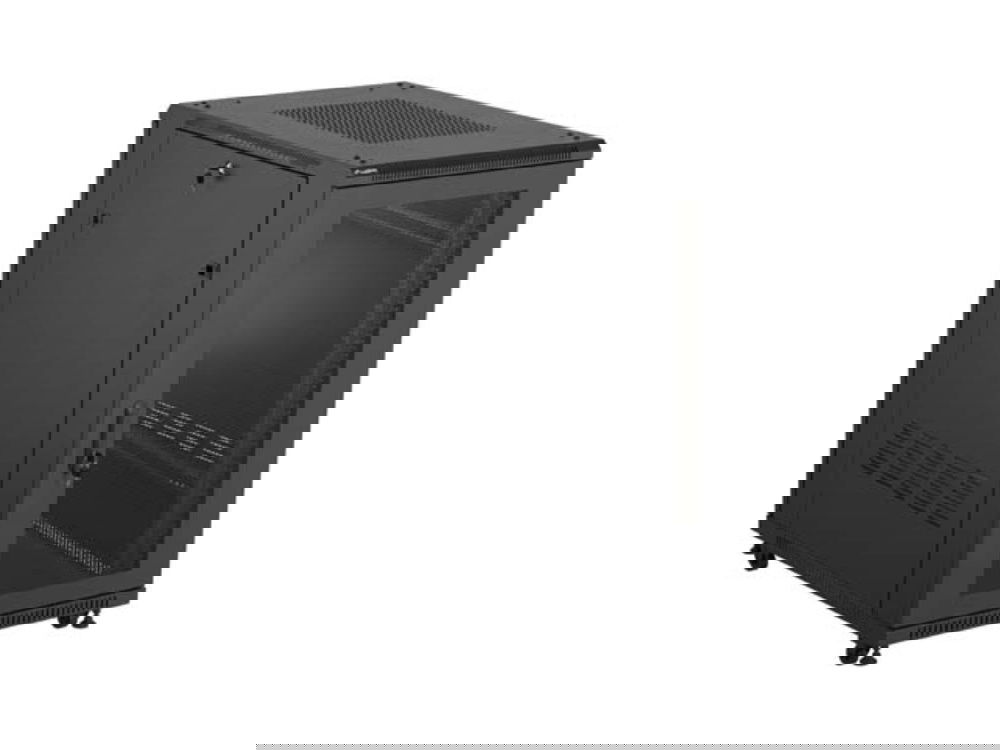

Product description: Floor-standing rack installation cabinet - 19'' 22U 600 x 1000 mm - black - Lanberg FF01-6022-23B
The Lanberg FF01 floor-standing server cabinet , with a 22U height and dimensions of 600 x 1000 mm, is a high-end solution designed for professional IT environments, data centers, and complex IT installations . Its design ensures maximum functionality, equipment security , and ease of use. Its robust cold-rolled steel housing guarantees stability, high durability, and resistance to damage, while also enabling easy management of a large number of network and server devices.
Floor-standing rack installation cabinet - 19'' 22U 600 x 1000 mm - black - Lanberg FF01-6022-23B.
Lanberg FF01 22U 600 x 1000 mm floor-standing server cabinet.
Special features
- Solid construction made of cold-rolled steel - high durability and load capacity up to 800 kg
- Perforated front and rear doors - over 60% perforation for excellent airflow
- Efficient cooling - a panel with six fans included and ventilation holes in the top of the cabinet
- Flat Pack design - easy transport and quick assembly thanks to precise packaging of components

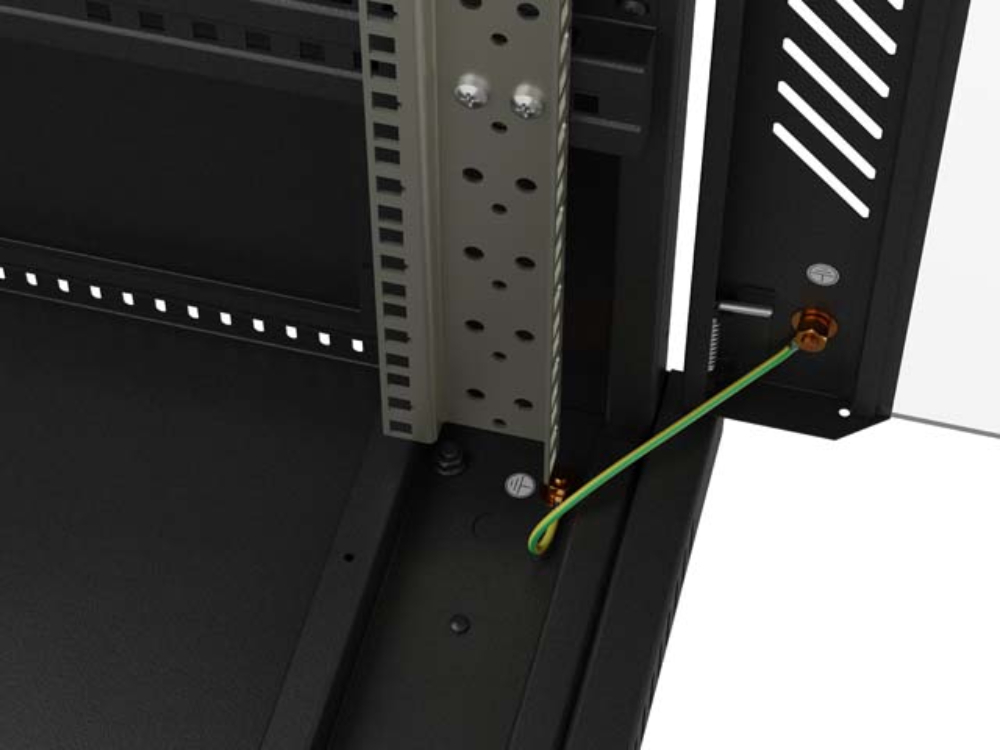

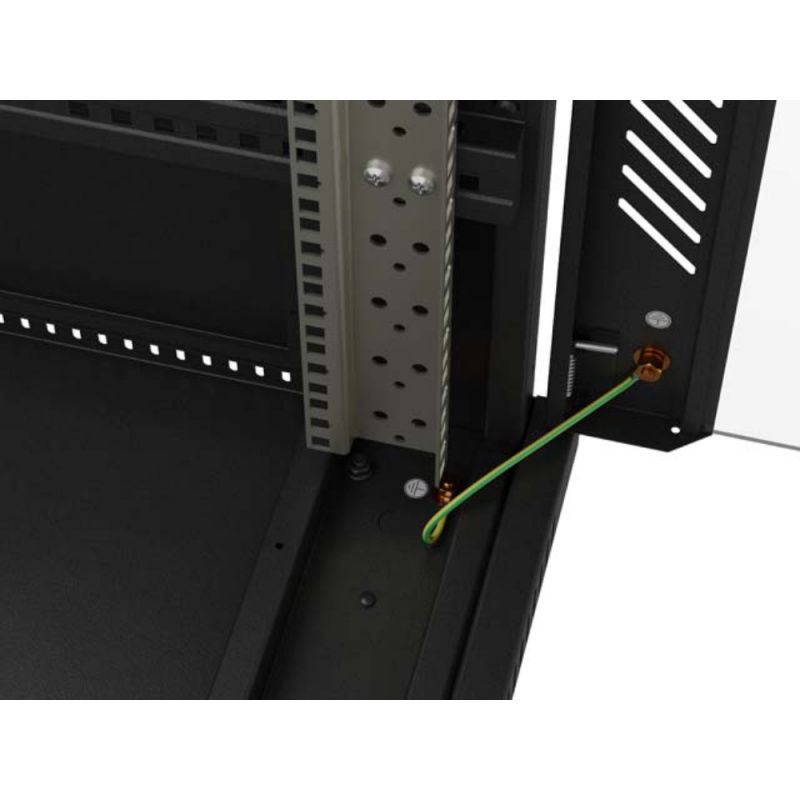

- Fully grounded - door and frame ground wires for maximum equipment safety
- High ergonomics - four vertical and four horizontal rails, easy access to equipment and numerous mounting accessories
- Compatibility with a wide range of Lanberg accessories - shelves, organizers, panels, PDUs and many more
Technical specifications of the wardrobe
- Telecommunication height: 22U
- Assembly: self-assembly (Flat Pack)
- Wardrobe type: free-standing

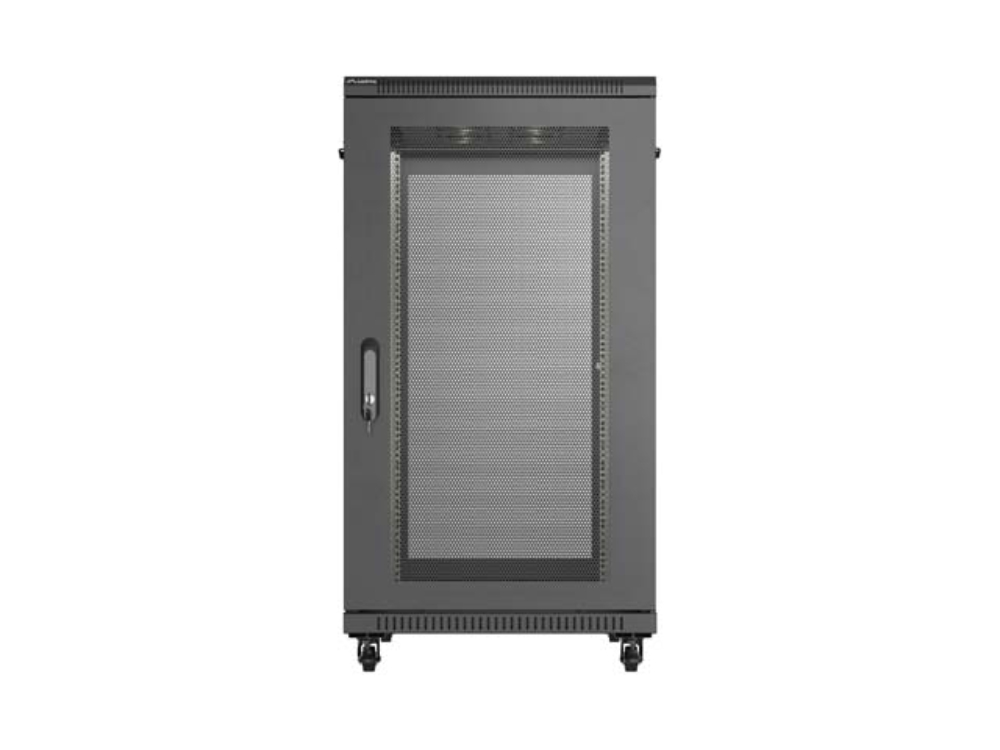

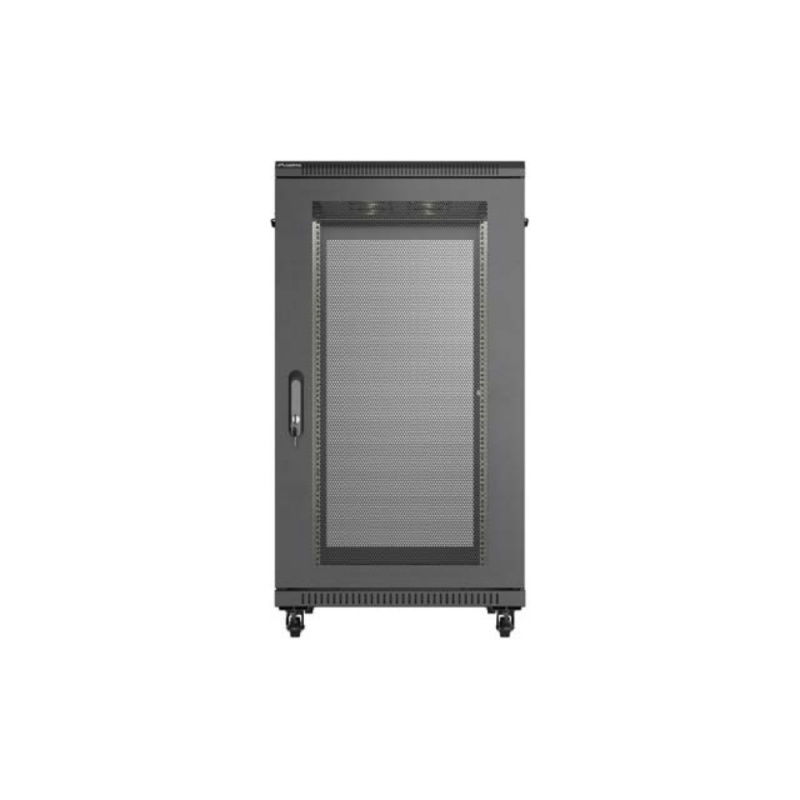

- Front door: perforated, single-leaf
- Rear doors: perforated
- Door perforation rate: > 60%
- Maximum door opening angle: 210°
- Maximum static load: 800 kg
- Ventilation: 6 fan slots, 6-fan panel included
- Mounting rails: 4 vertical + 4 horizontal
- Thermostat: no
- LCD panel: no
- Protection class: IP20
- Element thickness: 1.2 mm, mounting rails: 2 mm
- Standards: ANSI/EIA RS-310-D, IEC297-2:1982, DIN 41491/PART 1, DIN 41494/PART 7, ETSI
- Ground: front door, rear door, frame
- Color: black (RAL 9004)
- Mounting depth: 880 mm
- Mounting height: 978 mm
- Height without wheels: 1128 mm
- External dimensions: 600 x 1000 x 1200 mm
- Weight: 72 kg
A solution designed for professional IT environments, data centers and extensive ICT installations.
The solid housing made of cold-rolled steel guarantees stability, high durability and resistance to damage.
Contents of the set
- Lanberg FF01 (22U) rack cabinet - Flat Pack components
- Ventilation panel with 6 fans
- Front zipper
- Side zippers
- Rear zipper
- Grounding wire
- Wheels with brakes
- Legs (adjustable feet)
- M6 mounting screws
