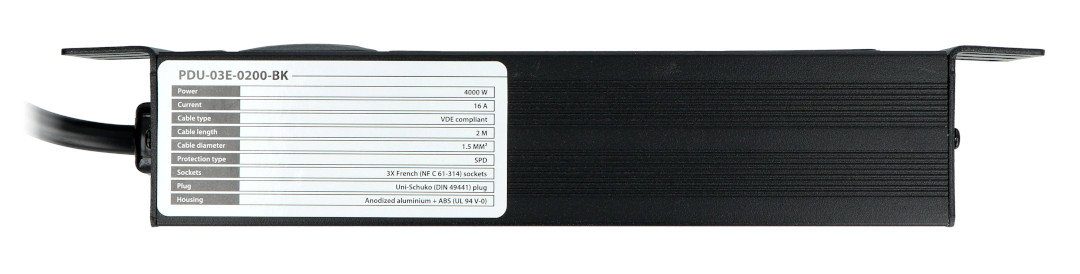

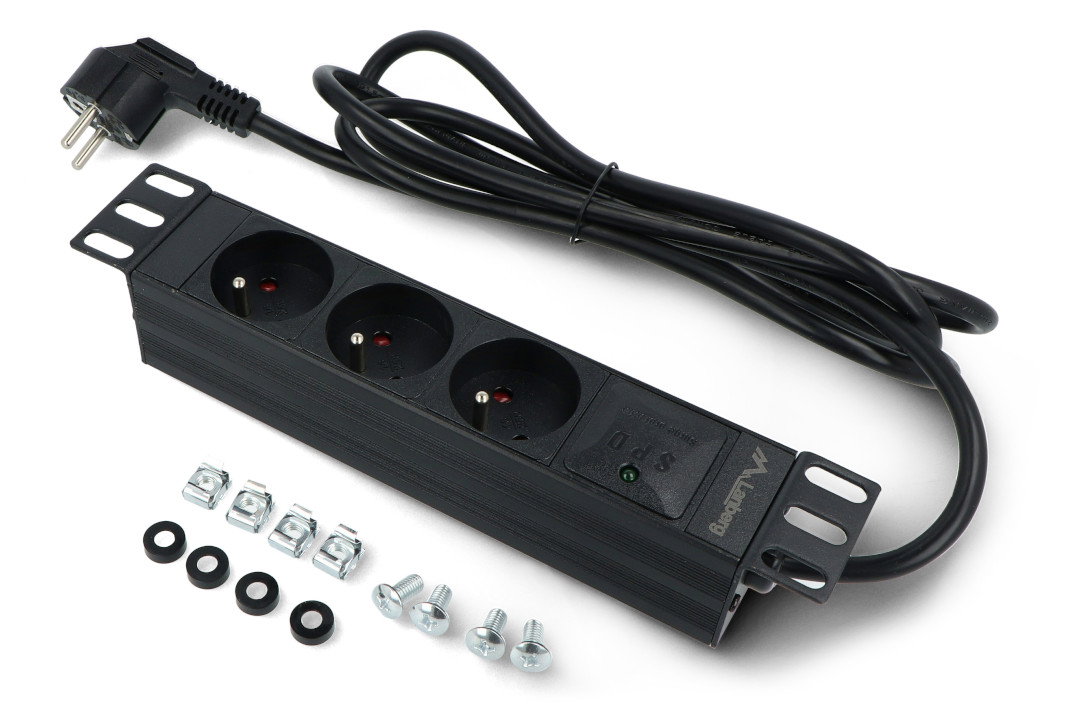

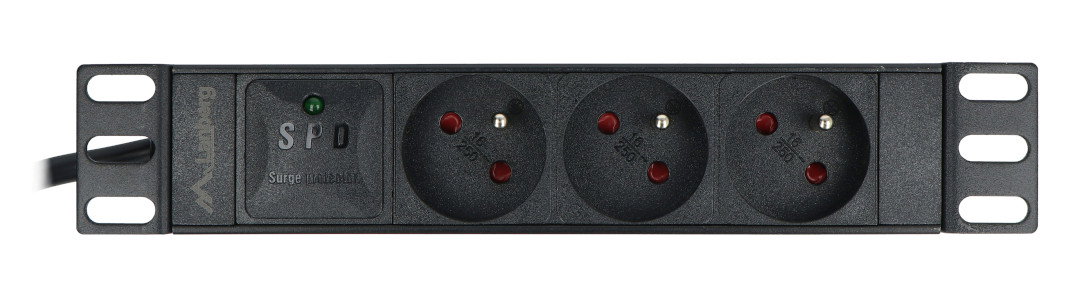

Product description: Power strip for 10'' server racks - 3 sockets 16 A - 2 m - black - Lanberg PDU-03E-0200-BK
The Lanberg power strip is a device designed for professional power supply applications. Designed for horizontal installation in 10" server cabinets , it provides stable and safe power supply for connected devices. Equipped with a single-phase power input and a number of protections, such as overload protection and current path shutters. Additionally, an automatic fuse with a green LED indicator allows easy servicing and replacement , which significantly increases functionality and comfort of use. The excess cable cross-section ensures uninterrupted operation even when fully loaded, which makes this strip an ideal solution for professional server environments. High-quality aluminum casing and detachable mounting ears (which can be reversed) add durability to the structure.
Power strip for 10'' server racks - 3 sockets 16 A - 2 m - black - Lanberg PDU-03E-0200-BK.
Power management strip in 10" server racks.
Special features of the power strip
- 1U height: saves space in server racks, allowing the installation of many components.
- Voltage range from 220 V to 250 V: a wide voltage range ensures versatility of use.
- Maximum power 4000 W: the strip withstands high loads, ideal for intensive use.
- Automatic fuse with green LED indicator: facilitates possible servicing and replacement.
- Surge protection: protects equipment from sudden voltage surges, maximum protection current up to 5000 A.
- Material: high-quality aluminum ensures durability and strength of the strip.
- Unscrewable mounting ears: allow for easy installation and can be reversed for greater flexibility.
- 2 m cable length: sufficient cable length with a 1.5 mm² cross-section, VDE-compliant, ensures a safe connection to the power supply.
Technical specifications of the strip
- Socket type: E type
- Number of sockets: 3
- Plug type: uni-schuko
- Fuse type: automatic
- Number of fuses: 1
- Fuse response time: 25 ns
- Current intensity: 16 A
- Maximum power: 4000 W
- Voltage range: 220V to 250V
- Frequency range: 50 Hz / 60 Hz
- Max. surge protection intensity: from 3000 A to 5000 A
- Protections: surge protection
- Purpose: rack cabinets
- Switch: no
- Telecom height: 1 U
- Size: 10"
- Installation direction: horizontal
- Mounting holes: yes
- Cable length: 200 cm
- Type and type of output socket pins: solid, brass
- Cable type: 3-core, cross-section 1.5 mm², VDE compliant
- Material: aluminum
- Black colour
- Dimensions: 45 x 203 x 44.45 mm
- Weight: 0.8 kg
Set contents.
