4-Digit 7-Segment Display with I2C Digit Clock Unit - Red - M5Stack U146

Index: MSS-21787 EAN: 6972934173812
UNIT-Digi-Clock module with a 7-segment display consisting of 4 digits with dots. The numbers are highlighted in red . The module uses TM1637 as the driver IC and STM32F030 as I2C communication. The I2C address can be modified with a 4-bit DIP switch . The module is powered by 5 V. The set includes a 4-pin cable.
4-Digit 7-Segment Display with I2C Digit Clock Unit - Red - M5Stack U146
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack

Product description: UNIT-Digi-Clock 4-digit 7-segment display module - red I2C - M5Stack U146

UNIT-Digi-Clock module for 7-segment display by M5Stack . Allows you to display four numbers with a colon and some letters. Its diagonal display is 2.1" . Thanks to its small size, working with the module should not cause any difficulties. The user does not have to solder anything himself, the display is already connected to the board. The module is equipped with the TM1637 display driver and the STM32F030 chip responsible for I2C communication The I2C address can be modified using a 4-bit DIP switch.The digits are illuminated by red LEDs in 8 brightness levels.The module is powered by 5 V. The set includes a 4-pin cable .

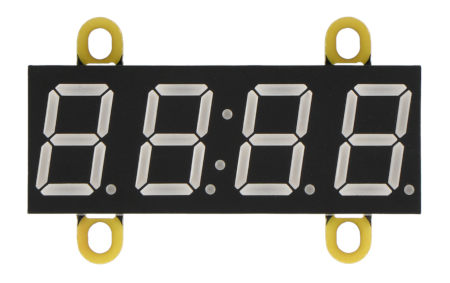

The module is equipped with 4 mounting holes.

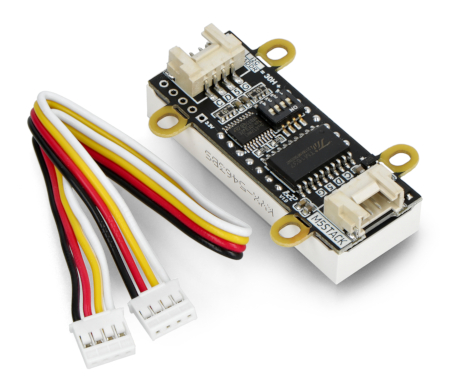

The kit includes a display module and a 4-pin cable.

Main features of the product

  • Module based on STM32F030
  • Equipped with TM1637 display driver
  • I2C communication interface
  • 7-segment, 4-digit display
  • Illumination of digits by red LEDs
  • Compatible with Arduino

Arduino compatible product. The manufacturer provides a detailed user guide .

Included

  • Digit Clock Unit display module
  • 4-pin cable

Application of the display

  • clock display
  • data display
  • Stopwatch

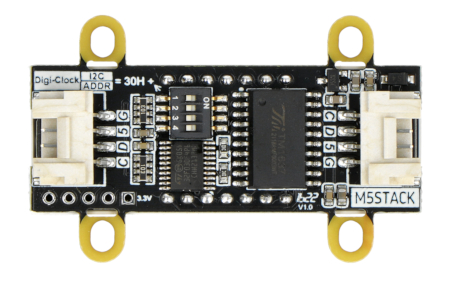

The product does not require the user to solder himself, the display is already connected to the board.

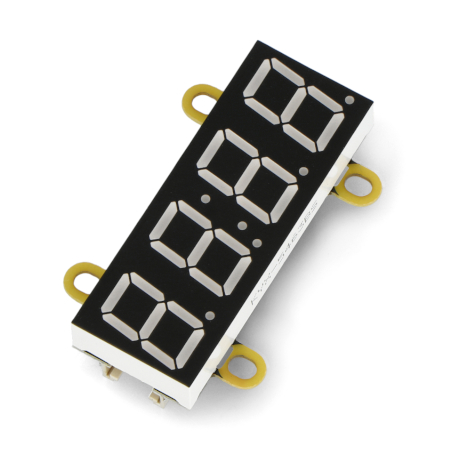

The UNIT-Digi-Clock module of the M5Stack 7-segment display, which allows you to display four digits with a colon and some letters.

Technical Specifications

  • Microcontroller: STM32F030
  • Display driver: TM1637
  • Number of digits: 4
  • Number of segments: 7
  • Backlight color: red
  • Brightness levels: 8
  • Interface: I2C
  • I2C address: 0x30
  • Power: 5V
  • Mounting holes: 4 (3 x 4 mm)
  • Dimensions: 50x31x14mm
  • Net Weight: 12.5g
  • Gross weight: 17.8g
  • Packaging: plastic bag

Screen - type sectional LED
Screen - diagonal 2.1 "
Screen - interface I2C
Screen - touch no
Screen - resolution 4 cyfry
Package width 9 cm
Package height 9.5 cm
Package depth 1.5 cm
Package weight 0.018 kg
