Product description: NeoPixel Stick - LED strip 8 x RGBW 5050 - warm white - Adafruit 2867
The NeoPixel Stick module is equipped with 8 RGB LEDs with SK6812/WS2812B chip. Thanks to the circuits built into the diodes, each of them can be individually addressed - it can shine independently from the others. Using the NeoPixel Stick module, you can create various types of visual projects, make your own arrangements and home lighting. Only one pin of the microcontroller is enough to operate the board. The LEDs are placed at equal distances from each other, and the location of the connectors on both sides of the module allows them to be connected in series.

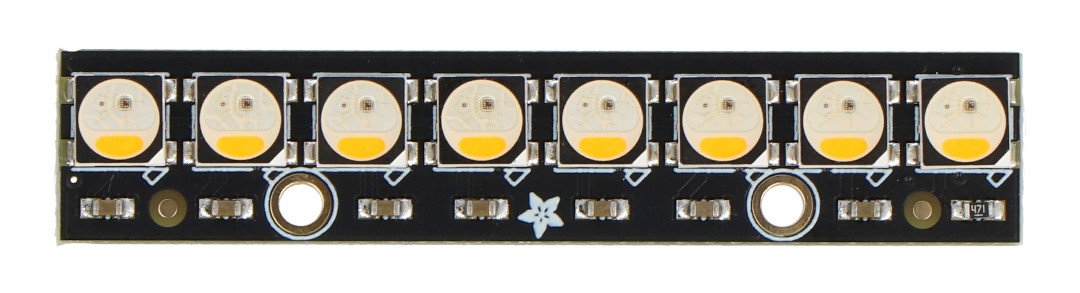

NeoPixel Stick - LED strip 8 x RGBW 5050 - warm white - Adafruit 2867.
Equipped with two mounting holes, facilitating the implementation of various types of projects.
Specification of the NeoPixel Stick module
- Number of LEDs on the strip: 8 pieces
- LED type: RGBW 5050
- White temperature: 6000 K
- White shade: warm
- LED chip: SK6812/WS2812B
- LED type: individually addressed
- Two mounting holes
- Connectors on two sides for connecting the strips
- Supply voltage: 4 V to 7 V DC
- Current consumption: approx. 18 mA per LED
- Tile sizes: 10.2 x 51.1 x 3.2 mm
- Weight: 2.6 g
Pinout description
The leads of the strip have been placed on its both sides to allow the user to connect up to a dozen of such tiles. The pins are in the form of solder pads to which the wire should be soldered and connected to the main module - eg Arduino .
- GND - module ground
- 5VDC - supply voltage 5V
- DIN (Data IN) - digital control signal from the microcontroller
- DOUT (Data OUT) - output for connecting the next module

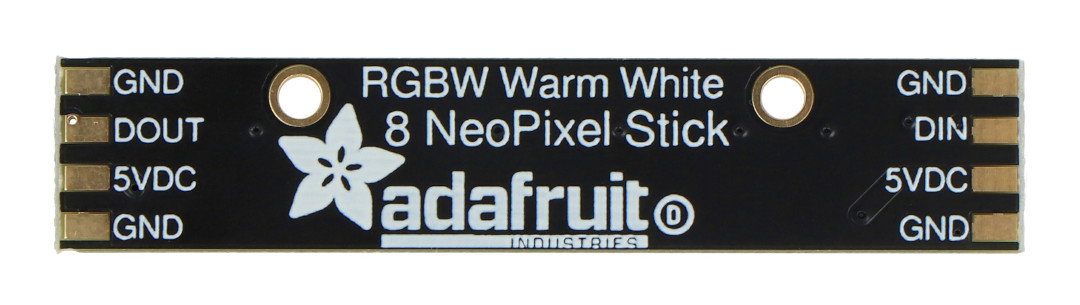

The NoePixel Stick leads are placed on both sides of the PCB.
