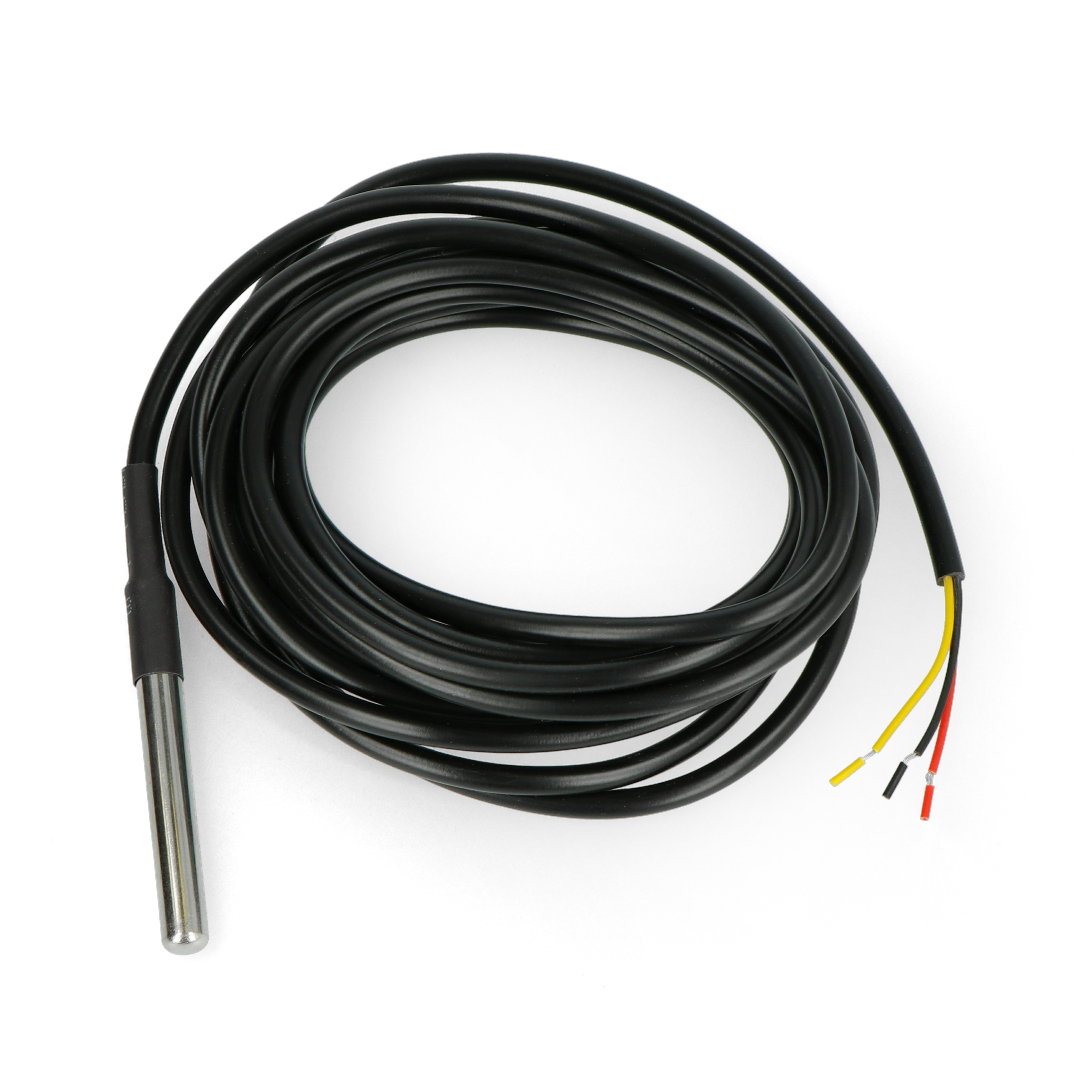

Description: Waterproof probe with temperature sensor DS18B20 - Okystar - 3 m.
Waterproof probebased on a digital sensorDS18B20. The supply voltage is from3 Vto5,5 V. The sensorallows to measure temperature of places distant, difficult to reach from the main controller and in places with high humidity. The casingis made of stainless steel and has the following dimensions50 x 6 mm. The length of the cable is3 m. The device operates in temperaturesfrom -55°C to 125°C.
| A4.7kΩ resistorconnectedbetween the power supply and the signal cable is required for correct temperature reading. |

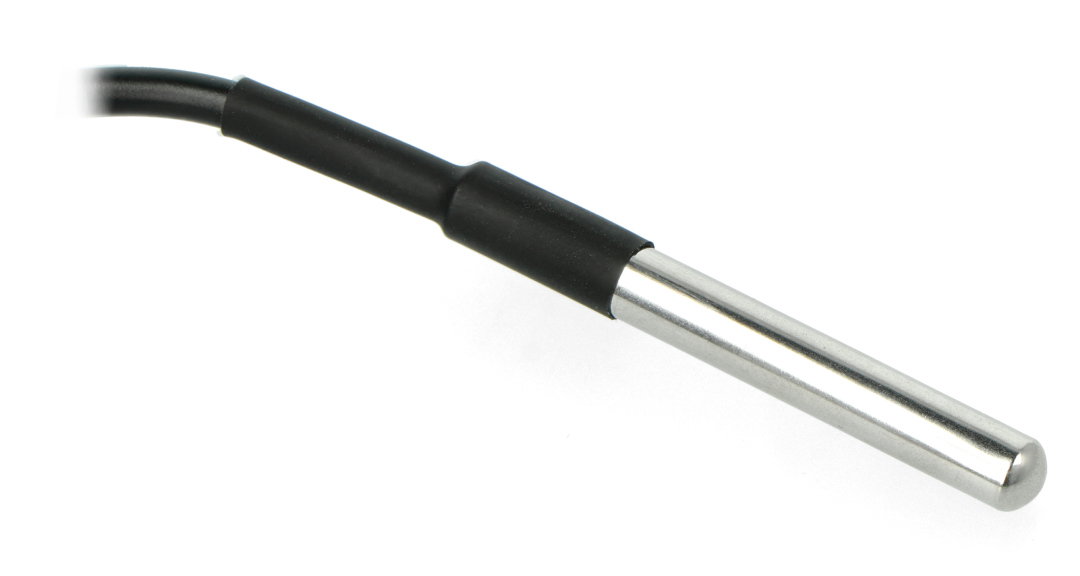

Waterproof probe with temperature sensor DS18B20 - Okystar - 3 m.
|
Product compatible withArduinoandRaspberry Pi The user guide forArduinois available at thisaddress. The sensor can also be operated via RaspberryPiby connecting as described in thisarticle. |
The leads are insulated wires:
- VCC power supply - red
- GND weight - black
- Data 1-Wire - yellow
The probe is terminated with three wires in insulation.
Probe specification with temperature sensor
- Colour: black
- Housing material: stainless steel
- Built-in temperature sensor: DS18B20
- Supply voltage: 3 V to 5.5 V
- Operating temperature range: -55°C to 125°C
- Storage temperature: from -55°C to 125°C
- Accuracy: ±0.5°C in temperature range from -10°C to 85°C
- Interface: 1-Wire
- Cable length: 3 m
- The dimensions of the probe: 6 x 50 mm
Useful links |
Waterproof probe based onDS18B20chip. Power supply voltage is3 Vto5.5 V. The sensor allows to measure temperature of places distant, difficult to reach from the main controller and in places with high humidity. The housing is made of stainless steel and has dimensions of50 x 6 mm. The cable length is3 m.
[LON_G][LINK]Specification
- Capacity: 1 μF
- Maximum voltage: 50 V
- Length with pins: 14 mm
- Pins' pitch: 5 mm
| Items are sold in set of 10 pieces in signed packages. |
