Description

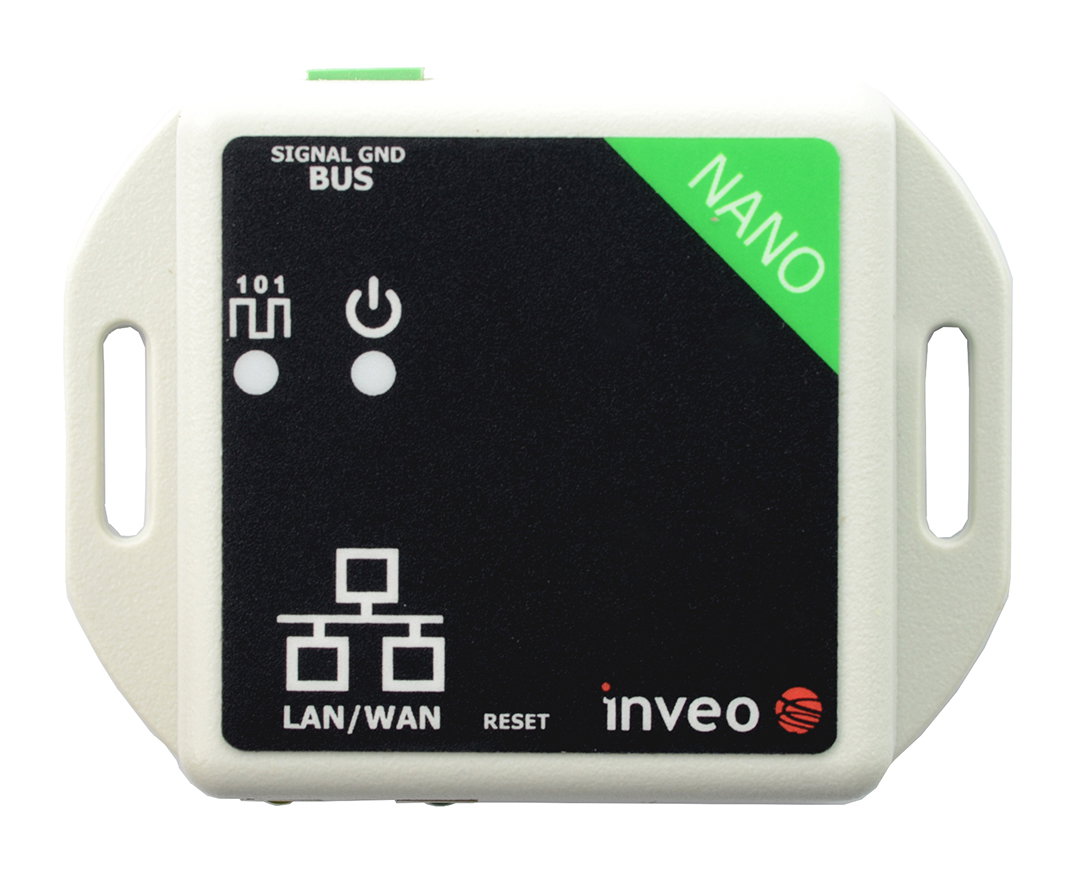

Inveo module allows remote measurement of temperature via the Internet. It features a waterproof probe with DS18B20 temperature sensor and a 1m long wire. The module is powered by a DC adapter or over a network (PoE).
Communication with the device can be accomplished in several ways:
- using the built-in WEB server
- using commands line
- using the MODBUS TCP Protocol
- using Android device
The sample temperature measurement via the website.
| The manufacturer provides a detailedmanualof the Nano PACEmodule. |
Specification
- Supply voltage: from 10V to 24V (DC Jack or PoE)
- Number of inputs: 1
- Sensor type: DS18B20
- Interface: RJ45 (10Base-T)
- Supported protocols:
- HTTP
- TCP
- SNMP
- MODBUS TCP
- Operating temperature: 5°C to 50°C
- Dimensions: 66 x 50 x 20mm
Included
- Nano TEMP
- Power module
- Temperature sensor with 1m long cable
