Description: Waterproof probe with temperature sensor DS18B20 - 10 m
High qualityprobewithDS18B20digital temperature sensor. The probe's housing is watertight and waterproof, made of stainless steel. The probe is poweredfrom 3 V to 5.5 V. It allows temperature measurements from -55°Cto 125°C.It is used together with measuring devices in high humidity conditions or in polluted environment. The purpose of the probes is to facilitate measurements in places that are difficult to reach. The sensor housing has dimensions of6 x 50 mmand the power cord is10 mlong.
| A4.7kΩ resistorconnectedbetween the power supply and the signal cable is required for correct temperature reading. |

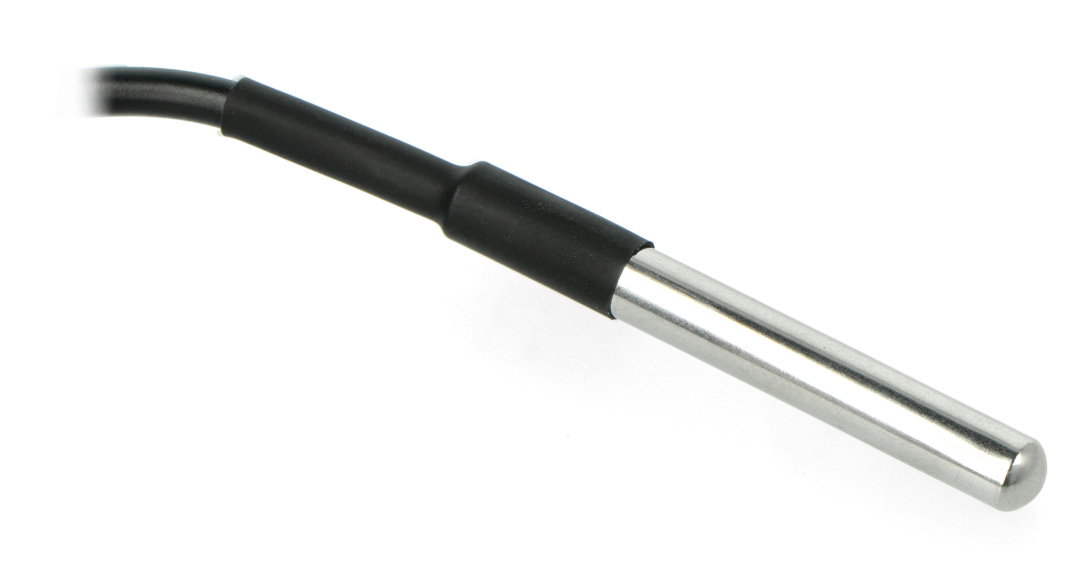

The sensor is hidden in a waterproof stainless steel housing.
|
Product compatible withArduinoandRaspberry Pi The user guide forArduinois available at thisaddress. The sensor can also be operated via RaspberryPiby connecting as described in thisarticle. |

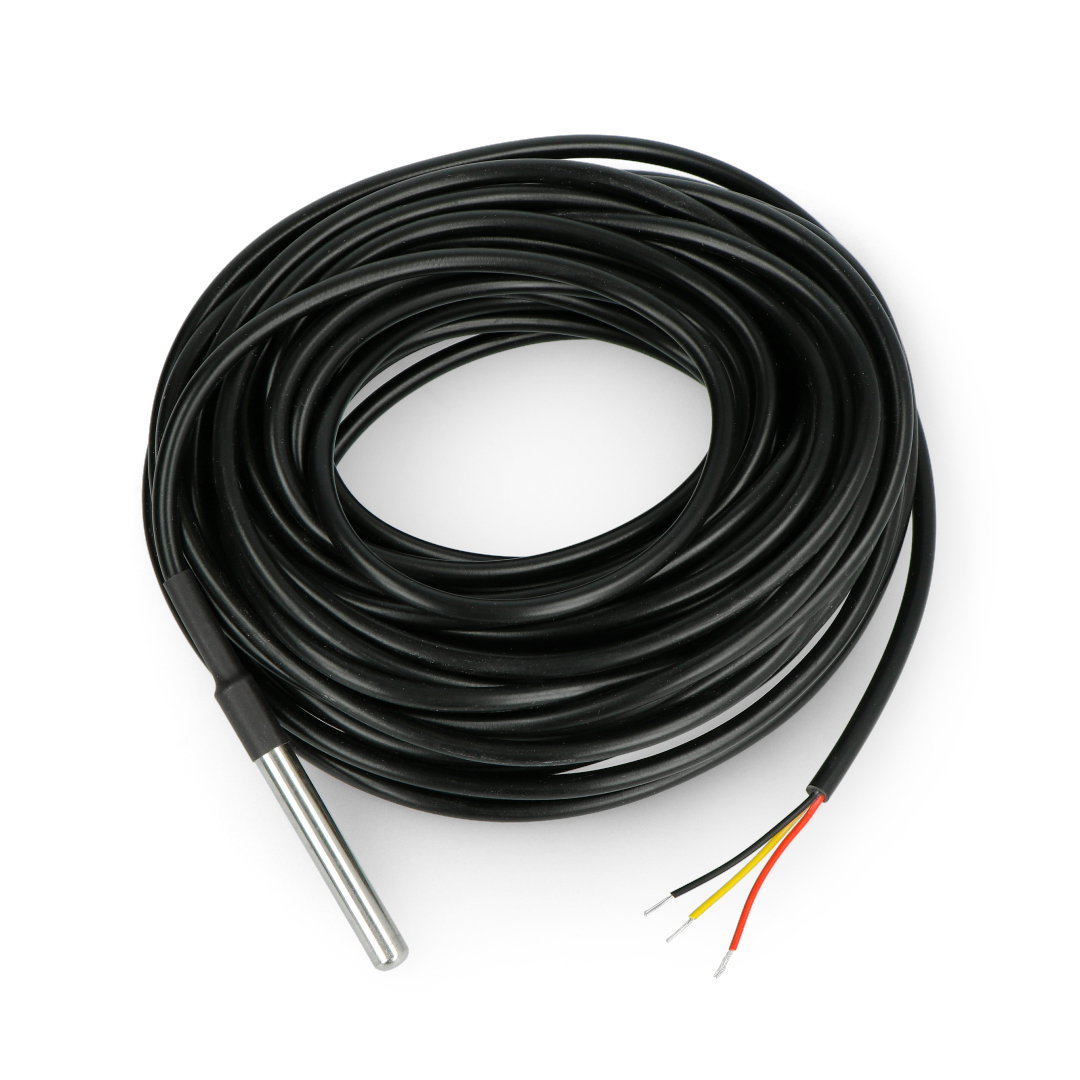

Waterproof probe outputs with DS18B20 sensor
The sensor communicates via a single bus interface (1-Wire) and operates with voltages from 3 V to 5.5 V.
| N | Description | Cable |
|---|---|---|
|
1 |
Sensor power supply. 3 to 5.5 volts. | red |
|
2 |
The weight of the system. | black |
|
3 |
Signal wire. | Yellow |
Waterproof probe with temperature sensor DS18B20 - Okystar - 10 m.
Probe specification with sensor
- Manufacturer: Okystar
- Probe with temperature sensor DS18B20
- Waterproof probe
- Stainless steel housing
- Supply voltage: 3 V to 5.5 V
- Operating temperature: -55°C to 125°C
- Accuracy from -10°C to + 85°C: ± 0,5°C
- Interface: 1-Wire
- Dimensions of the housing: 6 x 50 mm
- Cable length: 10 m
