Description: Waterproof probe with temperature sensor DS18B20 - Okystar - 5 m.
Waterproof probewithDS18B20digital temperature sensor enclosed in a sealed, waterproof housing. The probes are designed to make it easier to take measurements in places that are difficult to access or potentially dangerous for the user. The sensor allows temperature measurementsfrom -55°C to 125°C.It communicates via a1-Wireinterface and operates with voltagesfrom 3 V to 5.5 V. The sensor is compatible withArduinoandRaspberry Pi. The power cord is5 mlong.
| A4.7kΩ resistorconnectedbetween the power supply and the signal cable is required for correct temperature reading. |

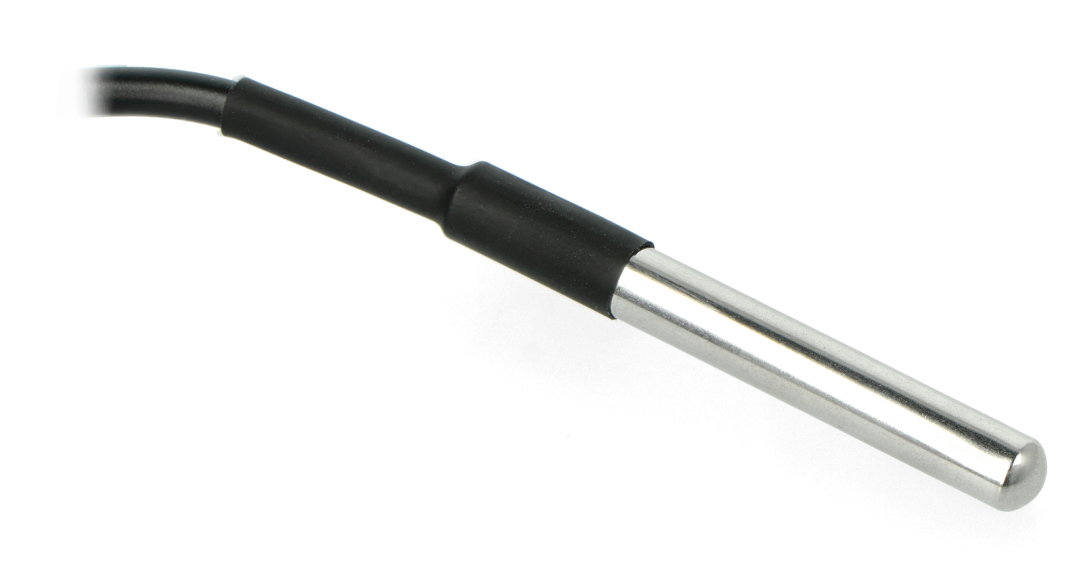

The sensor is hidden in a waterproof stainless steel housing.
|
Product compatible withArduinoandRaspberry Pi The user guide forArduinois available at thisaddress. The sensor can also be operated via RaspberryPiby connecting as described in thisarticle. |

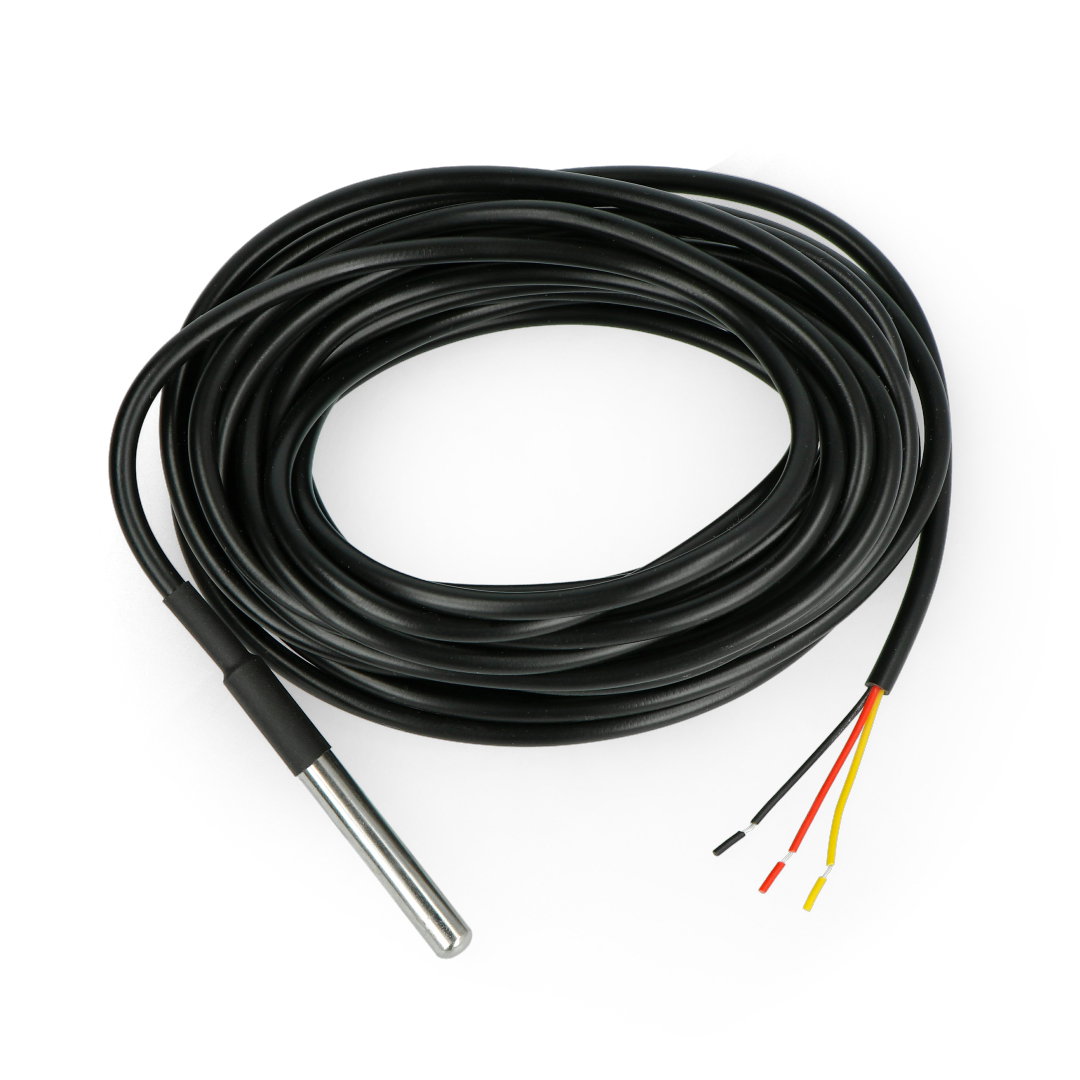

The leads are insulated wires:
The sensor communicates via a single bus interface (1-Wire). The probe is powered from 3 V to 5.5 V.
| N | Description | Cable |
|---|---|---|
|
1 |
Sensor power supply. 3 to 5.5 volts. | red |
|
2 |
The weight of the system. | black |
|
3 |
Signal wire. | Yellow |
Waterproof probe with temperature sensor DS18B20 - Okystar - 5 m.
Probe specification
- Manufacturer: Okystar
- Housing material: stainless steel
- Built-in temperature sensor: DS18B20
- Supply voltage: 3 V to 5.5 V
- Operating temperature range: -55°C to 125°C
- Storage temperature: from -55°C to 125°C
- Accuracy: ±0.5°C in temperature range from -10°C to 85°C
- Interface: 1-Wire
- Cable length: 5 m
- The dimensions of the probe: 6 x 50 mm
