Description: ArduCam OV9281 1Mpx Global Shutter camera with M12 130° lens for Raspberry Pi - MIPI - NoIR - monochrome.
Camera module OV9281 (Rev. B) with a diagonal of 1/4 inch allowing the transmission of black and white image in a resolution of 1280 x 800 px. It is compatible with the official V4L2 camera driver. The product includes a lens with a field of view of 130 ° D / 110 ° H / 90 ° V, mounted on an M12 thread mount. The device has been designed with Raspberry minicomputers in mind, the installation of the camera does not require additional accessories, necessary to connect the tapes are included in the set. The presented set is susceptible to the influence of infrared radiation, it does not have an IR filter.

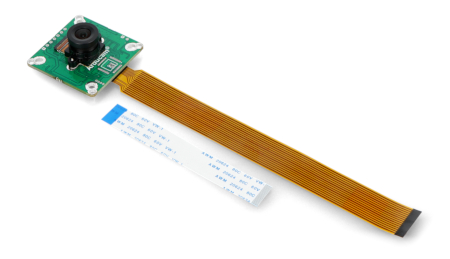

The set includes all the elements necessary for proper camera operation.
Use of the module in practice
The image supplied by the module isblack and white. The camera can be successfully used in projects related to home security system, robot or drone camera module or automation in the broad sense.
Installation of ArduCam OV9281 camera.
Technical specification
- Pixel dimensions: 3 µmx 3 µm
- Matrix: 1 MPx
- Diagonal: 1/4 inch
- Maximum video speed: 120 frames per second at1280 x800px
- Focusing range: 30 mm ~ infinity
- Lens thread: M12 x 0.5p
- FoV: 83° horizontal / 130°diagonal/ 90° vertical
- No IR filter
- Output interface: 2-core MIPI
- Output format: RAW 8/10-bit
- Size of the module: 40 mm x 40 mm
- The camera is compatible with Raspberry Pi tiles in version 4B / 3B+ / 3B / Zero
The set includes
-
Arducam OV9281 1MPx camera module
-
Tapes for connection to Raspberry Pi
