Product description: Seeeduino Xiao - SAMD21 ARM Cortex M0+ - Arduino compatible
This compact module is equipped with an Arduino-compatible SAM2D1G18 ARM Cortex M0+ microcontroller with 256 KB of flash and 32 KB of SRAM. The board features 14 GPIO connectors , including 11 digital/analog pins, 10 PWM, DAC, I2C, UART, SPI, and SWD. The module's pinout is clearly labeled for easy connection. The module's pinout operates at 3.3 V. The module is powered by 5 V via a USB Type-C connector.
Some Seeeduino Xiao pins have different functions. Pins A1/D1 to A10/D10 have PWM functionality, while pin A0/D0 functions as a DAC , allowing for a true analog signal, not PWM. The Seeeduino Xiao uses a USB-C connector for power and code uploads. The board's reverse side also features pads that allow for battery power. The board can be programmed via the Arduino IDE . The module is equipped with a 32.768 kHz crystal oscillator, which ensures the system's stability.

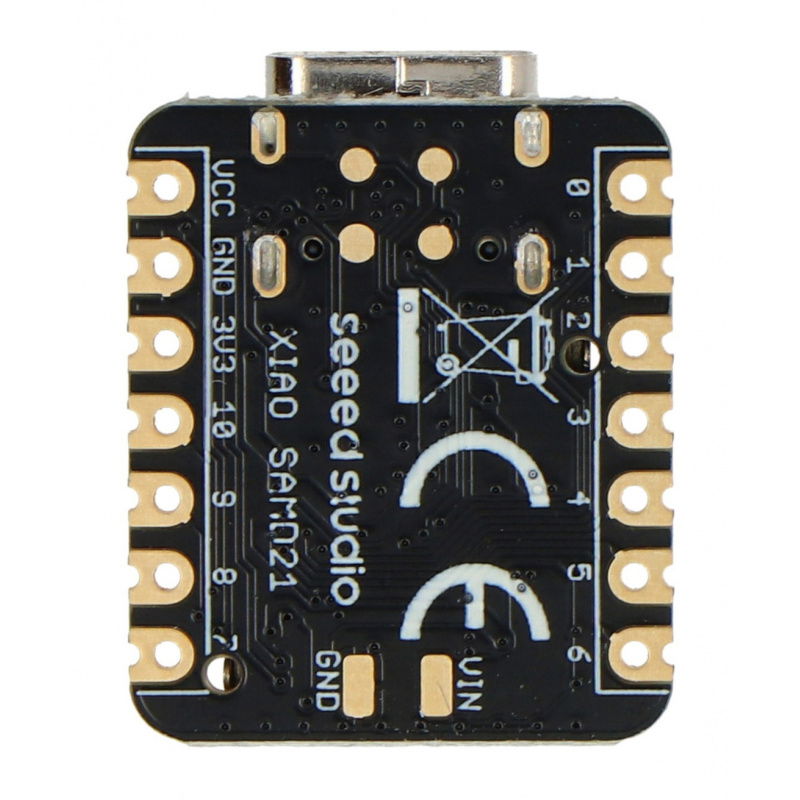

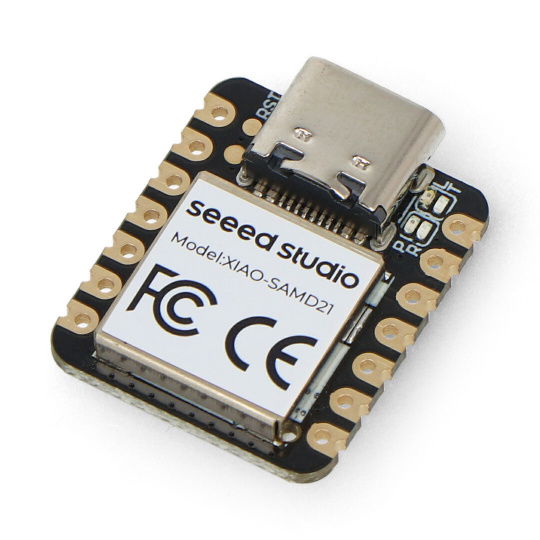

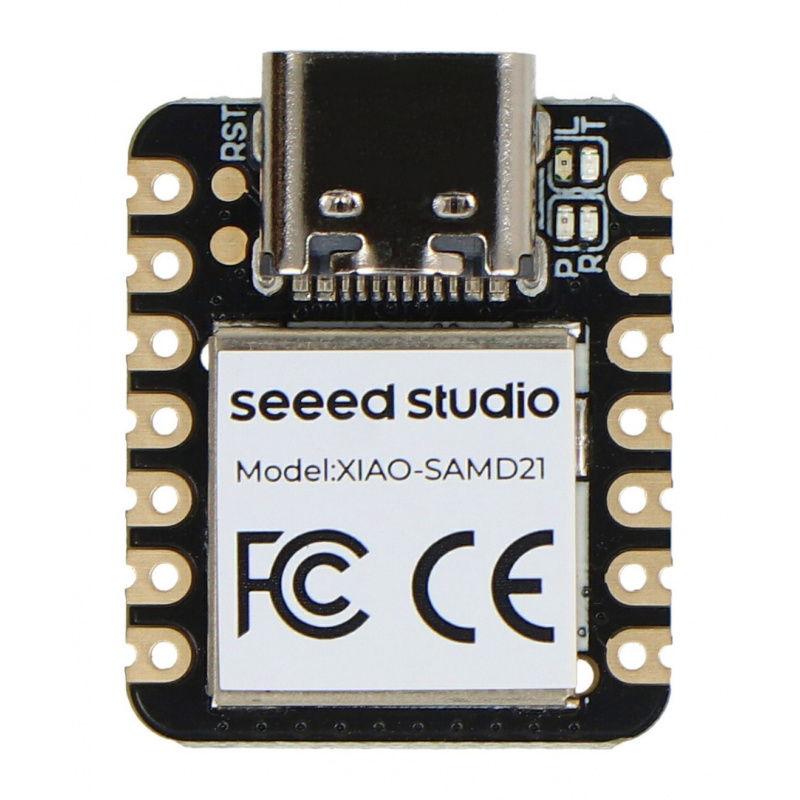

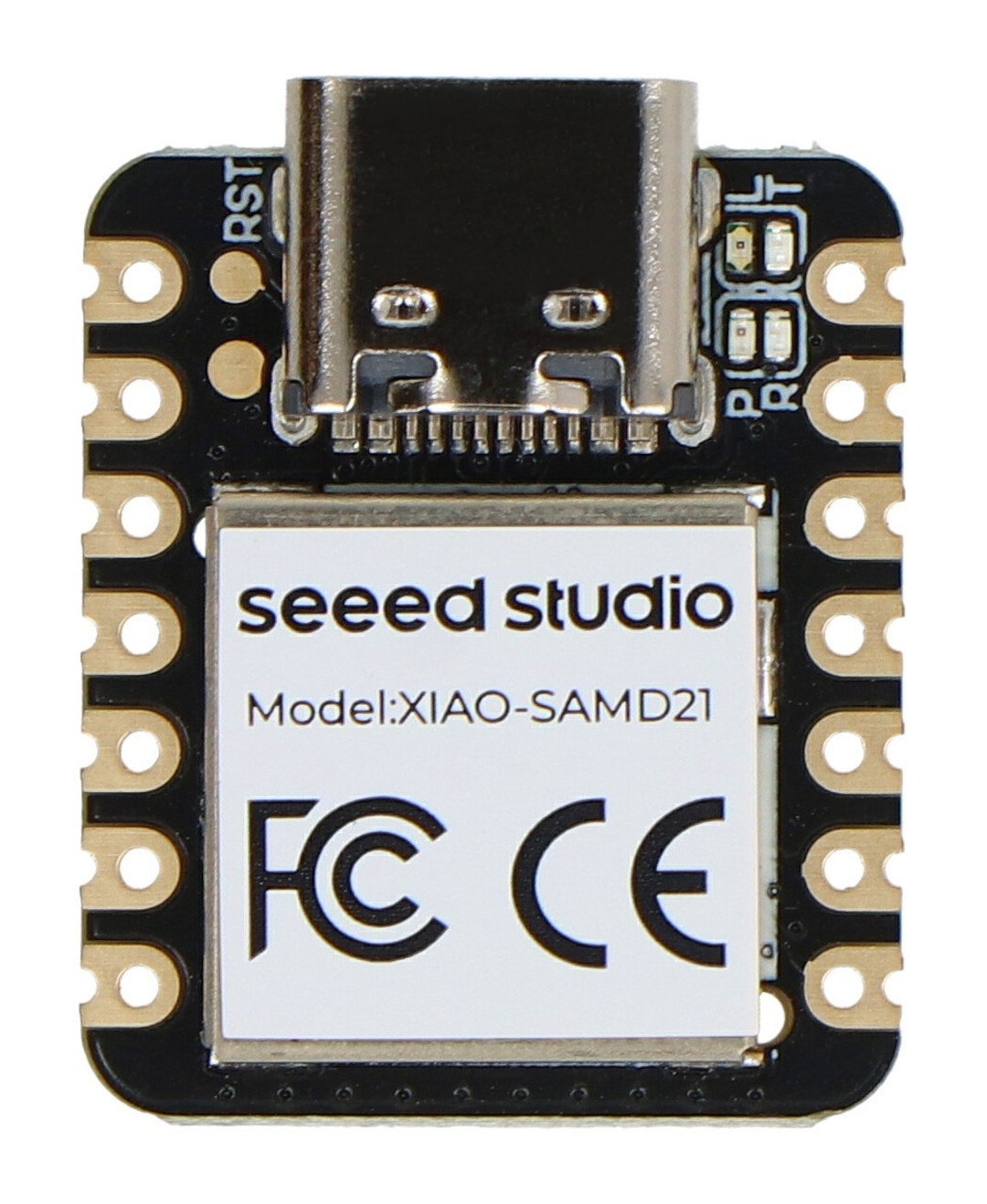

Seeeduino Xiao module.

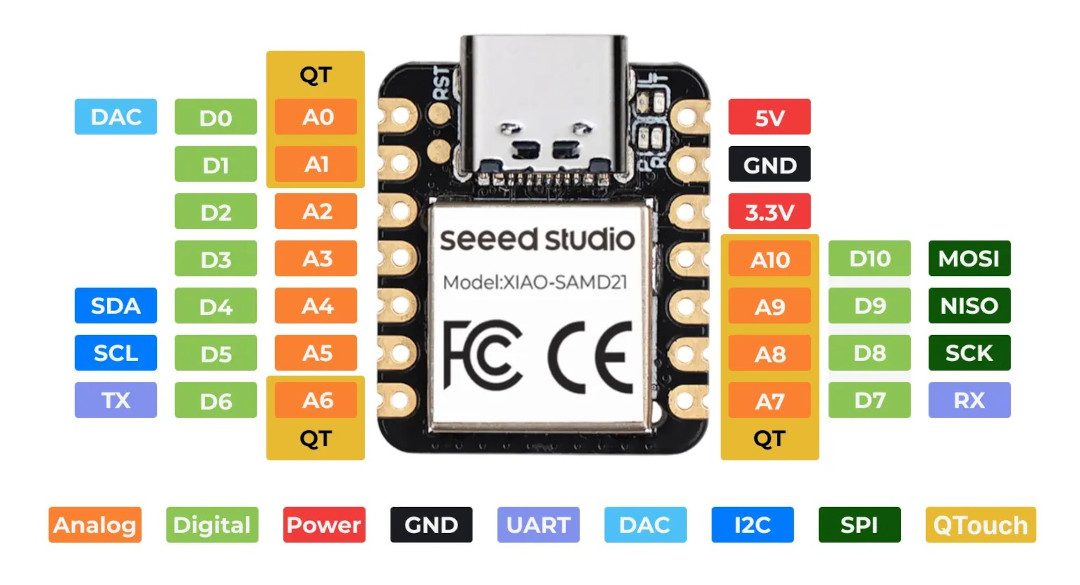

Seeeduino Xiao module pinouts.
Attention! The module's pins operate at a voltage of 3.3 V. Connecting a higher voltage may damage the system. |
Main features of Seeeduino Xiao
- High-performance microcontroller: SAMD21 ARM Cortex M0+ 32-bit 48 MHz with 256 KB flash and 32 KB SRAM.
- Wide compatibility: programmable in Arduino IDE.
- Ease of design.
- Small dimensions: 23.5 x 17.5 mm.
- Multiple interfaces: 11 digital/analog I/O, 10 PWM, 1 DAC, 1 SWD, 1 I2C, 1 UART, 1 SPI.
Seeeduino Xiao module pinouts
The module is equipped with 14 GPIOs, including popular communication interfaces such as digital and analog I/O, PWM, I2C, UART, and SPI. All pins are labeled on the board.
Seeeduino Xiao Specifications
- System: SAMD21 ARM Cortex M0+ 48 MHz
- Flash memory: 256 kB
- SRAM memory: 32 kB
- GPIO: 14
- Digital/Analog I/O: 11
- DAC: 1
- I2C: 1
- SPI: 1
- UART: 1
- Power supply: 5V - USB C
- Operating voltage: 3.3 V
- Communication: USB C
- LED: 1x User LED, 1x Power LED, 2x Serial Communication LED
- Reset button
- Power pads: for connecting the battery
- Compatible with Arduino IDE
- Dimensions: 23.5 x 17.5 x 3.5 mm
The set includes
- Seeeduino Xiao Module
- 2x Goldpin connector 1x7-pin with 2.54 mm pitch
Seeeduino Xiao - SAMD21 ARM Cortex M0+ - Arduino compatible
The Xiao - SAMD21 ARM Cortex M0+ was designed and manufactured by Seeeduino. Thanks to clear labeling of all pins, it minimizes the risk of incorrectly connecting additional accessories or devices.
The presented model is distinguished by its extremely compact size and intuitive operation, making it ideal for mobile projects requiring an easy-to-use microcontroller.
Seeeduino Xiao - SAMD21 ARM Cortex M0+ - Arduino compatible
The described module can be programmed using the well-described Arduino Uno environment, operating both offline and online. Various communication interfaces ensure the module's wide application.
In addition to modules with powerful microcontrollers, the Botland store also offers a wide selection of compatible accessories.
