Product description: Dasduino CONNECT - ESP8266 - Arduino compatible - without connectors - Soldered 333034
The Dasduino CONNECT is a modern development board based on the ESP8266 chip, allowing you to easily connect your project to the internet via WiFi . Fully compatible with the Arduino IDE and pre-built ESP libraries, the board is ideal for IoT applications, home automation, and remote monitoring. The easyC connector allows for rapid module connection without the need for soldering, and its small dimensions (71 x 26 mm) enable installation in tight enclosures and prototypes.

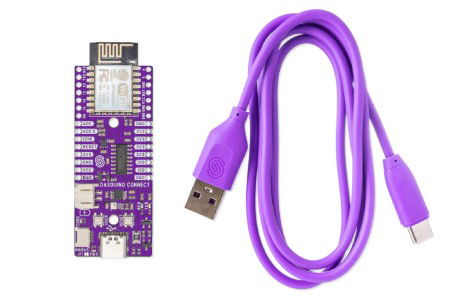

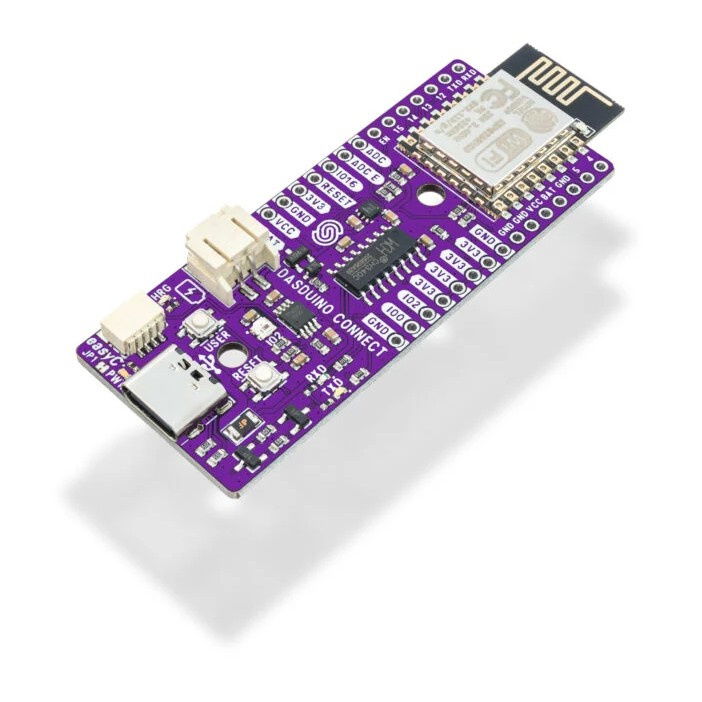

Dasduino CONNECT - ESP8266 - Arduino compatible - no connectors - Soldered 333034.

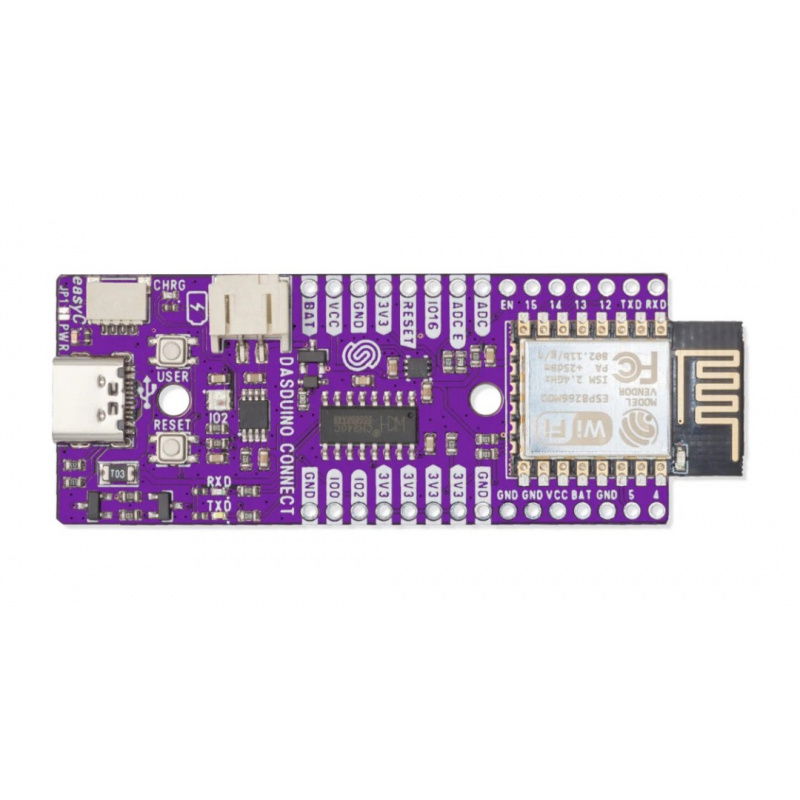

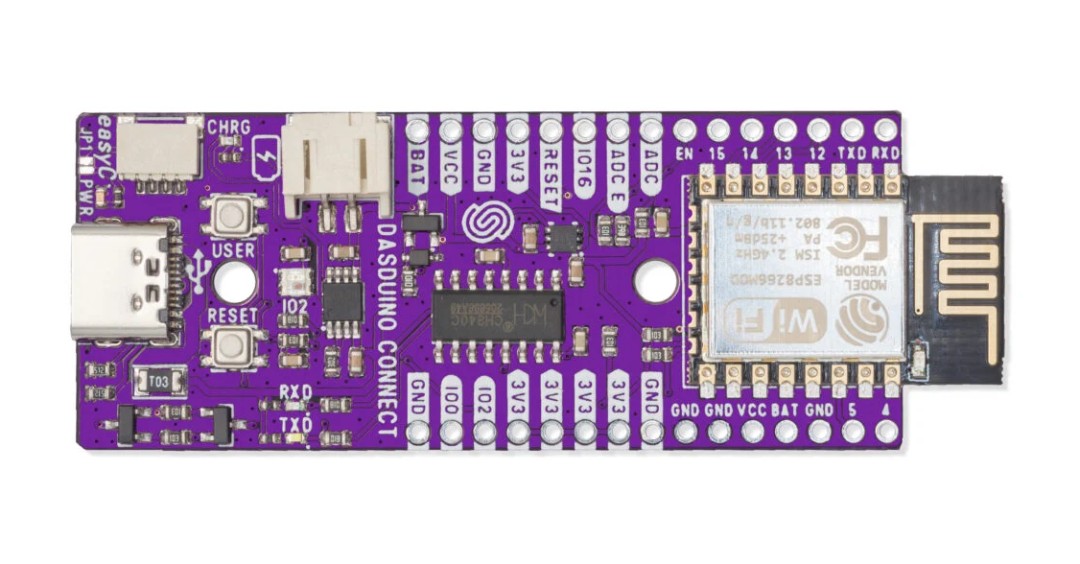

Dasduino CONNECT is based on the well-known ESP8266 microprocessor.
Main features of Dasduino CONNECT
- ESP8266: a powerful microcontroller with built-in WiFi and support for TCP/IP and DNS
- USB Type-C: a modern connector for programming and power supply
- 30 I/O pins: including digital pins, 1 analog pin and I2C / SPI / UART
- easyC: fast and error-free connection to other modules
- Built-in WS2812B RGB LED: allows you to view the operating status
- Power supply: from USB (5 V), Li-Ion battery (JST), built-in 3.3 V regulator
- Connectorless option: perfect for custom assembly and prototyping
- Compact dimensions: 71 x 26 mm
Extensive pinouts and interfaces
The Dasduino CONNECT board offers 30 pins , including numerous GPIOs (digital), 1 analog pin , and communication interfaces such as I2C, SPI, and UART . This allows for connection to a wide range of sensors , displays, and actuators. The easyC connector reduces prototyping time and eliminates connection errors. Additional Reset and User buttons simplify code maintenance and testing.
Simple and fast programming
Dasduino CONNECT is programmed using the Arduino IDE after adding the appropriate board definition from the manufacturer's repository. The board can be programmed via USB Type-C using the CH340C converter . Support for ESP8266 libraries and example projects make project launching quick and hassle-free.

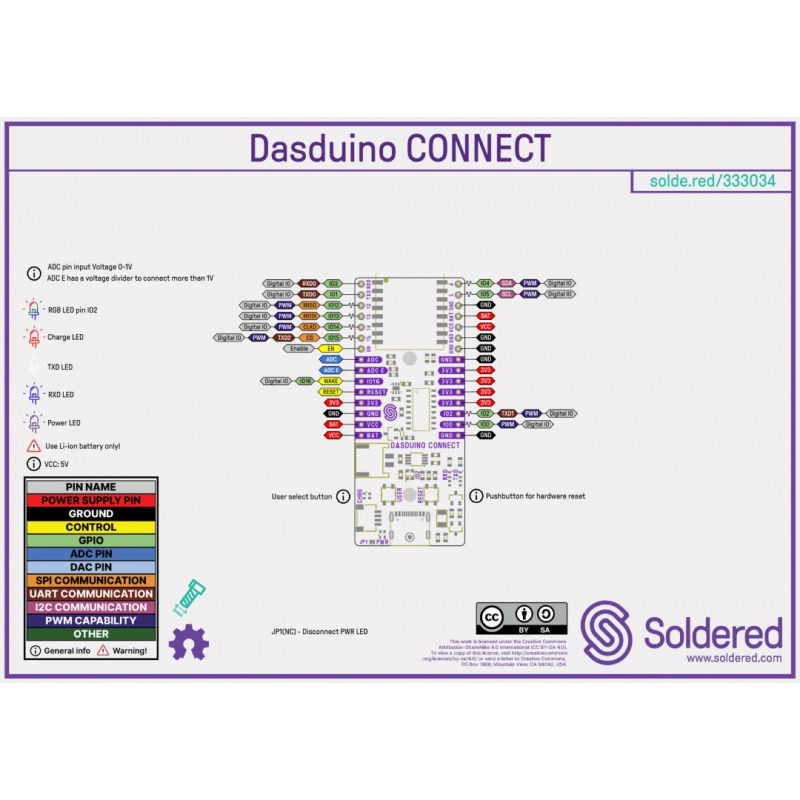

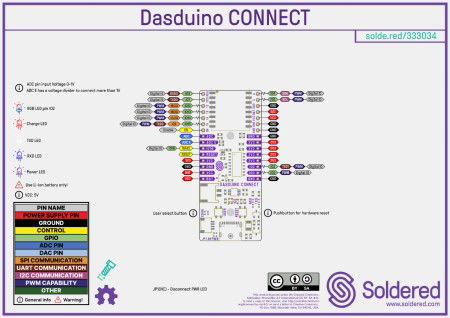

Board pinout diagram.
Dasduino CONNECT Technical Specifications
- Microcontroller: ESP8266
- Operating voltage: 3.3 V (5 V regulator)
- Connectors: USB Type-C, easyC, JST
- Pins: 30 pins (including 1 analog)
- LEDs: RGB WS2812B
- Buttons: Reset, User
- Programmer: CH340C USB-UART
- Dimensions: 71 x 26 mm
Contents of the set

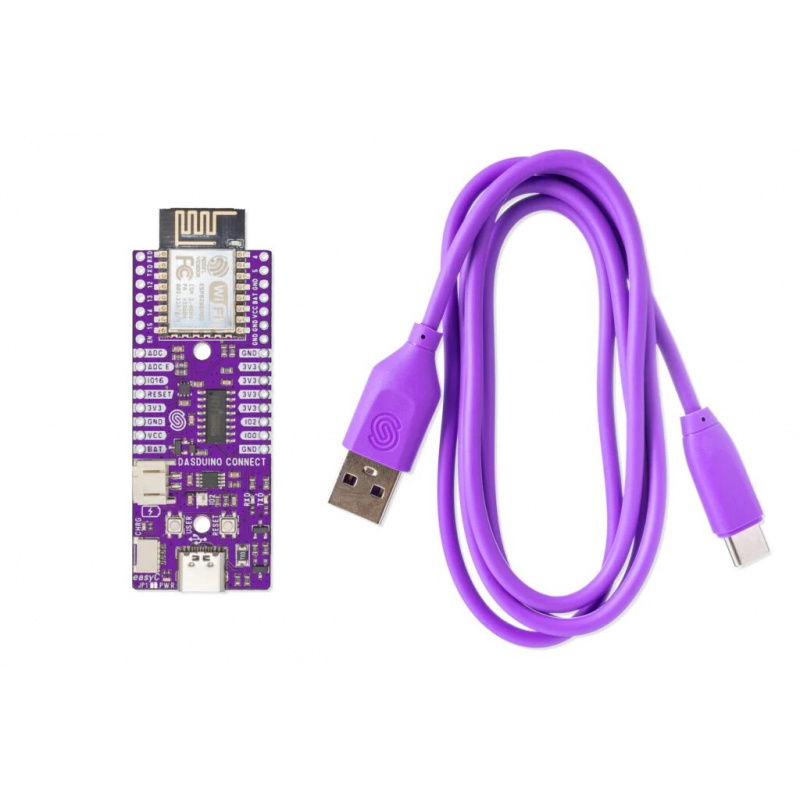

- 1x Dasduino CONNECT board (ESP8266) - without connectors
- 1x USB Type-C cable
