Product description: Grove Starter Kit for Seeed Xiao - Seeedstudio 110010044

Grove Starter Kit for Seeed Xiao is a set of Grove modules with an overlay designed to work with the Seeed Xiao module. The manufacturer has also prepared a series of guides to help you get started with the module, and later create your own projects. The set includes elements such as the Grove overlay, WS2813 LED strip , a set of LEDs, encoder module, IR receiver, light sensor, PIR motion sensor, accelerometer, temperature and humidity sensor, servo and connection cables. Seeed Xiao boards are available with various microcontrollers: RP2040 , SAMD21 , nRF52840 and ESP32, so you can choose the right module for your needs. The series of guides has been divided into three types of projects: Practice, Advanced and Self-developed, which were written in a very detailed way. With this kit you can get basic environmental data such as light intensity, temperature, humidity and infrared. A 3-axis accelerometer and a mini PIR motion sensor will allow you to detect the movement of the object.

The set does not include the Seeed Xiao module, it can be purchased separately.

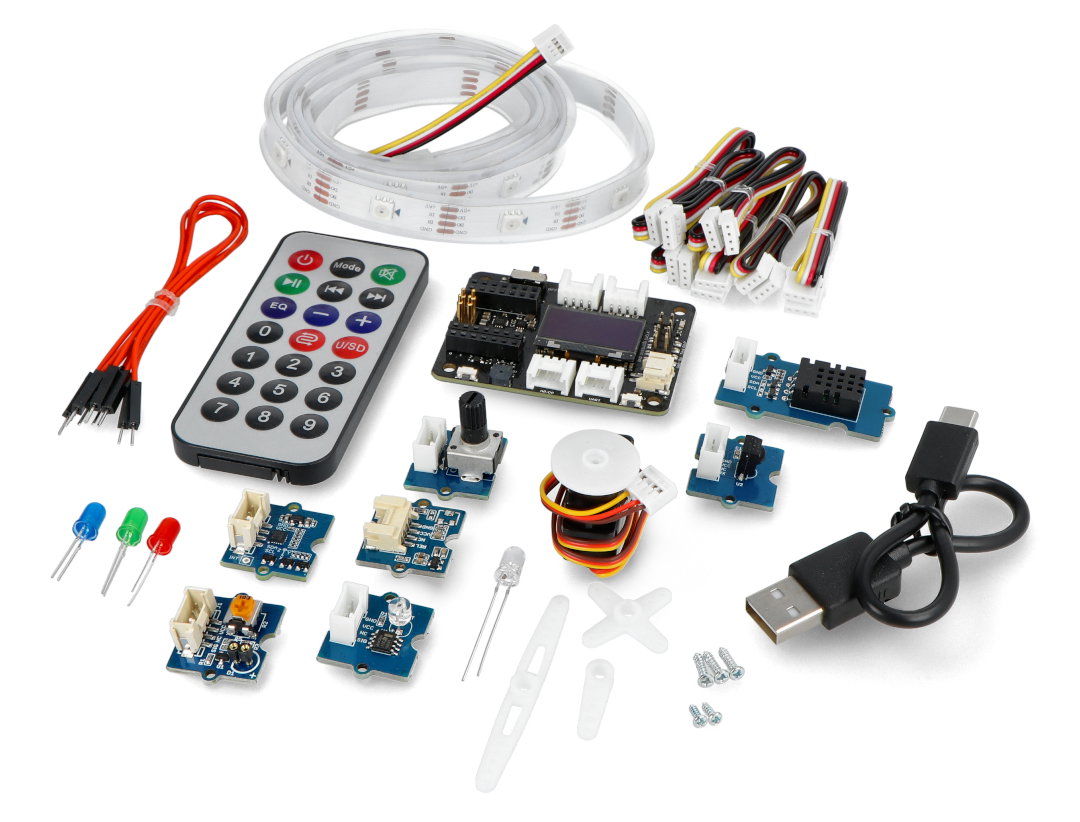

Grove Starter Kit for Seeed Xiao - Seeedstudio 110010044.

Grove starter kit for Seeed Xiao.

The main features of the Grove Starter Kit for Xiao

It extends the capabilities of the Xiao series board. The expansion module for Xiao has various data transmission interfaces and functional peripherals.
It supports a wide range of applications. 9 Grove modules allow you to study environmental conditions, detect motion and mechanically control motion.
Installation of additional control elements. 20-key mini controller, a set of green, red, blue, white LEDs.
Ready courses for Seeed Xiao. The manufacturer has prepared a series of courses / guides for beginners to familiarize themselves with the development boards, and the next ones to move on to implementing their own projects.

The contents of the Grove Starter Kit

No.	Picture	Description
1.		Seeeduino Xiao Expansion Board Board for faster prototyping using the Seeed Xiao module. It is equipped with Grove connectors, 0.96 "OLED display, JST 2.0 mm connector, RTC clock and a microSD card slot.
2.		Grove - IR receiver 38 kHz 940 nm An infrared receiver module operating at a frequency of 38 kHz and a voltage from 3.3 V to 5 V. The maximum sensitivity occurs for a beam of 940 nm wavelength.
3.		Grove - 10 kΩ linear rotary potentiometer - upper connector Linear rotary potentiometer with a resistance of 10 kΩ. Equipped with a knob, its swivel range is 300 °.
4.		Grove - LM358 ambient light intensity sensor v1.2 The module is equipped with the LM358 chip. It allows to detect and determine the light intensity in the range from 1 lux to 350 lux. The supply voltage is 5 V. It uses an analog signal for communication.
5.		Grove - mini PIR motion sensor Mini PIR motion sensor based on the S16-L221D system. The detection of the object is signaled by a high signal on the SID pin. The detection range is 2 m.
6.		Grove - WS2813 RGB LED - waterproof - 60 LED / m - 1 m Waterproof RGBW LED strip with a cold white color, 1 m long. Based on WS2813 addressable LEDs, closed in a sealed, silicone casing. It consumes the power of 18 W / m, the density is 60 LEDs / m.
7.		Grove - temperature and humidity sensor v2.0 - DHT20 Temperature and humidity sensor DHT20 equipped with a Grove connector. Temperature measurement range is -40 ° C to 80 ° C and humidity is from 0% to 100% RH.
8.		USB Type-C cable A short USB Type-C cable that allows the Seeed Xiao module to communicate with a computer in order to program it. The cable is also used to power the module.
9.		A set of LEDs with a module A set consisting of four LEDs in green, red, blue and white and a module that allows you to simply connect the LED to the goldpin precision connector and connect it to the Seeed Xiao prototype board.
10.		Grove - 3-axis LIS3DHTR accelerometer - I2C / SPI / ADC Module with a 3-axis accelerometer allowing to measure acceleration in the range of ± 2 g, ± 4 g, ± 8 g, ± 16 g. Communicates via the I2C, SPI or ADC interface.
11.		IR remote control 21 buttons Universal IR remote control consisting of 21 buttons.
12.		Grove cable kit A set consisting of 7 pairs of Grove male - male cables, enabling the connection of modules from this series to the Seeed Xiao expansion module.
13.		A set of male - male hoses Set consisting of four male - male hoses.
14.		Grove - ES08A servo - micro Micro servo . Powered with the voltage in the range: 4.8 V - 6 V. Speed: 0.12 s / 60 °. Moment: 1.8 kg * cm.

Useful links

‌

Package width	12.5 cm
Package height	20.5 cm
Package depth	5 cm
Package weight	0.278 kg
