Product description: Dasduino CORE - ATmega328P - Arduino compatible - no connectors - Soldered 333037
Dasduino CORE is a universal development board based on the well-known ATmega328P microcontroller, offering full compatibility with the Arduino IDE and a wide range of libraries and add-ons. With its compact dimensions of 63 x 22 mm and the ability to be powered by USB Type-C or a Li-Ion battery , it's ideal for mobile, educational, and prototyping projects. The lack of soldered connectors allows for complete configuration freedom—an ideal solution for those who want to customize the system to their needs. The easyC connector makes integration with other modules (e.g., sensors or displays) incredibly fast and convenient.

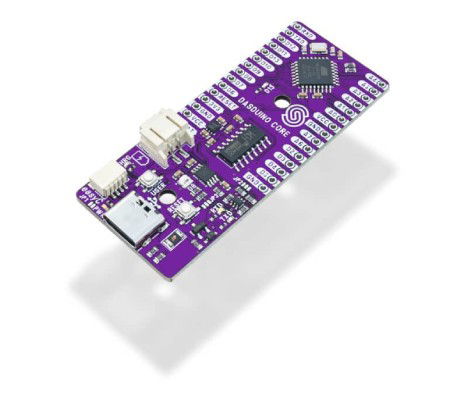

Dasduino CORE - ATmega328P - Arduino compatible - no connectors - Soldered 333037.

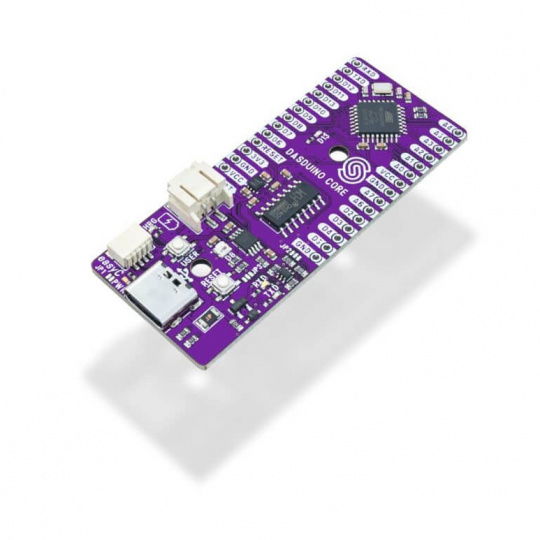

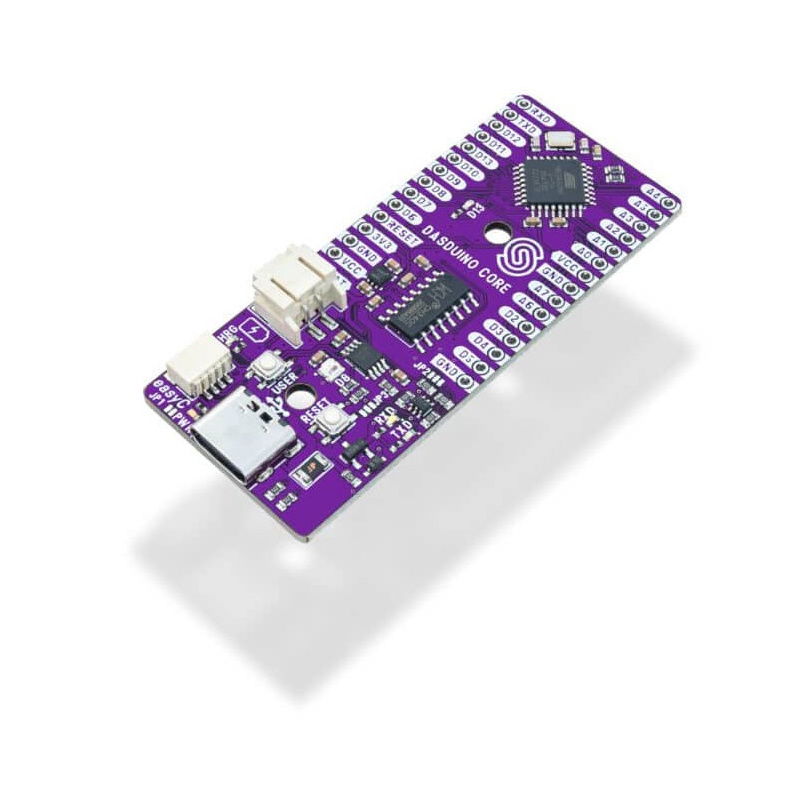

The board is based on the Atmel Atmega328P microcontroller.
Main features of Dasduino CORE
- ATmega328P: a proven microcontroller fully compatible with Arduino
- USB Type C: a modern and convenient connector for power and programming
- 22 I/O pins: 14 digital and 8 analog (including A6, A7 analog only)
- easyC: quick and easy connection of modules from the Soldered series
- Built-in LEDs: classic LED on pin 13 and full-color RGB WS2812B
- Power supply: USB (5V) or Li-Ion battery with on-board charger
- 3.3V regulator: for operating 3.3V sensors and modules
- Option without goldpins: greater installation flexibility
- Compact dimensions: only 63 x 22 mm - ideal for tight spaces

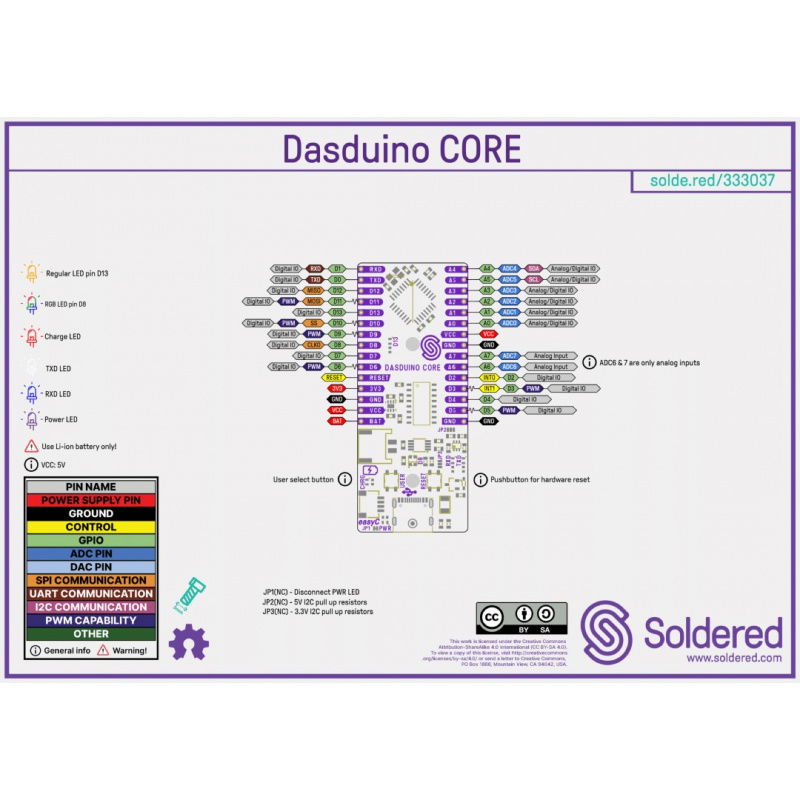

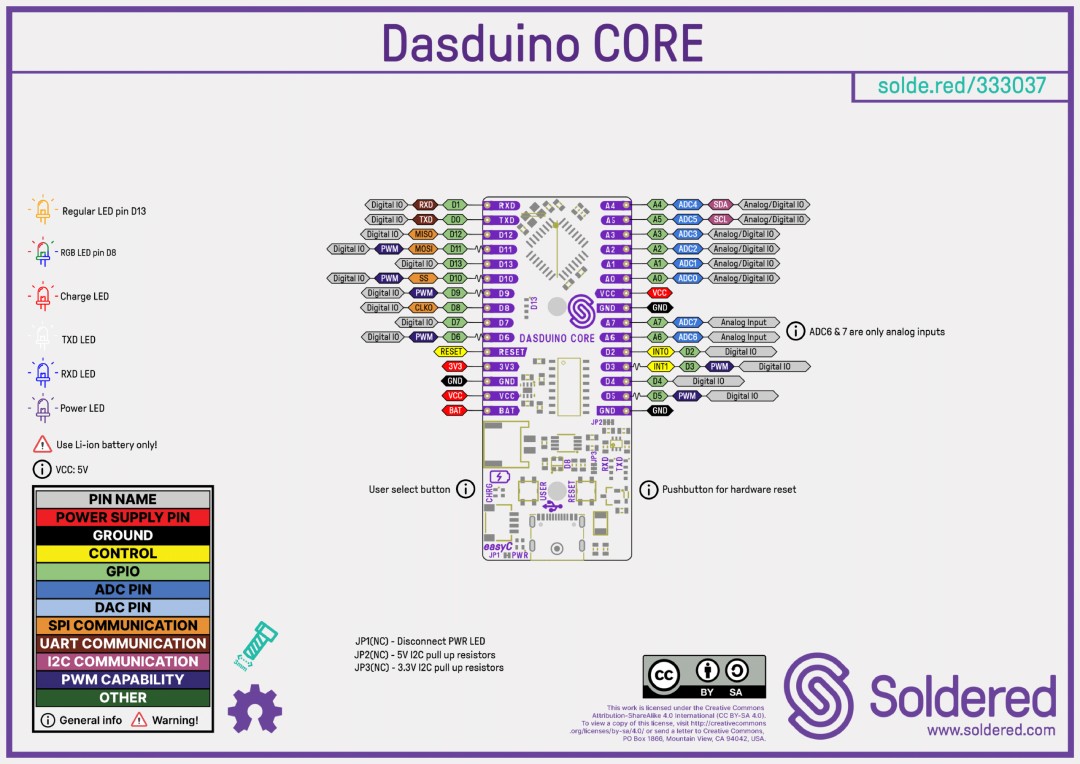

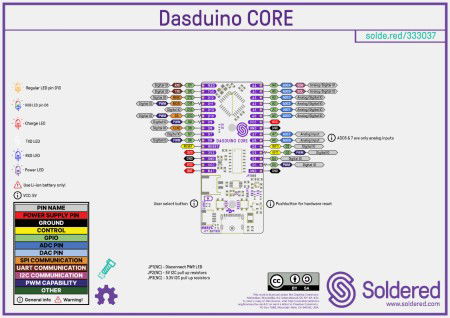

Extensive I/O pinout capabilities
The Dasduino CORE offers 22 pins , providing great flexibility in building electronic projects. Users have access to 14 digital pins , some of which support PWM functions, and 8 analog inputs , including dedicated pins A6 and A7 for analog read-only. The easyC connector allows for quick connection of additional modules without the need for soldering, and the presence of a USB Type-C connector simplifies integration with a computer or power bank.
Simple and fast programming
Programming the Dasduino CORE is the same as with classic Arduino boards. Simply install the appropriate board definition in the Arduino IDE , select the ATmega328P model, and start coding. Communication with the computer is via a USB Type-C port. Additionally, support for popular communication interfaces such as UART, SPI, and I2C allows for the creation of advanced projects based on multiple peripherals.

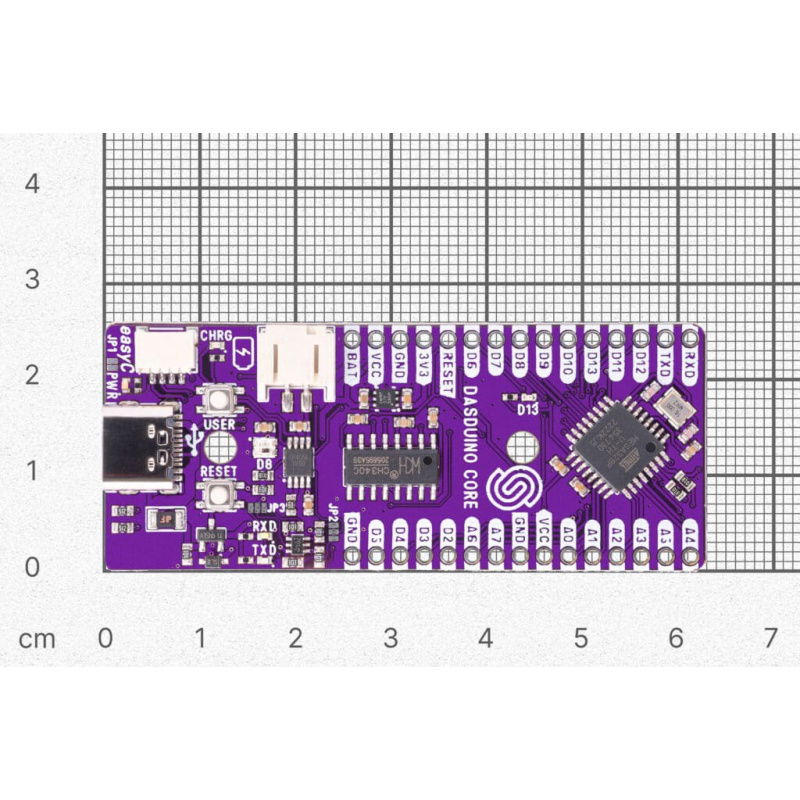

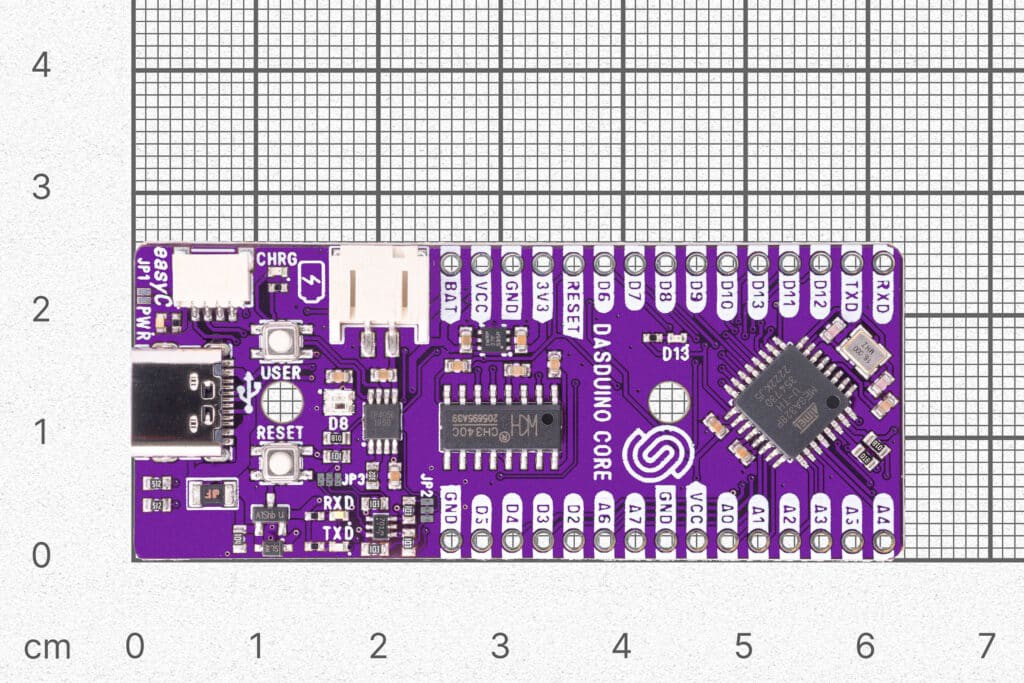

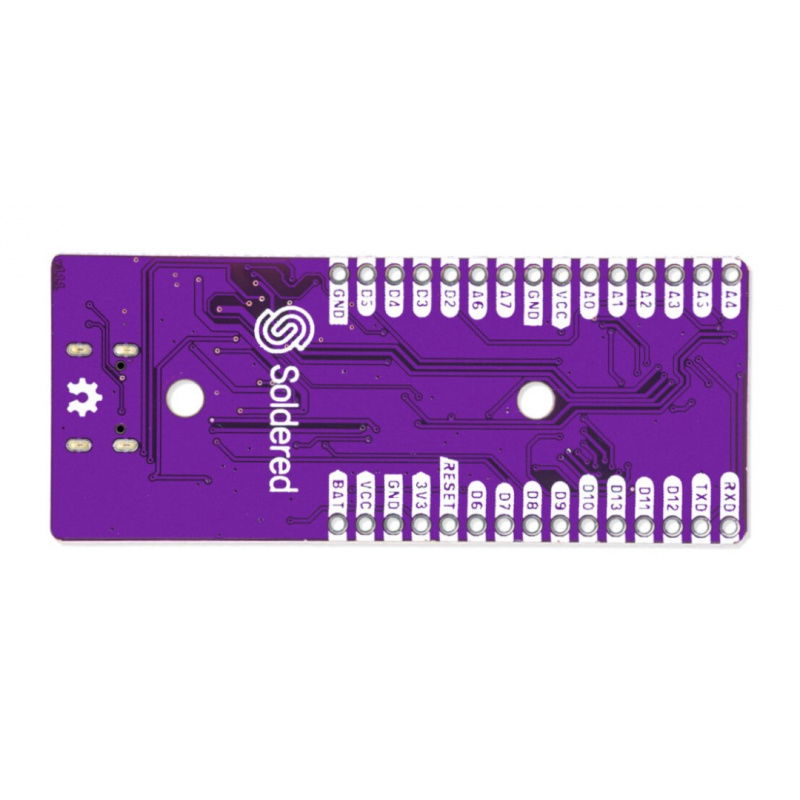

Measuring just 63mm wide and 22mm high, Dasduino CORE offers a whopping 22 input/output pins.
Practical applications
Dasduino CORE is ideal for a variety of applications, from education and programming, through rapid prototyping, to creating complex IoT projects. Thanks to its Li-Ion battery power and compact size, it can be easily used in mobile devices. An example application is a mini weather station using the BMP180 sensor and a 0.96" OLED display , which can be connected in seconds thanks to easyC. A built-in RGB LED indicator and a classic LED on pin 13 simplify diagnostics and project testing.
Dasduino CORE Technical Specifications
- Microcontroller: ATmega328P
- Operating voltage: 5 V
- Digital pins: 14 (PWM supported)
- Analog pins: 8 (including A6 and A7 analog only)
- Communication interfaces: UART, SPI, I2C
- Connectors: USB Type-C, easyC, Li-Ion battery connector
- LEDs: LED on pin 13, full-color WS2812B on pin 8
- Voltage regulator: 3.3 V
- Dimensions: 63 x 22 mm

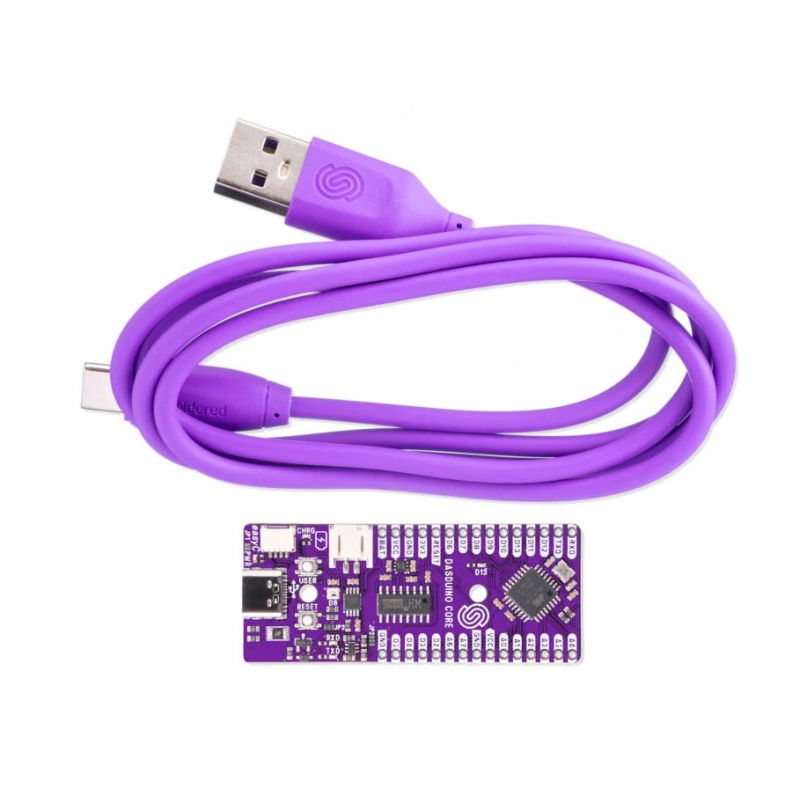

Contents of the set
- 1x Dasduino CORE board (ATmega328) - without connectors
- 1x USB Type-C cable

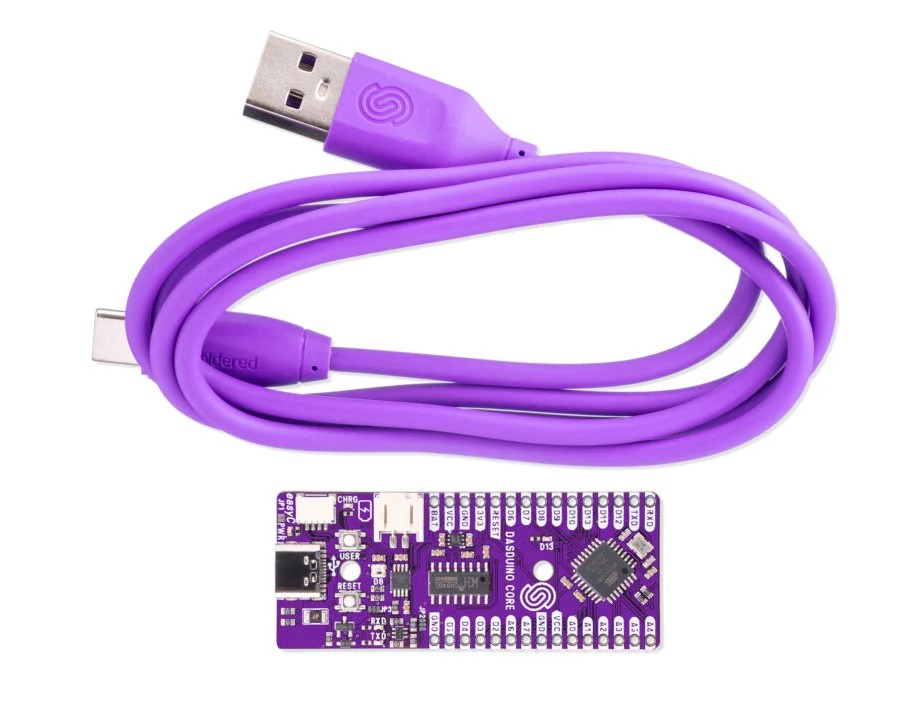

Elements included in the set.
