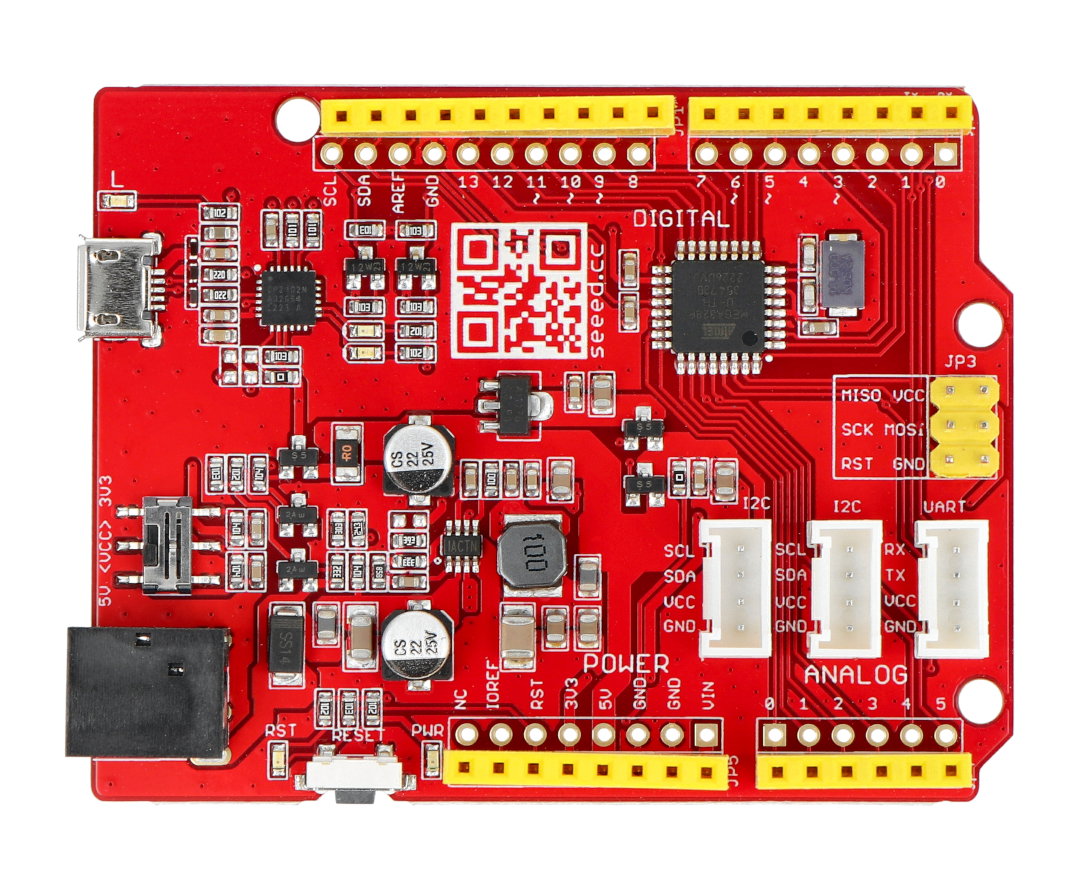

Seeeduino v4.3 3.3V/5V - compatible with Arduino
A module made by Seeedstudio is equipped with the ATmega328 microcontroller. The distribution of pins is compatible with the Arduino Uno. It has 14 digital input/outputs, 6 PWM channels, 6 analog inputs, as well as popular communication interfaces. The board contains a FTDI chip and microUSB connector. The module allows you to work with voltages of 3.3 V or 5V selected with a switch.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
A module made by Seeedstudio is equipped with the ATmega328 microcontroller. The distribution of pins is compatible with the Arduino Uno. It has 14 digital input/outputs, 6 PWM channels, 6 analog inputs, as well as popular communication interfaces. The board contains a FTDI chip and microUSB connector. The module allows you to work with voltages of 3.3 V or 5V selected with a switch. In addition, the board has three connectors for connection of sensors fromGroveseries.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Key features
The manufacturer provides a detaileduser manual. |
Specification
- The module is compatible with Arduino Uno
- Embedded microcontroller: ATmega328P 16 MHz
- It works with a voltage of 3.3 V or 5 V
- 3 connectors for 4-pin Grove
- MicroUSB connector for programming of the board
- DC power supply: 7 to 12 V
- 14 I/O connectors
- 6 PWM outputs
- 6 analog inputs
- ISP connector
- Flash memory: 32 KB
- RAM: 2 KB
- EEPROM: 1 KB
- Dimensions: 69 x 53 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 7.0 V |
| Voltage from | 12.0 V |
| Voltage output from | 3.3 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| UC - Microcontroller | ATmega328 |
| UC - Core | 8-bit AVR |
| UC - EEPROM | 1 kB |
| UC - Flash | 32 kB |
| UC - RAM | 2 kB |
| UC - core | 1. Single Core |
| UC - Digital pins | 14 |
| UC - analog in | 6 |
| UC - freq | 16 MHz |
| UC - A/C | 10-bit |
| UC - PWM | 6 |
| UC - USB | microUSB |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| Width | 5.7 cm |
| Height | 1.7 cm |
| Depth | 8 cm |
| Weight | 0.023 kg |
