Product description: Grove - set of 10 sensors with Seeeduino Lotus module for beginners
The set includes10 popular sensors withGrove connector and SeeeduinoLotusmodulewithATmega320Pmicrocontroller. The layout of the outputs is compatible with Arduino Uno. Simplified Grove prototyping system allows you to connect individual sensors without theneed to solder oruse jumpers. The product was created for users starting their adventure with programming.
|
In our offer there is also a flash drive withinstructions for the set. |
Grove set presentation for beginners.
In theGroveKit for Beginners, allelements are on one PCB and are connected with each other by paths. The module with the ATmega320P microcontroller is simply connected to a computer to program the individual sensors. The manufacturer has also provided for the possibility to break out the sensors and control module and connect them viaGrovecables.

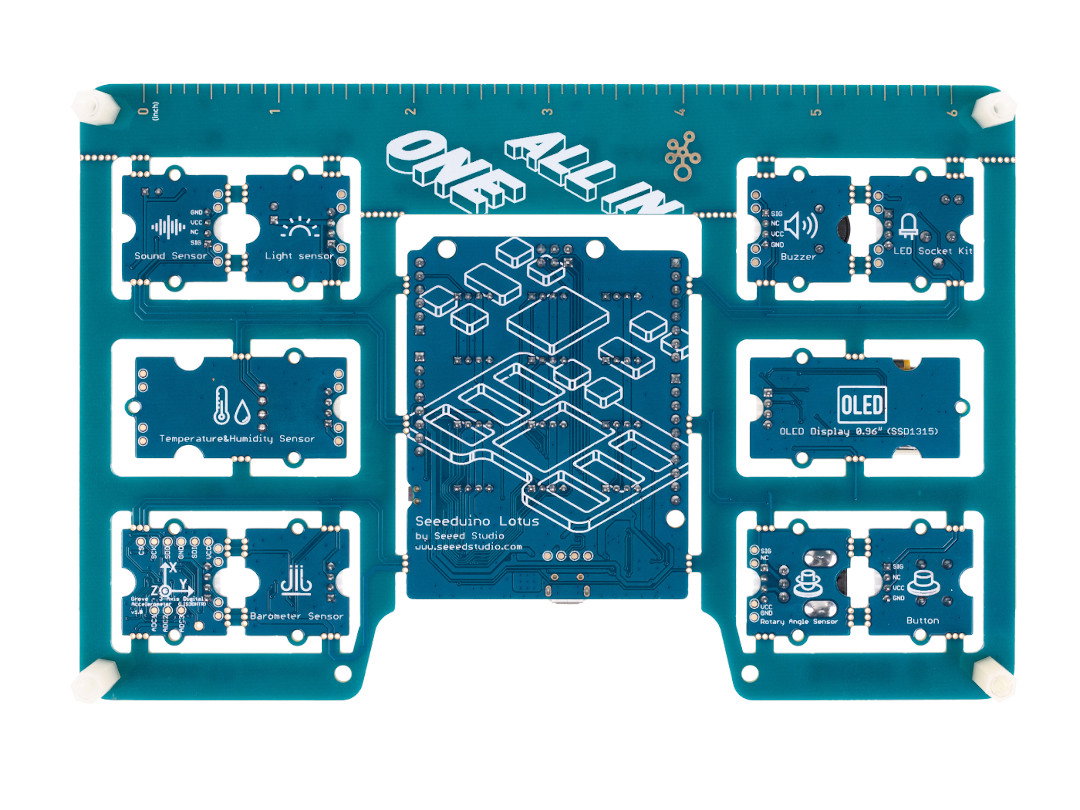

View of the tracks on the back of the board.
Each sensor can be broken out and used as a separate element of theGrovesystem.
The kit is used inthe Biomaker programrun by the University of Cambridge andOpenPlantfor which they create tutorials in the visual programming language XOD.
Demo mode
The set has a pre-programmed Plug & Playdemo mode, allowing you to easily learn about the operation of individual sensors. Simply connect the power supply and use the potentiometer's knob to switch between the sensors to track them.

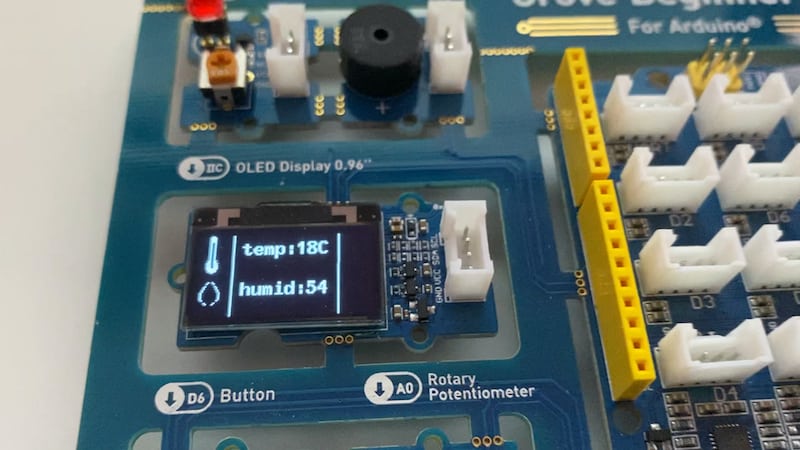

Example of sensor operation.
Programming the sensors using the example of the LED
Individual sensors are programmed in ArduinoIDEenvironment.In itsuser manual, the manufacturer describes Seeeduino Lotus configuration process andprovides ready-made codes tocontrol individual sensors.

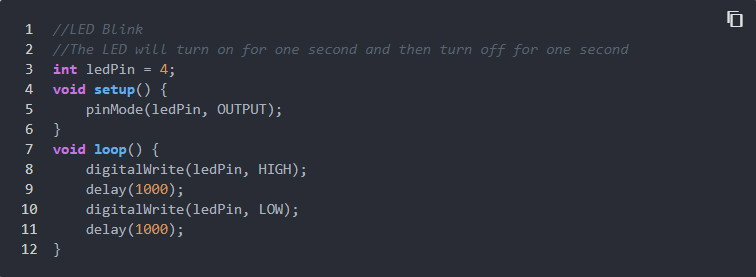

Asimple code controlling LED operation.
Compatibility with Geppetto
The sensor set from Seeeduino can be used to work with the Geppetoo editor.It isdesigned to designyour own systemsusing the available modules. With the help of the included library it enables simplecreation of your own schematics, withoutthe knowledge of advanced electronic concepts.

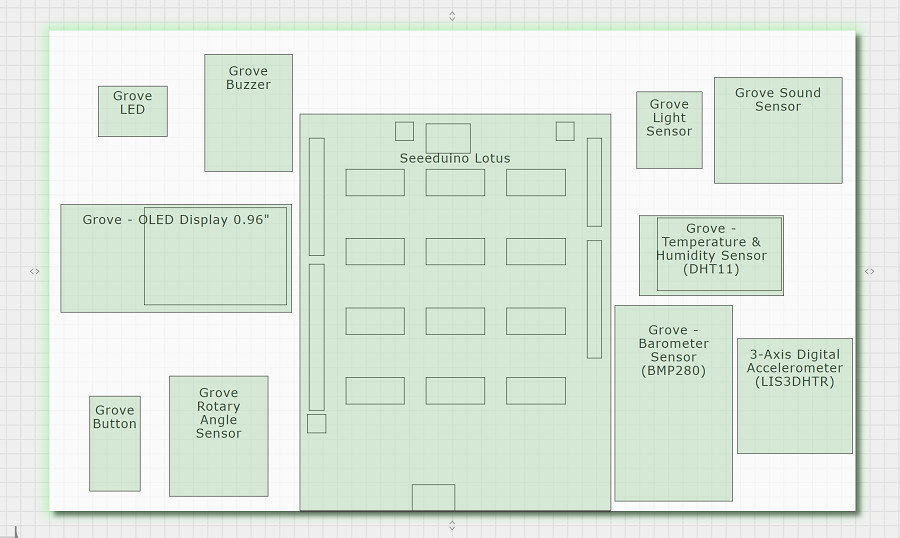

Example layout of elements in the editor.
Dimensions of the board with Seeeduino Lotus and sensors
Approximate size of the set plate.
Set contents
- Grove - LED - 1 piece.
- Grove - Buzzer - 1 piece.
- Grove - 0.96'' OLED display SSD1315 - 1 pc.
- Grove - button - 1 pc.
- Grove - rotary potentiometer -1 pcs.
- Grove - ambient light sensor - 1 pc.
- Grove - sound sensor - 1 pc.
- Grove - temperature and humidity sensor DHT11 - 1 pcs.
- Grove - air pressure sensor BMP280 - 1 pcs.
- Grove - 3-axis accelerometer LIS3DHTR - 1 pcs.
- Seeeduino Lotus - 1 pc.
- MicroUSB cable - 1 pc.
- Grove wires - 6 pieces.

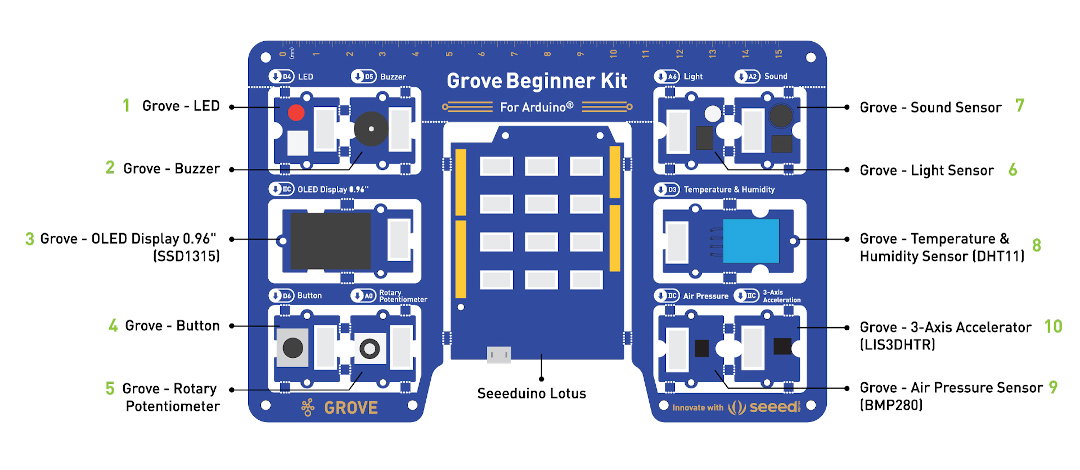

Arrangement of elements on the board.
