Description: Seeeduino Nano
It is a small plate similar to Seeeduino V4.2 / Arduino UNOandfully compatible with Arduino Nanoinpins and sizes. Seeeduino Nano likeSeeeduino V4.2is built around an 8-bit ATmega328P microcontroller.So you can use the same prsogram codes on both plates. Seeeduino Nano is almost 4 times smaller than Seeeduino V4.2, buthas the same functions. Thanks to its small size(43 mm x 18 mm) it will help you save more space when creating projects. Instead of powering through a USB C-port, you can use VINandGND pins to power the Seeeduino. The VIN input range is from 7 Vto 12 V.Please also note that the I2C interface is not equipped with a pull-up resistor. It is recommended to use a4.7 kresistor to pull the voltage to the VCC while using it.

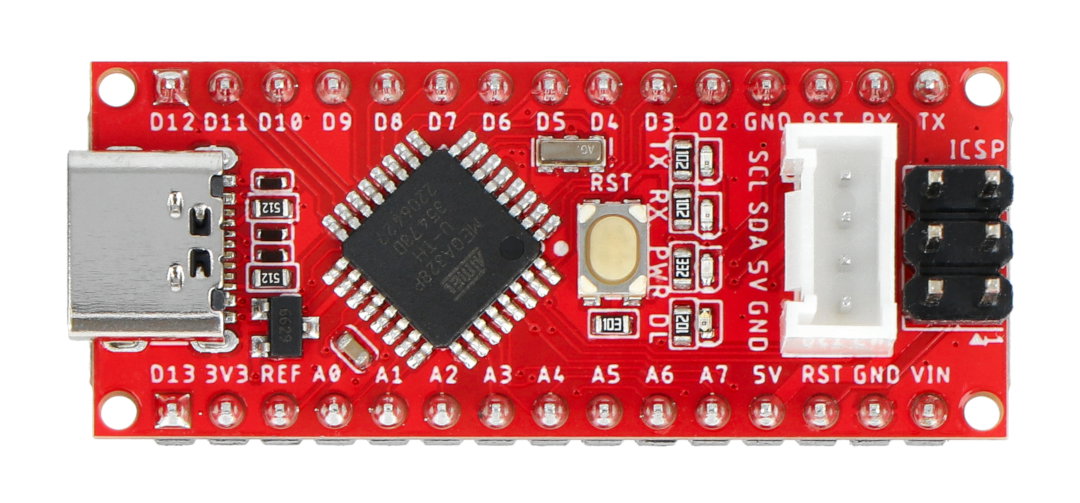

Seeeduino Nano.
Features Seeeduino Nano
- Fully compatible with Arduino Nano
- Instead of a miniUSB connector (as in Arduino Nano), it has a symmetrical C-type USB connector
- It has one I2C connector
- It is small in size
- Built around the ATmega328P microcontroller

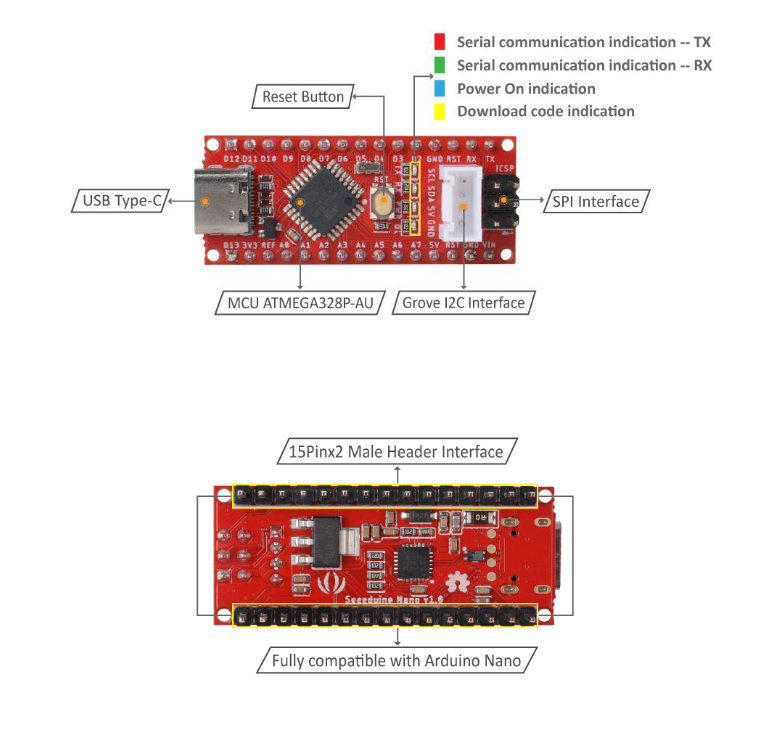

Example of application Seeeduino Nano
Seeeduino Nano specifications
| PIN | Cable |
|---|---|
|
Microcontroller |
ATmega328P |
|
Power input |
USB type C |
|
Supply voltage |
USB: 5 V |
| Digital I/O Pins | 14 |
| PWM channel | 6 |
| Analogue input channels | 8 |
| Maximum processor frequency | 16 MHz |
| Flash memory | 32 KB |
| Maximum USB input voltage - C | 2 A |
| Maximum output voltage VCC | 1 A |
| Maximum voltage on the 3V3 pin | 200 mA |
| Dimensions | 43 mm x 18 mm |
