Dasduino LITE - ATTiny1604 - Arduino compatible - no headers - Soldered 333008
The Dasduino LITE is a compact development board designed for projects where size is key. Equipped with an ATtiny1604 microcontroller , a USB Type-C connector, a Li-Ion charger , and an easyC port , it's ideal for miniature electronics projects and IoT solutions. This version doesn't have goldpin connectors.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Dasduino LITE - ATTiny1604 - Arduino compatible - no connectors - Soldered 333008
The Dasduino LITE from Soldered is an incredibly handy development board based on the ATtiny1604 microcontroller , combining compact dimensions with key features. Measuring just 38 x 26 mm , it's ideal for applications where every millimeter counts. Despite its small size, the board offers 12 GPIO pins , 9 of which can be used as analog inputs. A built-in Li-Ion battery charger, a full-color WS2812B RGB LED , a USB Type-C port, and an easyC connector make the Dasduino LITE a fully functional tool ready for integration into a variety of projects.
Dasduino LITE - ATTiny1604 - Arduino compatible - no connectors - Soldered 333008.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.

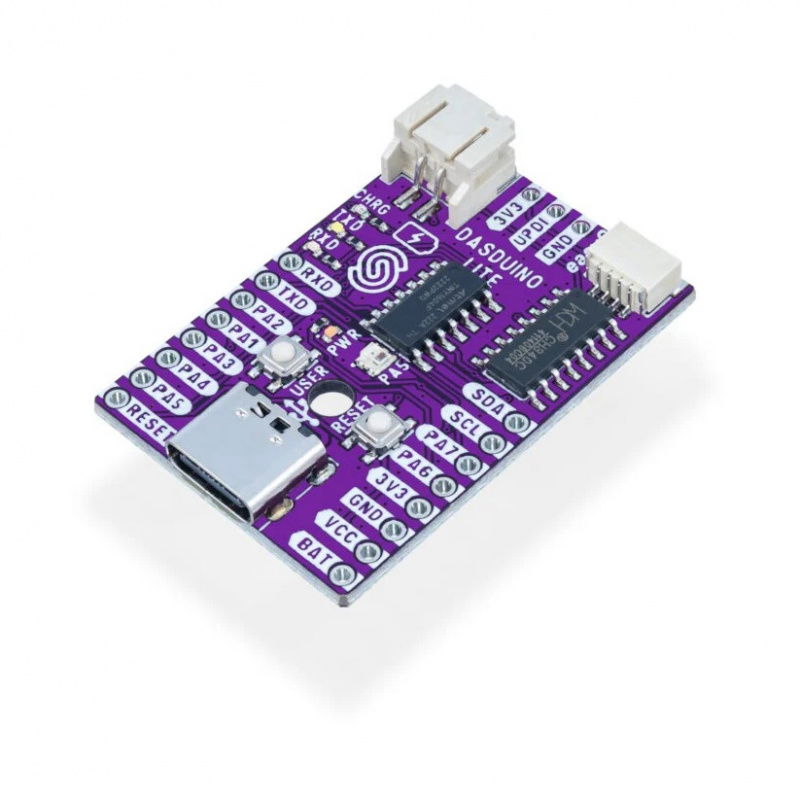

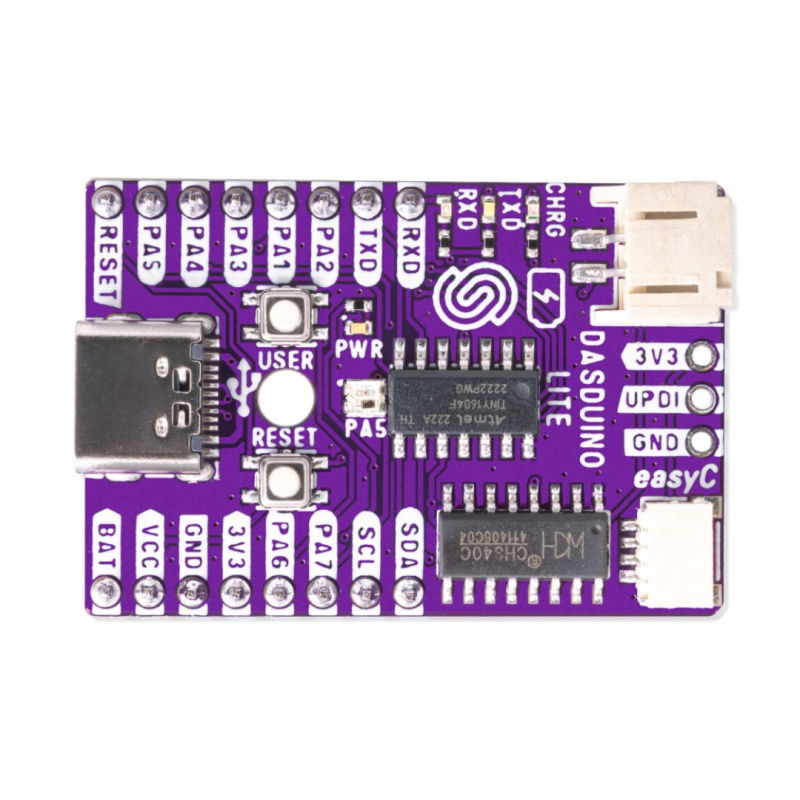

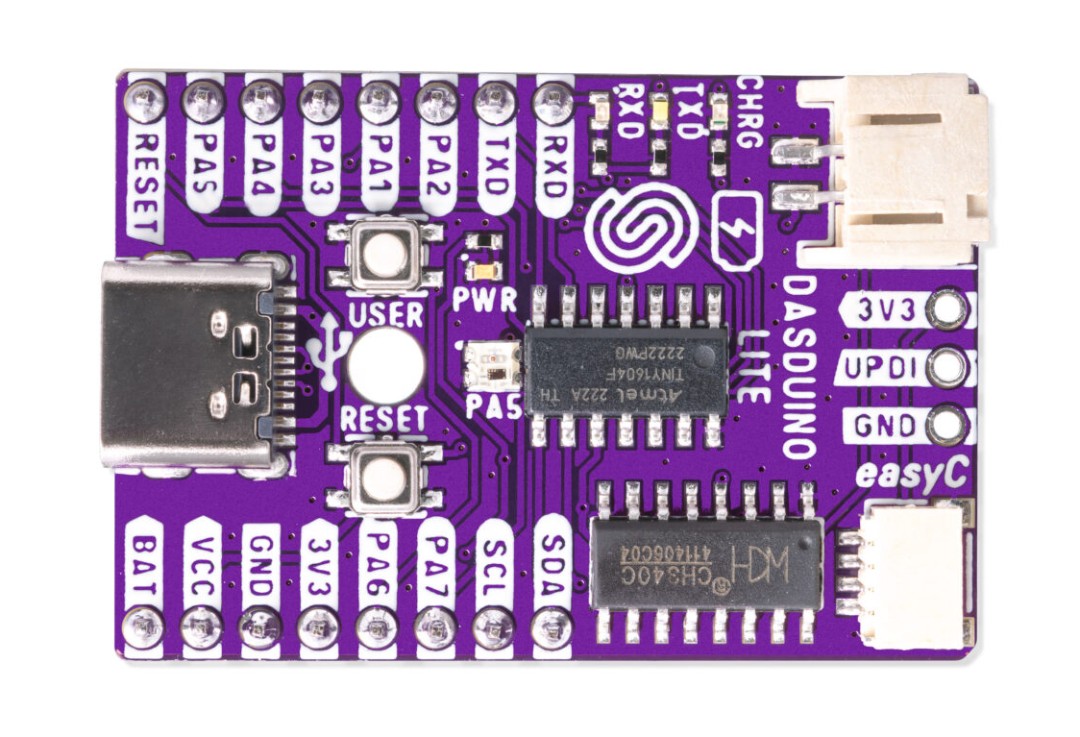

Board based on the ATtiny1604 microcontroller.
Main features of Dasduino LITE
- ATtiny1604 microcontroller : a powerful 8-bit microcontroller from the tinyAVR series
- CH340C : USB-UART converter for easy communication with a computer
- 12 GPIO pins : 9 of which can work as analog inputs
- easyC : simple and fast I2C interface for connecting modules
- USB Type-C : convenient power supply and programming
- Li-Ion charger : battery power supply possible
- WS2812B RGB : addressable LED for signaling
- Compact size : perfect for small projects
- Version without goldpins : full assembly versatility
easyC pins and connector
Despite its compact size, the Dasduino LITE offers 12 GPIO pins , including 9 analog inputs , making it incredibly versatile. The easyC connector allows you to quickly connect I2C modules without the need for soldering , speeding up prototyping and reducing the risk of errors. It's ideal for quickly building systems with sensors, displays, or other components.
Programming and compatibility
Dasduino LITE is fully compatible with the Arduino IDE after installing a custom board definition from the official Soldered repository. Programming is performed via USB Type-C and uses the CH340C chip as the UART interface. You can use popular Arduino libraries, and thanks to its open architecture, you can customize the project to your needs. It's an excellent solution for both beginners and advanced users looking for a lightweight yet functional hardware platform.

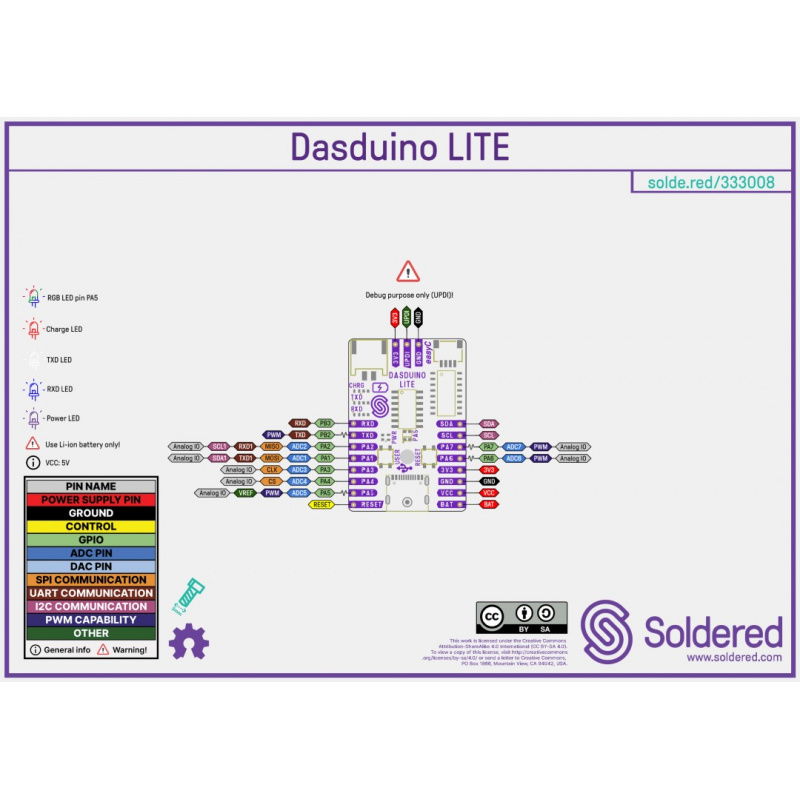

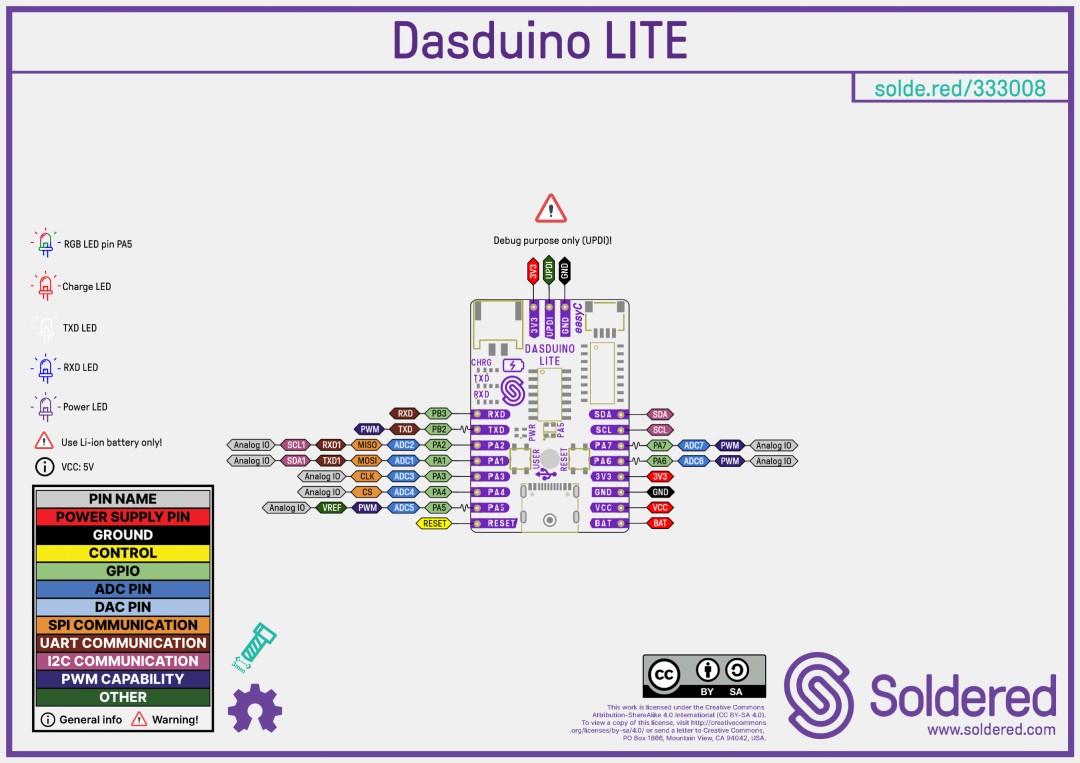

Pinout diagram.

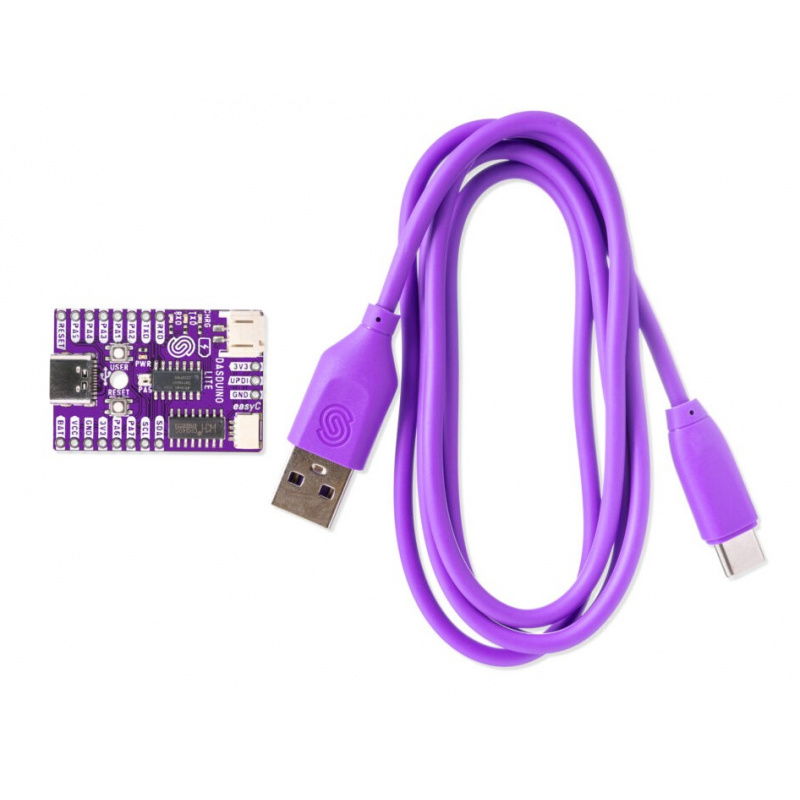

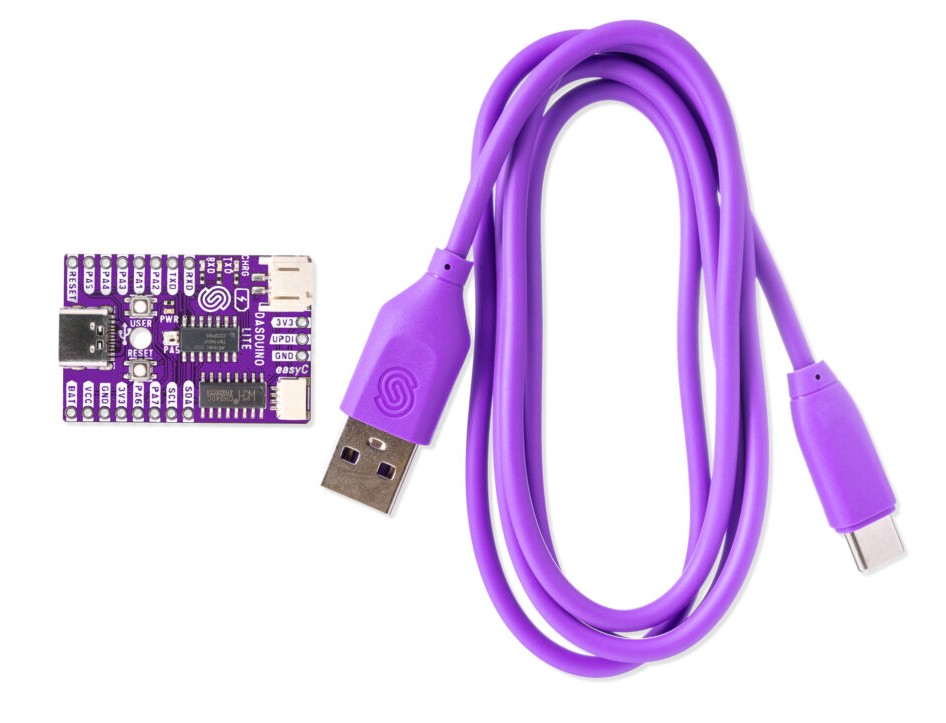

Elements included in the set.
Dasduino LITE Technical Specifications
- Microcontroller: ATtiny1604
- USB-UART converter: CH340C
- Number of pins: 12 GPIO
- Analog inputs: up to 9
- Logic level: 3.3V
- Supply voltage: 5 V
- Connectors: USB Type-C, easyC, JST (Li-Ion)
- LED: RGB WS2812B on pin PA5
- Version: without goldpin connectors

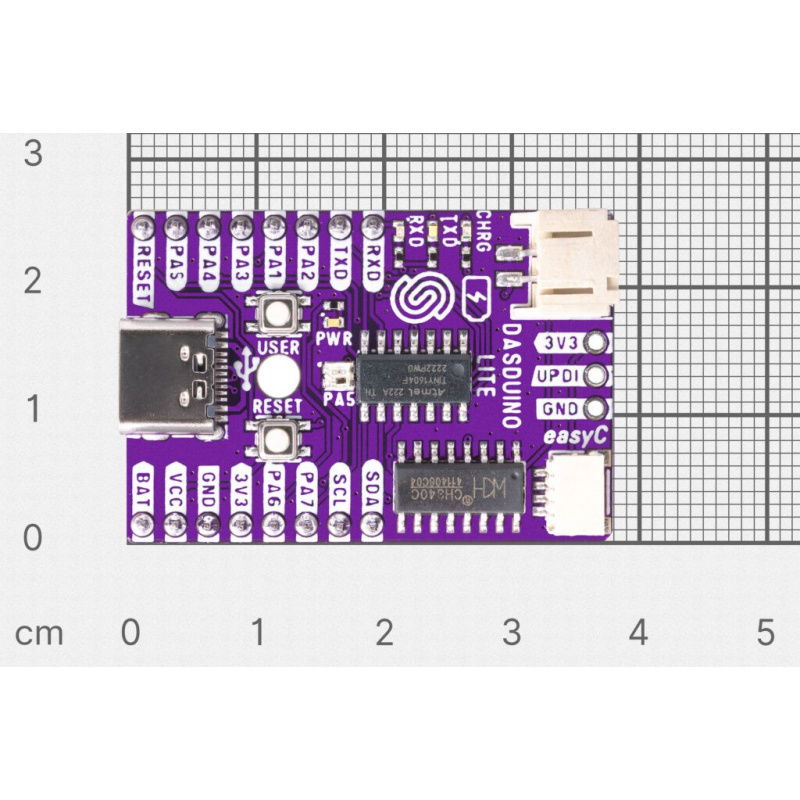

- Dimensions: 38 x 26 mm
Contents of the set
- 1x Dasduino LITE board - without connectors
- 1x USB Type-C cable
Useful links
| Name | Value |
|---|---|
| Width | 12 cm |
| Height | 2 cm |
| Depth | 7 cm |
| Weight | 0.03 kg |
