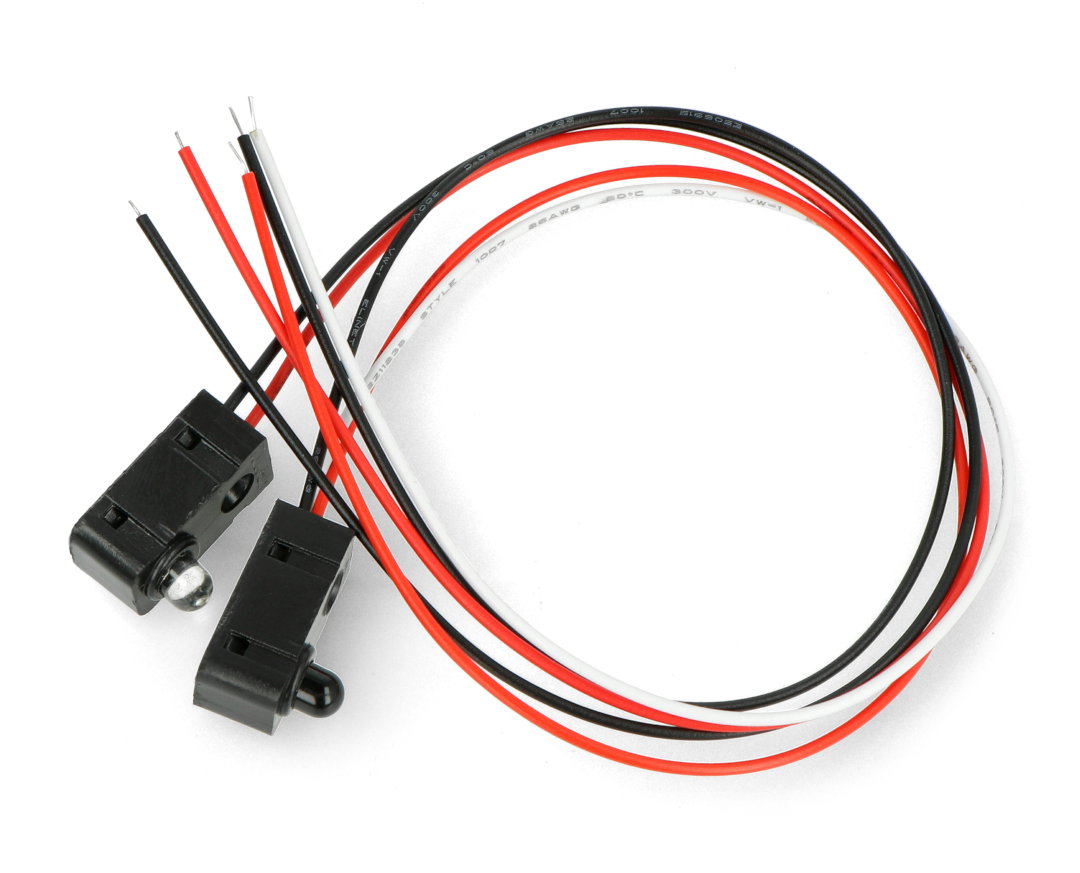

Product Description: IR Beam Interruption Sensor - LED 5 mm - 0-100 cm
Motionsensorreacting to theinterruption of the beam of infrared lighttransmitted between thetransmitterandreceiver. It has a detection rangefrom 0 cm to 100cm. The receiver indicates when the beam is interrupted by another object. The module is equipped with a5 mm IR LEDwith an illumination angle of20°. Beam interruption systems are used e.g. in measuring gates.
IR beam interruption detector - 5 mm LED.Specifications of the beam interruption sensor
- Supply voltage: 3.3 V to 5 V
- Range: 0 cm to 100 cm
- Diode: 5 mm IR LED
- Illumination angle: 20°
- Response time: up to 2 ms
- Output: open collector
|
Detailed description can be found in theuser's guide. |
