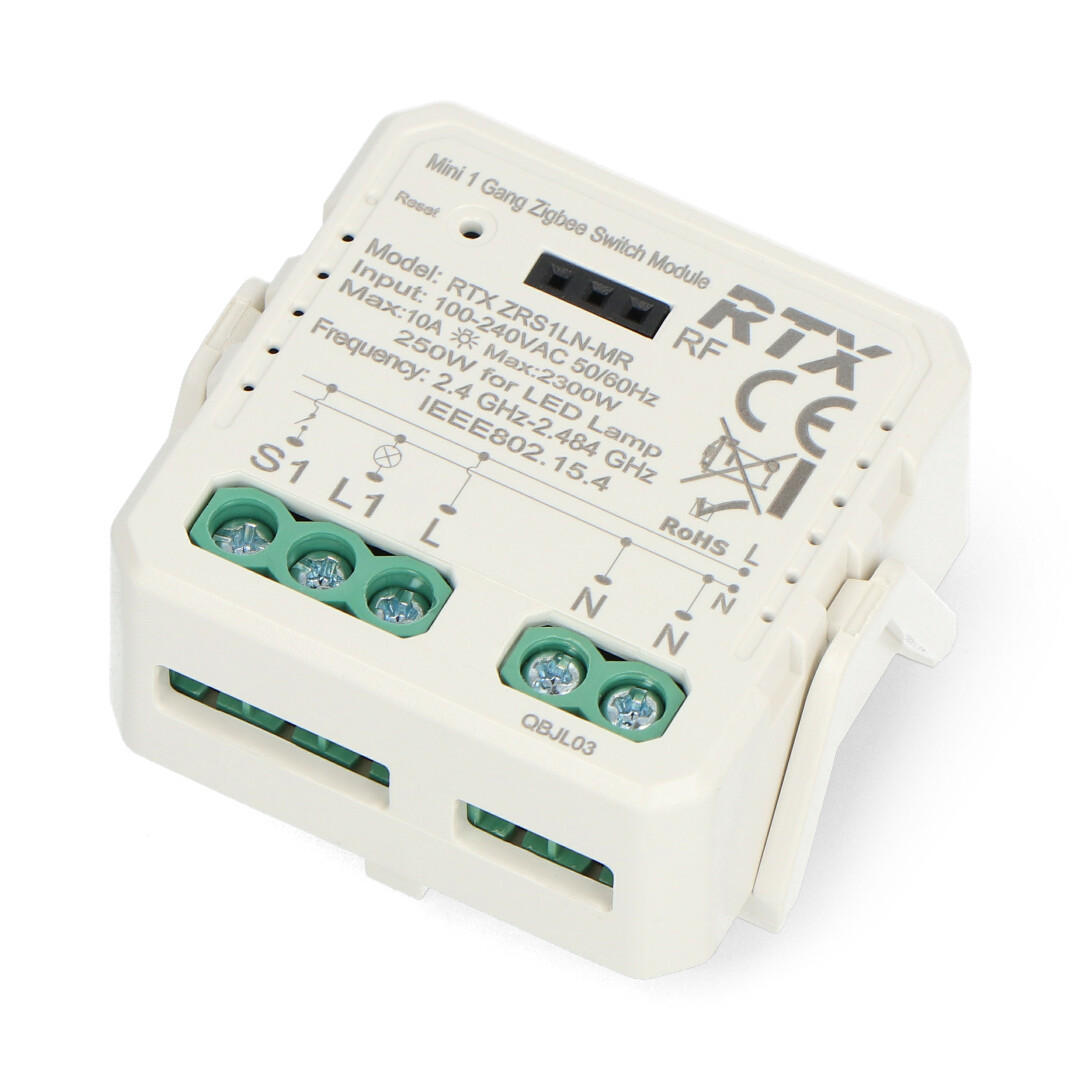

Product description: Tuya - single-channel mini relay 10A - ZigBee - Android/iOS application - RTX ZRS1LN-MR
The miniature relay from RTX is an excellent solution for controlling devices in a smart home . Thanks to its small dimensions (39 x 39 x 15 mm) and compatibility with the ZigBee 3.0 protocol, it is an ideal solution for installation in standard wall boxes or sockets. The module allows you to control 230 V devices (up to 2300 W), both remotely using the Tuya application and locally using traditional light switches. Additionally, there is the possibility of control using the RF remote control, which allows for wireless control of devices within a range of 20 meters . It supports a load of up to 10 A and works with monostable and bistable switches. The relay works with Google Home and Amazon Alexa systems, enabling voice control of devices. The Tuya Smart application allows for easy configuration, setting a timer, schedule, and automatic control scenarios. Thanks to the ZigBee range of up to 30 meters , the relay ensures reliable communication and quick response in the smart home system.
Tuya - single-channel mini relay 10A - ZigBee - Android/iOS application - RTX ZRS1LN-MR.
The miniature relay from RTX is the perfect solution for controlling devices in a smart home.Special Features
- Remote control - control via the Tuya Smart application, Google Home and Amazon Alexa allows full control over the device from anywhere in the world
- Local control - control via a traditional switch or RF remote control (range up to 20 m) for ease of use
- ZigBee 3.0 Compatibility - stable communication in the ZigBee 3.0 system with a range of up to 30 m, ensuring reliability and easy integration with other devices
- Maximum load power - supports devices with power up to 2300 W (10 A) and 250 W for LED devices
- Built-in antenna - increases connection stability, ensuring reliable communication between ZigBee devices
- Automatic functions - timer, schedule and time-of-day based scenes allow for automatic control of devices
- Voice Control - Compatibility with Google Assistant and Amazon Alexa allows for convenient voice control
Easy integration with a smart home system
The miniature relay is designed for easy integration in smart home systems. Thanks to its compatibility with the Tuya Smart app, you can quickly add the device to your home automation system. Connection with Google Home and Amazon Alexa enables voice control, which gives the user additional convenience. The configuration process is quick and intuitive - just add the device to the app and the system will automatically recognize it.
Practical applications
The miniature relay is ideal for smart home applications. It can be used to control lighting, sockets, fans or other electrical devices. Thanks to the remote control option, scheduling and integration with home automation systems, the device allows for comfortable management of electronic equipment at home or in the office.
The module allows you to control 230 V devices (up to 2300 W), both remotely using the Tuya app and locally using traditional light switches.
The relay works with Google Home and Amazon Alexa systems, enabling voice control of devices.Technical specification

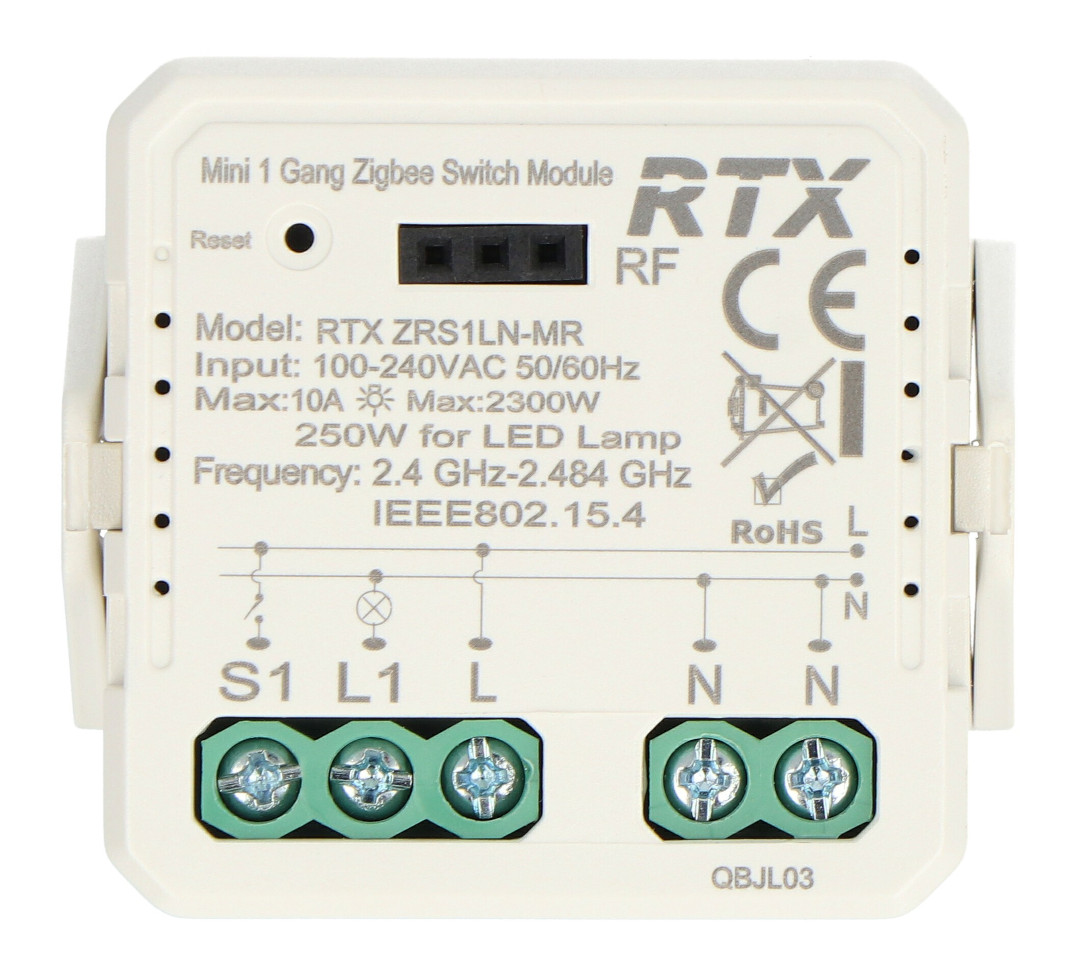

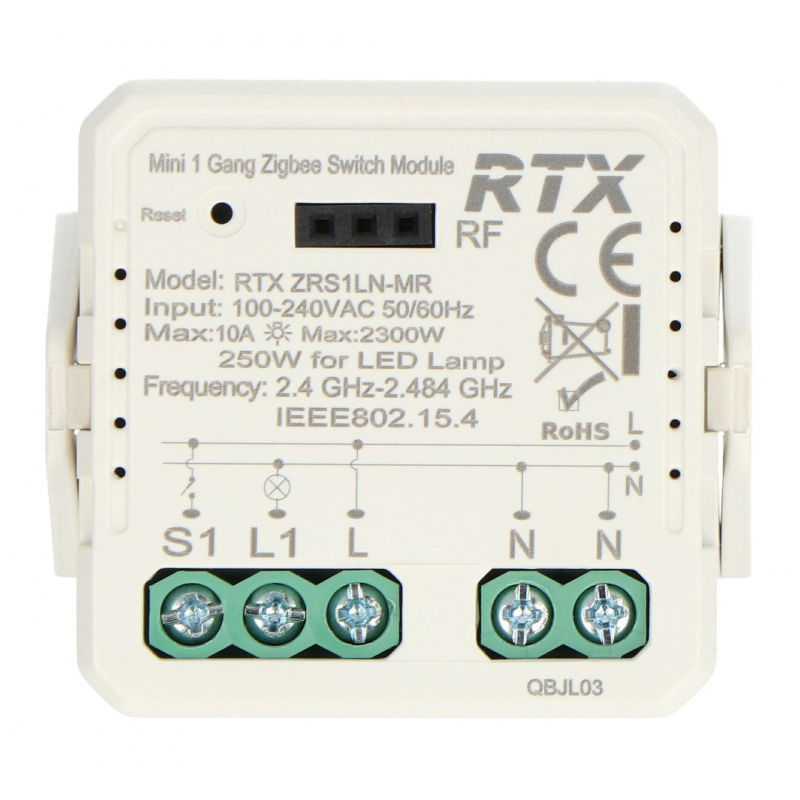

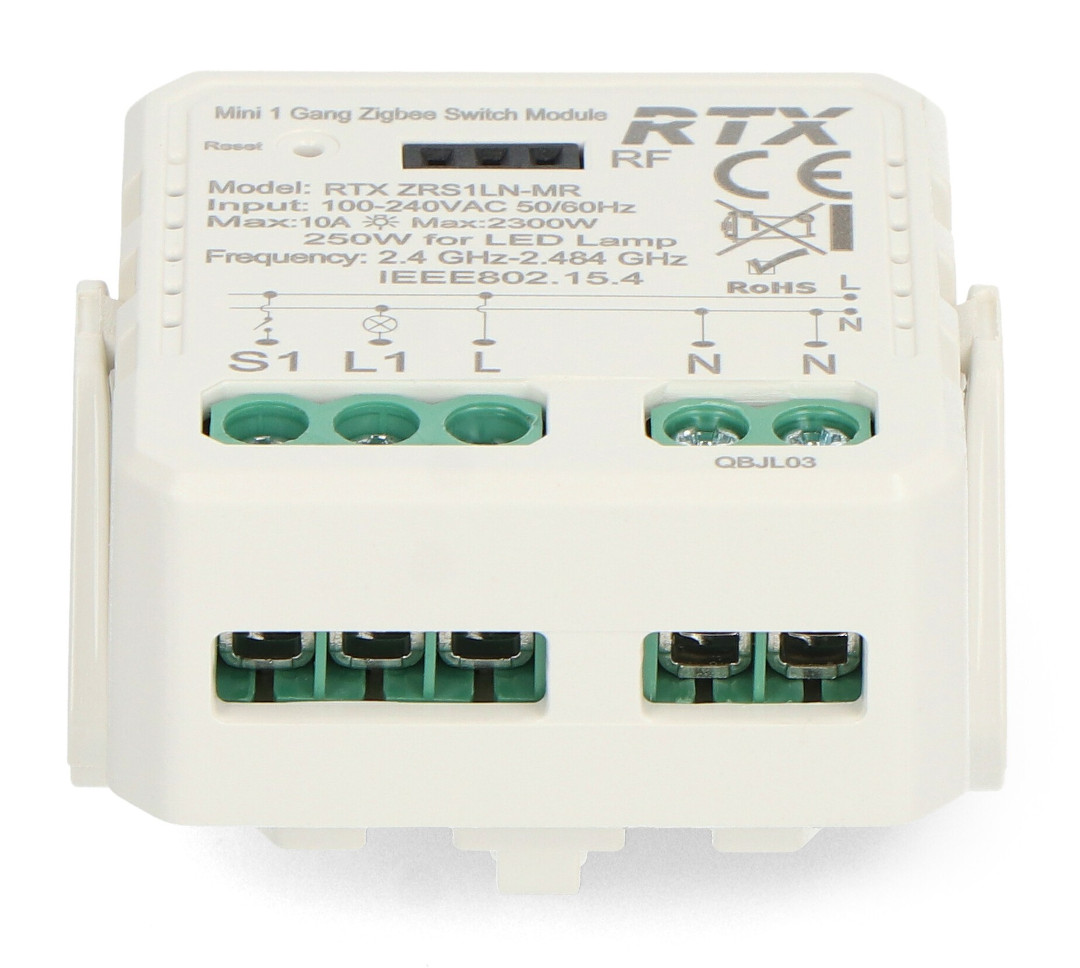

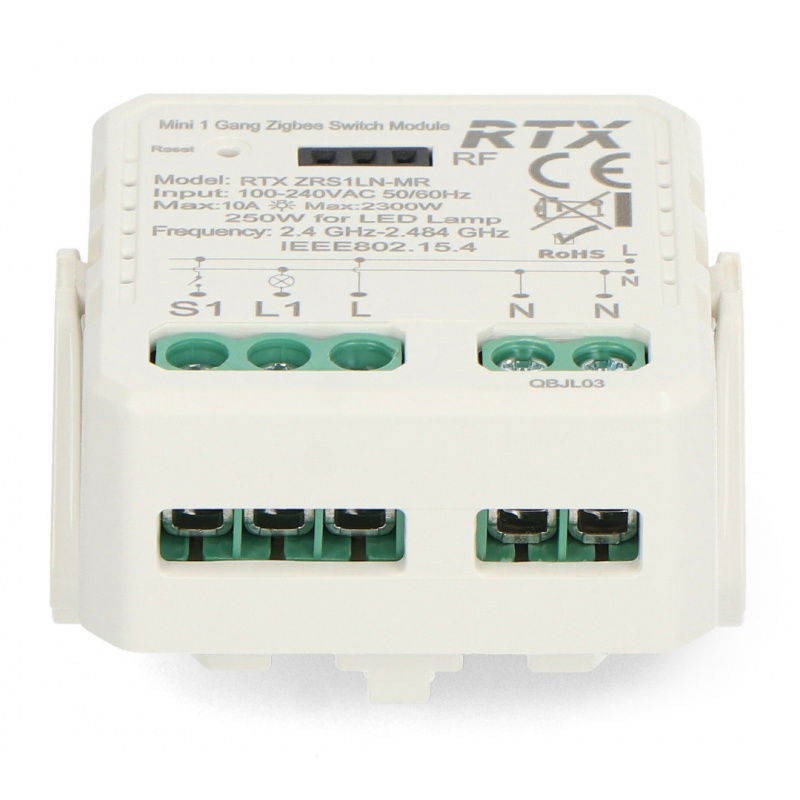

- Device type: single-channel mini relay
- Model: RTX ZRS1LN-MR
- Control range: unlimited (when connected to mobile internet)
- ZigBee protocol: 3.0, compliant with 802.15.4 standard
- Antenna type: built-in
- ZigBee range: up to 30 m (depending on conditions)
- Operating temperature: 0°C to 50°C
- Supply voltage: 100 V to 240 V AC, 50/60 Hz
- Maximum load power: 2300 W (10 A), 250 W for LED
- Compatibility with systems: Amazon Alexa, Google Home, Application: iOS / Android
- Dimensions: 39 x 39 x 15 mm
- Weight: 60 g
