Product description: Single-phase energy consumption meter for DIN rail - 63 A - WiFi Tuya - Qoltec 50981
The Qoltec electronic energy consumption meter is designed for monitoring electrical parameters in single-phase installations . It measures voltage, current, power, active energy, and leakage current , allowing for real-time monitoring of installation parameters. Measurement results are presented on a clear LCD display , and energy consumption is expressed in kWh . The built-in 2.4 GHz WiFi module allows the meter to be connected to the Tuya Smart or Smart Life app. You can remotely turn the power on and off, check current parameters, analyze energy consumption history, and create schedules, timers, and automations. The meter is also equipped with overload, overvoltage, undervoltage, leakage, and temperature protection.

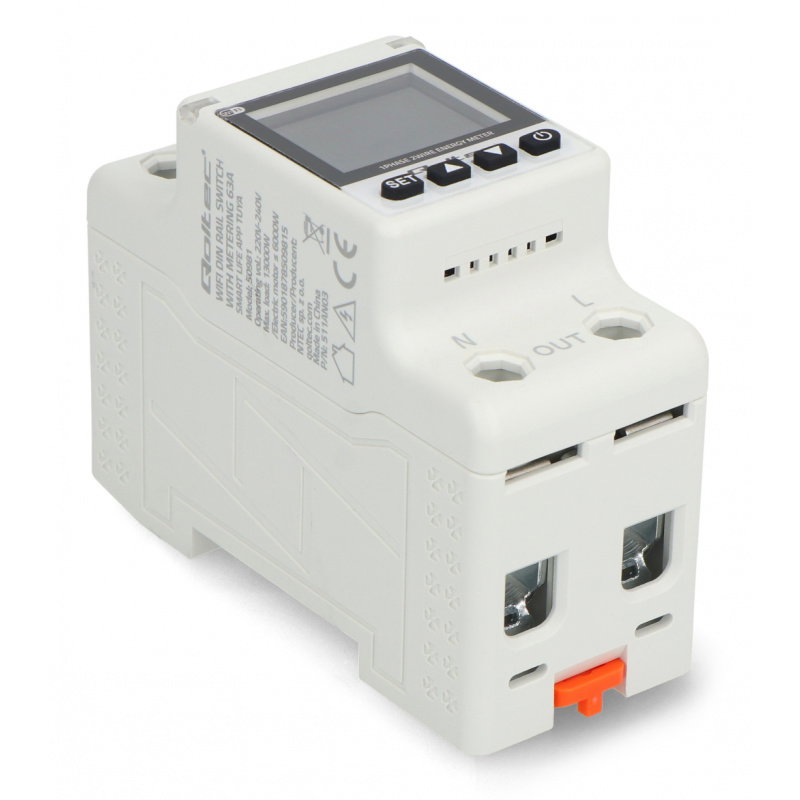

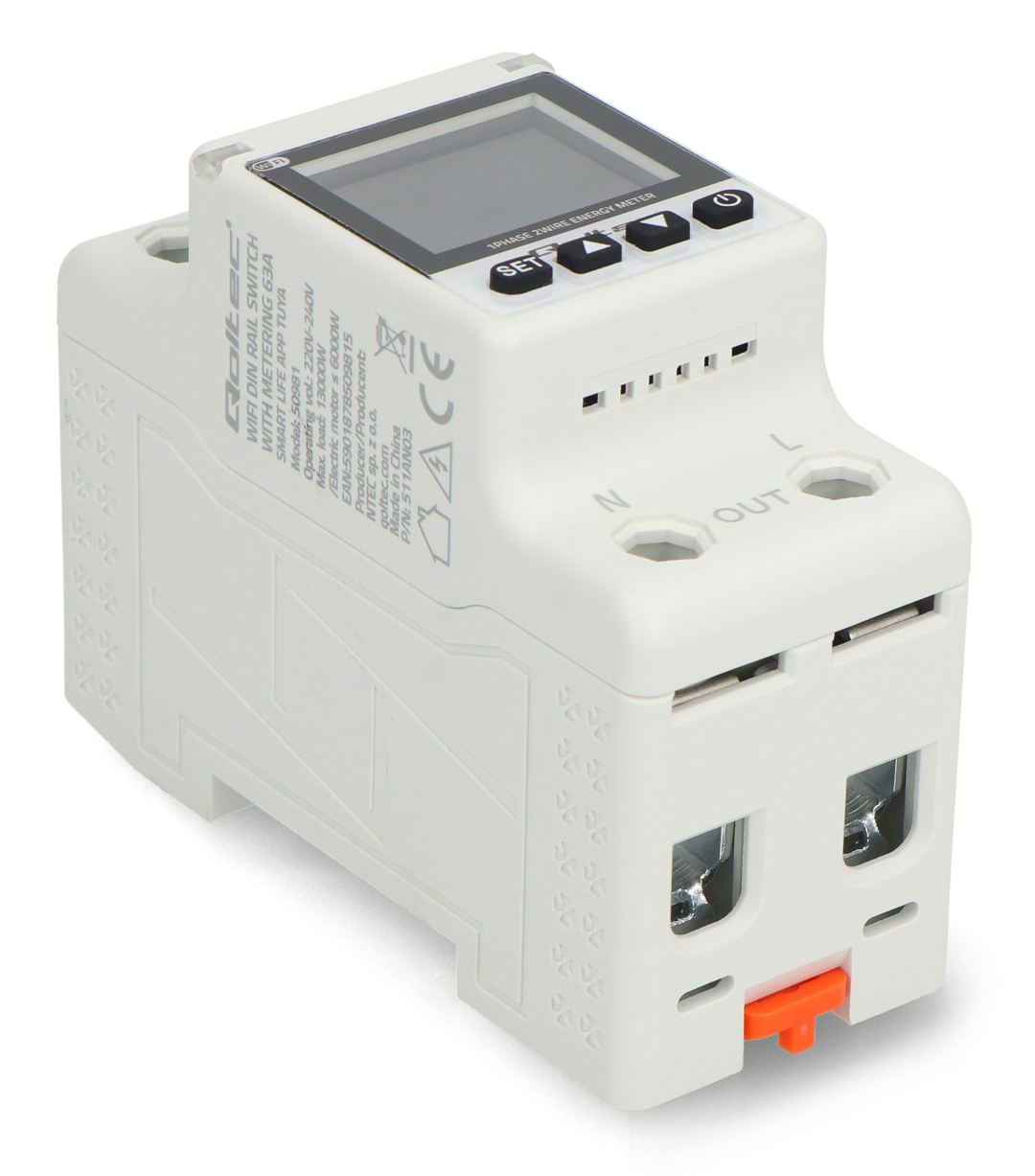

Single-phase energy consumption meter for DIN rail - 63 A - WiFi Tuya - Qoltec 50981.

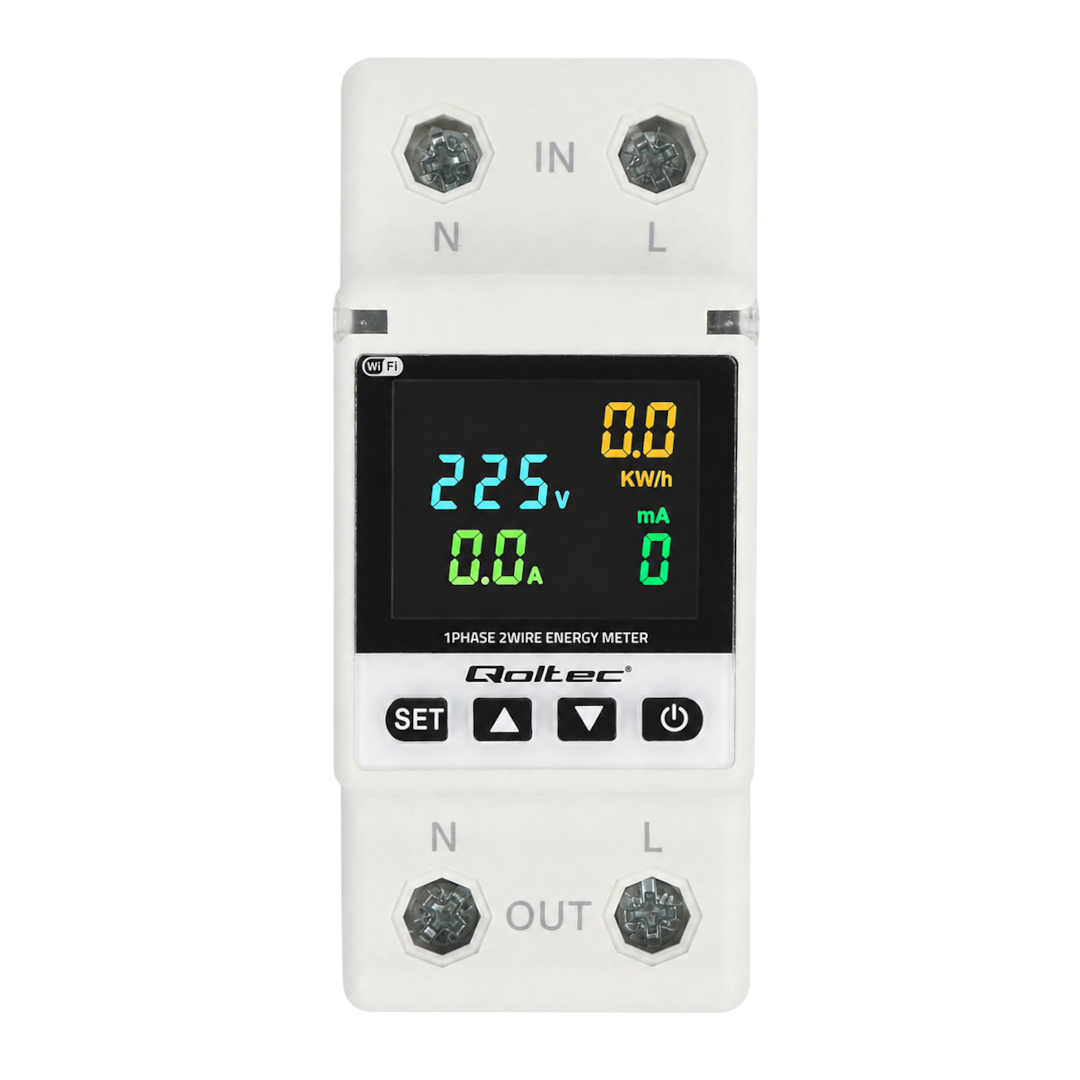

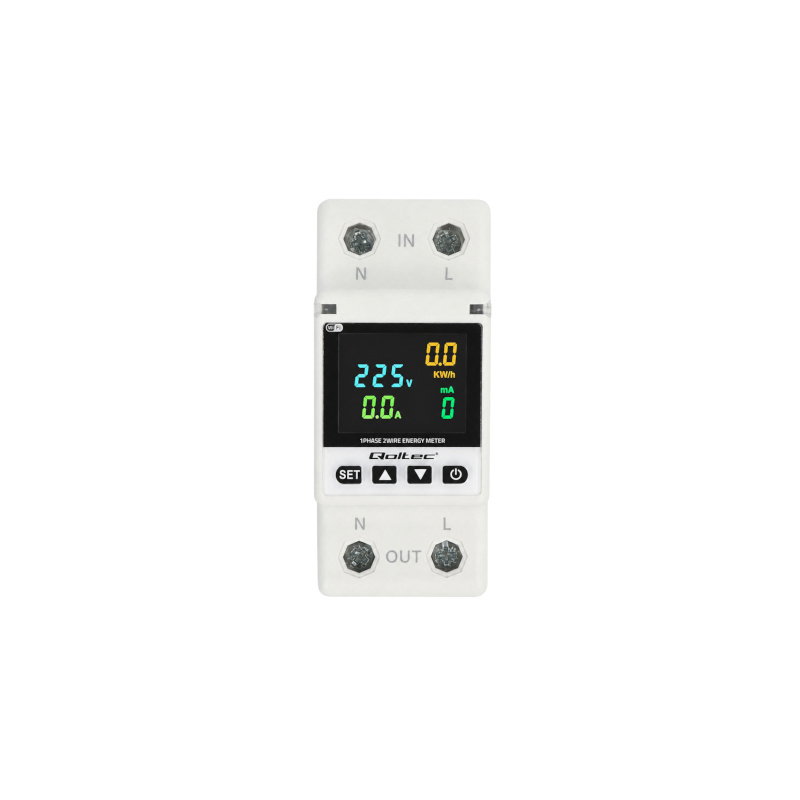

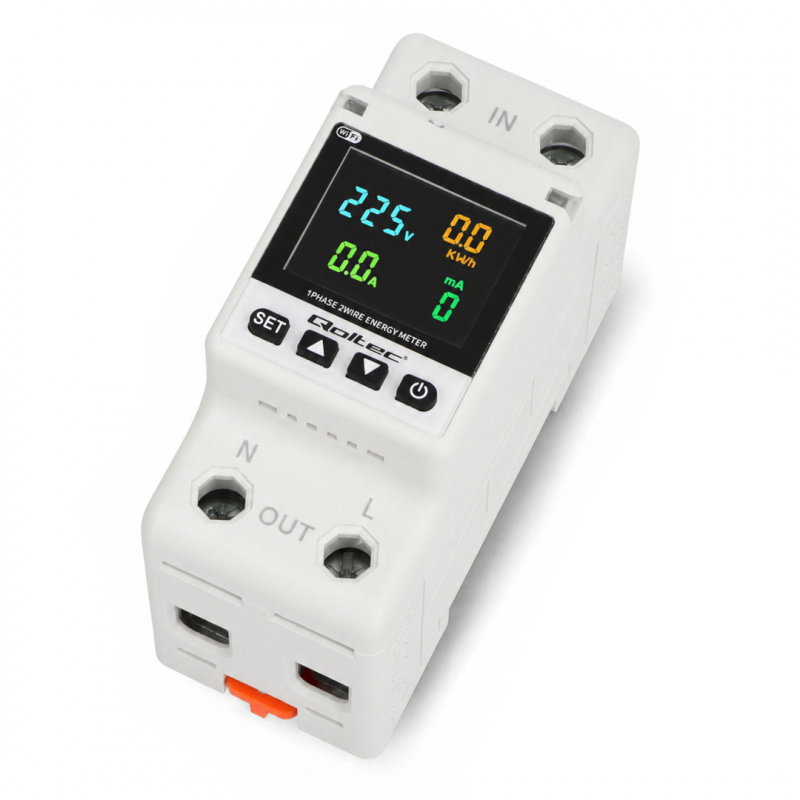

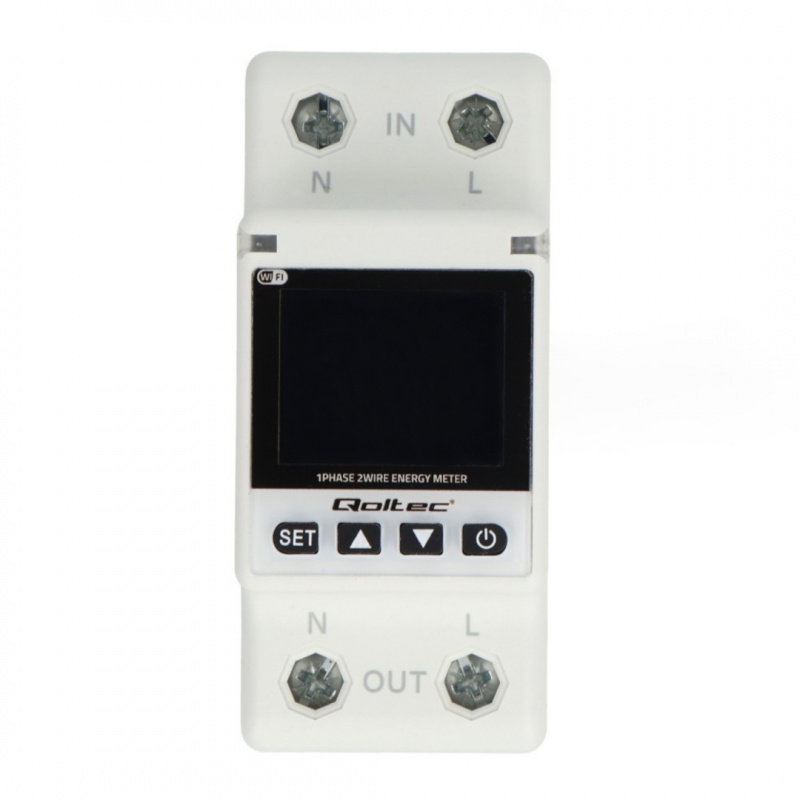

The clear LCD display presents all key measurement parameters in real time.
Main features of the Qoltec energy meter
- Single-phase installation : the device is designed to measure the active energy consumed by single-phase receivers
- Rated current from 1 A to 63 A : allows operation of a wide range of electrical devices and circuits
- Multi-parameter measurement : monitors voltage, current, power, energy and leakage current
- Energy consumption measurement in kWh : helps you analyze your energy consumption and identify the devices that generate the most costs
- LCD display : presents current electrical parameters in a readable form
- 2.4 GHz WiFi connectivity : allows remote communication with the meter via a wireless network
- Tuya Smart and Smart Life app : allows you to monitor, control and analyze measurement history on Android and iOS devices
- Remote Power Control : Allows you to turn a connected circuit on and off from anywhere with internet access
- Measurement history : allows you to analyze your daily, monthly and yearly energy consumption
- Schedules and timers : allow you to automatically control the power according to a set plan
- Automations : enable power to be disconnected when a certain threshold is exceeded
- Manual control : built-in buttons allow you to operate the device without using the app
- Overload protection : protects the installation and connected loads against excessive load
- Overvoltage and undervoltage protection : responds to incorrect voltage levels in the installation
- Leakage protection : allows you to control the leakage current
- Temperature protection : disconnects the power supply when the set temperature threshold is exceeded
- Recloser function : can automatically restore power after the cause of the failure is removed
- Mounting on a TH35 DIN rail : allows the meter to be placed in a standard electrical distribution board
- Compact two-module design : takes up little space in the dashboard
Remote control of the energy meter via Tuya and WiFi
The energy meter works with the free Tuya Smart and Smart Life apps, available for Android and iOS devices. Once connected to a 2.4 GHz WiFi network, you can check current system parameters and remotely control power, even when away from home, the office, or a workshop. Access to remote functions requires the meter to be properly connected to the network and your smartphone to the internet. The app allows you to analyze energy consumption history using daily, monthly, and yearly graphs . This allows you to more easily assess your system's energy consumption, identify periods of increased consumption, and plan actions to reduce costs. You can also set schedules, timers, and rules for automatic power shutdown when a defined parameter is exceeded. Integration with the Tuya platform simplifies connecting the meter to other Smart Home system components. Automation scenarios can be created tailored to your system's usage.
Thanks to WiFi connectivity and compatibility with the free Tuya / Smart Life app, you can remotely turn devices on and off from anywhere.

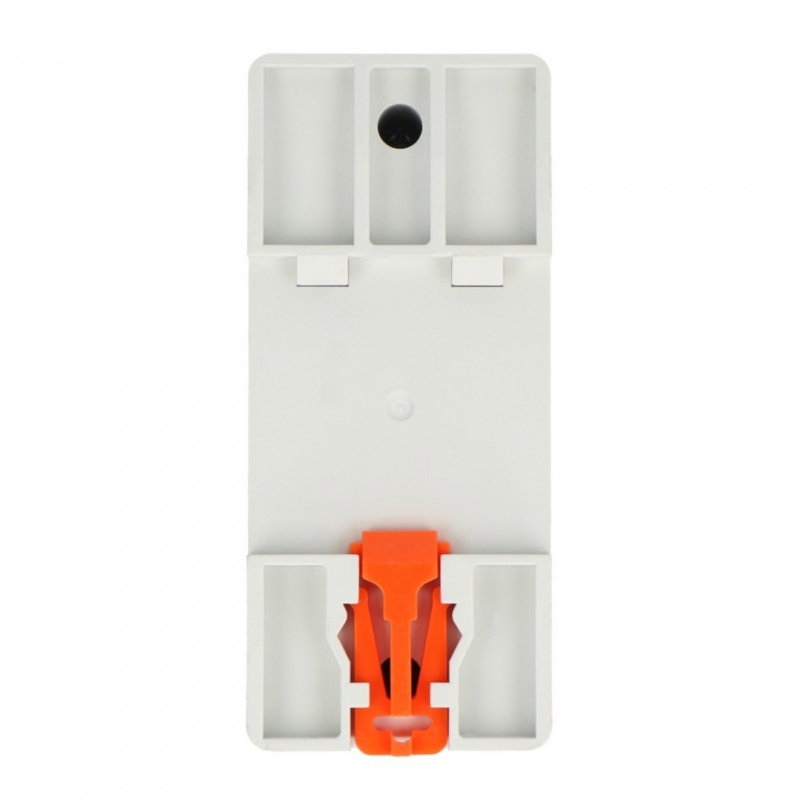

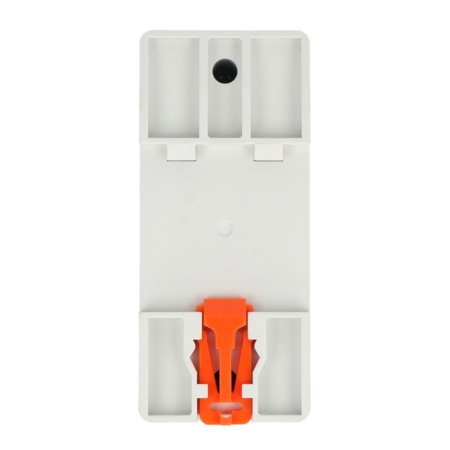

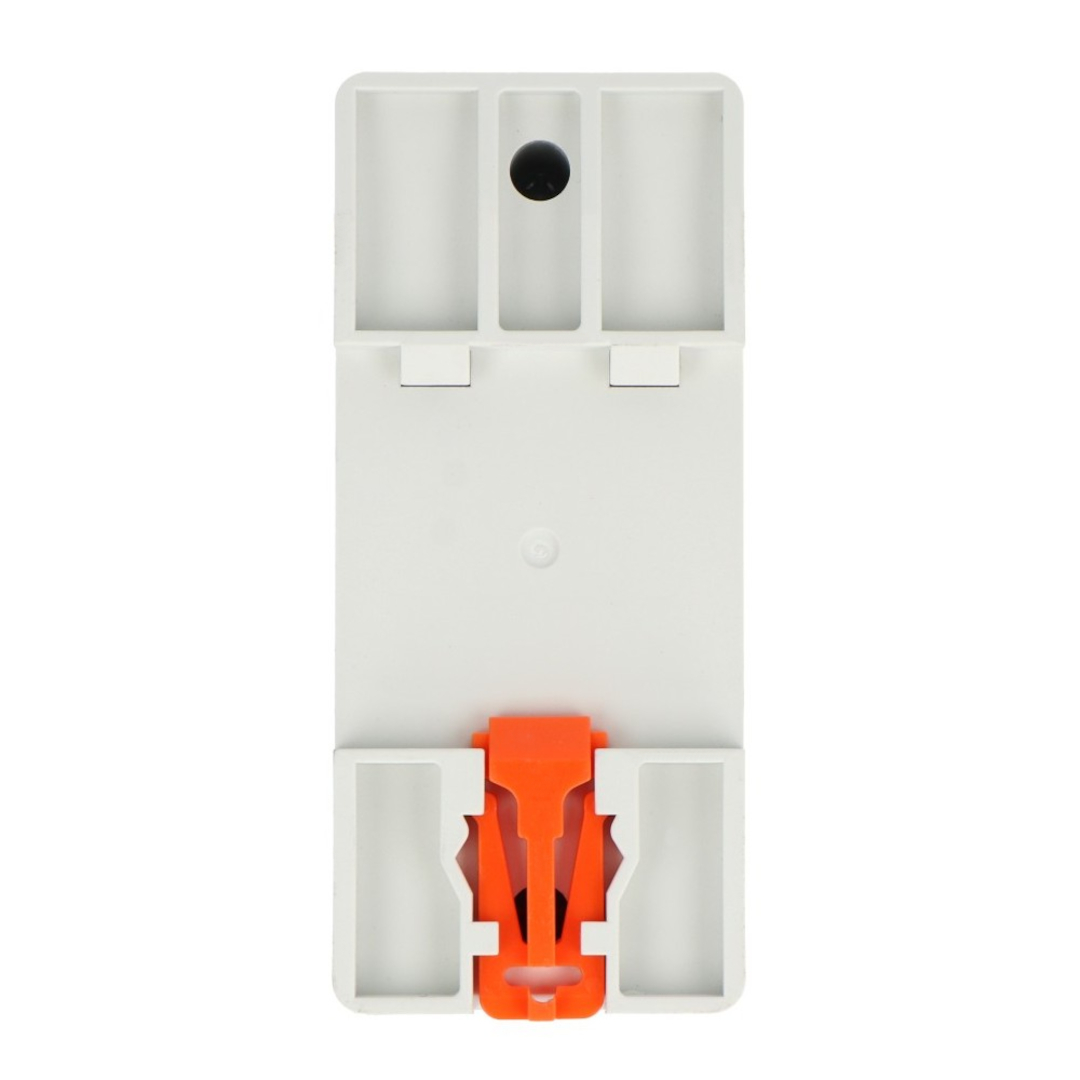

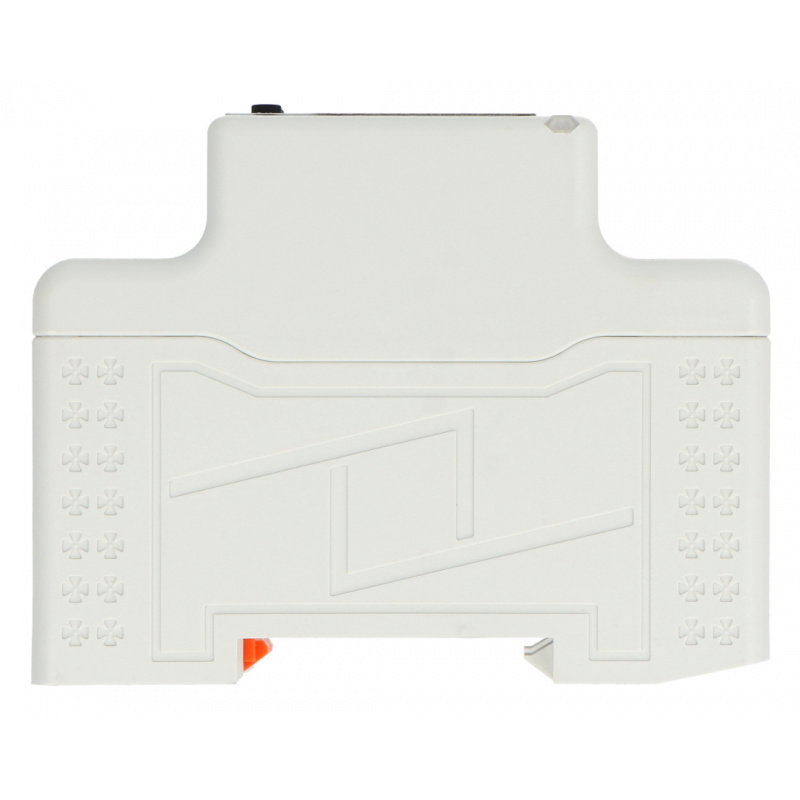

The meter is designed for standard mounting on a 35 mm DIN rail.
Technical specifications of the Qoltec 50981 meter
- Installation type: single-phase
- Design: two-wire, 2 modules
- Measurement direction: unidirectional
- Nominal voltage: 230 V
- Rated current: 1 A to 63 A
- Maximum power of resistive receivers: 13000 W
- Maximum power of inductive receivers: 6000 W
- Measured parameters: voltage, current, power, active energy, leakage current
- Energy measurement unit: kWh
- Number of poles: 2P + N
- Display: LCD
- Signaling: LED
- Connectivity: WiFi
- Wireless frequency: 2.4 GHz
- Supported applications: Tuya Smart, Smart Life
- Remote functions: power on and off, parameter viewing, consumption history, schedules, timers, automation
- Measurement history: daily, monthly and yearly
- Manual control: yes
- Protection: overload, overvoltage, undervoltage, leakage, temperature
- Automatic power off: yes
- Auto-restart function: yes
- Mounting: DIN rail TH35
- Color: white
- Operating temperature: -40°C to 100°C
- Dimensions: 66 x 37 x 85 mm
- Weight: 0.174 kg
Contents of the energy meter kit
- 1x Qoltec 50981 single-phase energy meter for DIN rail
