Product description: Tuya - two-channel mini relay 10 A - ZigBee - Android / iOS application - RTX ZRS2LN-MR

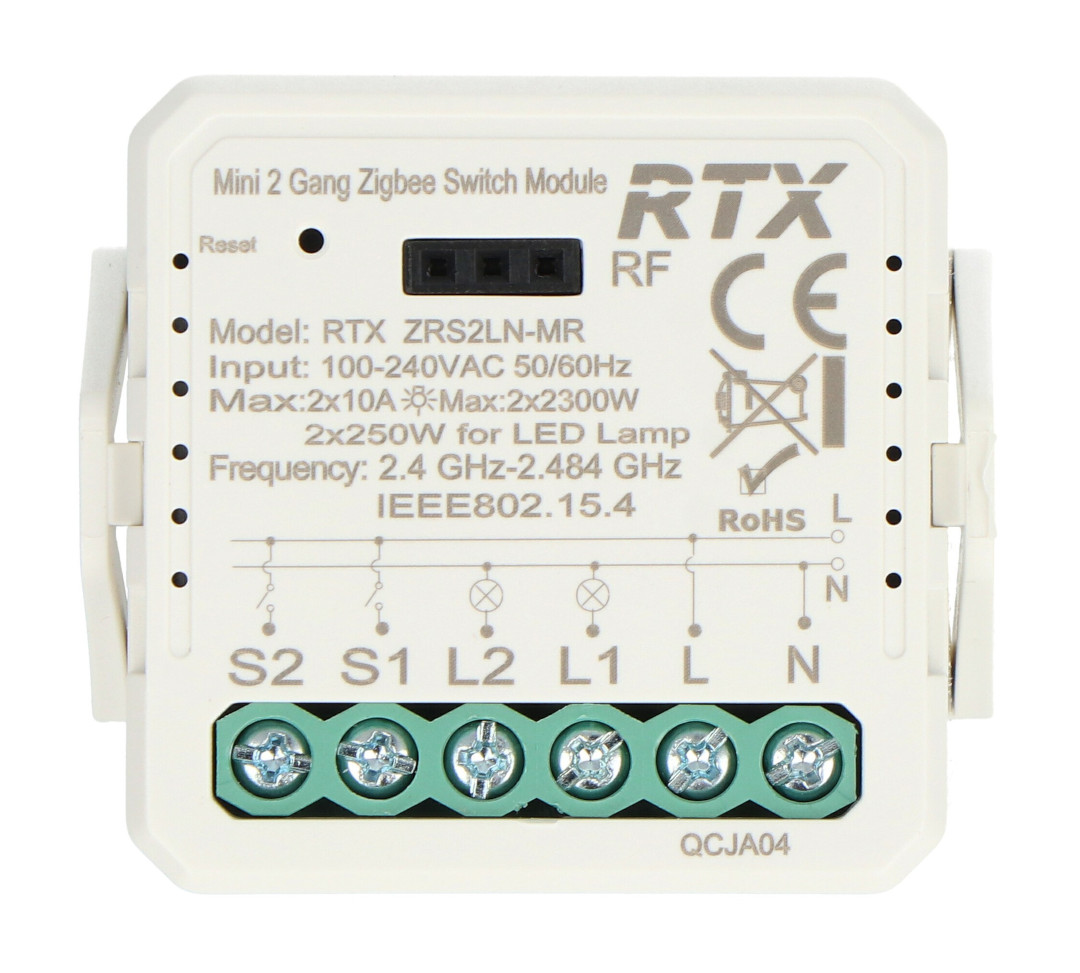

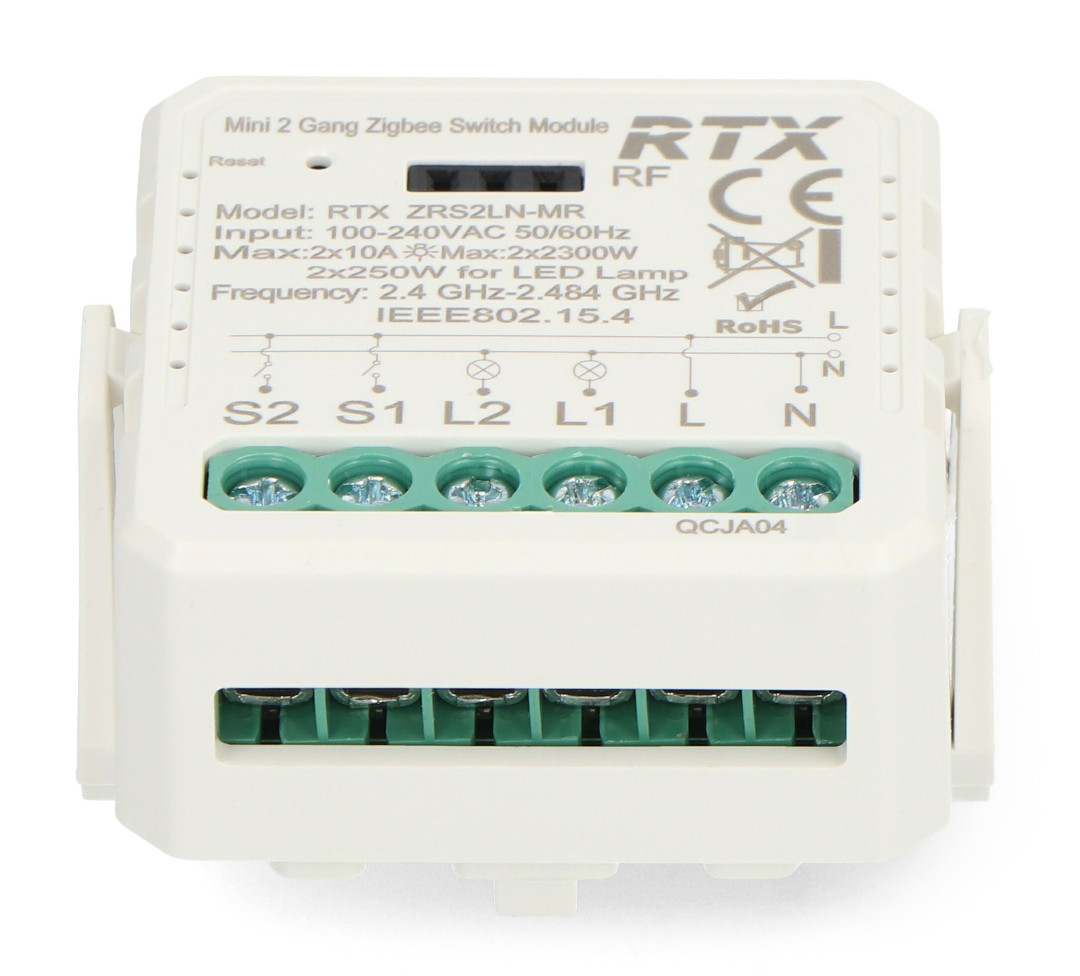

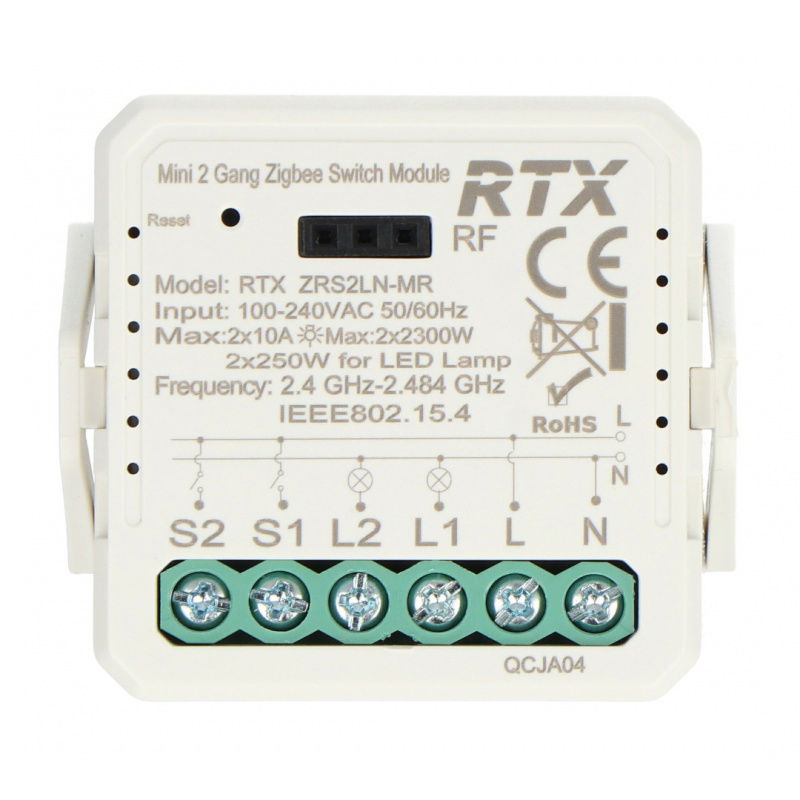

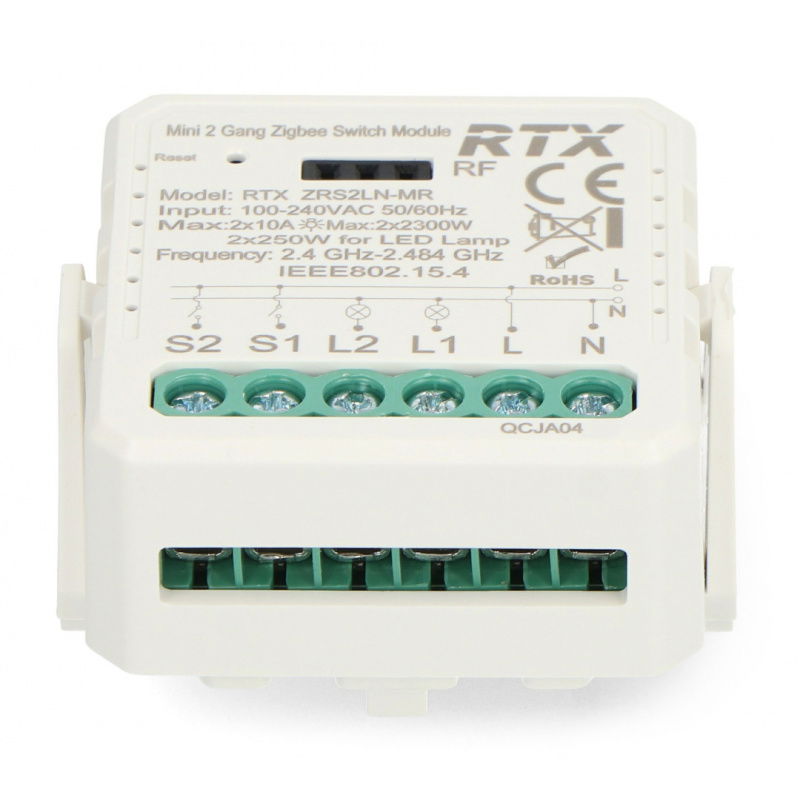

The miniature 2-channel relay from RTX is a modern device designed for smart homes. Thanks to two independent 230 V outputs (each with a power of up to 2300 W ), the relay allows remote control of two circuits, making it an ideal solution for controlling lighting, sockets or other electrical devices in the home. The module communicates using the ZigBee 3.0 protocol, which ensures stable and secure data transmission in the smart home system. The relay works with the Tuya Smart or Smart Life application, allowing full control over devices remotely, from anywhere in the world. Additionally, there is the possibility of local control using traditional switches - mono or bistable or an optional RF remote control , which gives the user great flexibility.
Attention!
To operate correctly, the relay requires connection to a ZigBee gateway , which can be purchased separately.
Tuya - two-channel mini relay 10 A - ZigBee - Android / iOS application - RTX ZRS2LN-MR.
The miniature 2-channel relay from RTX is a modern device designed with a smart home in mind.Special Features
- Remote control - the ability to control the device using the Tuya Smart, Google Home and Amazon Alexa applications
- Local control - traditional switch or RF remote control (up to 20m range) for easy on-site control
- ZigBee 3.0 Compliant - Stable communication thanks to the ZigBee 3.0 (802.15.4) protocol
- Maximum power - supports a load of up to 2 x 2300 W (10 A) or 2 x 250 W for LED devices
- ZigBee range - communication with devices up to 30 m (depending on environmental conditions)
- Built-in antenna - provides solid coverage and reliable communication in the system
- Compact housing - dimensions 39 x 39 x 15 mm, allowing easy installation in standard electrical boxes
- Automation - ability to set a timer, schedule and control scenarios depending on the time of day
- Voice control - integration with Google Assistant and Alexa, allowing you to control the device using voice commands
Practical applications
The RTX ZigBee Tuya relay is ideal for smart home applications. It can be used to control lighting, sockets, fans, RTV devices, heaters and other electrical equipment. Thanks to two channels, the device allows for simultaneous management of two independent circuits, which increases its functionality in various scenarios.
Possibility of system expansion
The 2-channel relay can be easily expanded with additional elements, such as an RF remote control (up to 20 meters). This allows you to control devices from anywhere in the building, which increases the flexibility of the system. RF remotes are available separately but are a perfect complement to the system, allowing wireless control without the need to install additional cables.

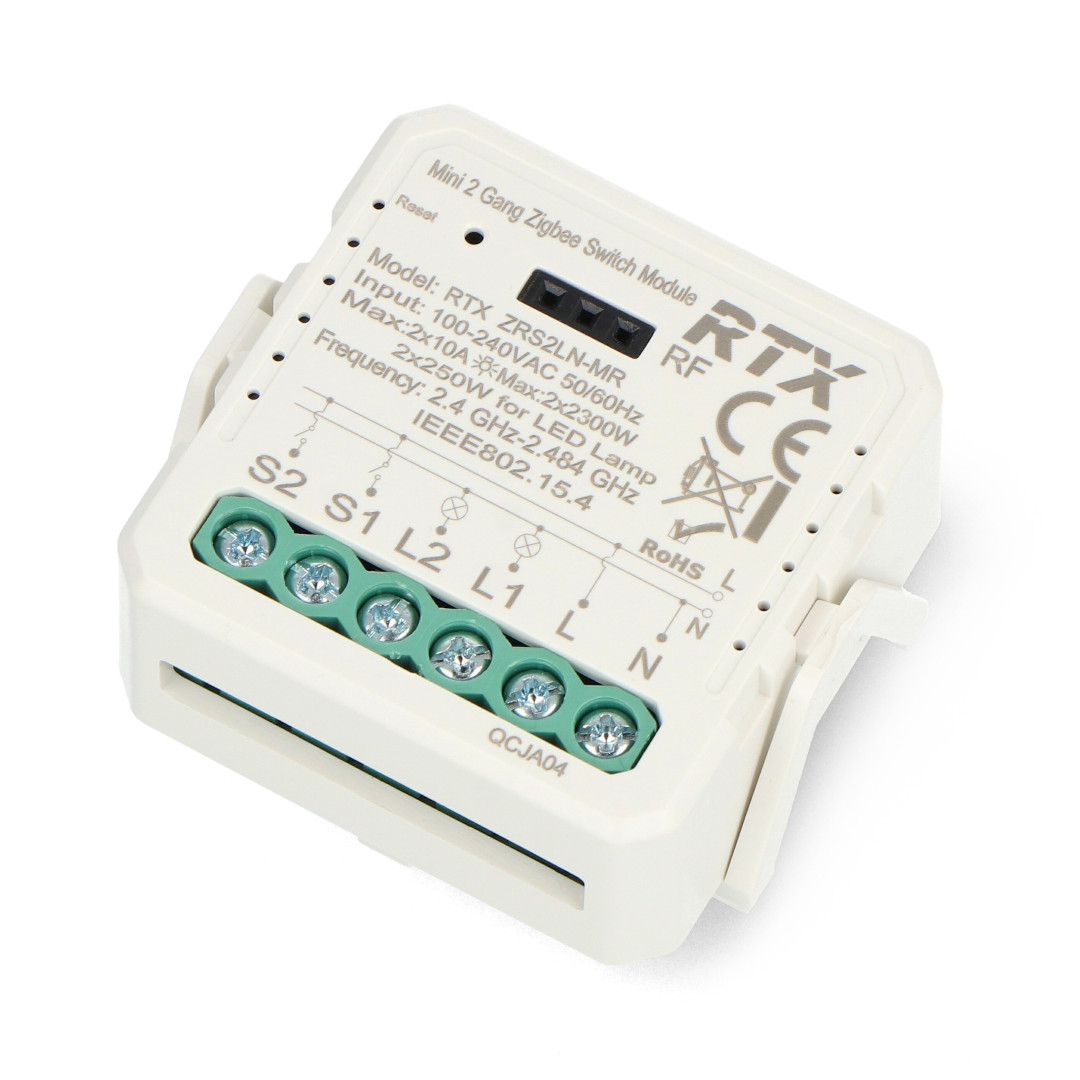

Thanks to two independent 230 V outputs (each with a power of up to 2300 W), the relay allows remote control of two circuits.
The Tuya RTX ZigBee Transmitter is ideal for smart home applications.Technical specifications of the relay
- Device type: dual channel mini relay
- Model: ZRS2LN-MR
- ZigBee protocol: version 3.0, standard 802.15.4
- Antenna type: built-in
- ZigBee range: up to 30 m (depending on conditions)
- Power supply: 230V AC
- Maximum load power: 2 x 2300 W (10 A), 2 x 250 W for LED
- App Compatibility: Tuya Smart, Smart Life
- Compatibility with systems: Google Assistant, Amazon Alexa
- Dimensions: 39 x 39 x 15 mm
- Weight: 72 g
