ZigBee light driver RTX ZDM1LN-MR Tuya ZIG-DM
Ready lighting controller module that allows you to control brightness, turn on or off lighting remotely or using a traditional mechanical switch. It works with an input voltage of 100-240 V AC with a power of up to 200 W. The small dimensions of the module allow for installation in an electrical box. The module communicates with the ZigBee network, for correct operation, the Tuya ZigBee gateway should be used.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RTX ZDM1LN-MR ZigBee Tuya ZIG-DM Lighting Controller
Ready lighting controller module that allows you to control brightness, turn on or off lighting remotely or using a traditional mechanical switch. It works with an input voltage of 100-240 V AC with a power of up to 200 W. The small dimensions of the module allow for installation in an electrical box. The module communicates with the ZigBee network, for correct operation, the Tuya ZigBee gateway should be used.
Key Features of the Tuya ZigBee Lighting Controller
- Allows automatic lighting control
- Work according to weekly schedule
- It works according to a scenario, depending on other elements of the system
- Remote control via smartphone or remotely using a traditional switch
- Small housing allows for installation in an electrical box
- Works with ZigBee central
Attention To work correctly, the device requires connection to a ZigBee gateway , which can be purchased separately. |

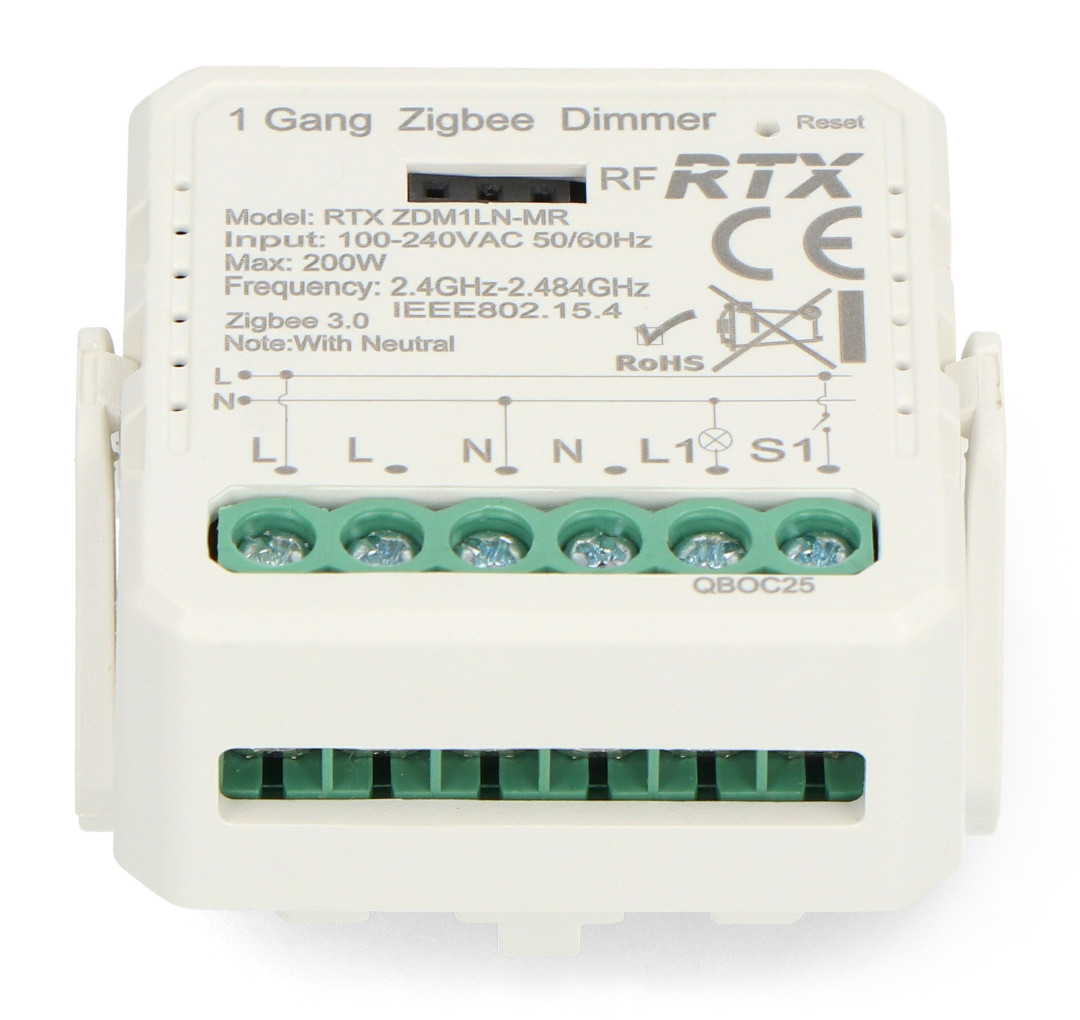

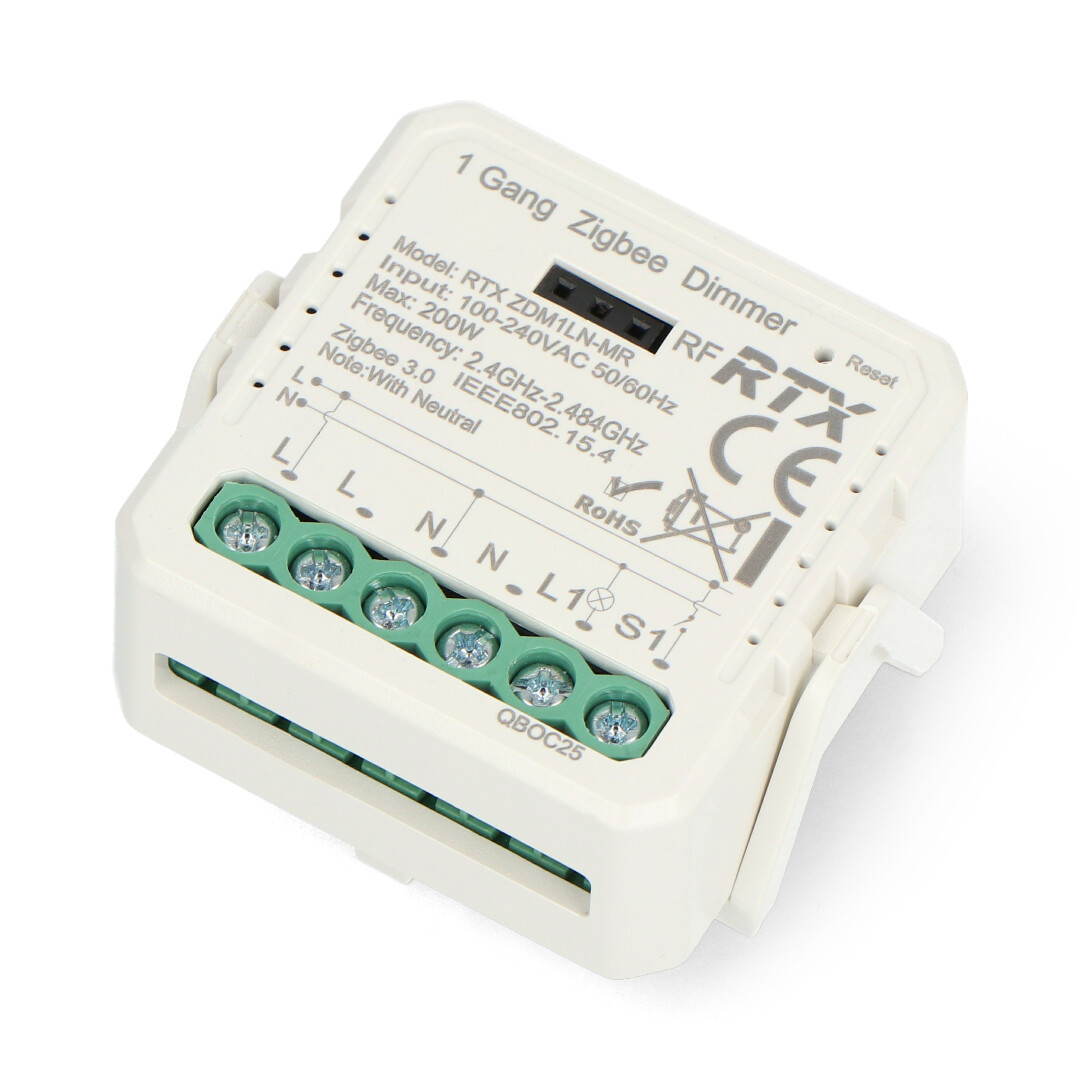

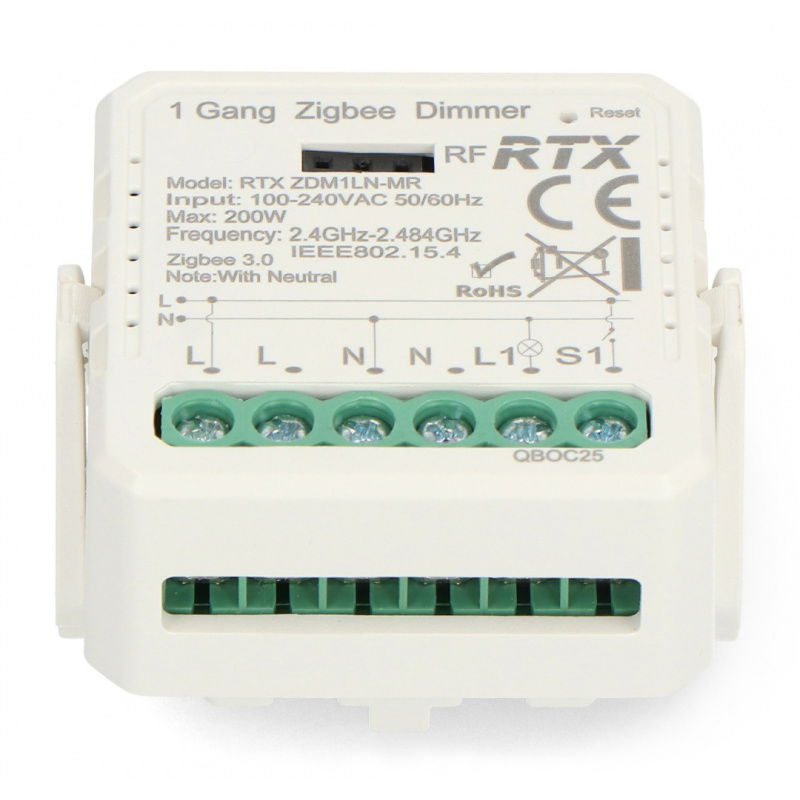

ZigBee lighting controller.
Controller connection diagram.
Controller connection diagram

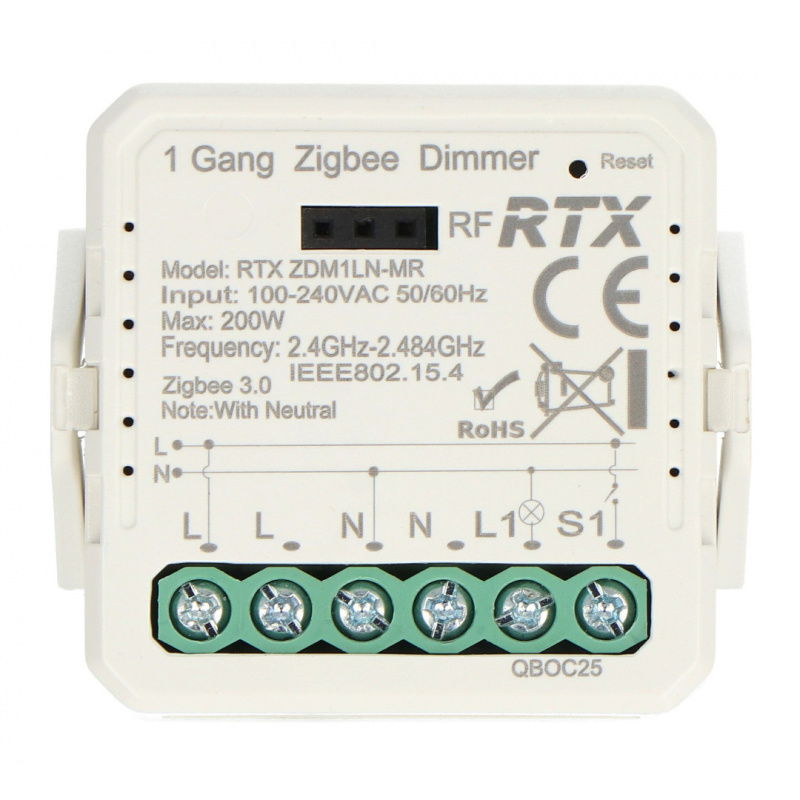

Before starting to install the controller, make sure that the circuit has been disconnected from the power supply. The module can be mounted in an electrical box and controlled using traditional mechanical switches, it is also possible to use it in a staircase system. The module has six screw connectors to which you can connect the wires using a screwdriver:
- L - 230 V power supply, positive pole.
- L - 230 V power supply, positive pole.
- N - power supply, neutral wire - ground.
- N - power supply, neutral wire - ground.
- L- - power supply of the controlled light source.
- S - possibility of connecting an external button for the L- output, the second line of the button should be connected to the phase line marked with the symbol L. It has the possibility of using a staircase switch.
Lighting Controller Specifications
- Communication protocol: ZigBee version 3.0 according to the 802.15.4 standard
- Antenna type: built-in
- Input voltage: 100-240V AC
- Power: max 200 W
- Number of controlled circuits: 1
- Dimensions: 39 x 39 x 18 mm
- Weight: 72 g
The module has a built-in antenna.
Useful links
| Name | Value |
|---|---|
| Smart Home | Lighting controller |
| Communication | ZigBee |
| Width | 5.5 cm |
| Height | 3 cm |
| Depth | 5 cm |
| Weight | 0.046 kg |
