Product description: WiFi gate driver Tuya RTX WGM2
The Tuya WGM2 is a compact universal gateway controller with WiFi connectivity. It works with the Tuya Smart Life application,so it has many useful features. The controller allows you to set the timer and schedule the gateway. The GS1 is powered by 230 V, so there is no need to connect an additional power supply. The controller cooperates with every door drive equipped with a mechanical button input.

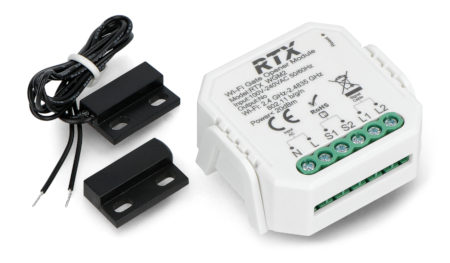

Tuya WGM2 WiFi controller.
Possibilities offered by the application
The controller, in conjunction with Tuya Smart Life, allows you to set an opening schedule and view all events related to the gateway (date and time of opening or closing). The application also supports voice control by linking to your Google Home account. Voice commands are used for this purpose:
- Hey Google, open your garage
- Hey Google, close the garage

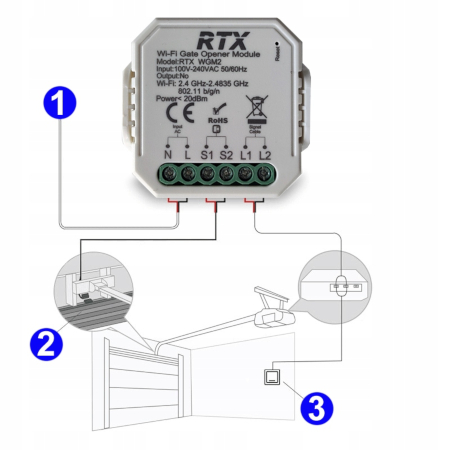

Installation diagram of Tuya RTX WGM2 WiFi gateway controller.
Driver installation and contents
The opening sensor - reed switch is included with the controller. Every unauthorized opening of the gate will be registered by the sensor and saved in the application. Additionally, it is possible to switch on sound notifications.The controller cooperates with any gate drive that has an input for a mechanical button (a switch that will open or close the gate after pressing it). The controller is mounted in a few simple steps:
- Install the controller near the gate operator.
- Connect the controller to the 230 V mains (1).
- Attach the reed opening sensor (2) - the wired part is mounted on the wall, and the magnet on the edge of the gate in such a way that when it is closed, the elements are close to each other.
- Connect the controller wires to the gate drive control input (3).
Gate control unit specifications
- Power supply: 100 V to 240 V
- WiFi range: up to 30 m
- Band: 2.4 GHz
- Operating temperature: 0 °C to 50 °C
- Dimensions: 46 x 51 x 18 mm
