Product description: Tuya - 3-channel mini relay without N - ZigBee - Android / iOS application - OXT SWTZ33
The OXT three-channel mini relay is an advanced solution designed to modernize traditional switches. Thanks to support for the ZigBee 3.0 protocol, the device works as part of a mesh network, which ensures connection reliability and wide range. The module works with the Tuya Smart application, enabling the creation of intelligent scenarios, schedules and integration with voice assistants such as Amazon Alexa and Google Home. It is compatible with bistable and monostable buttons, which allows for flexible adaptation to existing installations. In addition to the basic on and off functions, the relay allows you to create advanced automations based on various factors , such as weather, time of day, sunrise and sunset. The ability to set schedules and timers makes managing electrical devices convenient and energy-saving. The module does not require a neutral wire connection, and thanks to its compact dimensions, it easily fits into a standard terminal box behind the switch.
Tuya - 3-channel mini relay without N - ZigBee - Android / iOS application - OXT SWTZ33.

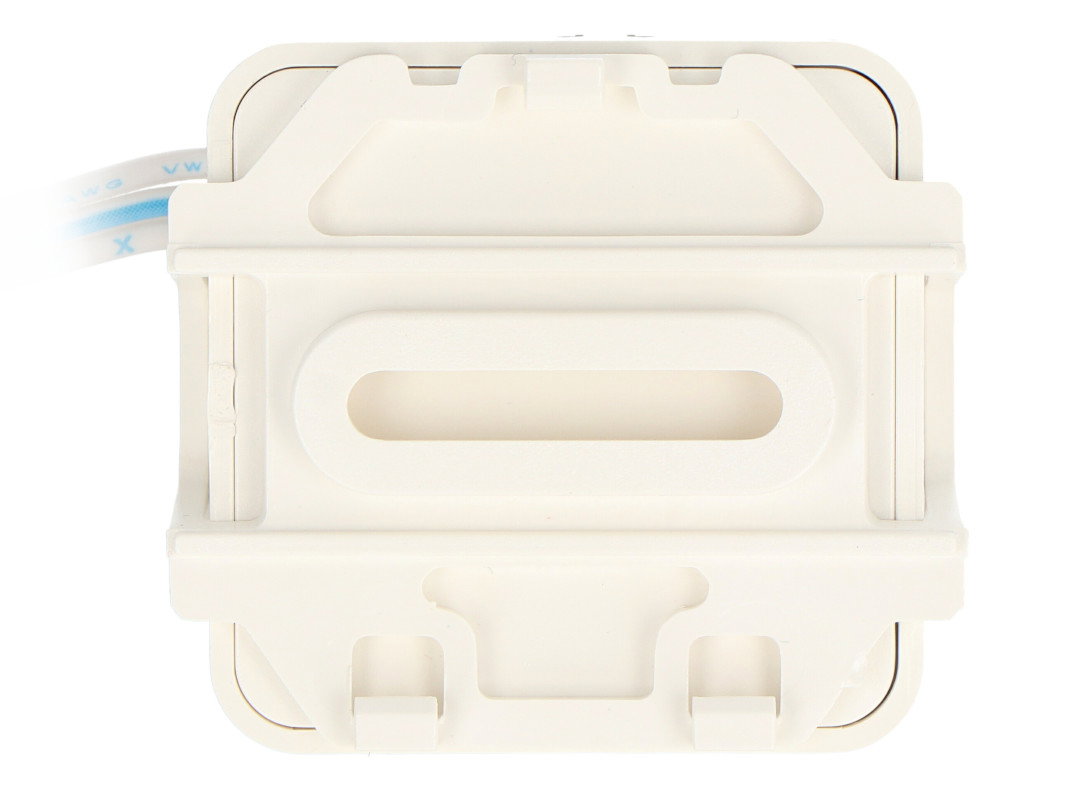

The module can be easily mounted in the end box behind the switch.
Special features of the relay
- No need for a neutral wire: the module operates without the need for an N wire, simplifying installation.
- Minimum load: requires a minimum load of 10 W per circuit, for lower load please install the capacitor included in the kit.
- Remote control: the ability to control electrical devices using a smartphone from anywhere in the world.
- Tuya Smart application: compatible with the Tuya Smart application, allows you to create advanced automations, schedules and integration with other devices in the ecosystem.
- Support for voice assistants: ability to work with Amazon Alexa and Google Home (depending on the type of ZigBee gateway used).
- Ease of installation: compact size, allowing installation in standard end boxes behind the breaker.
- Low power consumption: ZigBee devices have very low power consumption, which extends their lifespan.
- Quick response: quick connection to the ZigBee control panel allows immediate response to changes in the device status.
Advanced control thanks to ZigBee and the Tuya Smart application
The mini relay module ensures full compatibility with the Tuya Smart application, thanks to support for the ZigBee 3.0 protocol. The device integrates into a mesh network, which ensures reliable connections and a wide range inside buildings. Dedicated Tuya Smart application, is available for free in the App Store and Google Play . It allows you to create intelligent scenarios, schedules and voice control using Amazon Alexa and Google Home . Thanks to this, you can enjoy a smart home in which devices cooperate with each other according to programmed rules, providing greater comfort and convenience.

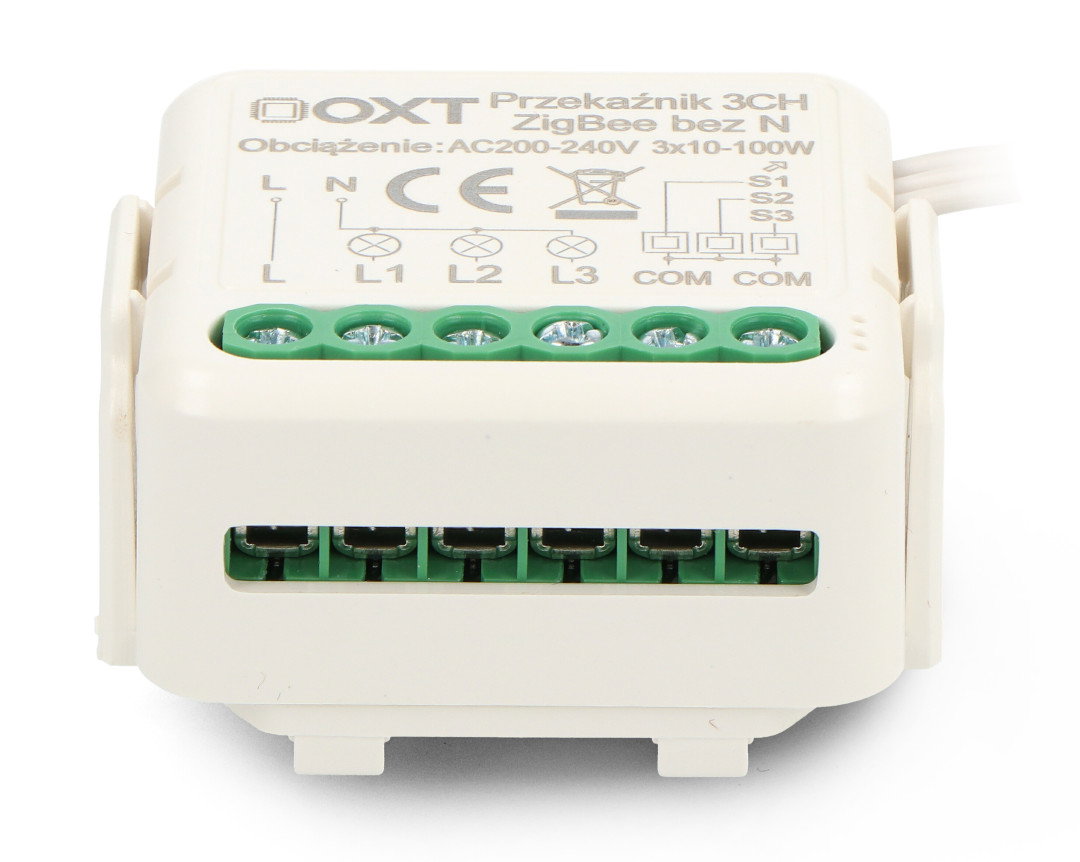

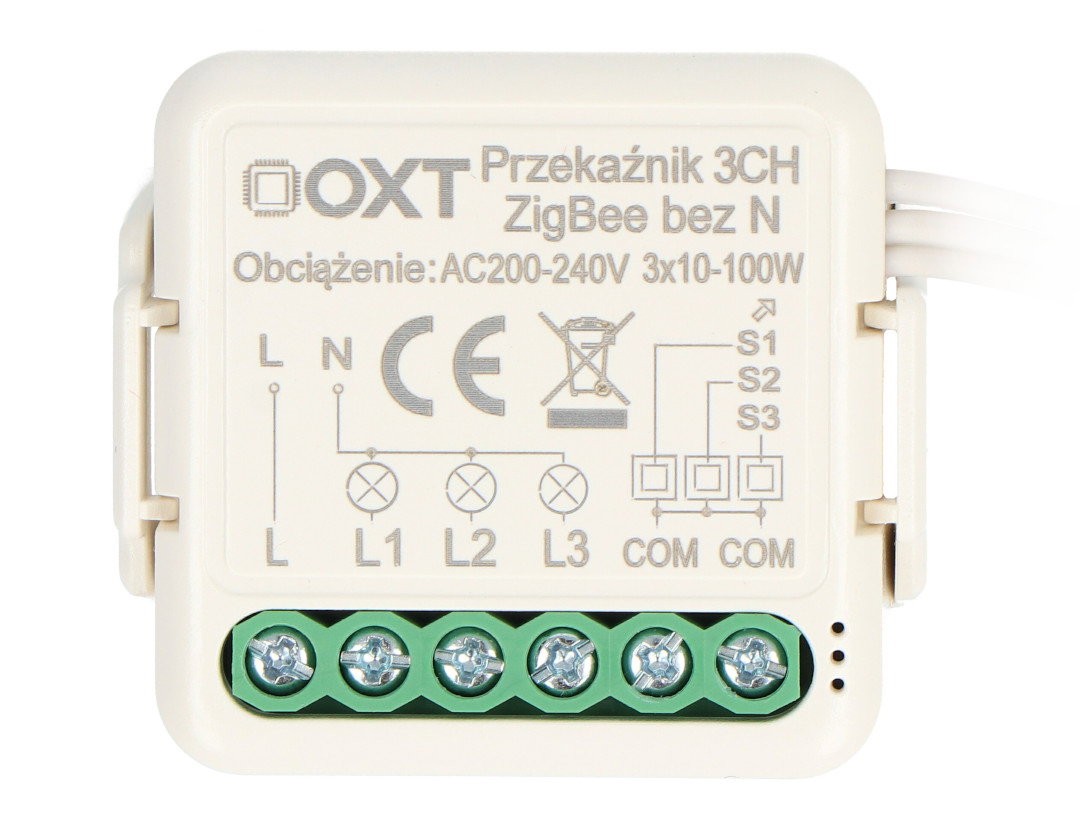

The module works without the need to connect the N wire.

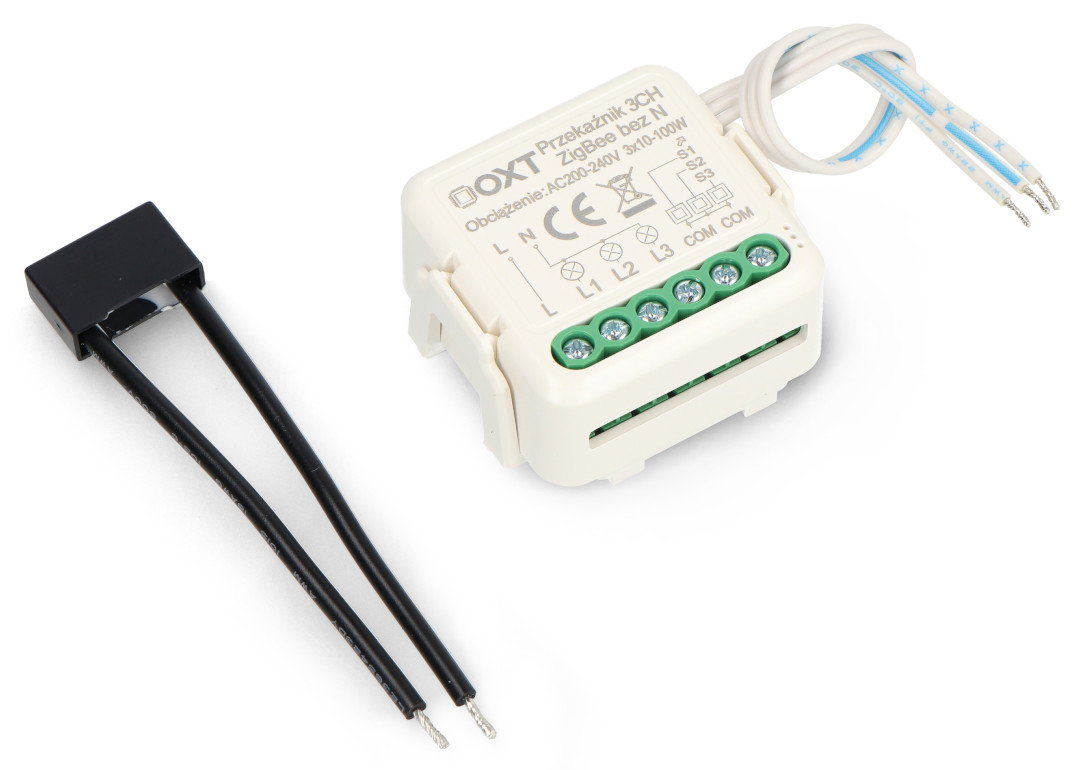

Elements included in the set.
Technical specifications of the SWTZ33 OXT relay
- Type: 3 Channel Non-N ZigBee Mini Relay
- Input voltage: 100 V to 240 V AC, 50 Hz
- Maximum LED load: 3 x 100 W
- Maximum resistive load: 3 x 10 W to 100 W
- Minimum circuit load: 10 W (necessary to use the capacitor from the kit)
- Protocol: ZigBee 3.0
- Installation requirements: does not require a full power supply in the box - the model works without an N conductor
- Cooperation with systems: Amazon Alexa, Google Assistant
- Application: iOS / Android
- Dimensions: 39.2 x 39.2 x 18 mm
Set contents
- OXT mini relay module, 3-channel without N ZigBee
- Fixing clip
- Capacitor
- User manual
