Product description: Tuya - single-channel mini ZigBee lighting controller - Android / iOS application OXT SWTZ24
The OXT lighting controller module is an ideal solution for modernizing home lighting without replacing the electrical installation. Thanks to support for the ZigBee 3.0 protocol, it ensures a fast, stable connection and low energy consumption. Compatible with any light source that allows you to control the brightness, including LEDs (as long as they are dimmable). Its small size allows installation in an end box behind the switch, which facilitates installation. Integration with the Tuya Smart application allows you to create automations based on weather, time, sunrise and sunset, and other events. The application allows you to set schedules and timers , automating turning the lights on and off. The module supports voice control via Google Home and Amazon Alexa, enabling simple operation using voice commands . The controller can be used in any electrical system, including a staircase system, which allows you to control the light from different places in the house.

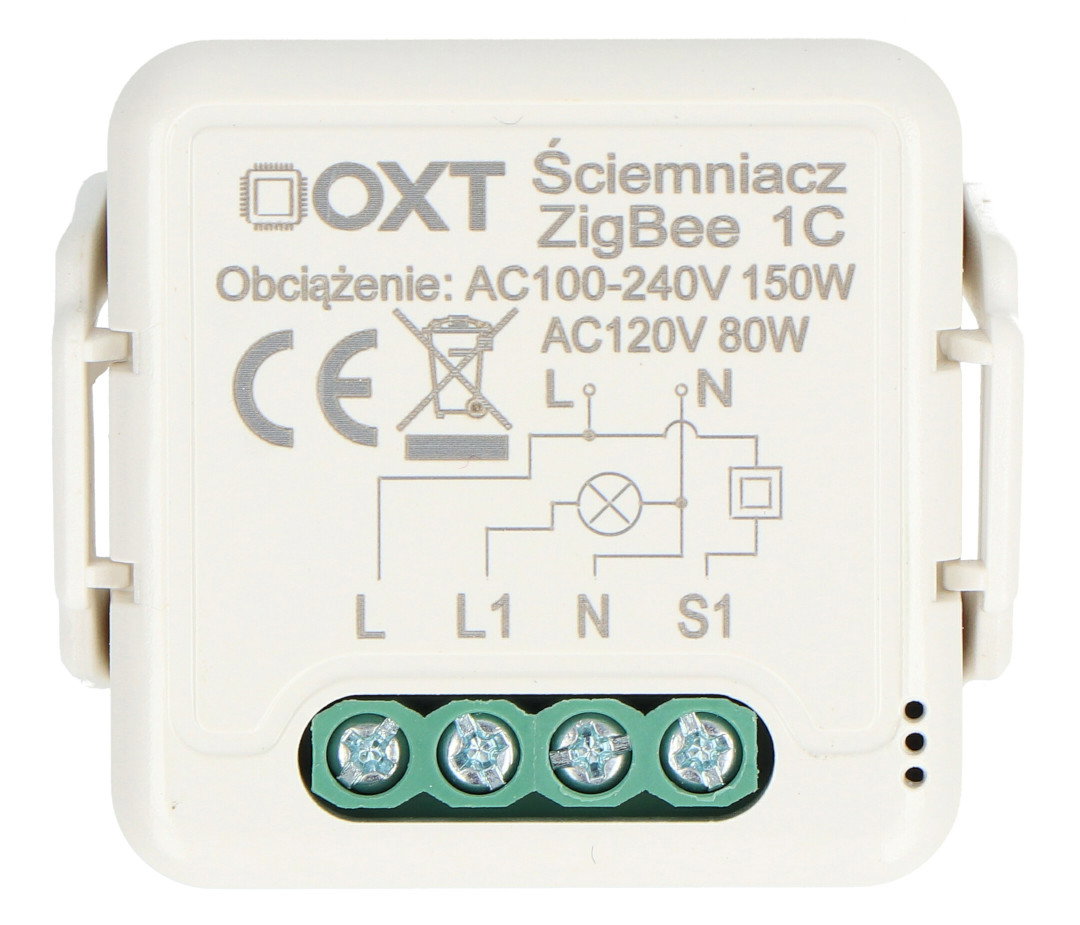

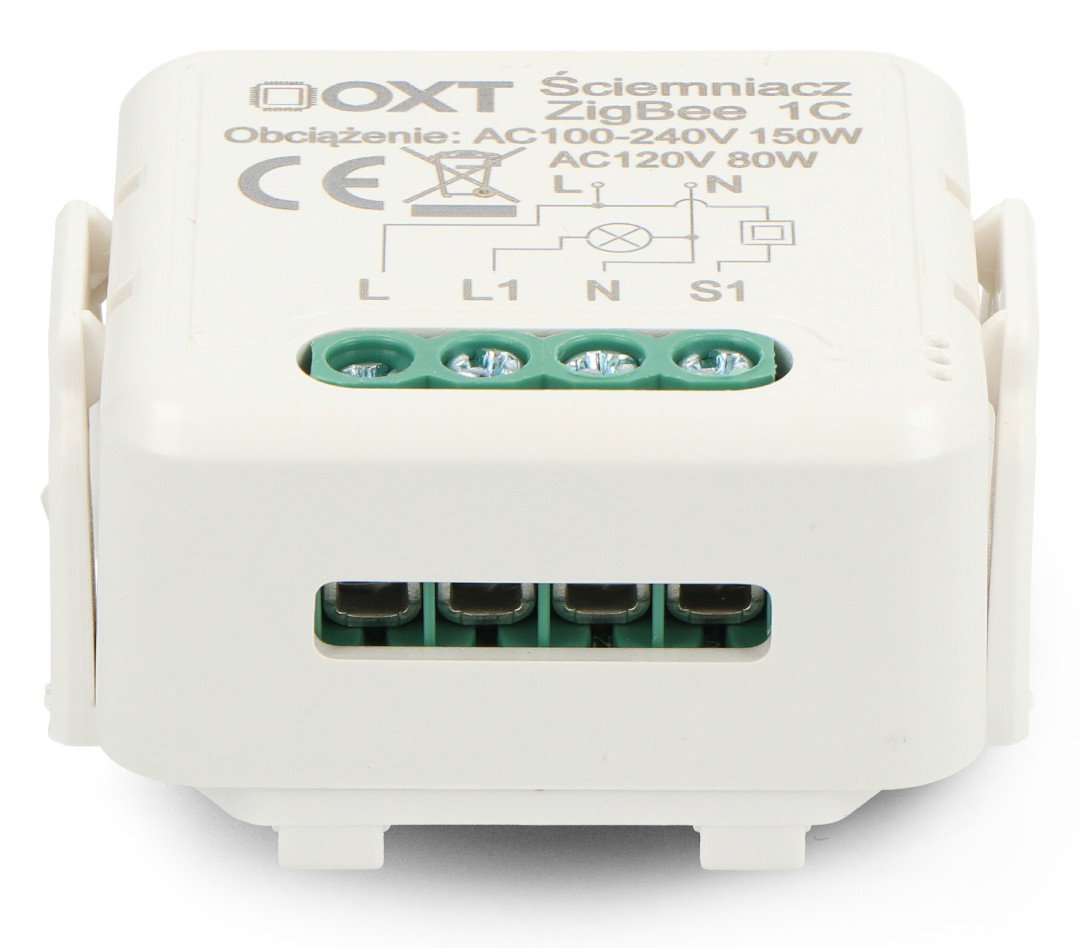

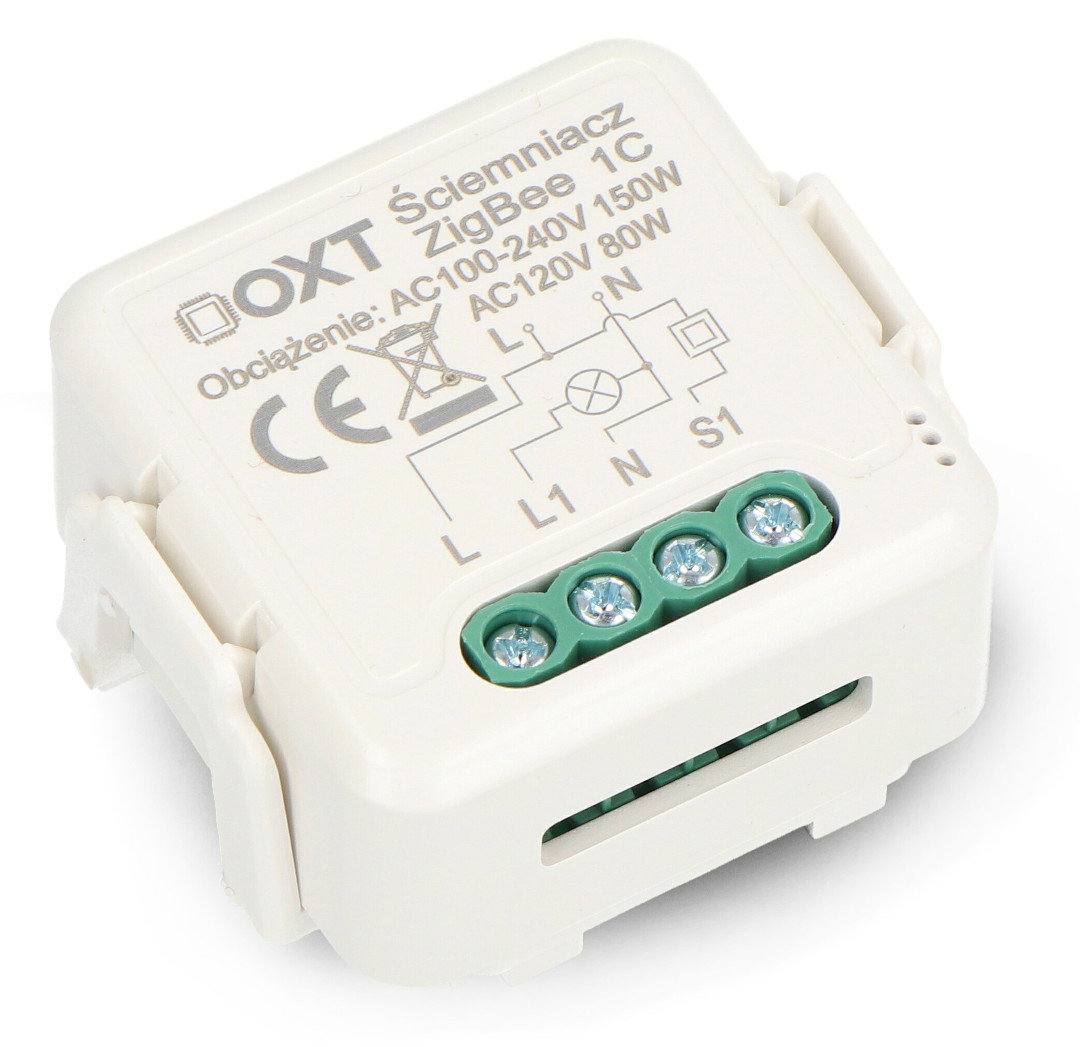

Tuya - single-channel mini ZigBee lighting controller - Android / iOS application OXT SWTZ24.
The module can be easily mounted in the end box behind the switch.
Special features of the lighting controller
- Compatibility: works with any dimmable light source, including LEDs (as long as they have the ability to control brightness).
- Various types of buttons: works with monostable and bistable buttons.
- Remote control: allows you to control electrical appliances from any location in the world using your smartphone.
- Automation: Create intelligent automations based on weather, time, sunrise and sunset, and other events in the Tuya Smart ecosystem.
- Schedules and timers: switching on the device/lighting at specific times of the day and for a specific time.
- Voice control: can be operated via Google Home and Amazon Alexa.
- Easy installation: fits in the electrical box behind the switch (deep or pocket box suggested).
Cooperation with the Tuya Smart application
With the Tuya Smart app, available for Android and iOS , you can easily add the module to your ecosystem, remotely control lighting, create schedules and automation scenarios , and monitor the status of devices. The application enables intuitive configuration and full control over your smart home.
The single-channel flush-mount lighting controller works with the Tuya Smart application.
For proper operation of the device, a ZigBee gateway must be used.
ZigBee connectivity
The module from OXT uses the ZigBee 3.0 protocol, which operates at a frequency of 2.4 GHz. ZigBee connectivity ensures a stable and fast connection, low energy consumption and the ability to create a mesh network, where each ZigBee device can act as a signal amplifier, increasing the reliability and range of communication.
Attention
For proper operation, the device requires a connection to a ZigBee gateway , which can be purchased separately.
Technical specifications of the OXT SWTZ24 controller
- Type: 1-channel ZigBee lighting controller
- Supply voltage: 100 V to 240 V AC, 50 Hz
- Maximum current: 0.6 A
- Maximum power per LED channel / resistive load: 150 W (for dimmable light sources)
- Protocol: ZigBee 3.0
- Communication frequency: from 2.412 GHz to 2.484 GHz
- Cooperation with systems: Amazon Alexa, Google Assistant
- Application: iOS / Android
- Dimensions: 39.2 x 39.2 x 18 mm
Set contents
- OXT mini 1-channel ZigBee lighting controller module

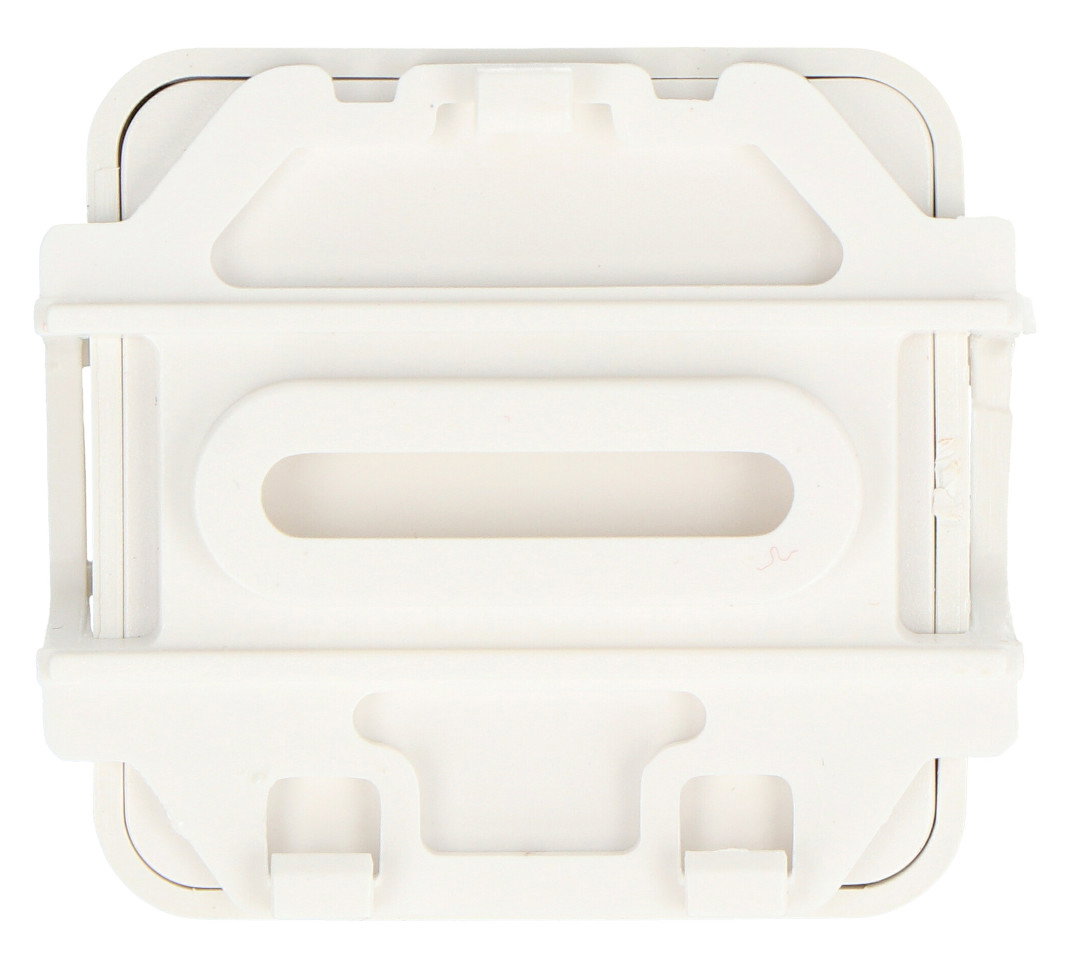

- Mounting bracket
- User manual
The module allows you to control the brightness of the lighting.
