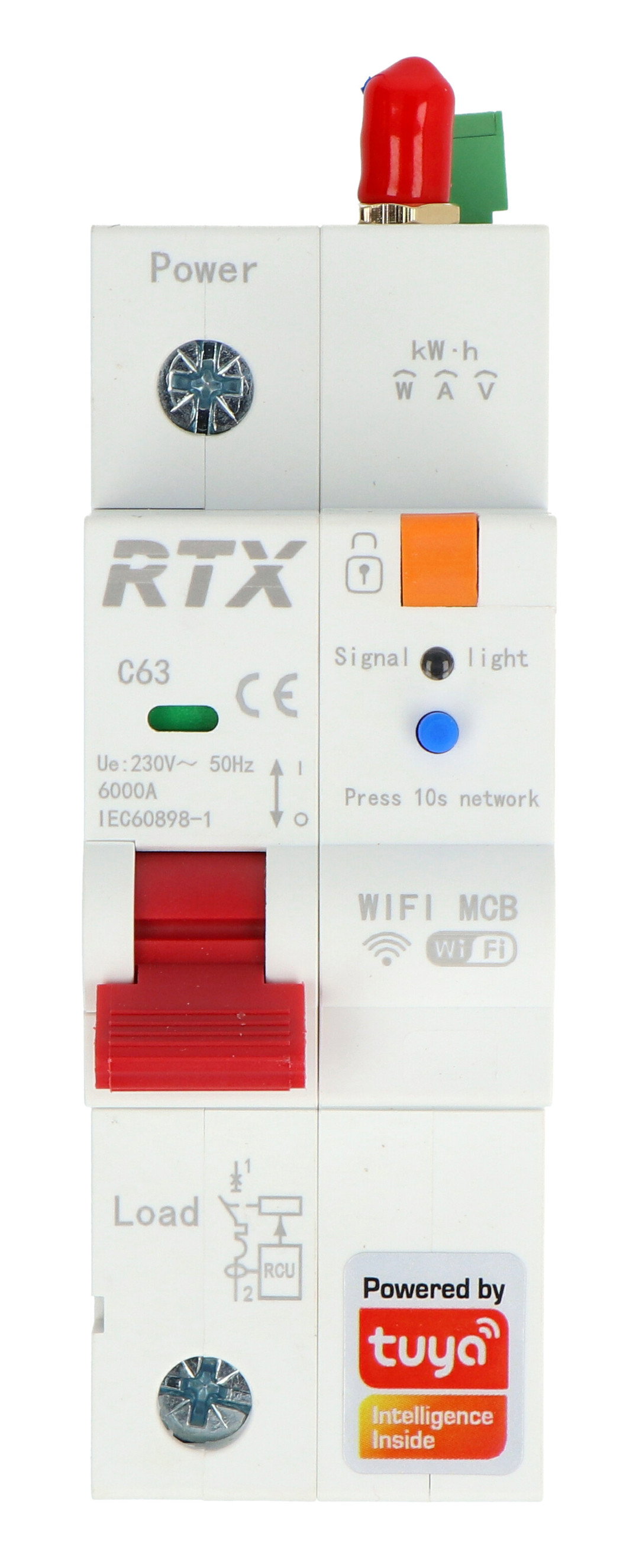

Product description: Tuya - single-phase WiFi fuse with energy meter - 1 P 63 A - RTX WCB63-1P
The RTX remotely controlled single-phase fuse is a modern solution for a smart home that replaces traditional fuses, offering many additional functions. After its installation, it is possible to turn the electrical circuit on and off using a smartphone, which allows for convenient energy management and security at home. Thanks to energy measurement, the device measures and archives data , which allows for ongoing control and analysis of energy consumption. The antenna with a magnetic base ensures stable WiFi communication, even when the fuse is located in a metal switchboard. The device offers automatic control within schedules and automation scenarios set in the Tuya Smart application. It can also warn you when set voltage and current levels are exceeded, automatically shutting down the circuit when necessary.
Tuya - single-phase WiFi fuse with energy meter - 1 P 63 A - RTX WCB63-1P.
Remotely controlled single-phase fuse.Special features of the fuse
- Remote control: the ability to switch on and off one wire in an electrical circuit from anywhere in the world.
- Energy measurement: ongoing control and archiving of energy consumption.
- Automatic control: ability to set timers and schedules.
- Overcurrent protection: protection against overcurrent up to 63 A.
- Integration with Tuya Smart: cooperation with the popular smart home management application allows you to conveniently control energy consumption.
- Compatibility with Google Home and Amazon Alexa: allows convenient voice control.
- Large WiFi communication range: stable communication thanks to the attached antenna with a magnetic base.
- Surge Protection: Lightning and surge resistant up to 6KV.
- Immunity to electromagnetic interference: ideal for switchboards exposed to electromagnetic induction.
Full support for the Tuya Smart application
The Tuya Smart application is the most popular smart home management platform, offering integration with over 11,000 different devices. Thanks to easy installation and intuitive operation, it allows you to have full control over all smart devices in your home, no matter where you are.
The Tuya Smart application enables automatic management and monitoring of energy consumption.

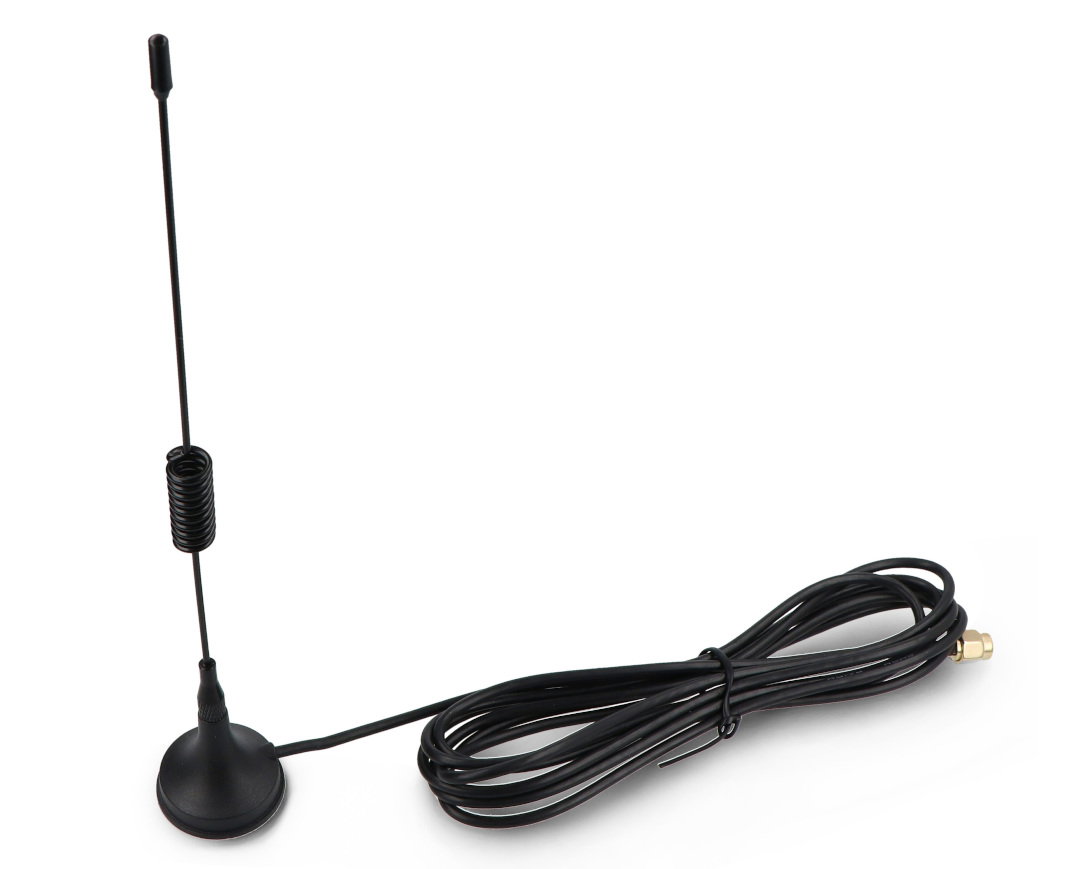

The antenna with a magnetic base ensures a reliable WiFi connection.
Energy consumption control
The RTX WCB63-1P intelligent fuse measures and archives energy consumption data, enabling ongoing control and analysis of power consumption on a daily or monthly basis . The data is saved on the Tuya server and presented in the form of clear charts.
Checking the operating status of the fuse
The operating status of the fuse can be controlled by user-defined conditions, such as exceeding the current, voltage or voltage drop below a set level . If necessary, the application can notify the user and automatically turn off the fuse, protecting connected devices from damage.
Technical specifications of the RTX WCB63-1P fuse
- Type: fuse with energy consumption meter
- Model: WCB63-1P
- Supply voltage: 85 to 265 V AC, 50 / 60 Hz
- Maximum current: 1x 63 A
- Control range: unlimited (works with mobile Internet)
- Communication standard: WiFi 2.4GHz
- Communication range: up to 30 m (depending on ambient conditions)
- DIN rail mounting
- Free Tuya Smart application for Android and iOS
- Works with Google Home and Amazon Alexa
- Operating temperature: from 0°C to 50°C
- Dimensions: 36 x 73 x 86 mm

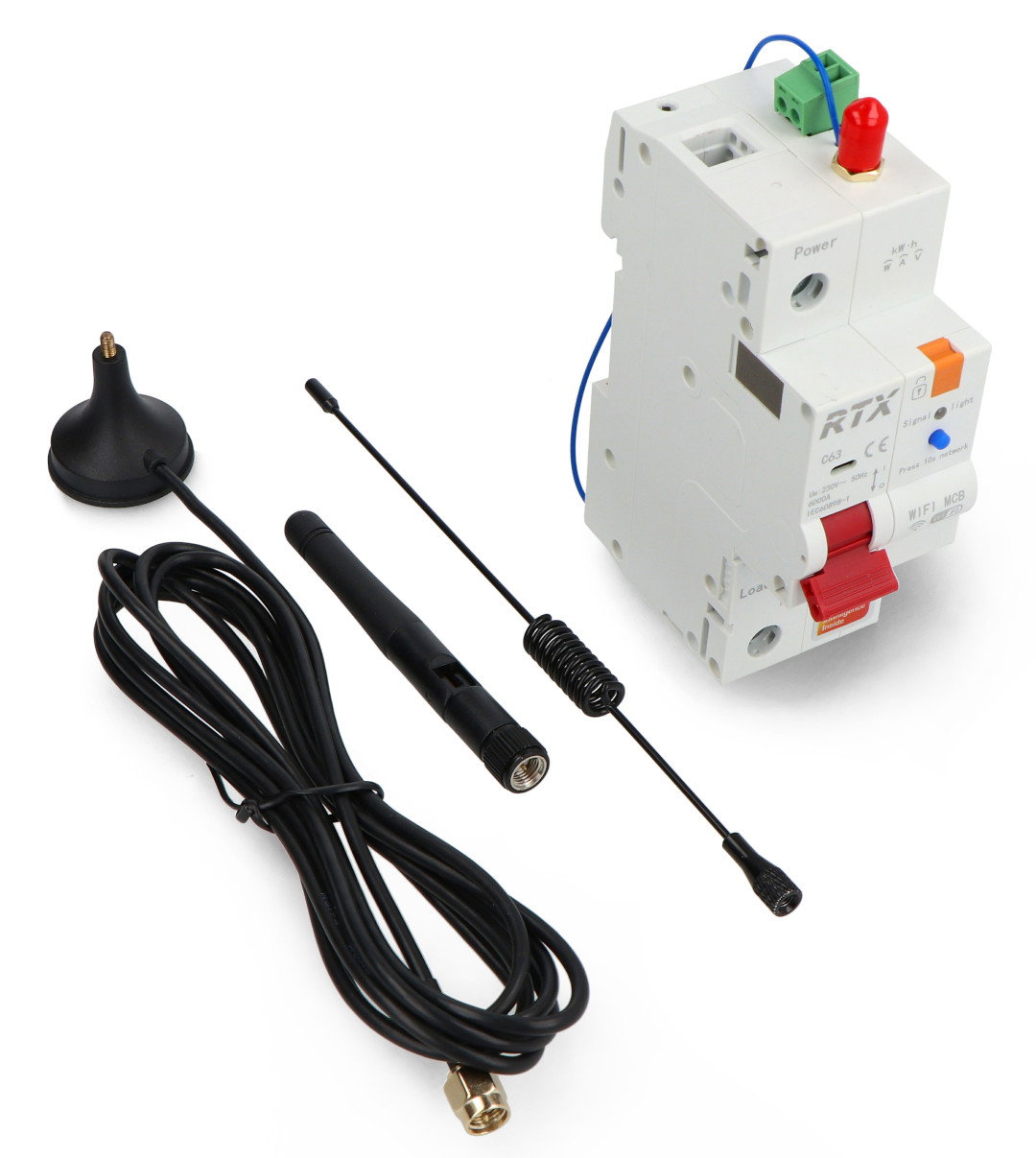

Set contents
- Tuya - Single-phase WiFi fuse with energy meter - 1 P 63 A - RTX WCB63-1P
- Antenna with magnetic base
Elements included in the set.
