Product description: Tuya - single-channel 16 A mini relay - ZigBee - Android / iOS application - RTX ZRS1M
The single-channel mini relay from RTX supports a load of up to 16 A and allows you to transform ordinary light switches and sockets into smart devices that can be remotely controlled using the Tuya Smart application. Thanks to the quick connection via Bluetooth ( BLE ), installation and configuration are extremely simple. The device uses ZigBee 3.0 technology, ensuring stable communication and minimal energy consumption, which makes it ideal for smart homes. The module works with both monostable and bistable switches, offering the ability to program timers and work schedules. Thanks to integration with voice assistants, you can control devices with simple commands. The small dimensions of the relay allow for easy installation in standard wall boxes, lighting fixtures and on a DIN rail in fuse boxes.
Tuya - single-channel 16 A mini relay - ZigBee - Android / iOS application - RTX ZRS1M.
Attention!
For proper operation, the device requires a connection to a ZigBee gateway , which can be purchased separately.
Single-channel mini ZigBee relay from RTX.Special features of the relay
- Remote control: turn your devices on and off from anywhere in the world with the Tuya Smart app.
- Local control: can be manually turned on and off using traditional switches.
- Voice integration: compatibility with Google Home and Amazon Alexa allows control via voice commands.
- Automation: timer, stopwatch and schedule settings allow you to automatically manage lighting and devices.
- Easy installation: small dimensions enable installation of wall switches or sockets in a standard box.
Full support for the Tuya Smart application
The Tuya Smart application provides full support for the RTX ZRS1M relay, offering a wide range of functions for smart home management:
- Remote control: the ability to remotely turn devices on and off from anywhere in the world.
- Schedules: programming automatic work cycles according to a weekly schedule, allowing you to adapt the operation of devices to your daily routines.
- Scenarios: setting the dependencies of device operation on the time of day, environmental conditions and other system elements, which allows you to personalize automation at home.
- Voice control: integration with Google Assistant and Alexa allows you to control devices using simple voice commands, which increases the convenience of use.
- Monitoring: tracking the status and operation of connected devices in real time, giving you control over your home smart infrastructure.
- Security: encrypted connections ensure a high level of protection of personal data and user privacy, guaranteeing peace and security in using the smart home system.
Thanks to its small dimensions, it can easily fit into a mounting box under an existing switch.
ZigBee ensures fast operation, safe and stable communication and low power consumption.
ZigBee and BLE communication
The relay uses the ZigBee 3.0 and Bluetooth Low Energy (BLE) communication standards, which guarantees not only fast and reliable data exchange between devices, but also low energy consumption. Thanks to the ZigBee 3.0 protocol, the devices create a mesh network, which means that each of them can act as a signal amplifier, increasing the range and reliability of the entire system. Additionally, BLE allows you to quickly and easily add new devices to the network , without the need to perform complex configuration procedures.

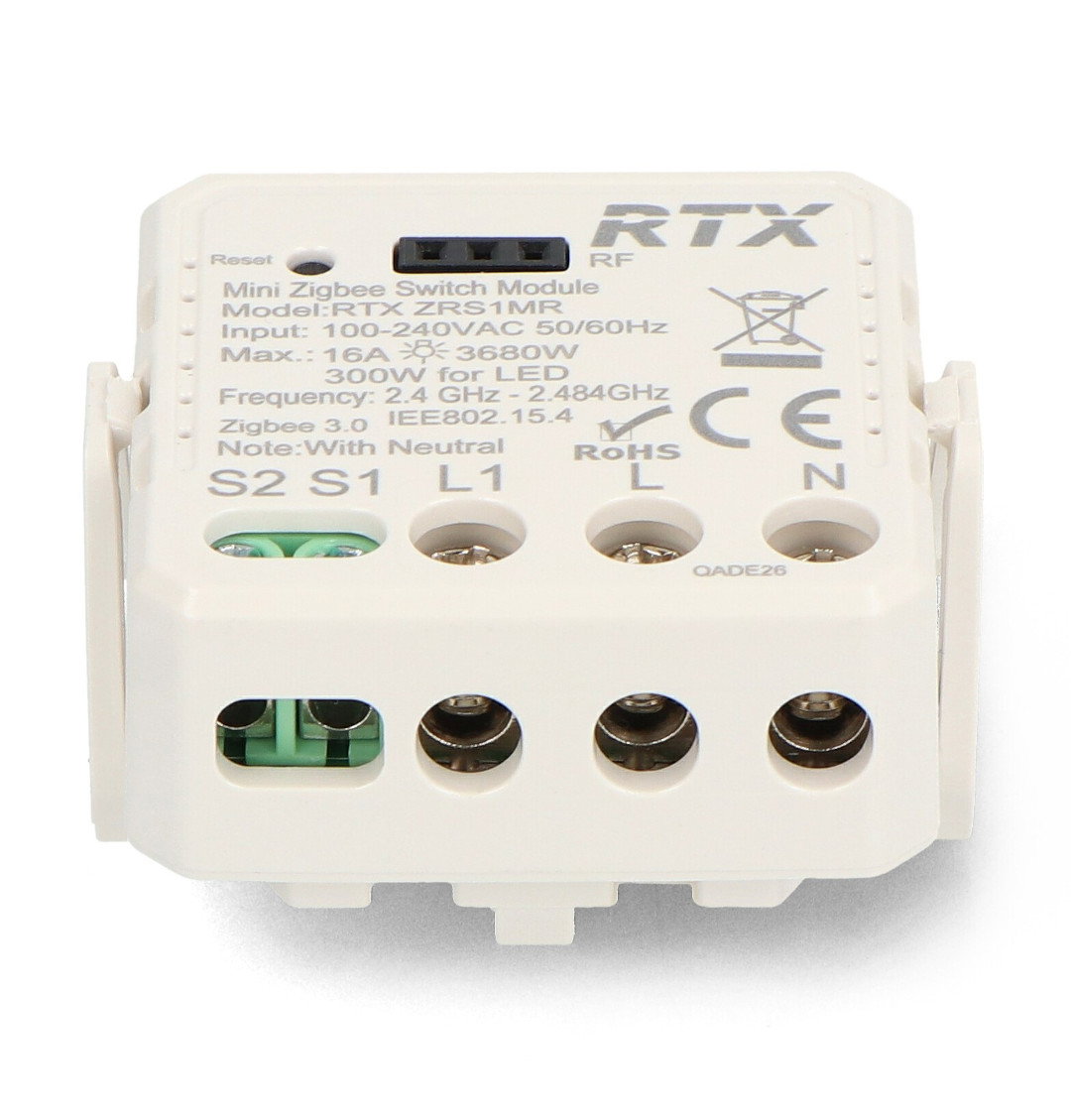

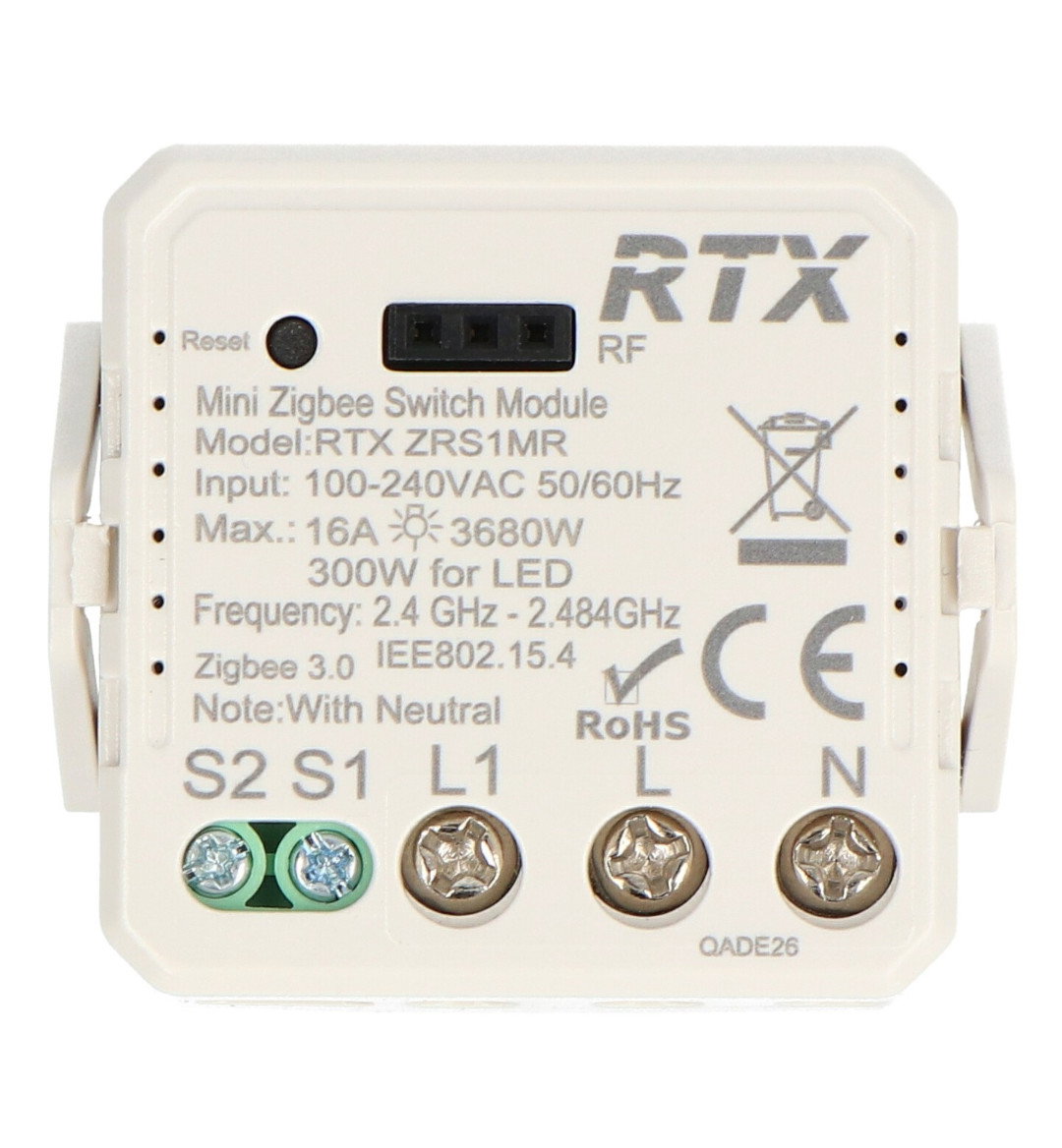

Technical specifications of the RTX ZRS1M mini relay
- Device type: single-channel 16 A ZigBee mini relay
- Model: ZRS1M
- Supply voltage: 85 V to 265 V AC, 50 / 60 Hz
- ZigBee protocol: version 3.0 according to the standard: 802.15.4
- ZigBee range: up to 30 m (depending on ambient conditions)
- Maximum power: 3680 W (16 A), 300 W for LED
- Antenna type: built-in
- Operating temperature: from 0°C to 50°C
- Dimensions: 39 x 39 x 15 mm
- Weight: 60 g
Set contents
- Mini single-channel 16 A ZigBee relay

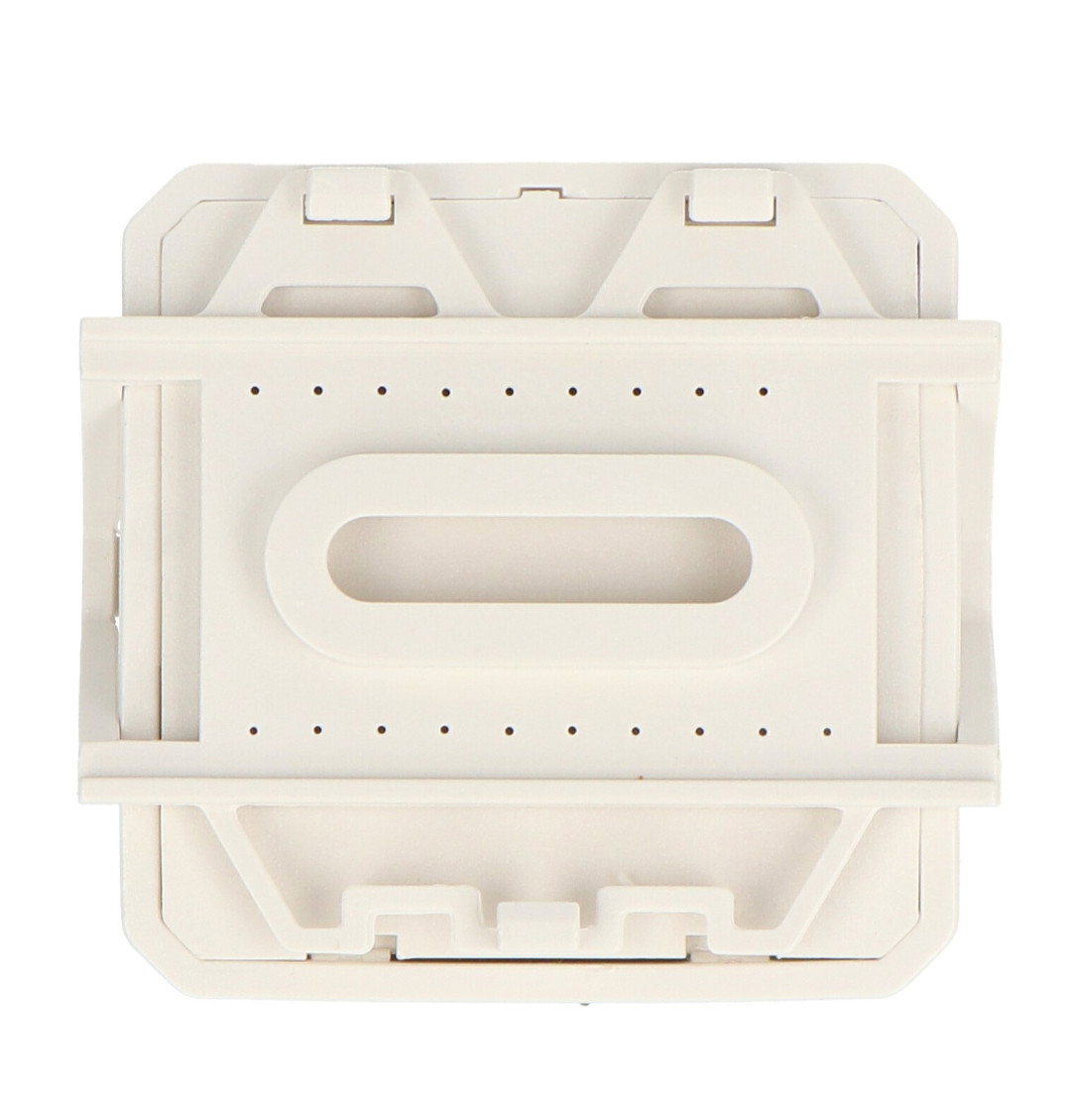

- Mounting bracket
- User manual
The relay is fully compatible with the Tuya Smart application.
