Product description: Tuya - utility water meter with ball valve - WiFi - RTX WVM1
The Tuya RTX WVM1 is a smart domestic water meter with a flow meter and electrically controlled ball valve. It is designed for monitoring and remotely controlling water installations. Thanks to its WiFi connectivity, the device works with the Tuya/Smart Life app without the need for an additional gateway. The RTX WVM1 allows you to monitor water flow, total consumption, and save measurement history. The app also allows you to configure high and low flow alarms and create schedules and automation scenarios. The built-in LCD display provides access to key information for local control. The robust IP66 housing, metal connectors, and included 1" and 3/4" adapters simplify integration with your home's water system.

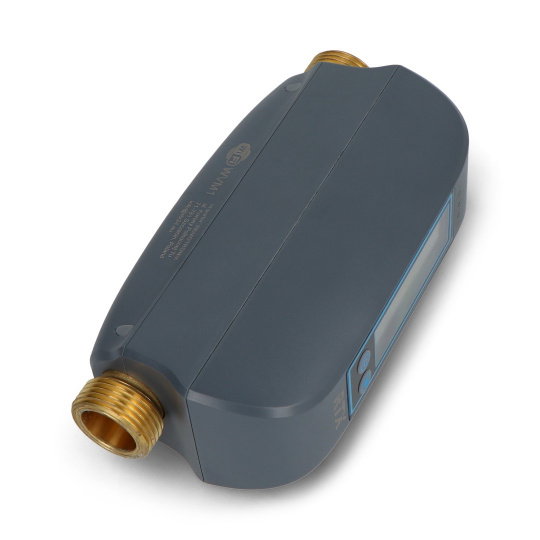

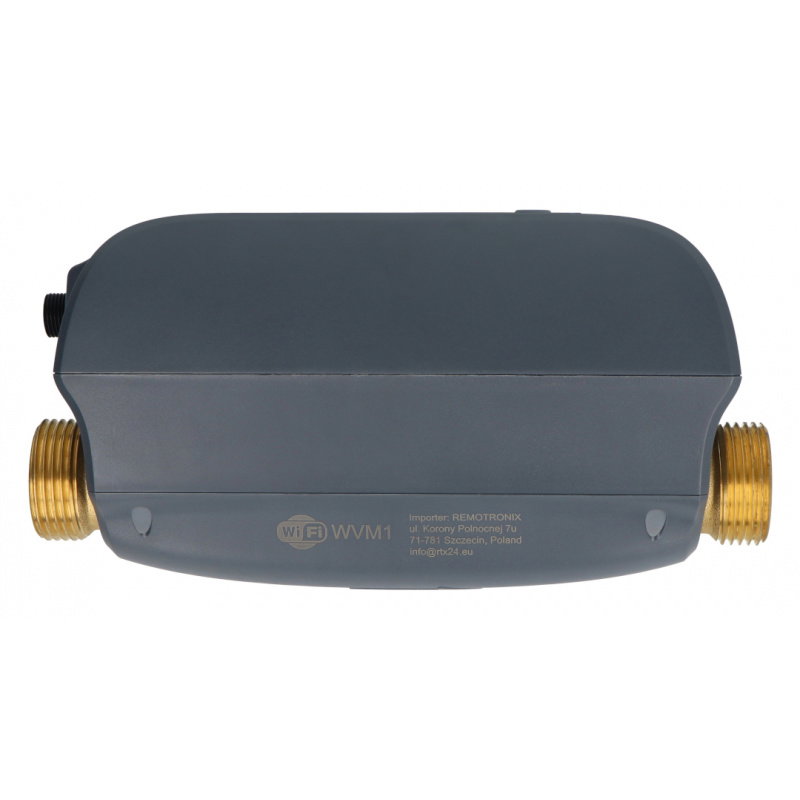

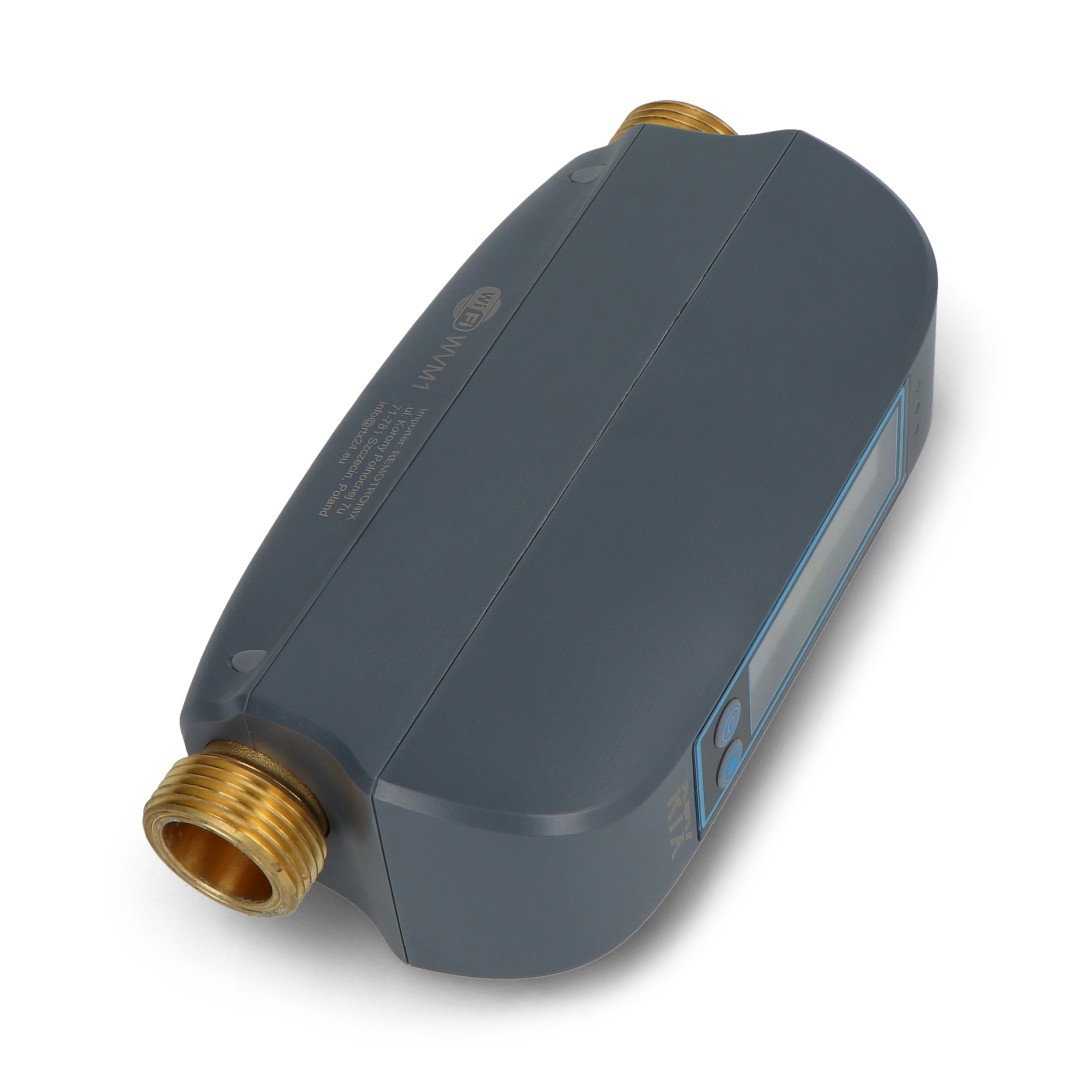

Tuya - utility water meter with ball valve - WiFi - RTX WVM1.
The meter is equipped with an emergency power supply function in the form of a built-in battery that maintains the operation of the device.
Main features of the Tuya RTX WVM1 counter
- Water consumption monitoring: measuring the current flow and total amount of water used with a declared accuracy of 1%
- Electrically controlled ball valve: remote opening and closing of the flow via the app
- Local and remote control: providing the possibility of both manual opening and closing of the valve using the button on the housing, as well as remotely using the application
- WiFi connectivity: communication in the 2.4 GHz band without the need for an additional gateway
- Measurement history: the ability to archive and track water consumption data by day, month and year
- Alarm configuration: set warning thresholds for too high or too low flow
- Work automation: the ability to create schedules and intelligent scenarios for the meter's cooperation with other smart home devices

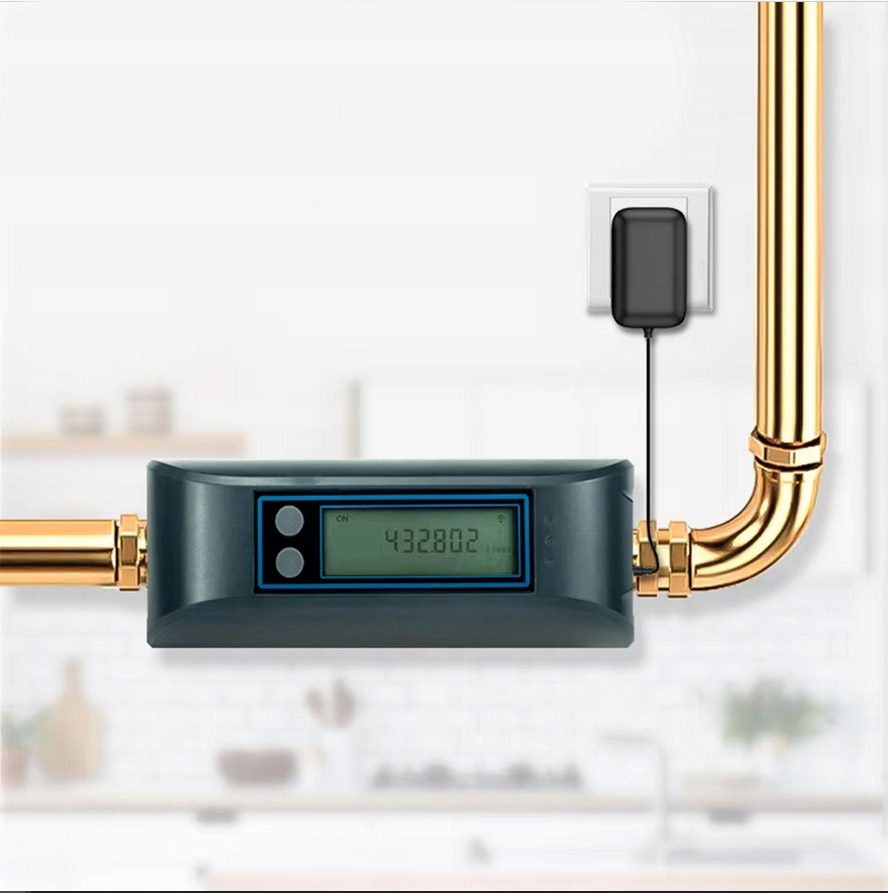

- LCD display: Provides local viewing of flow rate, total water usage, valve status, and WiFi signal strength
- LED indication: use of diodes informing about the status of the WiFi connection, valve and power supply method
- Emergency power supply: the use of a built-in battery to maintain the device's operation in the event of a power outage
- Rugged design: IP66 rated housing and sealed power connector
- Universal mounting: allows the device to be connected to installations with 1" or 3/4" threads using the included brass adapters

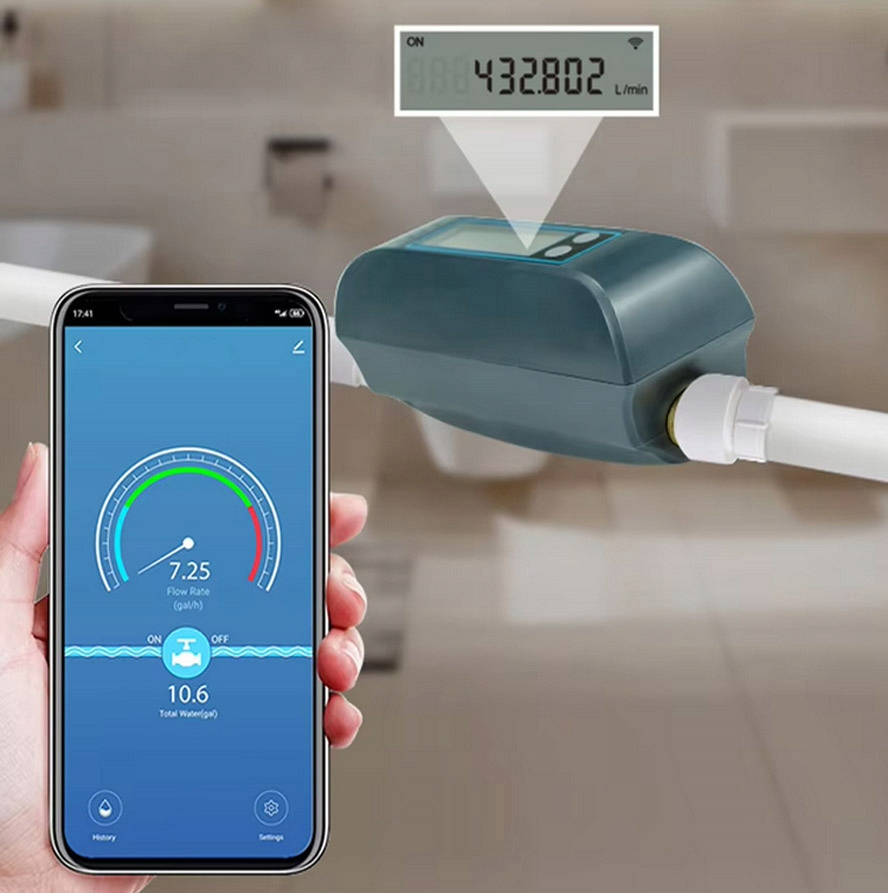

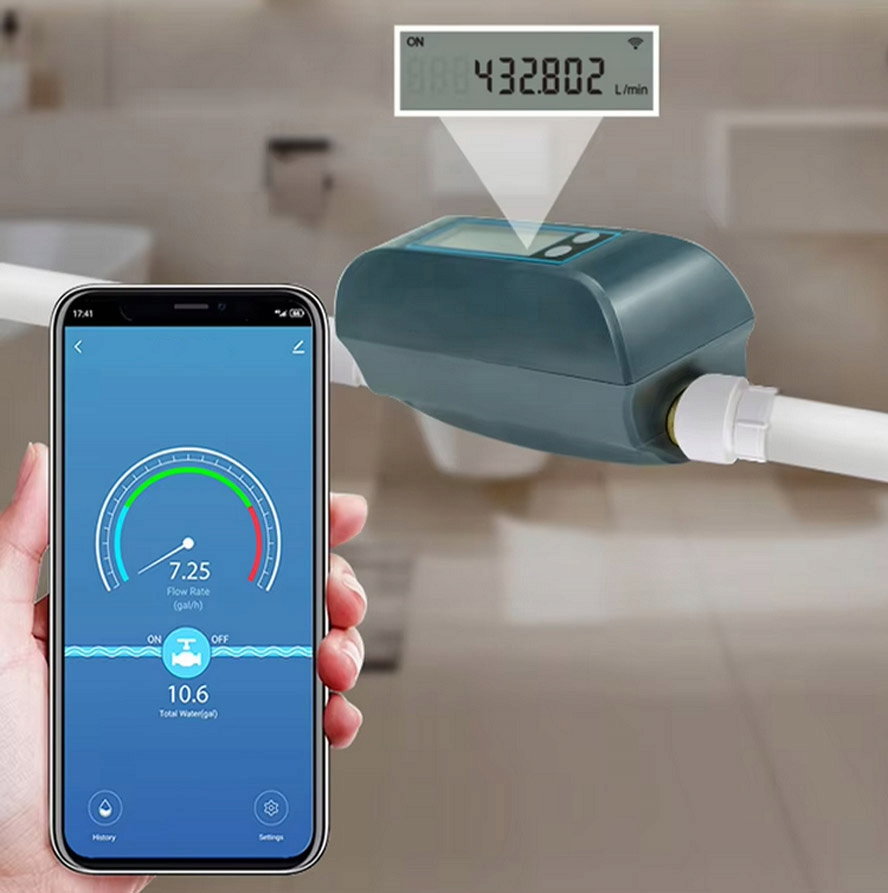

Remote water consumption monitoring and valve control via the Tuya app
Integration with the Tuya/Smart Life app significantly expands the capabilities of the RTX WVM1 meter, allowing you to not only monitor water consumption but also actively manage system flow. Historical data, broken down by day, month, and year, allows you to analyze water usage and more easily spot unusual changes in consumption. One of the key features is the remote opening and closing of the electrically controlled ball valve . This allows you to quickly shut off the water supply without having to access the meter directly, and then restart it via the app. The app also allows you to set alarms for excessively high or low flow . Additionally, you can create schedules and automation scenarios using other devices within the Tuya ecosystem. Connection is via 2.4 GHz WiFi , so no additional gateway is required to communicate with the app. This simplifies installation and allows you to integrate the meter into your existing smart home system. The combination of measurement functions, remote valve control, and the ability to create smart automations makes the Tuya app a central hub for water consumption control and flow management.
The app allows you to set alarms for water flow that is too high or too low.
Elements included in the set.Technical specifications of the Tuya RTX WVM1 counter
- Device type: water consumption meter with flow meter and electrically controlled ball valve
- Manufacturer: RTX
- Model: WVM1
- Communication standard: WiFi 2.4 GHz
- Radio standard: IEEE 802.11 b/g/a/n/ac
- Transmission range: up to 30 m in open space
- App: Tuya/Smart Life
- Additional gate: not required
- Display: LCD
- Flow reporting frequency: every 0.4 l
- Water consumption measurement accuracy: 1%
- Working water pressure: 0 to 13 bar
- Tightness class: IP66
- Valve opening/closing time: 12 s
- Flow diameter: DN20
- Supported connections: 1" and 3/4" using included adapters

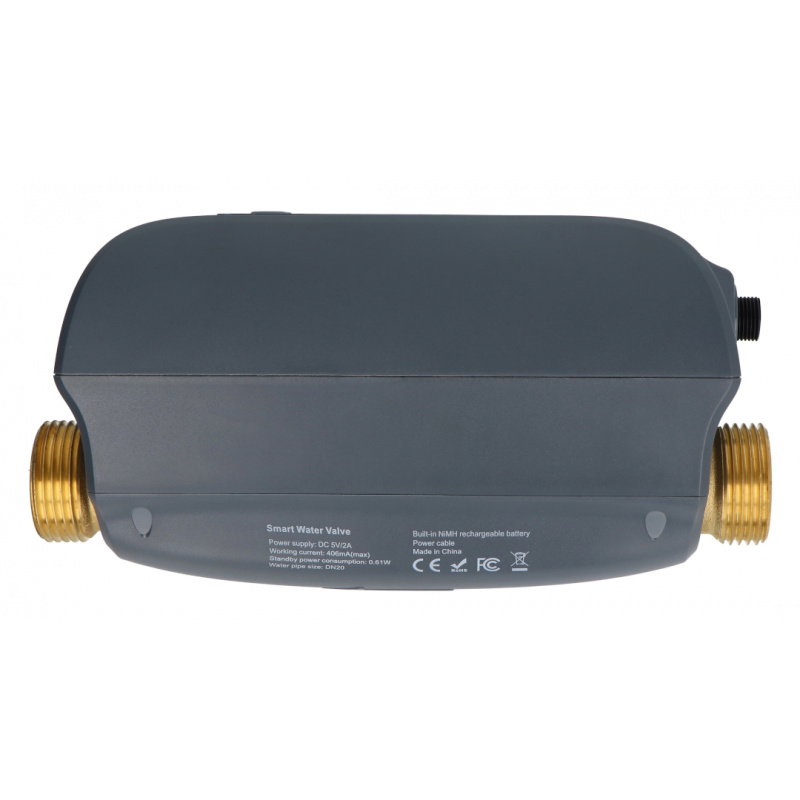

- Power supply: 5V/2A power supply
- Emergency power supply: built-in battery
- Operating humidity: 1% to 95% RH
- Dimensions: 195 x 65 x 102 mm
- Weight: 1750 g

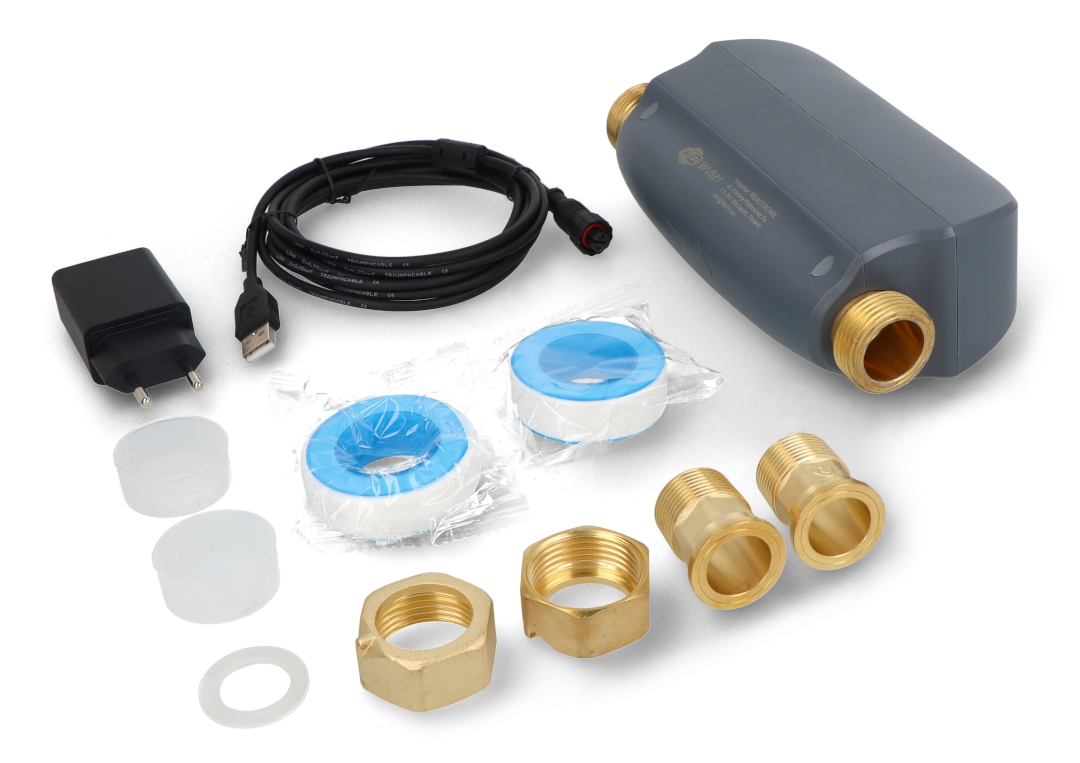

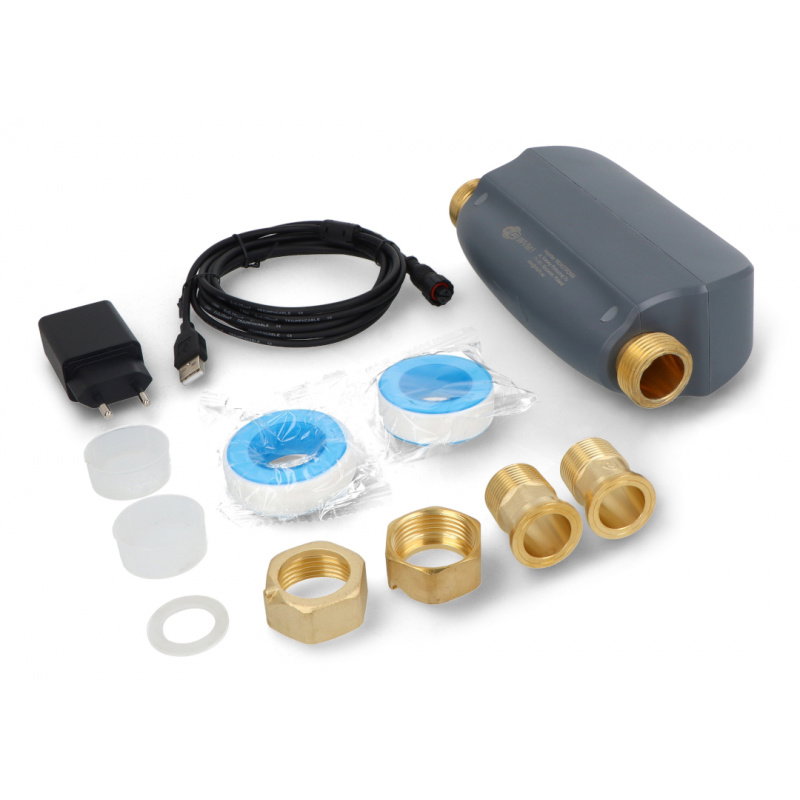

RTX WVM1 Kit Contents
- RTX WVM1 Water Meter
- Brass adapters
- Silicone seals
- Plug-in power supply
