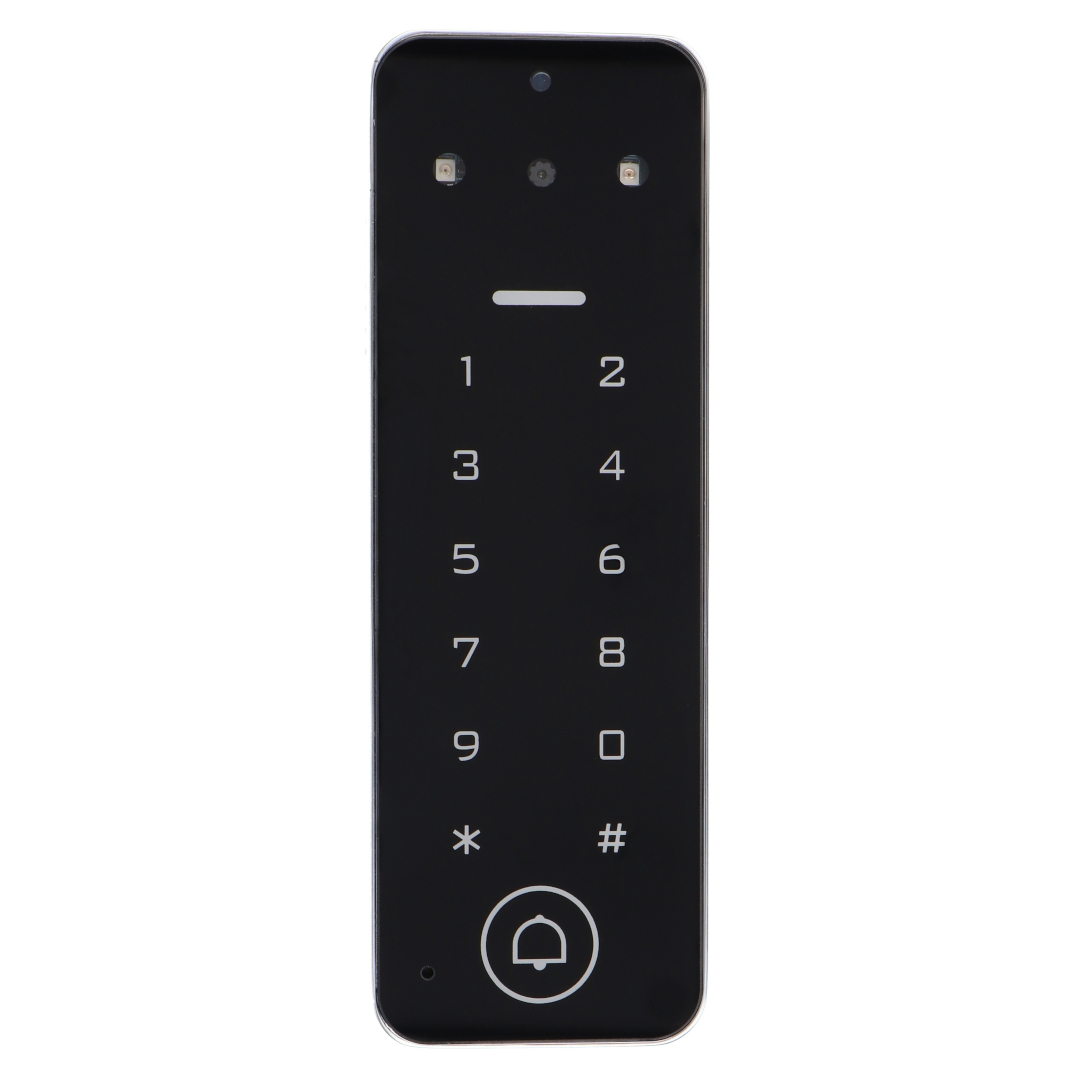

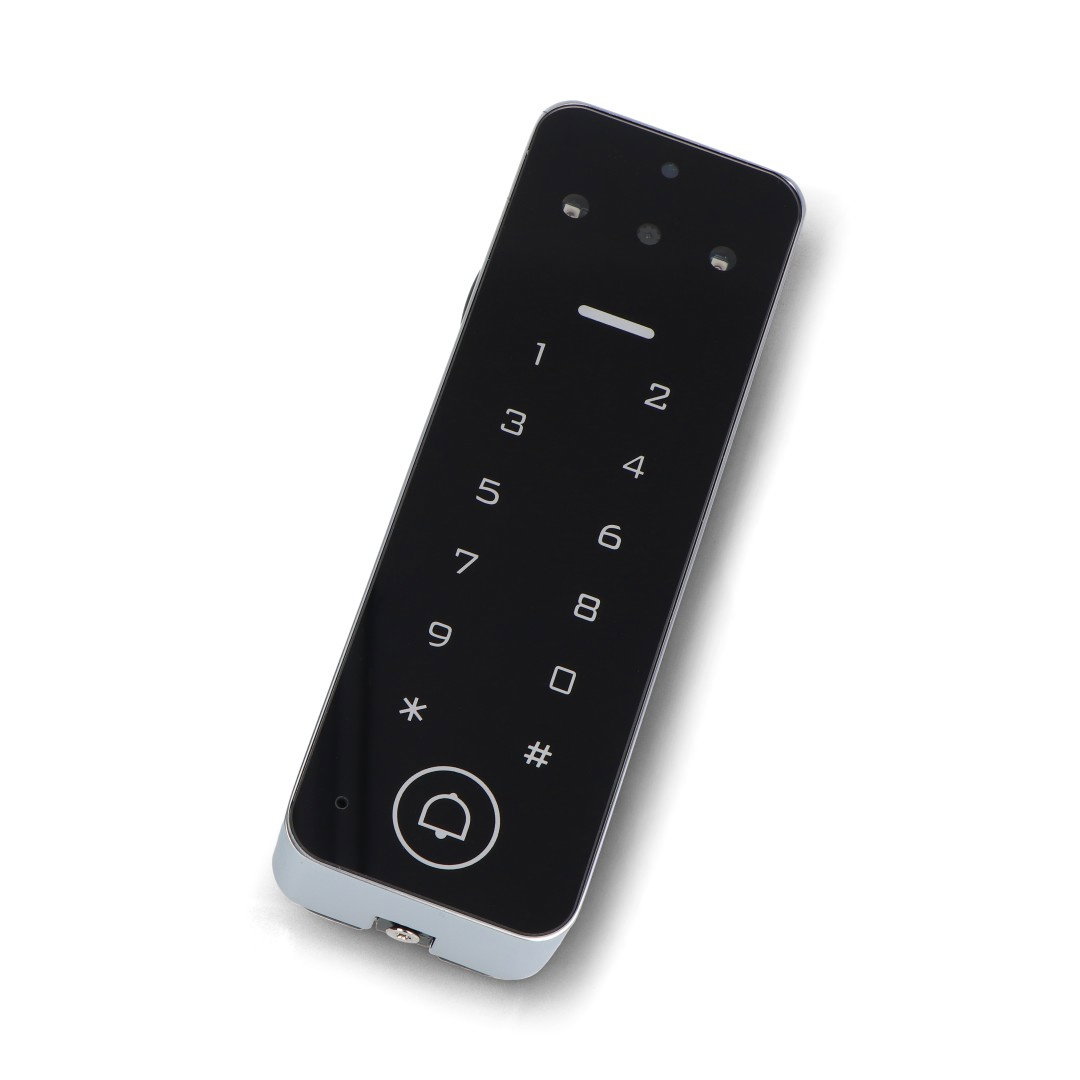

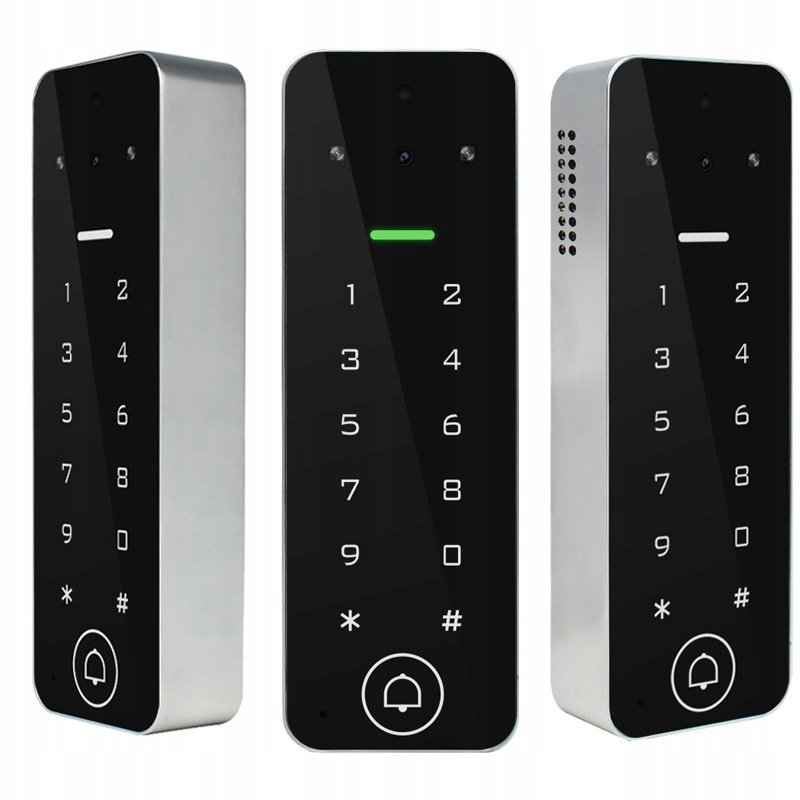

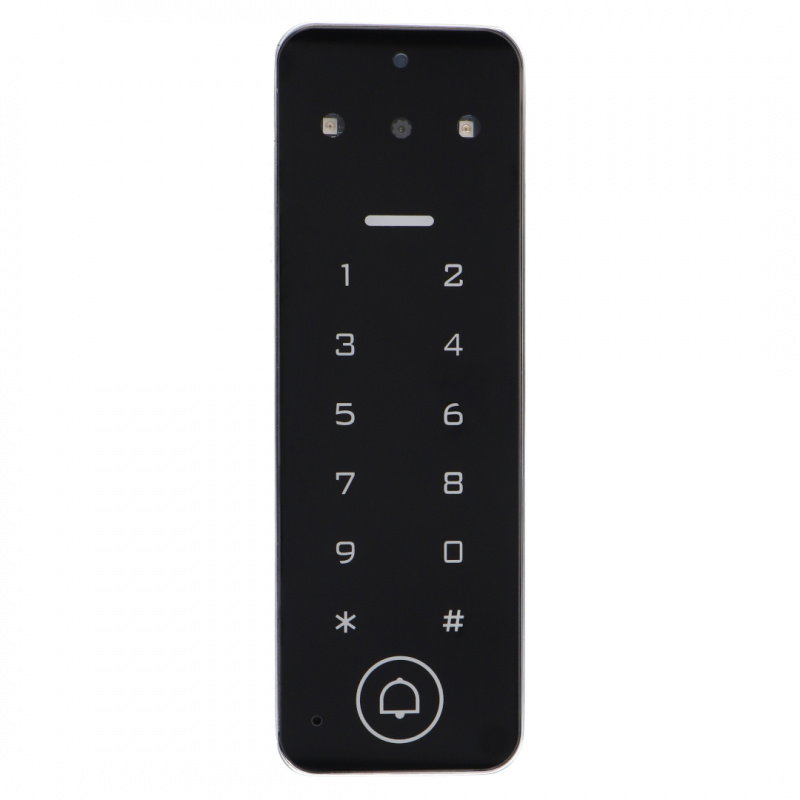

Product description: Tuya - video intercom with RFID access control and PIN code - WiFi - RTX WDV4
The Tuya WiFi video intercom is a functional device that combines monitoring, communication, and access control in one compact panel. Thanks to the 2MPx camera, you can see the person at the entrance in real time and conduct audio conversations . The video intercom offers several gate opening methods – using a mobile app, a PIN code, an RFID card, or a local button . The system allows for user management and access history, increasing security and control over the property. The durable, IP65-rated aluminum housing guarantees weather resistance and allows for outdoor installation.
Tuya - video intercom with RFID access control and PIN code - WiFi - RTX WDV4.

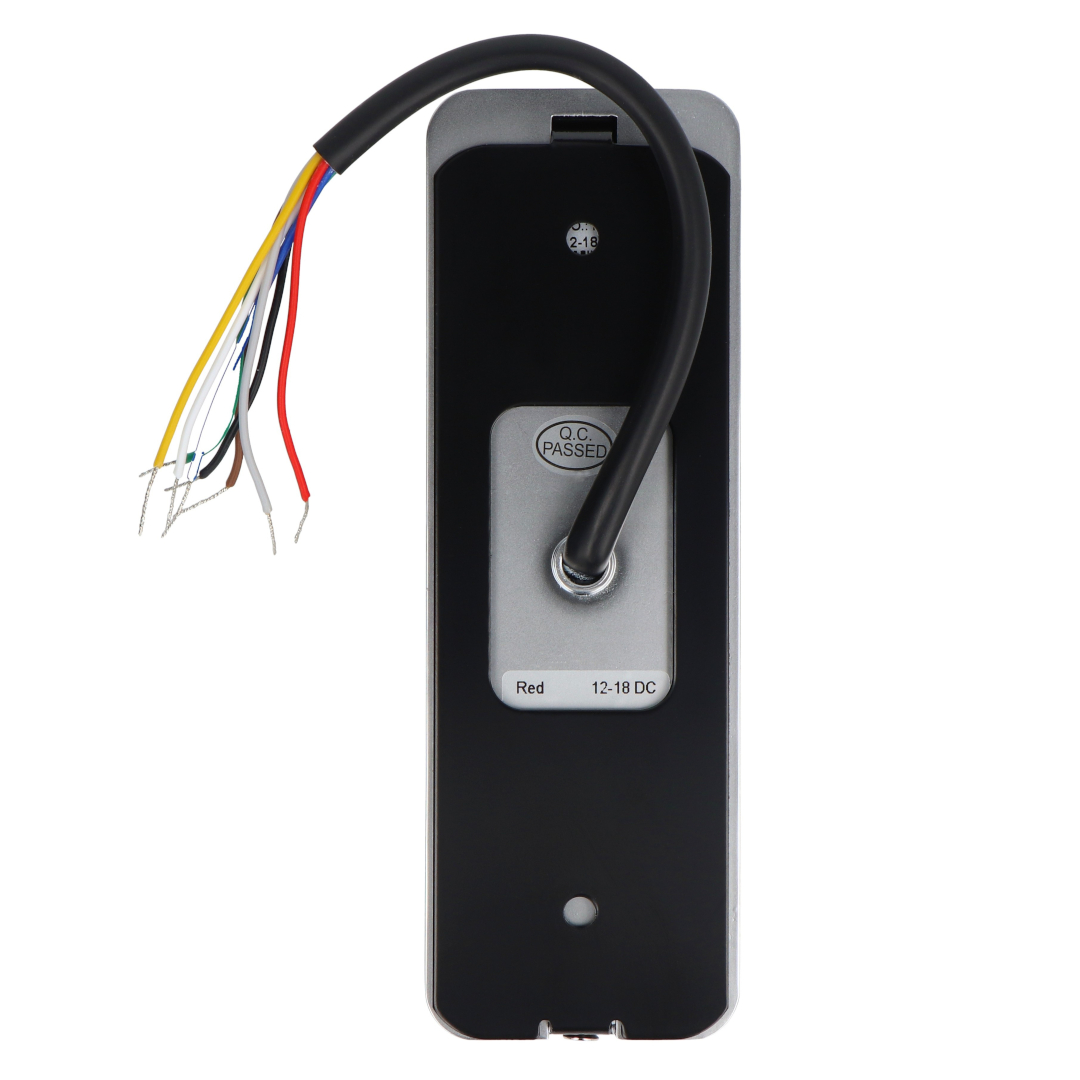

The video intercom is powered by a voltage of 12 V to 18 V.

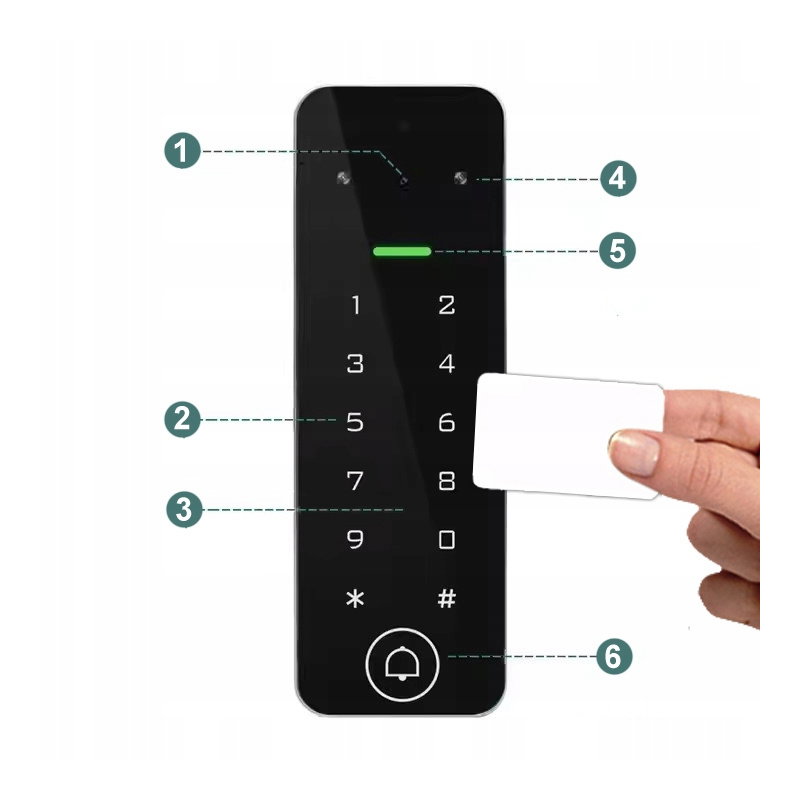

Main features of the WiFi video intercom
- 2 MPx camera : clear image and real-time entrance monitoring
- 2.4 GHz WiFi connectivity : remote control and access via app
- Multi-method access : PIN code, RFID card, app and local button
- Support for up to 1000 users : card and access code management
- MiFare 13.56 MHz card support : secure user identification
- Two-way communication : built-in microphone and speaker allow you to talk to the person standing in front of the entrance
- Lock operation adjustment : time or continuous mode for electric strike and magnetic lock
- Push notifications : real-time event information
- Event log : access history available in the application
- IP65 housing : resistant to rain and outdoor conditions from -40°C to 60°C
- Wiegand interface : integration with access control systems
Tuya Access Management App
The video intercom works with the Tuya Smart / Smart Life app, which provides full control of the device from your smartphone. You can receive video calls, remotely open the gate, and manage access by adding and removing PIN codes and RFID cards . The app also allows you to review event history, configure notifications, and set access schedules for individual users. Integration with a smart home system allows you to create automation scenarios and collaborate with other IoT devices . This solution allows for convenient and secure property access management from anywhere in the world. The video intercom is ideal for single-family homes, multi-family buildings, offices, and industrial facilities.
Elements included in the set.
Technical specifications of the video intercom
- Wireless connectivity: WiFi 2.4 GHz
- Camera: 2 MPx
- Relay: NO / NC / COM
- Relay control time: 0 s to 99 s, default 5 s
- Maximum relay load: 2 A
- Supported cards: MiFare 13.56 MHz
- Number of users: up to 1000
- Operating voltage: 12 V to 18 V DC
- Standby current: ≤ 60 mA
- Operating current: ≤ 150 mA
- Operating temperature: -40°C to 60°C
- Operating humidity: 0% RH to 92% RH
- Protection class: IP65
- Housing material: aluminum
- Interface: Wiegand
- Dimensions: 142 x 48 x 22 mm
- Weight: 315 g

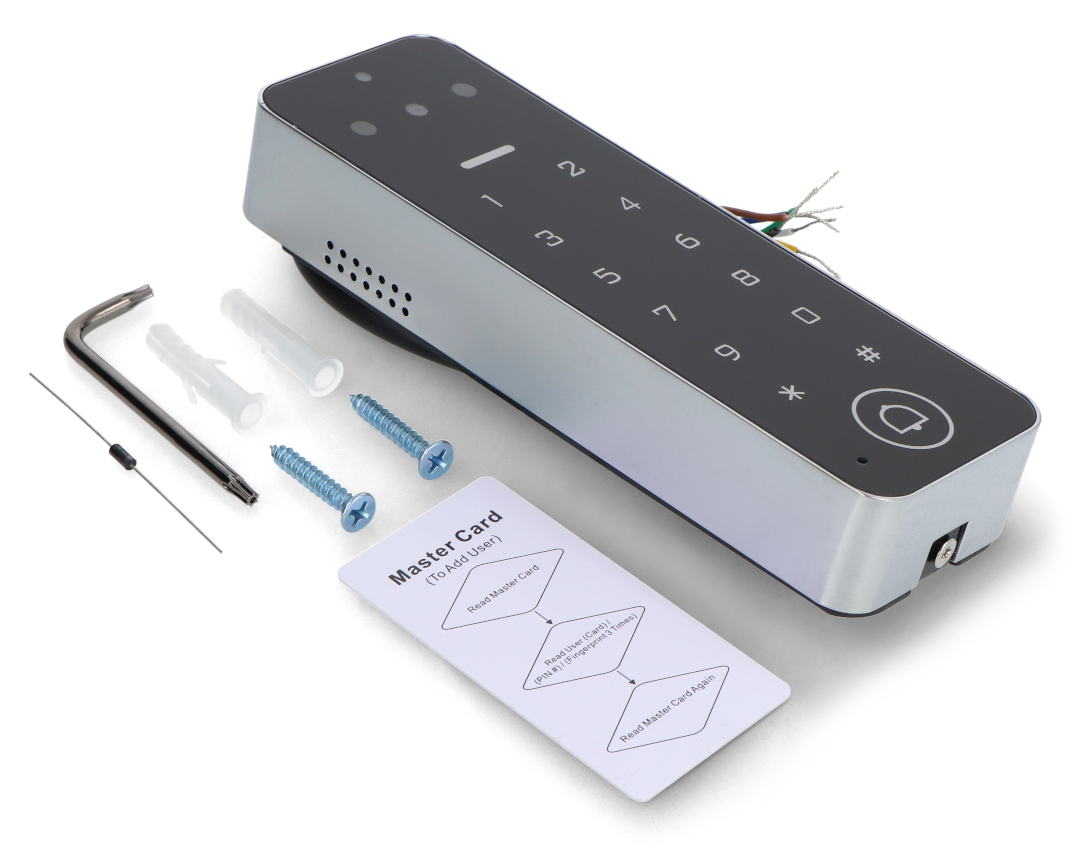

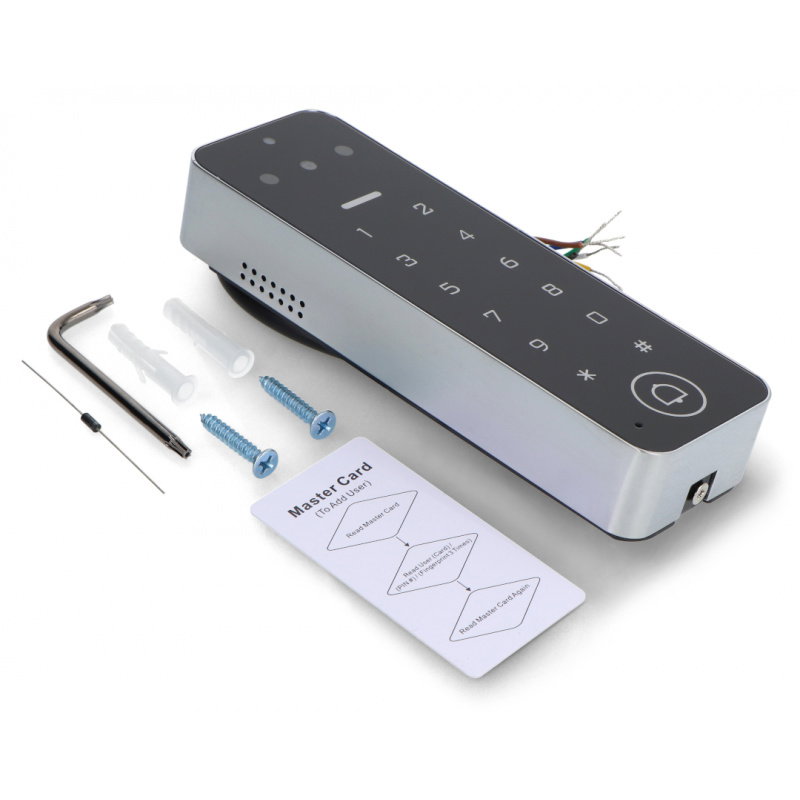

Contents of the set
- Video intercom
- Master Access Card
- Set of mounting accessories
- User manual
