Product description: Tuya - 3-channel mini relay - ZigBee - Android / iOS application - OXT T263
The OXT three-channel mini relay is the perfect solution for those who want to transform their traditional switches or sockets into smart devices. The device allows you to control electrical equipment from anywhere in the world using a smartphone, which provides convenience and control over home installations. Thanks to support for the ZigBee 3.0 protocol, the relay operates as part of a mesh network, which ensures connection reliability and wide range. Working with the popular Tuya Smart application, it allows you to create advanced automations, schedules and integration with voice assistants such as Amazon Alexa and Google Home. Thanks to its compact dimensions, the module fits easily into a standard end box behind the switch, and its installation is quick and simple. The device supports both bistable and monostable switches, which gives flexibility in adapting to existing installations.
Tuya - 3-channel mini relay - ZigBee - Android / iOS application - OXT T263.
The module supports monostable and bistable switches.
Special features of the relay
- Compatibility: works with traditional bistable and monostable switches.
- Remote control: the ability to control electrical devices from any location in the world using a smartphone.
- Tuya Smart app: control with the most popular home automation app, available for free in the App Store and Google Play.
- Intelligent Automations: Create automations based on weather, time, sunrise and sunset, and other events in the Tuya ecosystem.
- Schedules and timers: ability to set operation for specific hours and count down the relay activation time.
- Integration with voice assistants: possible cooperation with Amazon Alexa and Google Home depending on the ZigBee gateway used.
- Compact design: fits easily into the end box behind the breaker.
- Universal use: can be used with any electrical device within maximum power.
- Stair lighting control: ability to control stair/cross lighting via cable or after setting in the application.
ZigBee connectivity and cooperation with the Tuya application
The mini relay module ensures full compatibility with the Tuya Smart application, thanks to support for the ZigBee 3.0 protocol. The device integrates into a mesh network, which ensures reliable connections and a wide range inside buildings . Dedicated Tuya Smart application, available for free in the App Store and Google Play , it allows you to create intelligent scenarios, schedules and voice control using Amazon Alexa and Google Home . Thanks to this, you can enjoy a smart home in which devices cooperate with each other according to programmed rules, providing greater comfort and convenience.
ZigBee 3.0 communication ensures connection reliability and wide range.

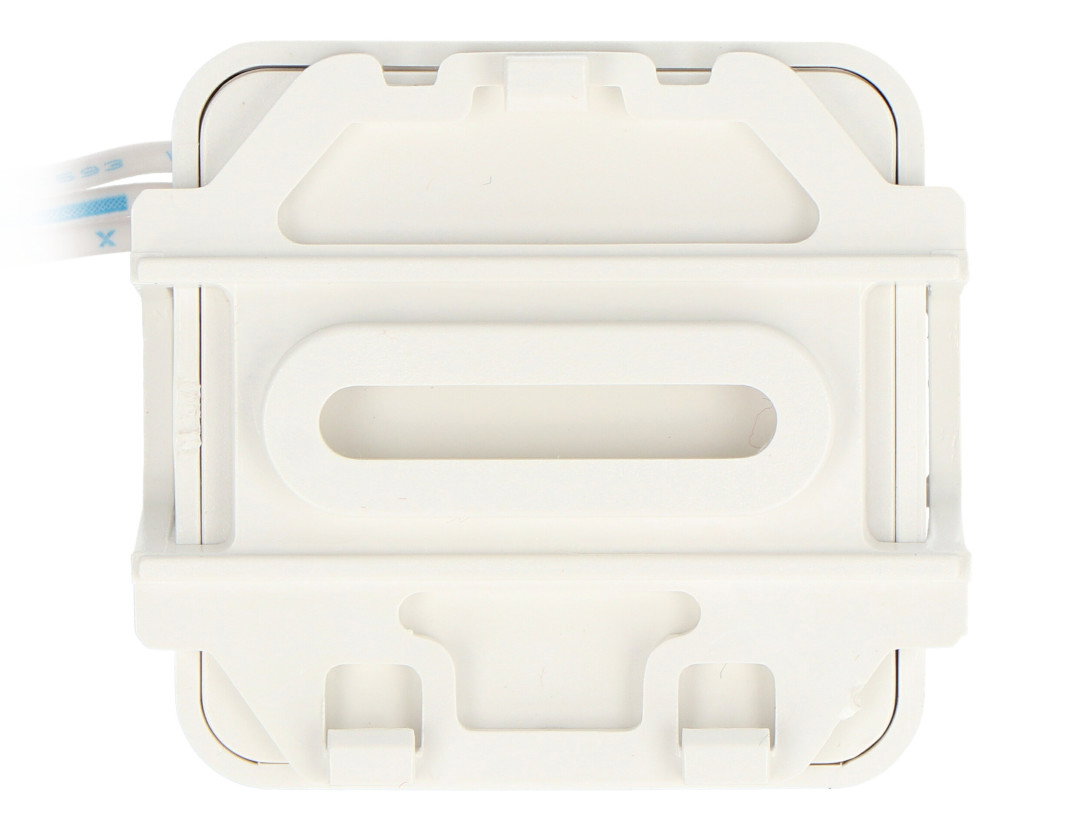

The controller can be easily mounted in the end box behind the switch.
Technical specifications of the SWTZ33 OXT relay
- Type: 3-channel mini ZigBee relay
- Input voltage: 90 V to 250 V AC, 50 Hz
- Maximum LED load: 3 x 150 W
- Maximum resistive load: 3 x 650 W
- Maximum current: 3 x 3.3 A
- Protocol: ZigBee 3.0
- Installation Requirements: Requires full power in the box
- Cooperation with systems: Amazon Alexa, Google Assistant
- Application: iOS / Android
- Dimensions: 39.2 x 39.2 x 18 mm
Set contents
- OXT mini 3-channel ZigBee relay module
- Fixing clip
- User manual
