Product description: Tuya - video intercom with RFID access control and PIN code - WiFi - RTX WDV3
The RTX smart video intercom is a comprehensive solution for those who value security and convenience. The device is equipped with a high-quality 2 MP camera with IR night vision , allowing for clear identification of visitors even after dark. Its greatest advantage is the ability to remotely operate it via smartphone – each press of the physical call button generates a push notification in the Tuya app. This allows you not only to see and speak with the person at the gate, but also to open its electric lock with a single click. The device supports up to 1,000 MiFare 13.56 MHz RFID card users and features a touchscreen, backlit keypad for entering PIN codes . Its robust, IP65- rated aluminum construction and wide power supply range make it an exceptionally versatile and durable product. Additionally, support for SD cards up to 128 GB allows for the storage of photos and event history.

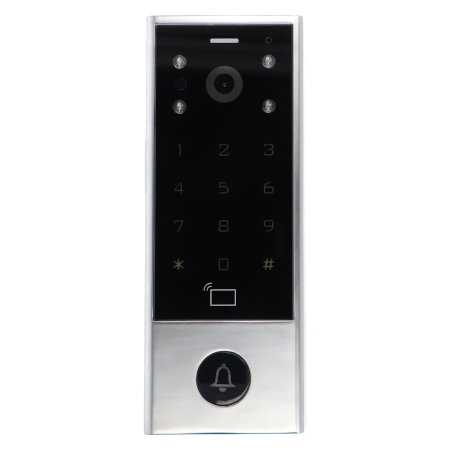

Tuya - video intercom with RFID access control and PIN code - WiFi - RTX WDV3.

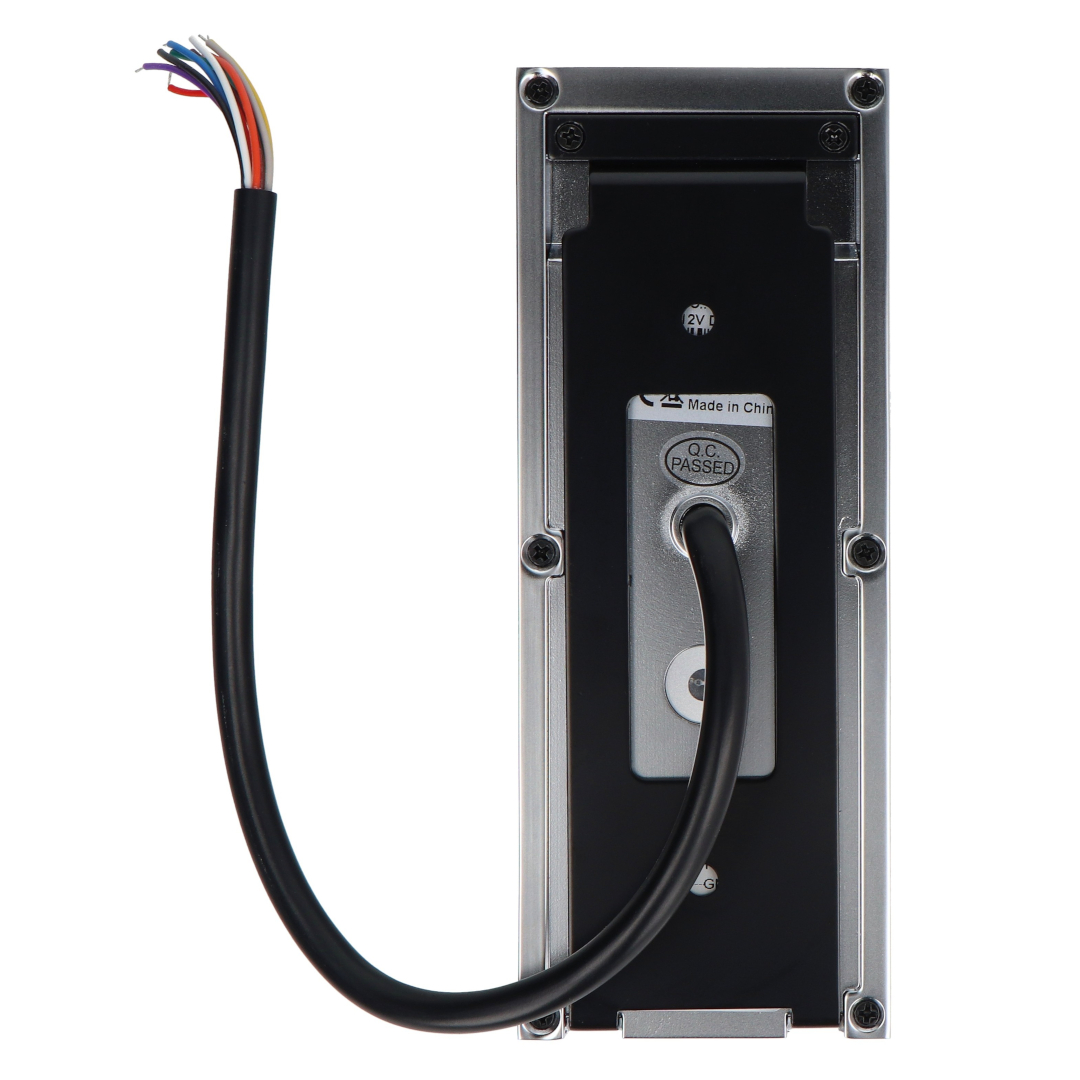

The video intercom is powered by a voltage of 12 V to 18 V.
Main features of the WiFi video intercom
- 2 MPx camera : clear image and convenient viewing of the person at the entrance
- 2.4 GHz WiFi connectivity : remote control of the device via smartphone without an additional gateway
- Tuya/Smart Life app support : full access, user, code and card management
- Multi-method access : PIN code, RFID card, app and local button
- Two-way communication : built-in speaker and microphone allow you to talk in real time
- Support for up to 1000 users : up to 990 RFID cards and access codes for users and guests
- Adjustable lock control time : from 1 s to 99 s for electric strike or magnetic lock
- Recording events on the SD card : archiving photos and logs with date and time
- Two-way audio communication: talk to the person at the gate in real time
- IP65 waterproof housing : robust aluminum construction for outdoor use
- Additional inputs and outputs : support for the opening button, signaling device and Wiegand interface
Smart management with the Tuya app
The video intercom works with the Tuya Smart / Smart Life app, allowing you to manage access to your property directly from your smartphone. The app allows you to answer calls, view camera images, maintain two-way communication, and remotely open the gate . From the system, you can also add and remove PIN codes, manage RFID cards, configure push notifications, control SD card recording, and share the device with other household members or employees. The video intercom is ideal for single-family homes, offices, and private properties. The function of generating time-based and one-time codes is a perfect solution for owners of short-term rental apartments - you can grant access to a guest without handing over physical keys.

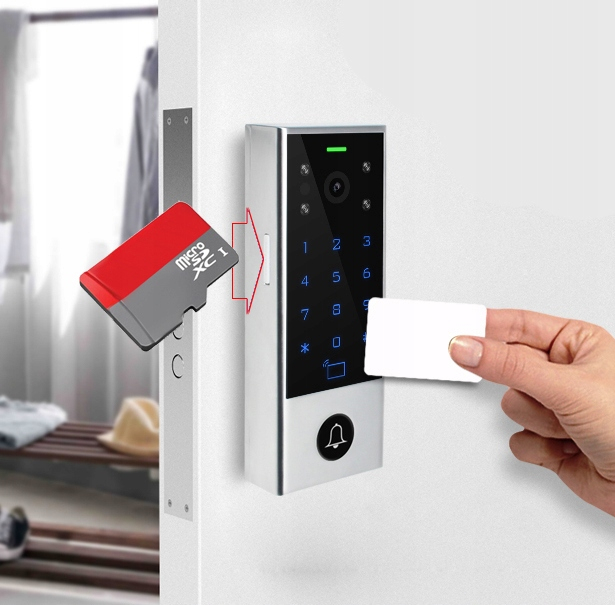

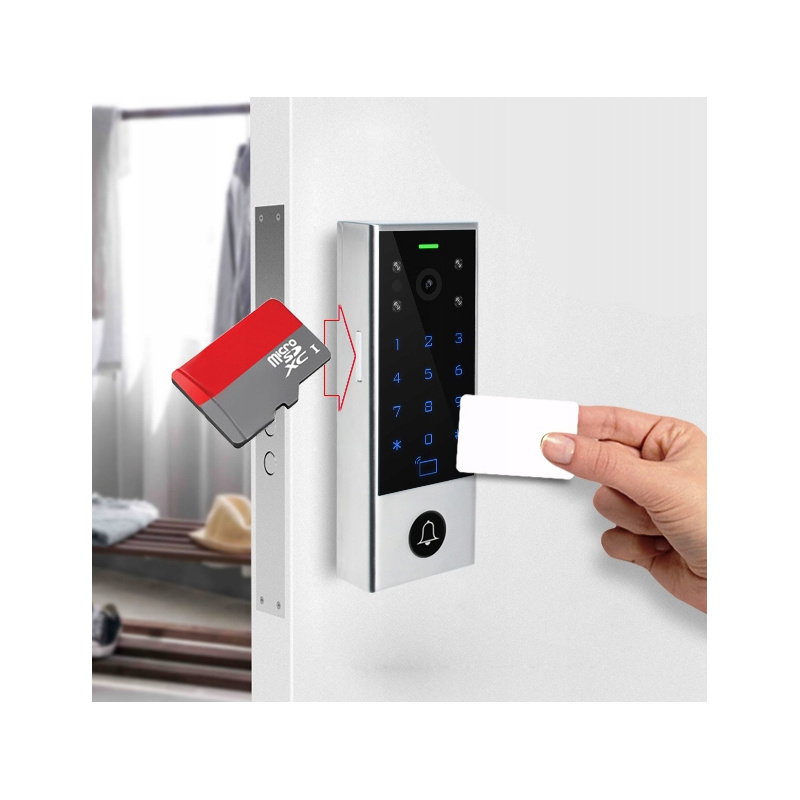

The video intercom offers the ability to record events on a microSD card.

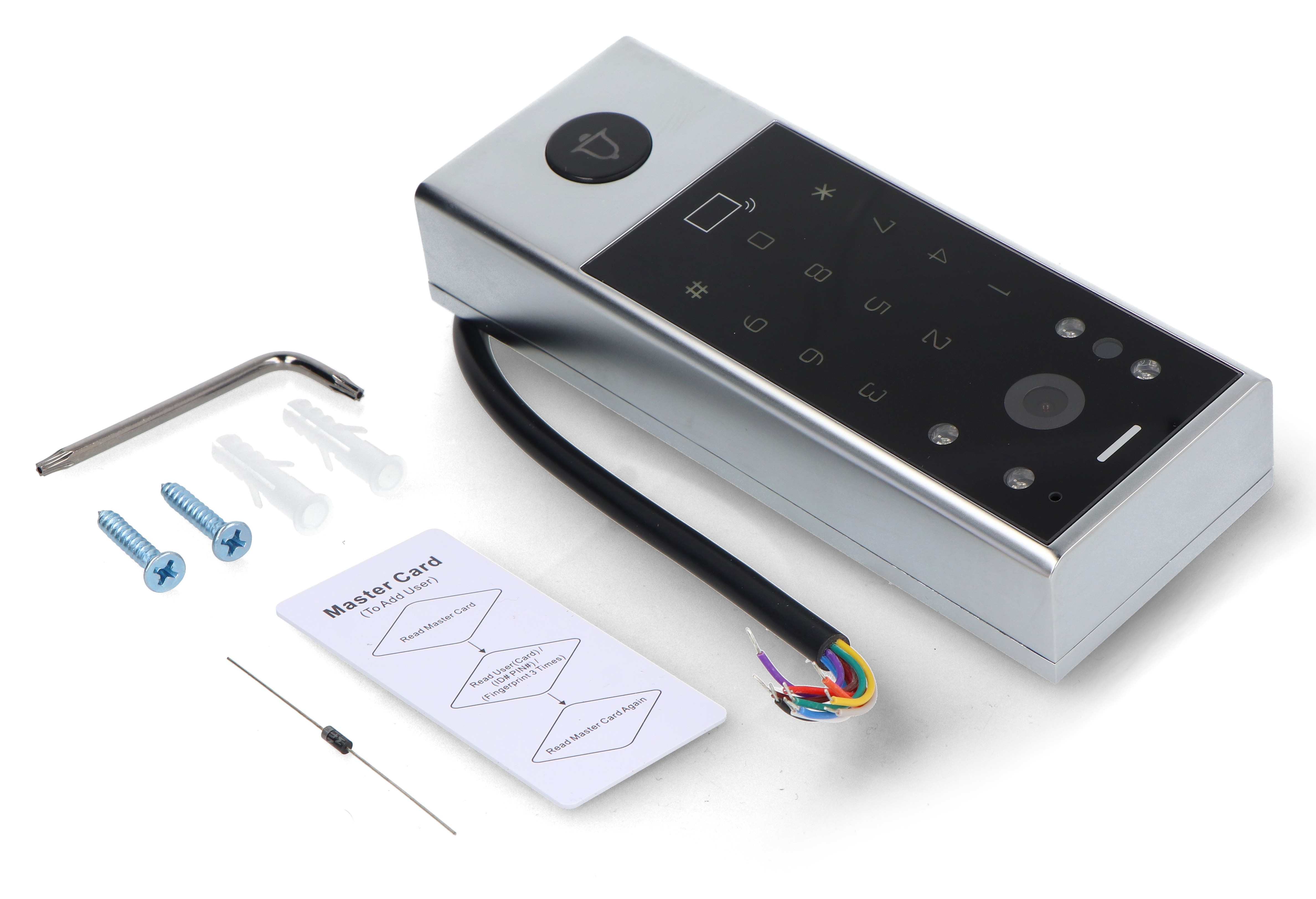

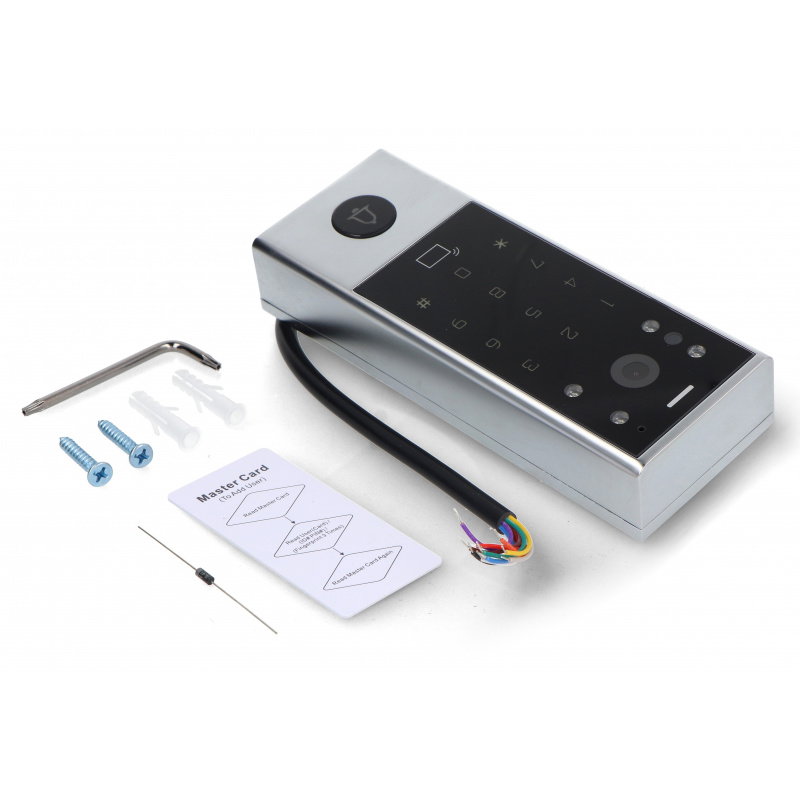

Elements included in the set.
Technical specifications of the video intercom
- Operating voltage: 12 V to 18 V DC
- Standby current: ≤ 60 mA
- Operating current: ≤ 150 mA
- Wireless connectivity: WiFi 2.4 GHz
- Camera: 2 MPx
- Relay: NO / NC / COM
- Relay control time: 0 s to 99 s, default 5 s
- Maximum relay load: 2 A
- Supported cards: MiFare 13.56 MHz
- Number of supported user cards: up to 990
- Number of users: up to 1000
- Memory card support: microSD up to 128 GB
- Operating humidity: 0% RH to 92% RH
- Protection class: IP65
- Housing material: aluminum
- Interface: Wiegand
- Dimensions: 147 x 56 x 26 mm
- Weight: 315 g
Contents of the set
- Video intercom
- Master Access Card
- Set of mounting accessories
- User manual
