Product description: Grove - Vision AI V2 module Himax WiseEye2 HX6538 - Seeedstudio 101021112
The Vision AI V2 module from Seeedstudio enables the implementation of AI and machine learning applications. It is equipped with the Himax WiseEye2 HX6538 chip, a microphone, a microSD slot, USB Type-C, and a Grove interface. The Vision AI V2 works with the SenseCraft AI platform, making it possible to implement models without using code. The module is also compatible with the Xiao series, Raspberry, and Arduino .
The manufacturer Seeedstudio provides a user guide that includes connection instructions and sample projects .

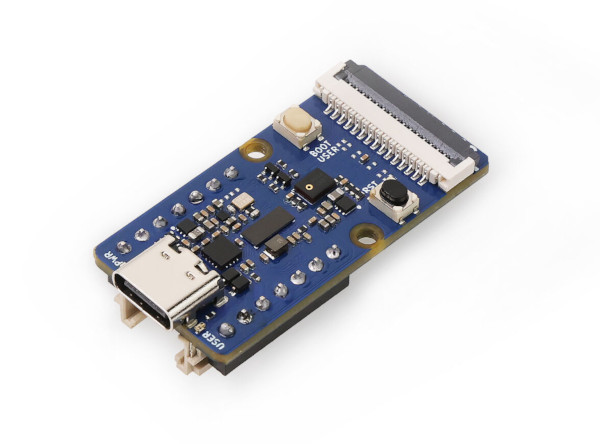

Grove - Vision AI V2 Himax WiseEye2 HX6538 module - Seeedstudio 101021112.
Key Features of the Vision AI V2 Module
- Compatibility : the module is compatible with Arduino , Raspberry Pi , Seeed Xiao , ESP32 development boards
- AI Processing Capability : The module uses the Himax WiseEye2 HX6538 processor with a dual-core Arm Cortex-M55 processor and an integrated Arm Ethos-U55 processor
- Peripheral set : PDM microphone, microSD slot, USB Type-C, Grove interface and other peripherals
- Home Assistant Integration : Ability to connect the Grove module with Home Assistant and create a face detection system
- SenseCraft Platform Integration : Deploy models without code with SenseCraft AI Platform. TensorFlow and PyTorch frameworks supported

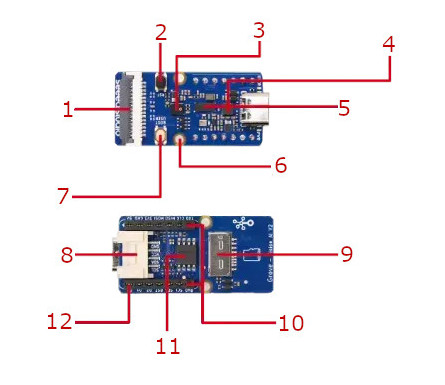

Arrangement of elements
- SCI connector
- RESET button
- PDM Microphone
- Chip CH343
- Himax WiseEye2 Processor
- Screw hole M2 x 2
- BOOT button
- Grove Connector
- MicroSD card slot
- Dual 7-pin female socket
- Flash Memory 16MB
- Xiao connector - pin D0
Arrangement of components on the board .
SenseCraft AI
SenseCraft AI is a platform developed by Seeedstudio that enables easy training and deployment of AI models without any coding (no-code/low-code). It enables users to seamlessly deploy a huge library of publicly available AI models to their edge devices such as reComputer (Jetson), Xiao S3 and more. With SenseCraft AI, it is possible to instantly visualize identification results on a web page, allowing you to quickly evaluate the model’s performance.
Examples of artificial intelligence applications
- Object and person detection systems
- Face Tracking Systems
- Computer security systems by automatic screen locking/unlocking
- Gesture Recognition Systems

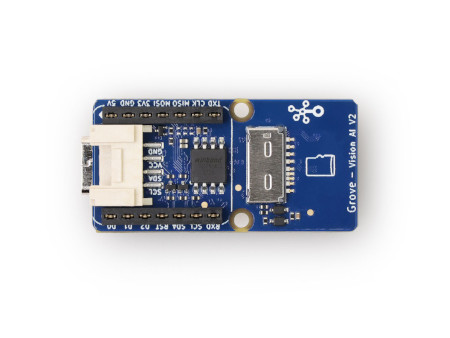

Grove - Vision AI V2 Himax WiseEye2 HX6538 module.
Vision AI V2 Module Specifications
- Processor: Himax WiseEye2 HX6538 with dual-core Arm Cortex-M55 and integrated Arm Ethos-U55
- Supply voltage: 5V
- Interface: CSI, IIC, UART, SPI, USB C
- Power Connectors: Dual 7-pin, USB C, and Grove Connector
- ARM Cortex-M55 CPU Frequency (Large): Up to 400 MHz
- ARM Cortex-M55 Processor Frequency (Small): Up to 150 MHz
- ARM Ethos-U55 MicroNPU Frequency: Up to 400 MHz
- Speed: 115200 baud
- I2C interface: Seeedstudio Xiao and Arduino
- Programming connector: USB Type-C
- Microphone: PDM
- Built-in SD card slot
- Internal system memory:
- Configurable system memory: up to 2432 KB
- ROM memory: 64 KB
- Dimensions: 40 x 20 x 10 mm
Kit Contents
- Grove - Vision AI V2 Himax WiseEye2 HX6538 module
- Grove Connector Jumper Cable
