Backlash removal nut for 8mm trapezoidal bolt

Index: AMS-18953 EAN: 5904422355210
The nut is used to remove the play of a trapezoidal screw in 3D printing. The product consists of two elements made of brass and a compensation spring. The use of the leveling nut allows to avoid the phenomenon of "wobbling" (so-called wobbling) occurring most often on the Z axis of a 3D printer. Its main symptom is the formation of stripes on the finished three-dimensional model. The clearance eliminating nut is used with trapezoidal screws with a diameter of 8 mm . The thread pitch of the nut is 8 mm .
Backlash removal nut for 8mm trapezoidal bolt
€2.44
€1.98 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Product description: Backlash removal nut for 8 mm trapezoidal bolt

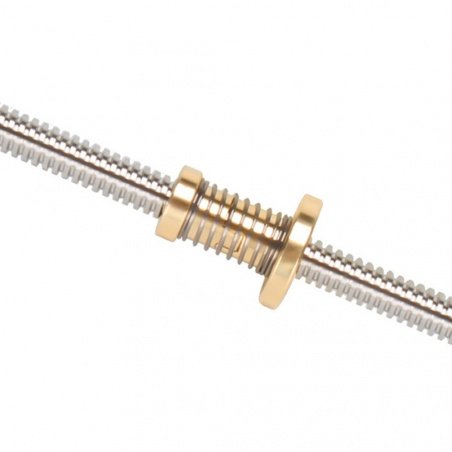

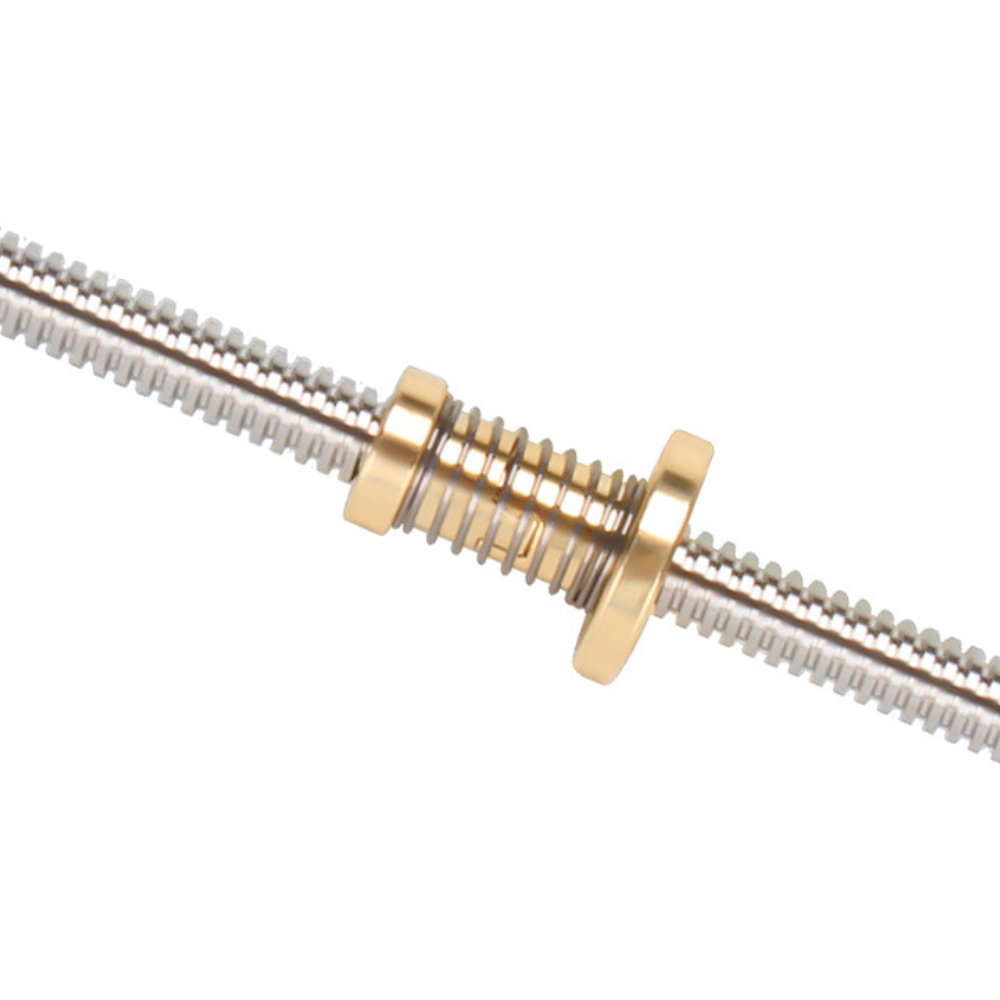

The nut is used to remove the play of a trapezoidal screw in 3D printing . The product consists of two elements made of brass and a compensation spring. The use of the leveling nut allows to avoid the phenomenon of "wobbling" (so-called wobbling) occurring most often on the Z axis of a 3D printer. Its main symptom is the formation of stripes on the finished three-dimensional model. The clearance eliminating nut is used with trapezoidal screws with a diameter of 8 mm . The thread pitch of the nut is 8 mm .

The subject of the sale is a reset cap. Trapezoidal screw sold separately

The subject of the sale is a reset cap. Trapezoidal screw not included .

Detailed dimensions of the canceling nut (mm)

Detailed dimensions of the canceling nut (mm) .

Specification of a reset nut for a trapezoidal screw

  • Material: brass
  • Compatible with 8mm trapezoidal screws
  • Thread pitch: 8 mm
  • Flanged workpiece diameter: 22 mm
  • Distance between holes on the flange (measured from the center of the holes): 16 mm
  • The mounting holes on the flange are not threaded
  • Pressure piece diameter: 14 mm

Backlash removal nut for 8 mm trapezoidal bolt

Loosening on the trapezoidal screw leads to a reduction in the quality and detail of the prints. In such cases, a backlash eliminating nut is used, which is screwed directly onto the bolt.

In the category of components for building a 3D printer, trapezoidal screws of different length and diameter are also available.

Nuts designed to eliminate play - additional information

The described nut is made entirely of durable brass, which in practice guarantees a long service life and the preservation of the original dimensions.

The clearance nut consists of two elements and a spring. One of the brass parts is additionally equipped with threaded holes. In the section for building a 3D printer, we offer a wide selection of parts and accessories that allow you to build your own 3D printing device yourself.
