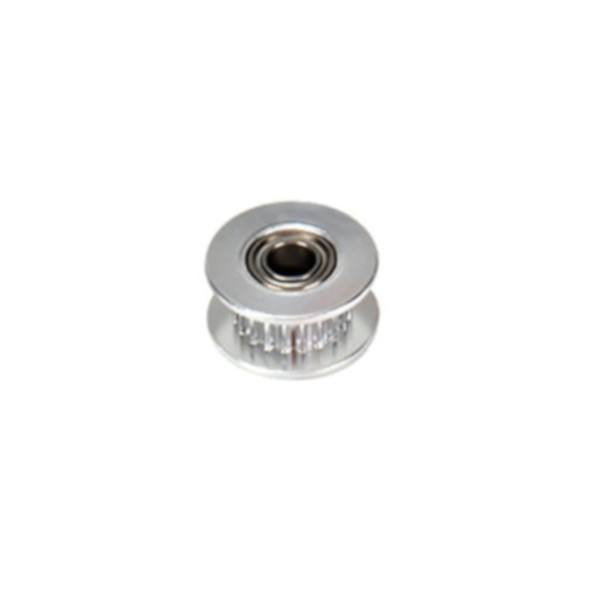

Gt2 timing belt 6mm pulley 20T- 5mm hole
20 tooth pulley. Used with GT2 toothed belt. Used, among others, as an element of drive transmission in 3D printers and CNC devices. You can find them in mechanisms of moving such parts of 3D printer as heating table or extruder. The product is compatible with GT2 belts with a width of 6 mm. The diameter of the inner hole of the wheel is 5 mm. The total height of the product is 8,5 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description: 20T toothed belt pulley for GT2 6mm belt - 5mm hole
Sprocket with20 teeth. Used with GT2 toothed belt. Used, among others, as a power transmission element in3D printersandCNC devices. You can find them in mechanisms of moving such parts of 3D printer as heating table or extruder. The product is compatible with GT2 belts with a width of 6 mm. The diameter of the inner hole of the wheel is5 mm. The total height of the product is 8,5 mm.
20T toothed pulley for GT2 6 mm belt.

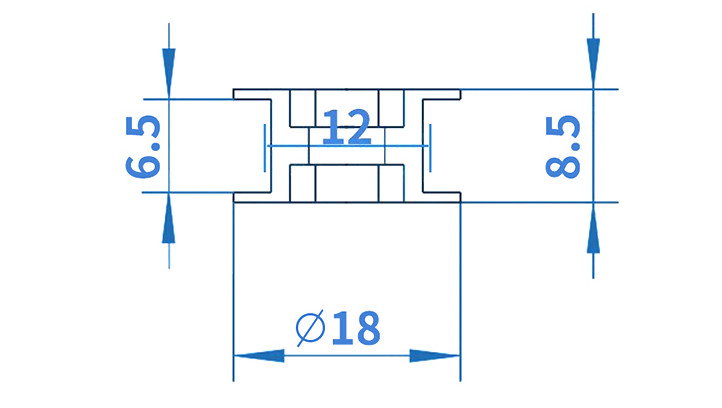

Detailed dimensions of the toothed pulley (mm).
Application of toothed pulleys
Pulley specification
- Workmanship material: aluminum
- Number of teeth: 20
- Diameter of the toothed pulley: 18 mm
- Bore diameter: 5 mm
- Overall height of the wheel: 8.5 mm
- Compatible with timing belts of 6mm width
- High quality material ensures long tooth life and precision of belt operation
- The product is used in transmission systems as a tensioner of GT2 belt
| Name | Value |
|---|---|
| Width | 5 cm |
| Height | 1 cm |
| Depth | 5.6 cm |
| Weight | 0.004 kg |
