Product description: Simon says game - educational soldering kit - Attiny404 - Soldered 333141
The Simon Says Game by Soldered is a classic memory game in the form of an electronic kit for self-assembly . The goal is to reproduce a sequence of colors ( LEDs ) by pressing the appropriate buttons. With each correct answer, the difficulty level increases, developing reflexes and memory. The Attiny404 microcontroller is pre-programmed, and some SMD components are already soldered. Simply assemble a simple circuit and play!

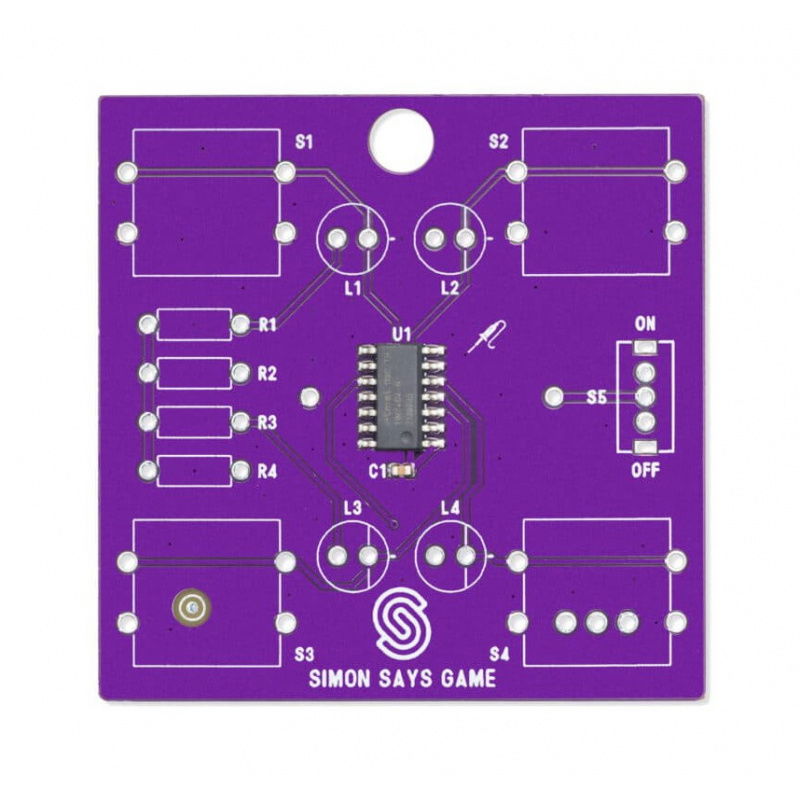

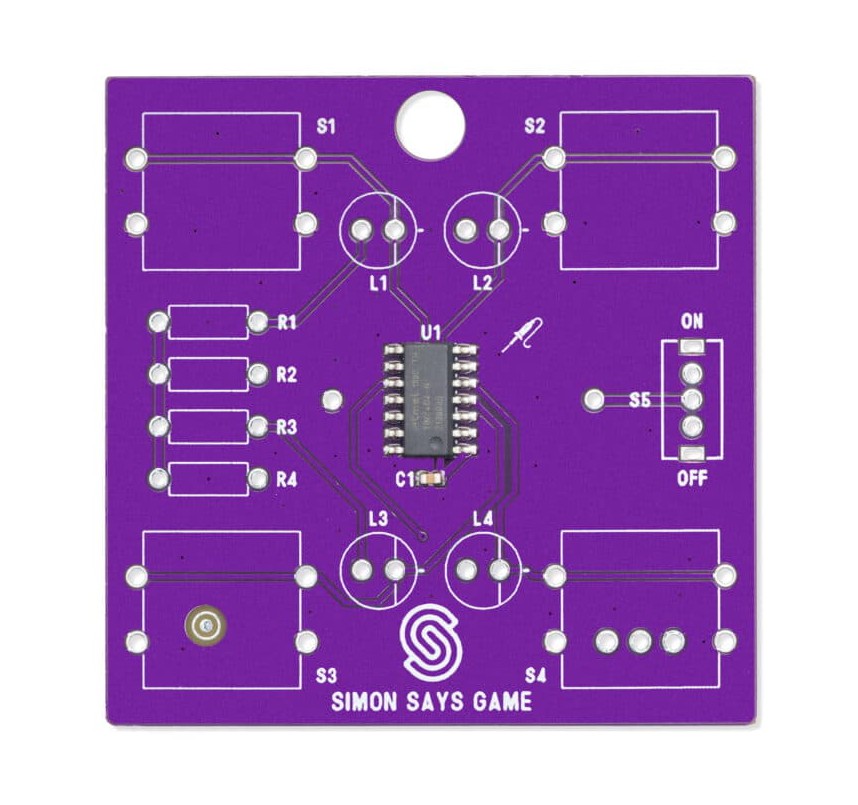

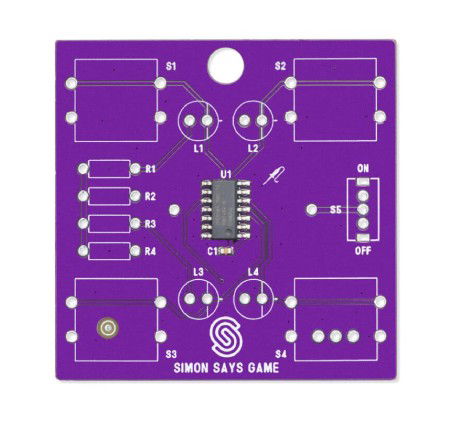

Simon says game - educational soldering kit - Attiny404 - Soldered 333141.

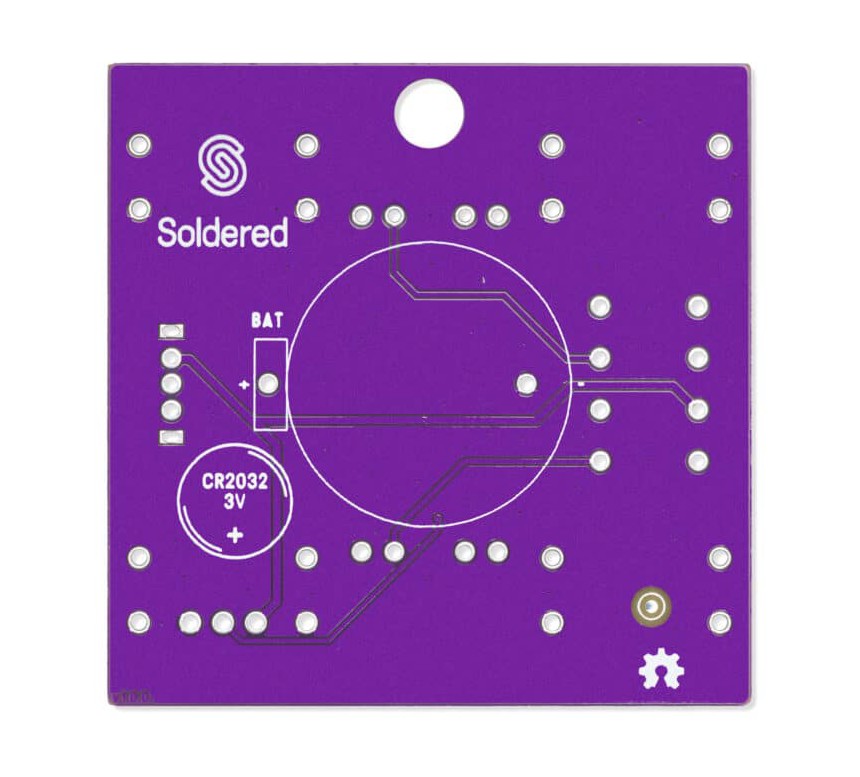

On the back of the board there is a place for a CR2032 battery.
Main features of Simon says game
- Attiny404: 8-bit microcontroller programmable with Arduino IDE
- Logic game: exercises memory and reflexes - classic fun in an electronic version
- Simple assembly: SMD components soldered, you only need to solder THT components
- Battery powered: runs on 1 CR2032 battery (included)
- Mobile design: small size and keychain holder
- Open source project: source code and documentation on GitHub
Practical applications
The Simon Says Solder Kit is perfect as an educational tool in schools, workshops, and technical classes . Thanks to its portability and ease of use, the game can be worn as a keychain , used as a gift, or a starting point for learning AVR microcontrollers and basic programming. It's a great weekend project for anyone, regardless of age.
Learning soldering and programming
The Simon Says Game kit was designed with beginners in mind – PCB markings and a limited number of THT components make the soldering process intuitive and enjoyable . The Attiny404 microcontroller is pre-programmed using the Arduino IDE , and the entire project is open-source. Once assembled, the game is ready to play, but there's nothing stopping you from modifying its logic and creating your own versions!

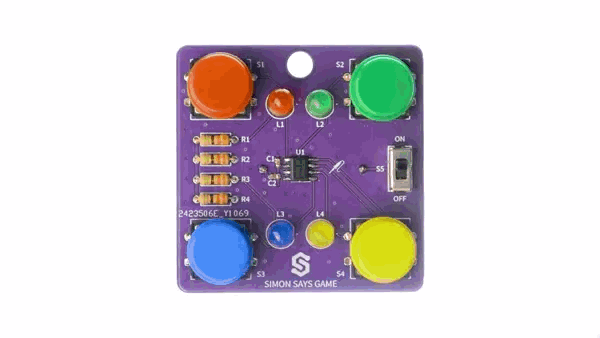

The aim of the game is to press the buttons in the order in which the LEDs light up.

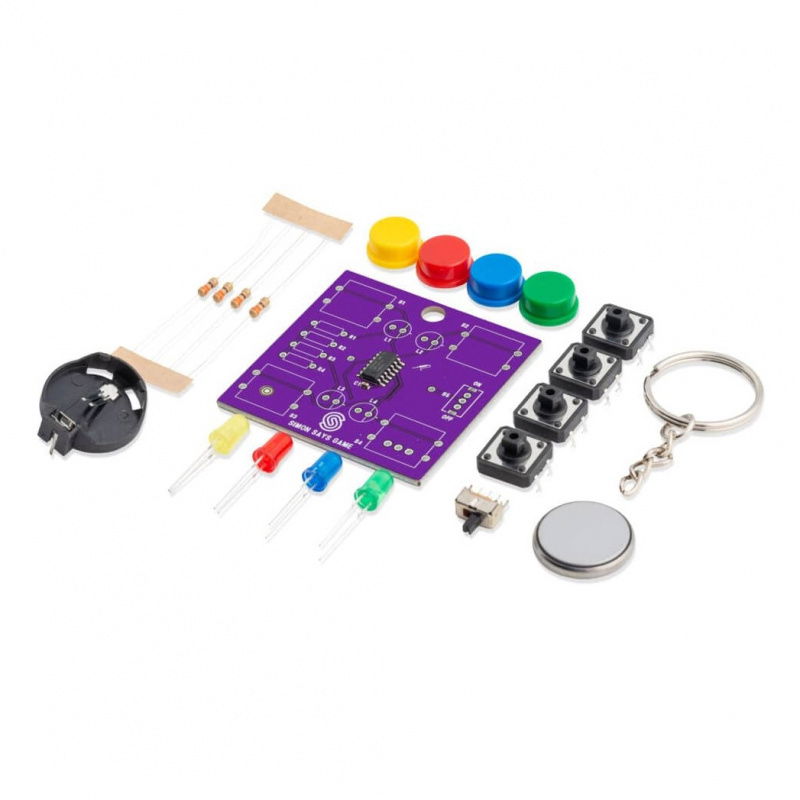

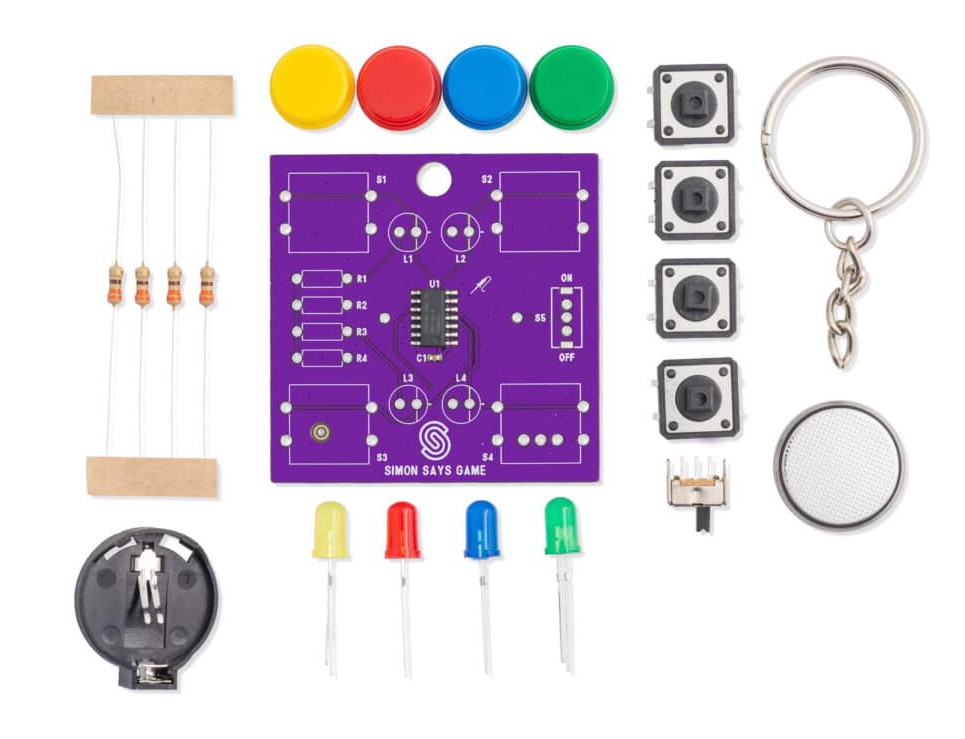

Elements included in the set.
Technical specifications of Simon says game
- Microcontroller: Attiny404
- Power supply: 1x CR2032 battery
- LED: 4 colored diodes
- Buttons: 4
- Resistors: 4x 330 Ω
- ON/OFF switch: 1 pc.
- Dimensions: 50 x 50 mm
Contents of the set
- 1x PCB with soldered SMD components
- 1x Attiny404 Microcontroller
- 4x LED diode
- 4x Button
- 1x Switch
- 4x 330Ω resistor
- 1x CR2032 battery basket
- 1x CR2032 battery
- 1x Keychain holder
