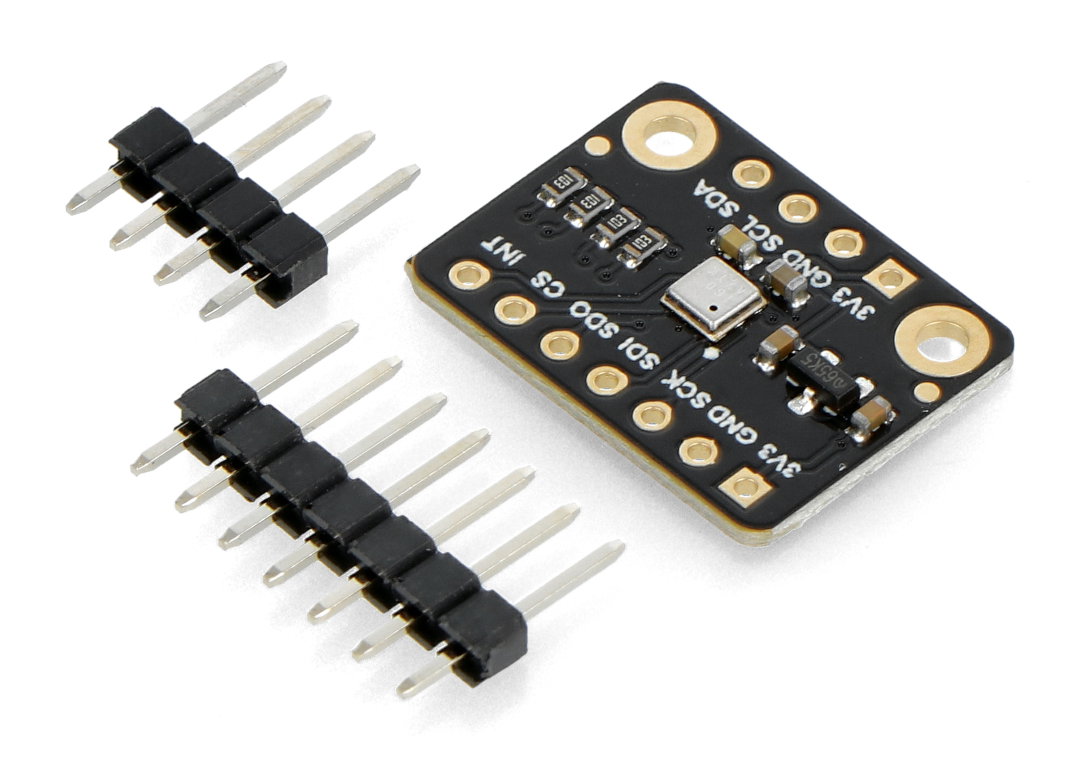

Product description: Fermion - ENS160 air quality sensor - DFRobot SEN0515
The sensor module is based on the ENS160 chip, which is used to monitor indoor air cleanliness. It processes IAQ (Indoor Air Quality) data such as TVOC (Total Volatile Organic Compounds), eCO2 (equivalent CO2), AQI (Air Quality Index). It is powered by 3.3 V. The module consumes very little power and is very accurate. It communicates via I2C and SPI interfaces.
The product is compatible with Arduino and Raspberry Pi 4B
The manufacturer has prepared detailed user guide and library for Arduino IDE environment.

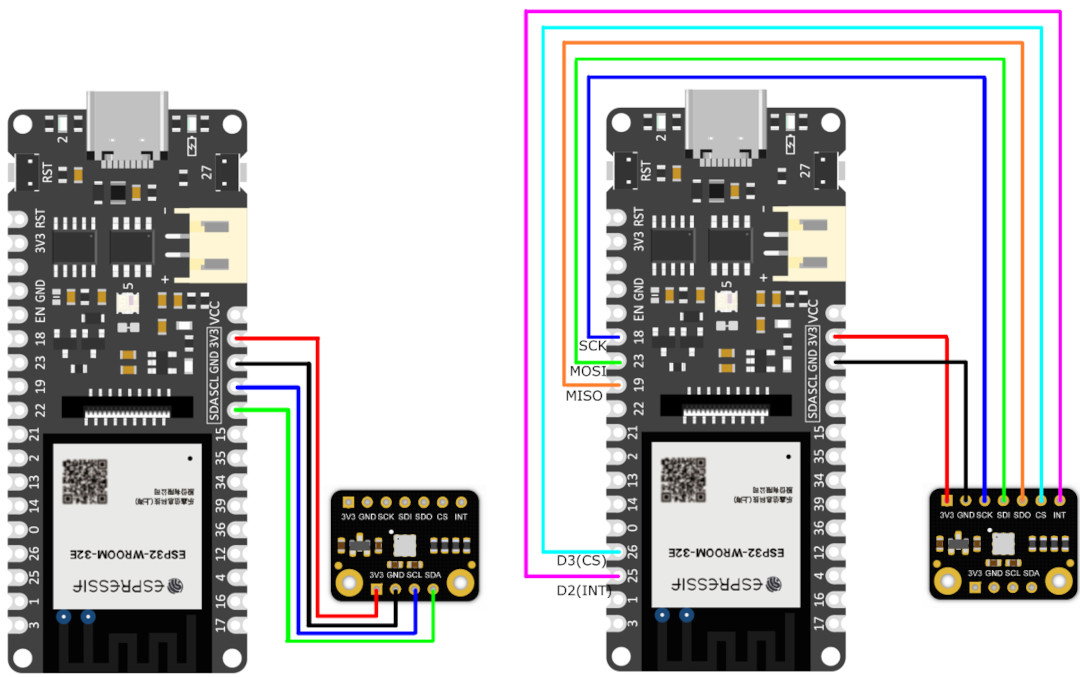

Connection diagram of ENS160 air quality sensor to FireBeetle ESP32-E. On the left is the connection for I2C and on the right for SPI.
Connection diagram of ENS160 air quality sensor - DFRobot SEN0514
The diagram shows the connection of the module to the FireBeetle ESP32-E board. The sensor uses I2C or SPI interface for communication. Pinouts of ENS160 air cleaner sensor:
- 3V3: power supply
- GND: ground
- SCL: I2C bus clock line
- SDA: I2C bus data line
- SCK: SPI bus clock line
- SDI: SPI bus data input
- SDO: SPI bus data output
- CS: SPI selector
- INT: interrupt pin
Sensor connection to Raspberry Pi
The sensor module is compatible with Raspberry Pi, connect it as per the diagram. The sensor uses I2C or SPI interface for communication.
Features of DFRobot sensor
- Warm-up time less than 3 minutes, fast data reading
- Accurate data reading due to high quality circuitry
- Environmental data reading: TVOC, eCO2, AQI

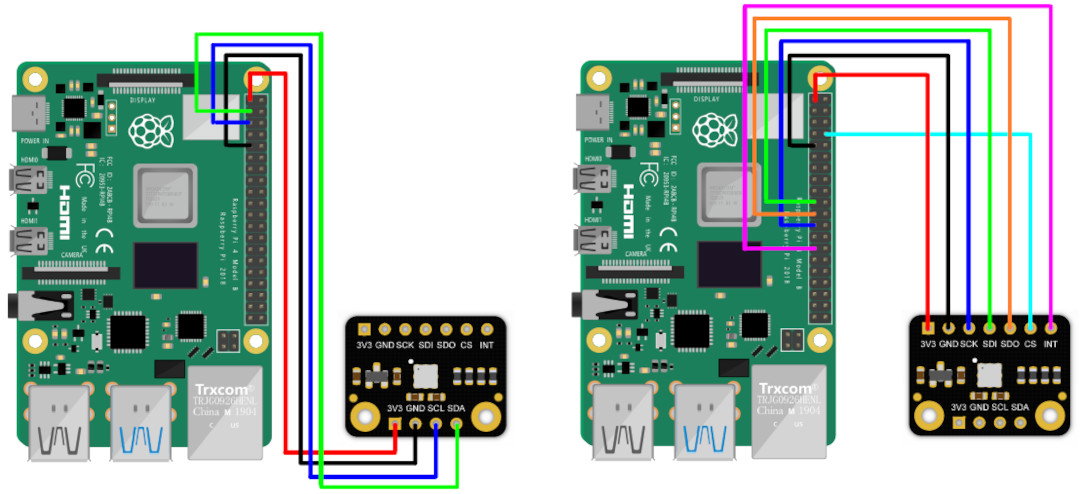

Diagram of how to connect the ENS160 air quality sensor to a Raspberry Pi. On the left is the connection for I2C and on the right for SPI.
ENS160 air quality sensor specifications
- Supply voltage: 3,3 V
- Current consumption: 29 mA
- Communication interface: I2C, SPI
- I2C address: 0x52, 0x53
- Operating temperature range: from -40°C to 85°C
- Operating humidity range: from 5% to 95% RH
- Measuring range eCO2: from 400 ppm to 65000 ppm
- TVOC measurement range: from 0 ppb to 65000 ppb
- Module dimensions: 20 x 15 mm
Contents of the kit
- Fermion - ENS160 Air Quality Sensor - DFRobot SEN0515
- Gravity cable - 4-pin I2C
