Product description: Rigol DG1022Z 25 MHz arbitrary waveform generator - 2 channels
The Rigol DG1022Z is an advanced 25 MHz arbitrary waveform generator that combines a function generator , an arbitrary waveform generator, a pulse generator, a noise generator, a harmonic generator, an analog and digital modulator, and a frequency counter in a single device. This versatile tool is ideal for electronics laboratories, research and development departments, service centers, and educational facilities. Two independent channels allow you to simultaneously generate different signals and conveniently conduct more complex measurements. A clear 3.5" color TFT display and intuitive parameter control also enhance user comfort.

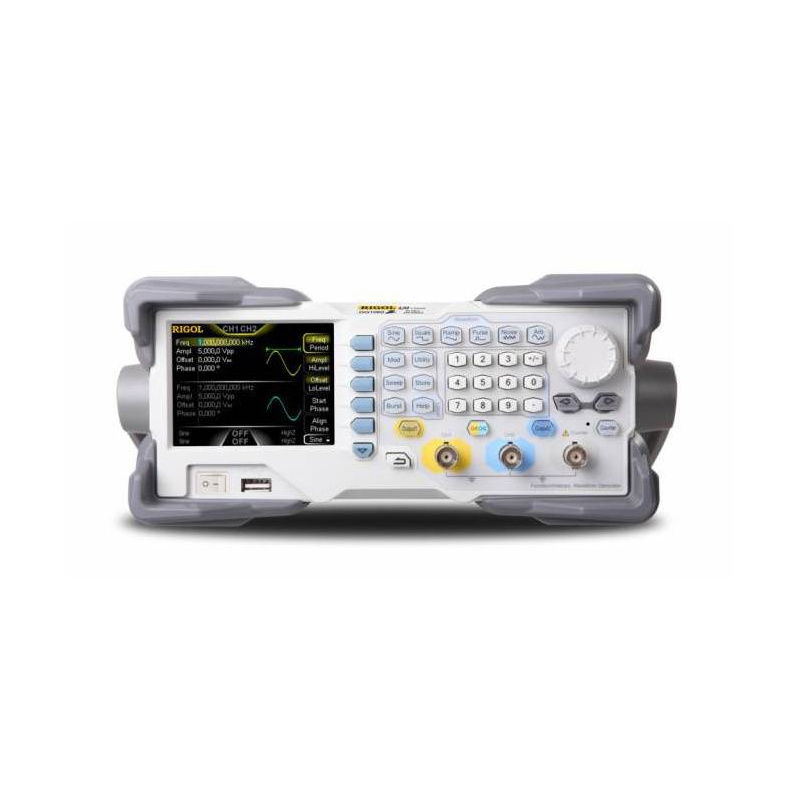

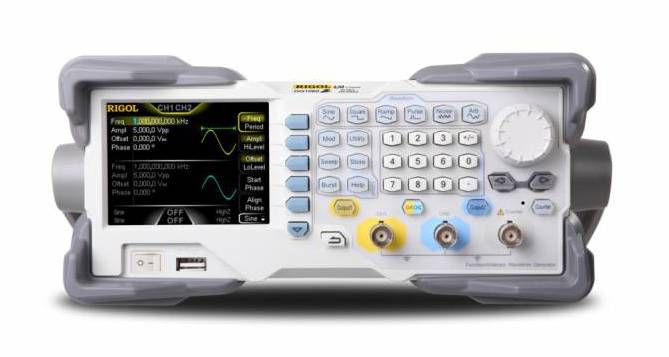

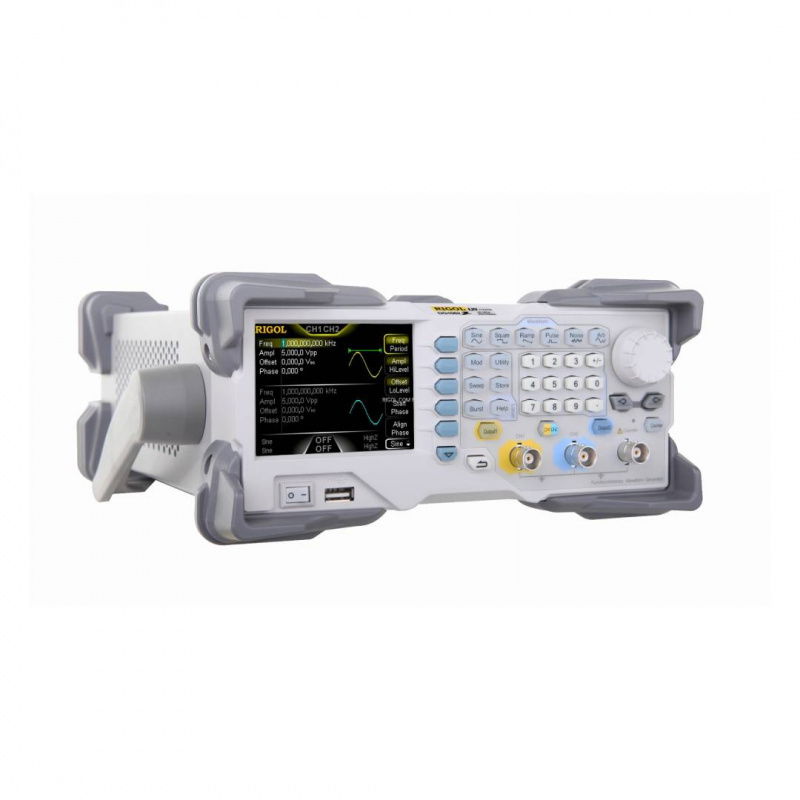

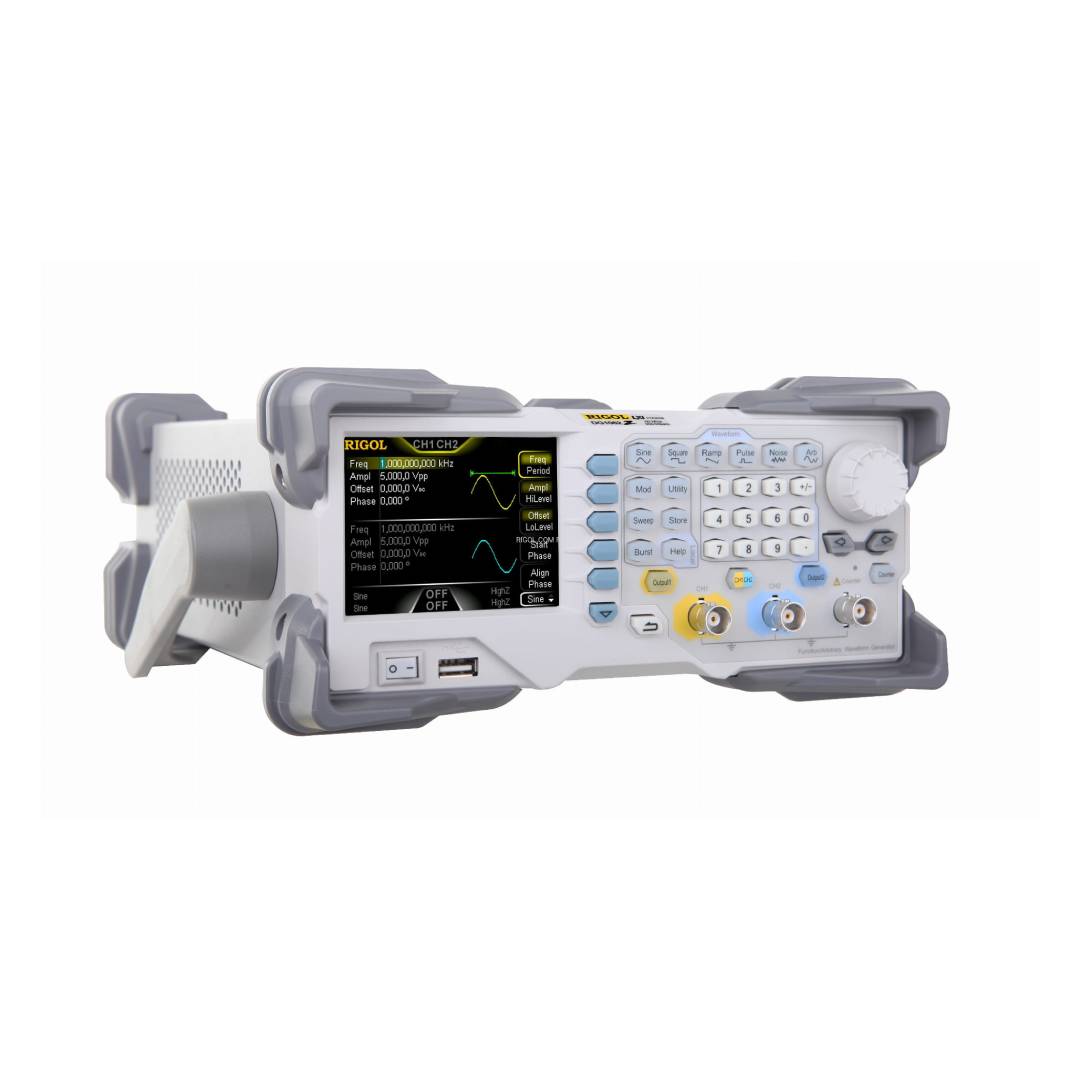

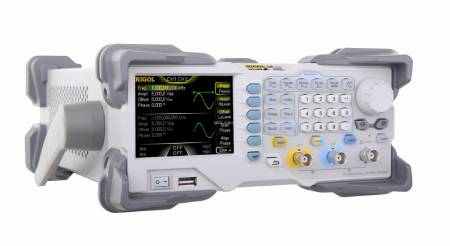

Rigol DG1022Z 25 MHz arbitrary generator - 2 channels.
The DG1000Z integrates, among others, a function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator and frequency meter.
Main features of the Rigol DG1022Z generator
- Arbitrary function and waveform generator : a multifunctional device combining a function generator, a pulse generator, a noise generator, a harmonic generator, and a frequency counter
- SiFi technology : accurate signal reproduction and jitter reduction to approximately 200 ps
- Bandwidth up to 25 MHz : generator suitable for testing many analog and digital circuits
- Sampling rate 200 MSa/s : high precision signal generation
- 14-bit vertical resolution : greater accuracy in reproducing complex waveforms
- Two independent channels : ability to work with two different signals simultaneously
- Arbitrary waveform memory : 2 Mpts standard and up to 16 Mpts optional per channel
- 160 built-in waveforms : a wide selection of ready-made signal shapes available from the panel
- Full modulation : AM, FM, PM, ASK, FSK, PSK and PWM support
- Built-in frequency counter : Measures up to 200 MHz with support for frequency, period, pulse width and duty cycle
Precise signal generation with SiFi technology

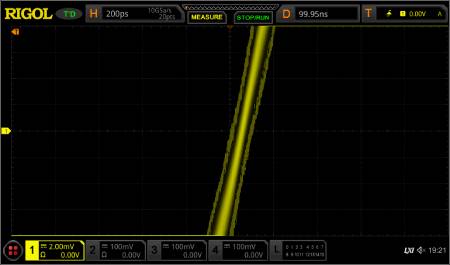

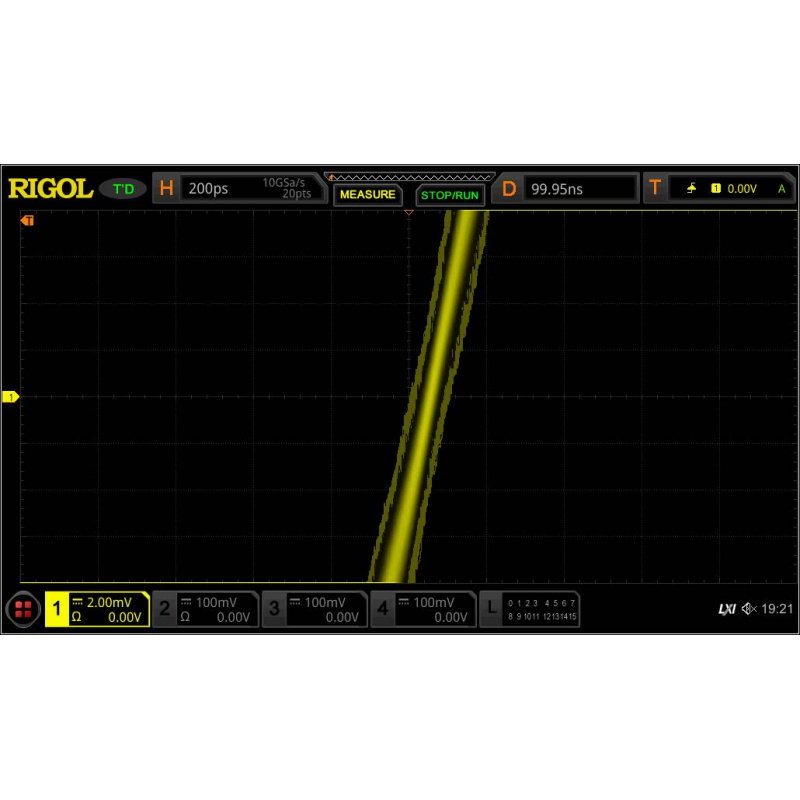

The Rigol DG1022Z is equipped with SiFi (Signal Fidelity) technology, which ensures highly faithful reproduction of generated signals. The generator creates waveforms point by point, allowing it to reproduce complex waveforms with high accuracy and without the typical distortions characteristic of simpler designs. An additional advantage is low jitter, which can reach around 200 ps , which is important when testing precision electronic circuits. The combination of a 200 MSa/s sampling rate and 14-bit resolution makes the device well-suited for tasks requiring a stable and clean signal. This is especially important when working with sensitive measurement circuits, control systems, and electronic device prototypes.
The generator contains over 160 different signal shapes.
Extensive generator functions for testing and modulation
The DG1022Z offers a wide range of features useful in the daily work of designers, service technicians, and engineers. Supporting analog and digital modulation modes , such as AM, FM, PM, ASK, FSK, PSK, and PWM , the device simulates signals used in communication and control systems. The generator also features a Sweep function , allowing for frequency changes in linear, logarithmic, or step modes, as well as a Burst mode for generating bursts and sequences triggered by an external signal or manually. A built-in harmonic generator up to 8th order facilitates analysis of the impact of harmonic components on the system under test. An additional advantage is a frequency counter up to 200 MHz , which can operate in parallel with the dual-channel output.
Technical specifications of the Rigol DG1022Z generator
- Number of channels: 2
- Generator bandwidth: 25 MHz
- Sampling rate: 200 MSa/s
- Vertical resolution: 14 bit
- Arbitrary waveform memory: 2 Mpts standard, up to 16 Mpts optional
- Number of built-in runs: 160
- Frequency stability: ±1 ppm
- Phase noise: -125 dBc/Hz
- Jitter: about 200 ps
- Modulation types: AM, FM, PM, ASK, FSK, PSK, PWM
- Harmonic generator: up to 8th order
- Frequency counter: up to 200 MHz
- Display: TFT LCD 3.5''

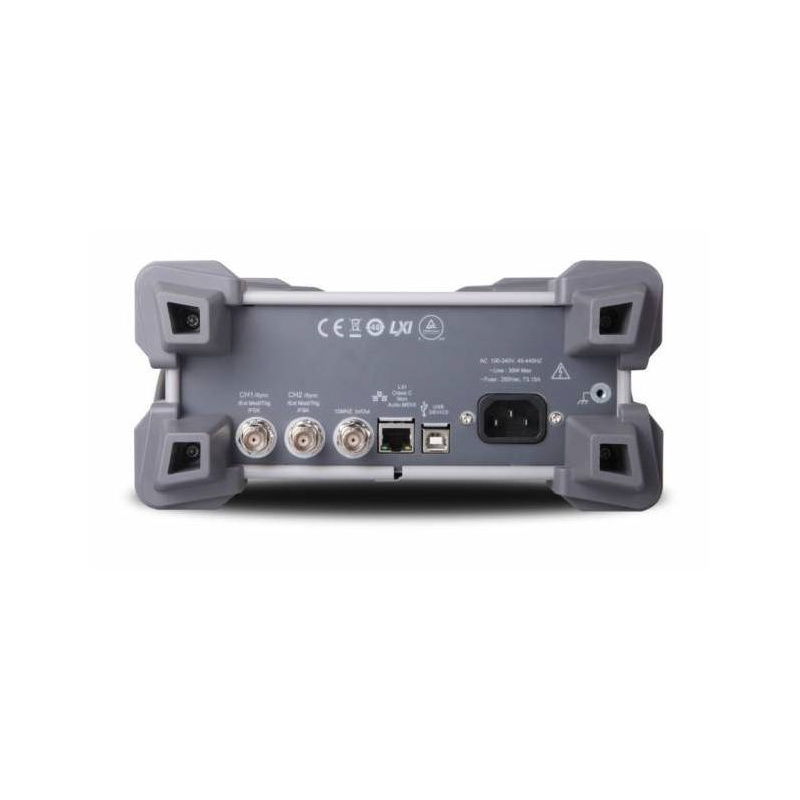

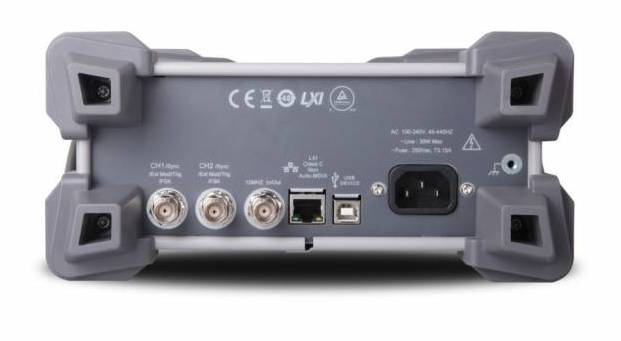

- Interfaces: USB Host, USB Device, LAN
- Power supply: 100V to 240V, 45Hz to 440Hz
- Power consumption: less than 40 W
- Dimensions: 261.5 x 112 x 318.4 mm
- Weight: 3.2 kg
Contents of the set
- Rigol DG1022Z Generator
- Power cord
- USB cable
- BNC cable
- Quick start guide
- Documentation and software disc
Modulation types include AM, FM, PM, ASK, FSK, PSK and PWM.
