Product description: Rigol DG852 Pro 50MHz Arbitrary Generator - 2 channels
The Rigol DG852 Pro is a versatile signal generator designed for laboratory, service, and teaching applications. It offers two independent channels , a maximum output frequency of 50 MHz , and extensive signal generation and analysis functions. Ease of use is enhanced by a 7-inch touchscreen , USB and LAN interfaces, and a standard Web Control function for easy remote control. Powered via USB Type-C and featuring a compact design, the generator is ideal not only for benchtop use but also for mobile use and field testing. VESA mounting significantly saves workspace.

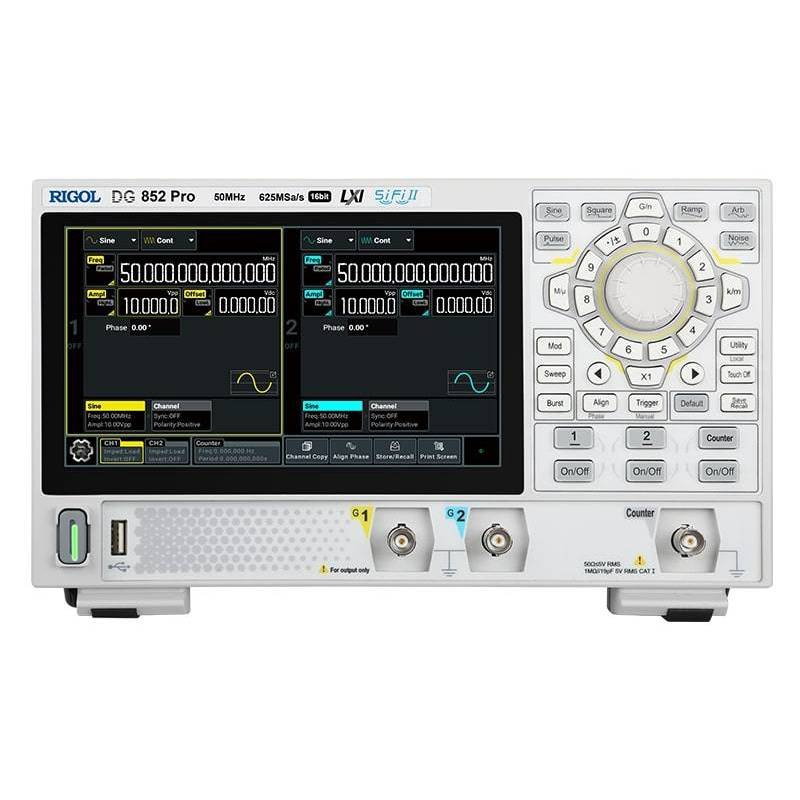

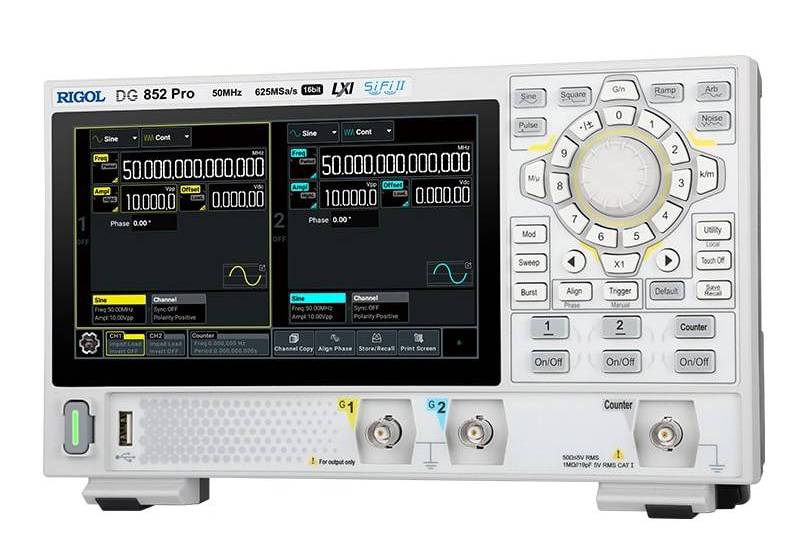

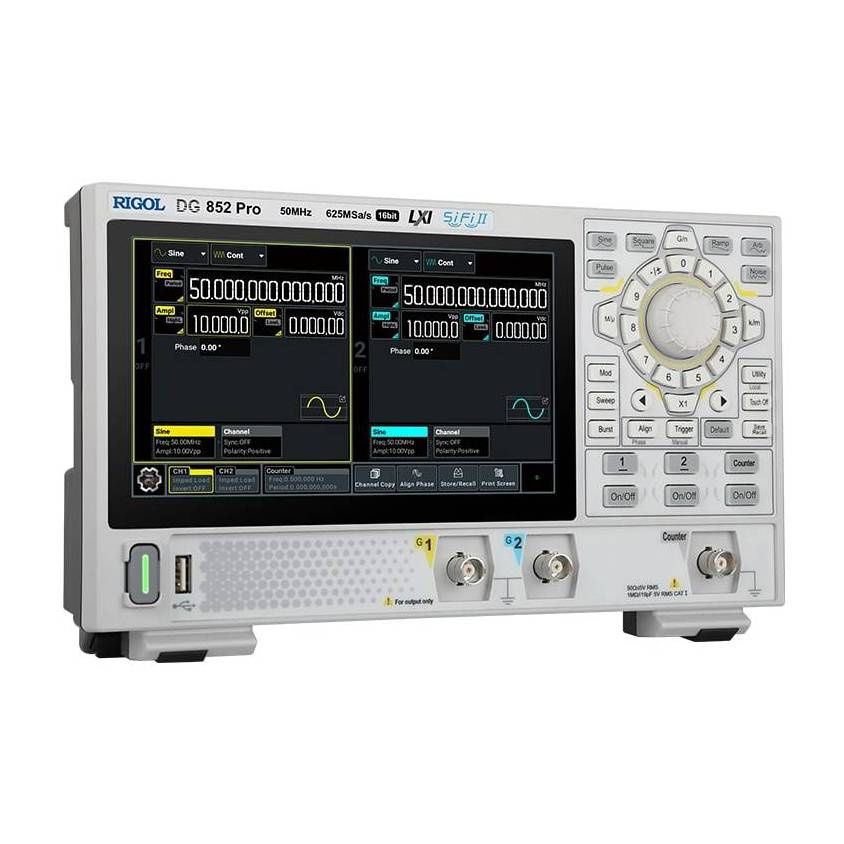

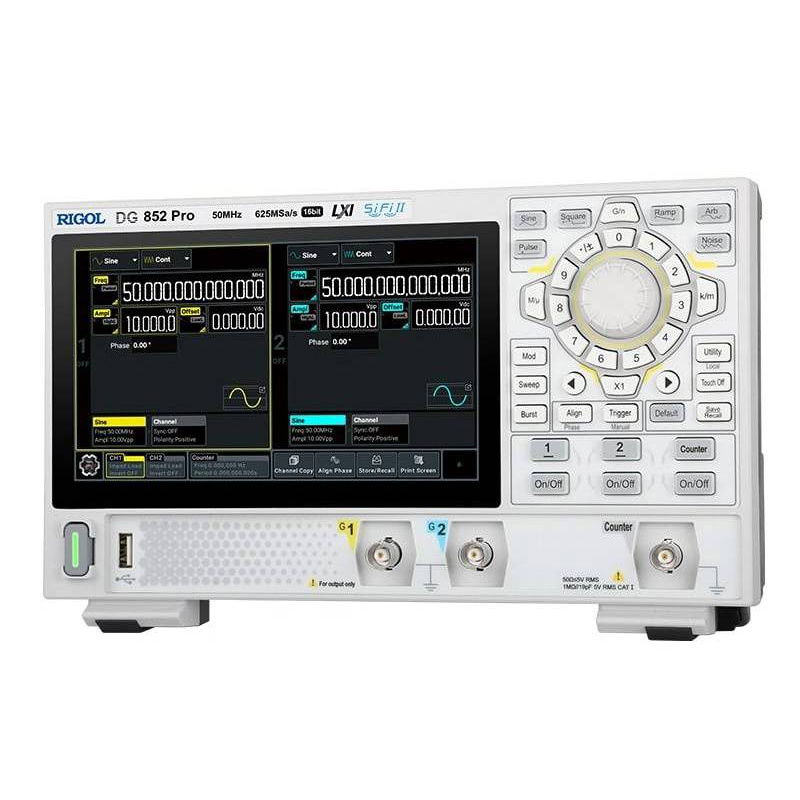

Rigol DG852 Pro 50MHz arbitrary generator - 2 channels.

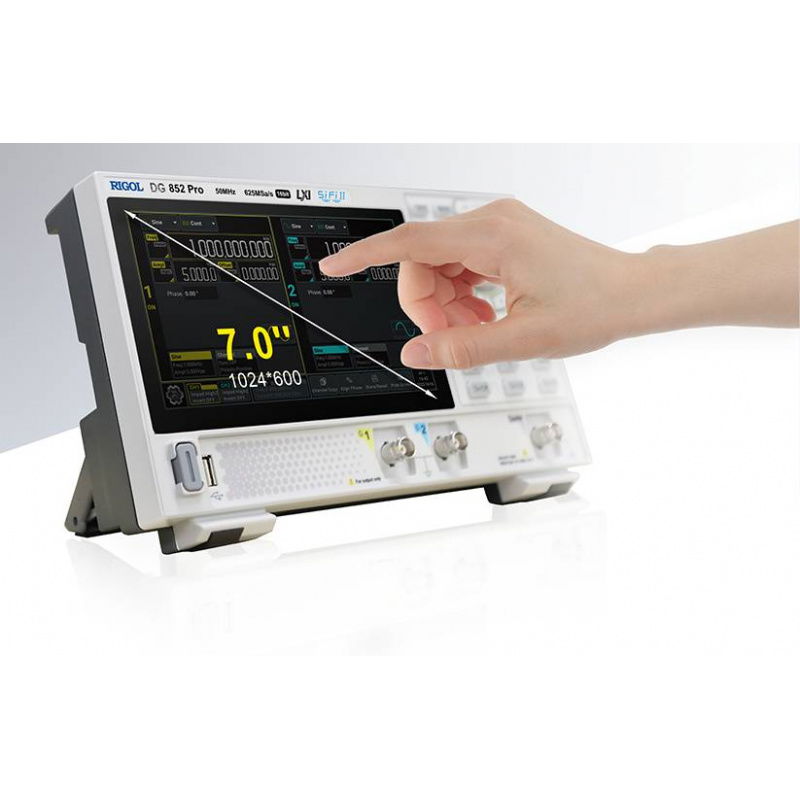

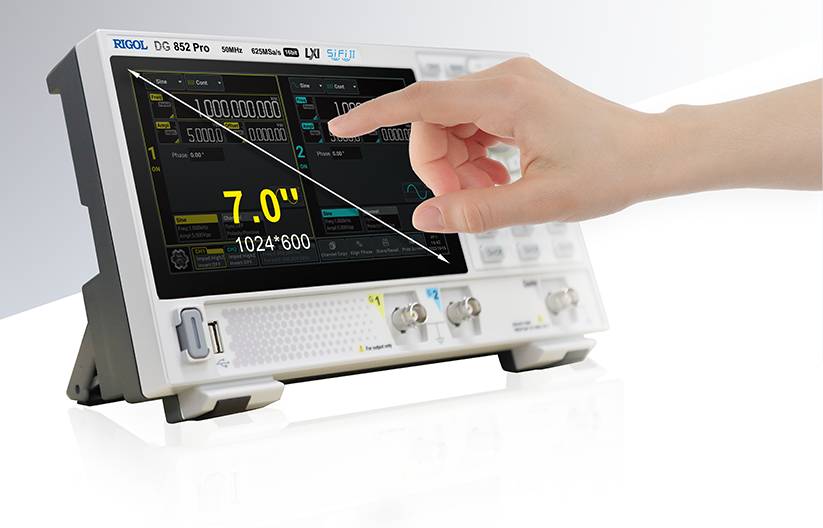

The 7-inch touchscreen allows for convenient viewing and analysis of measurement results.
Main features of the Rigol DG852 Pro generator
- Two independent channels : enable simultaneous generation and analysis of two signals
- Up to 50 MHz bandwidth : suitable for a wide range of measurement and test applications
- 625 MSa/s sampling rate : allows for precise waveform playback
- 16-bit vertical resolution : ensures high accuracy of the generated signal
- 2 Mpts per channel memory : standard, optionally expandable to 8 Mpts per channel
- 148 built-in arbitrary waveforms : ready-made signal shapes for quick use
- Harmonic generator up to the 20th order : useful for testing filters, amplifiers and signal paths
- Frequency counter up to 500 MHz : independent measurement channel for more convenient operation
- Continuous, Modulation, Sweep, Burst and Sequence operating modes : high flexibility in signal configuration
- USB and LAN interfaces : convenient local and remote control
- Power supply via USB Type-C : can work with a mobile power source
- 7-inch touch screen : clear and intuitive operation of parameters
Precise signal generation
The Rigol DG852 Pro is designed to generate high-quality, highly accurate signals. The combination of a 625 MSa/s sampling rate, 16-bit resolution, and 2 Mpts of memory per channel allows the creation of both basic waveforms and more complex arbitrary signals. The device supports standard waveforms such as sine, square, ramp, pulse, noise, and harmonics, and also offers 148 predefined arbitrary waveforms . This makes the generator ideal for prototyping circuits, testing analog and digital electronics , and simulating real-world device conditions. It's the perfect solution for users who demand a stable signal source and a high degree of configuration flexibility.

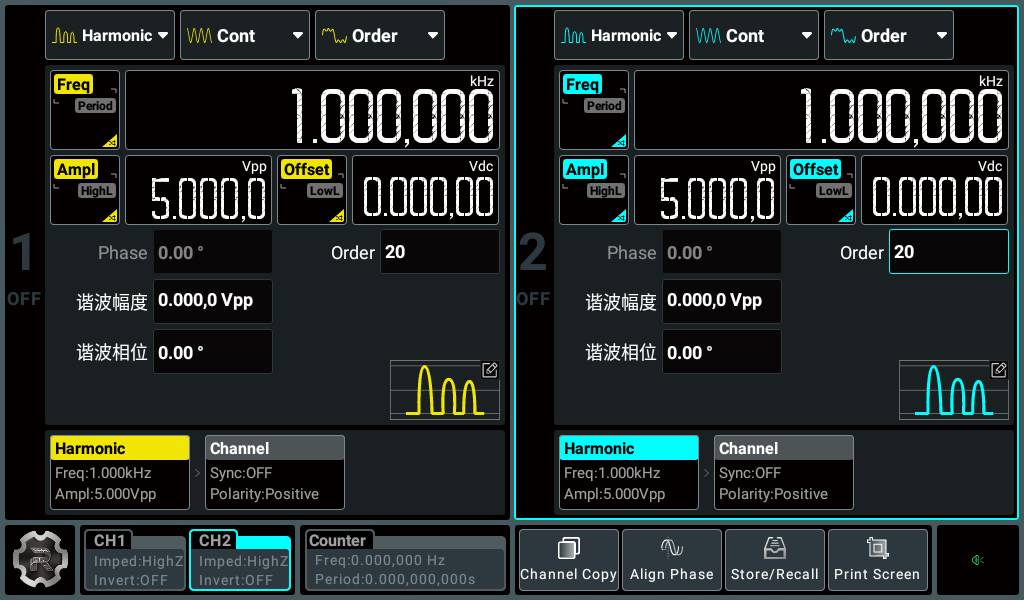

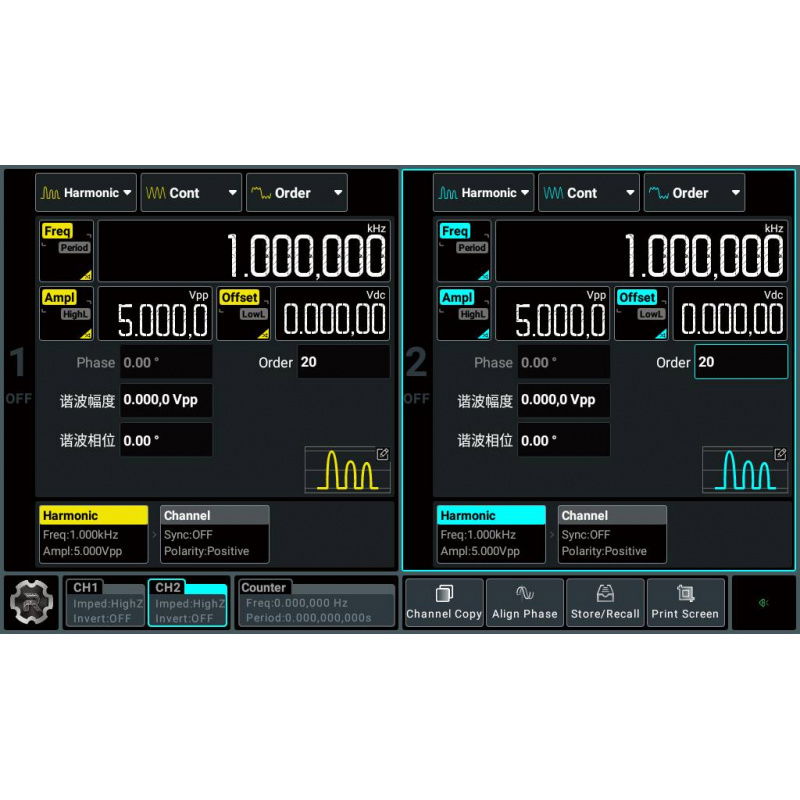

The built-in harmonic generator, supporting up to the 20th order, allows you to generate complex test signals for analyzing filters, amplifiers and other electronic systems .

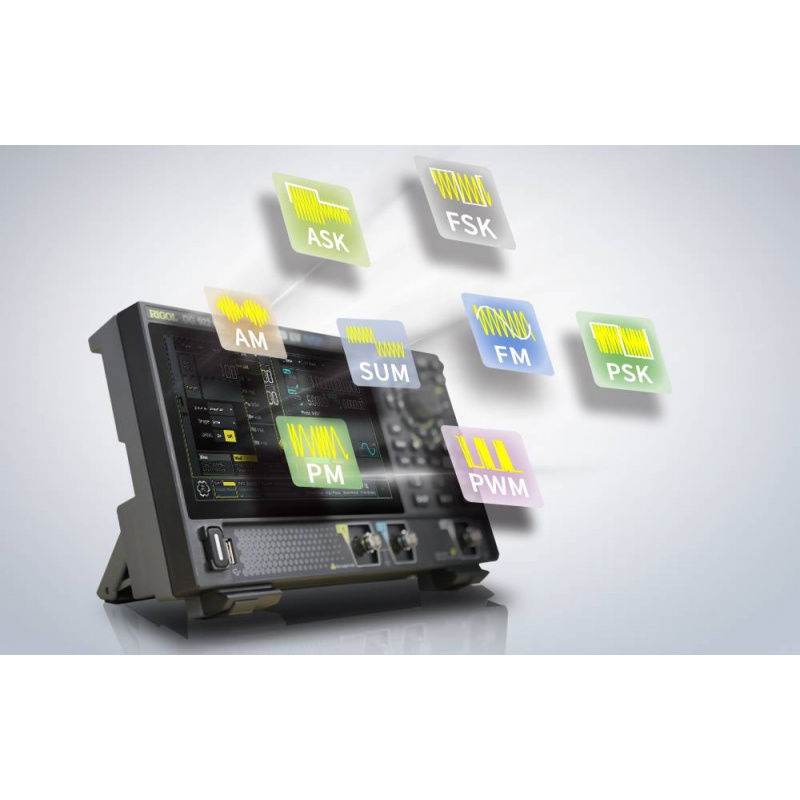

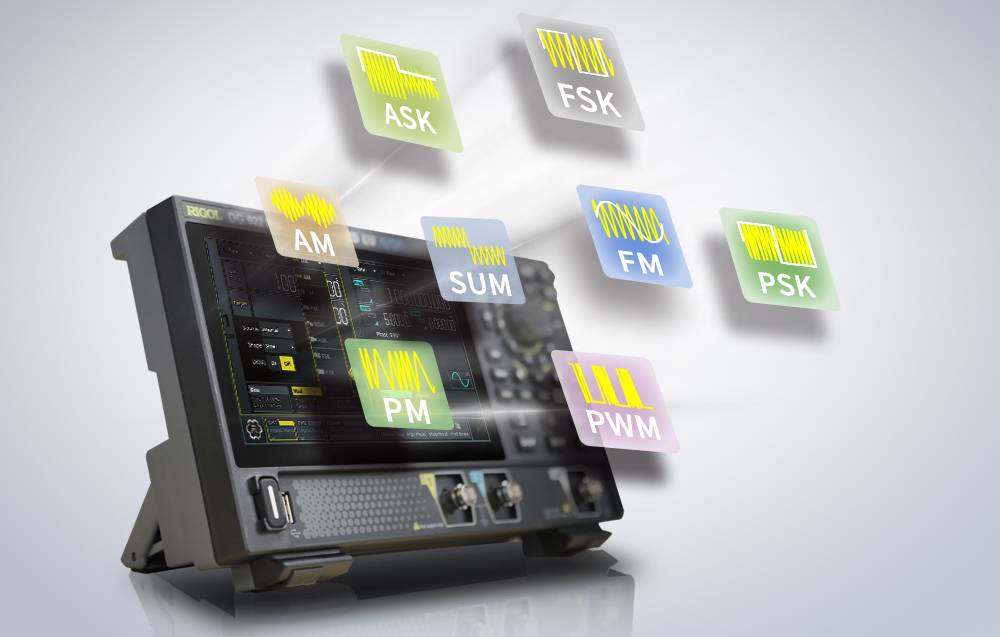

Supports many modulation types such as AM, FM, PM, ASK, FSK, PSK, PWM and SUM.
Extensive modulation and sequencing functions in the Rigol DG852 Pro
The DG852 Pro offers a wide range of features essential for a modern measurement laboratory. The generator supports AM, FM, PM, ASK, FSK, PSK, PWM, and SUM modulations, making it suitable for testing communications systems, automation, and power electronics. Sweep mode simplifies frequency response analysis of tested systems, while Burst mode allows for the generation of pulse bursts according to preset parameters. Another significant advantage is the Sequence mode , which allows for combining multiple waveforms into a single, organized test structure, increasing work efficiency in more complex measurement scenarios. An independent frequency counter up to 500 MHz further expands the device's diagnostic capabilities.
Technical specifications of the Rigol DG852 Pro generator
- Number of channels: 2
- Generator bandwidth: 50 MHz
- Sampling rate: 625 MSa/s
- Vertical resolution: 16 bit
- Waveform memory: 2 Mpts per channel
- Maximum memory: 8 Mpts per channel when expanded
- Number of built-in arbitrary waveforms: 148
- Standard waveforms: sine, square, ramp, pulse, noise, arb, harmonics
- Output modes: continuous, modulation, sweep, burst, sequence
- Harmonic generator: up to 20th order
- Frequency counter: up to 500 MHz
- Interfaces: USB Host, USB Device, LAN
- Remote control: Web Control
- Screen: 7-inch touchscreen, 1024 x 600 px
- Power supply: USB Type-C, USB PD 15V, 3A
- Power consumption: max. 45 W
- Operating temperature range: 0°C to 40°C
- Dimensions: 266 x 165 x 80 mm
- Weight: 1.78 kg
Contents of the set
- Rigol DG852 Pro Generator
- Charger
- USB cable
- BNC cable

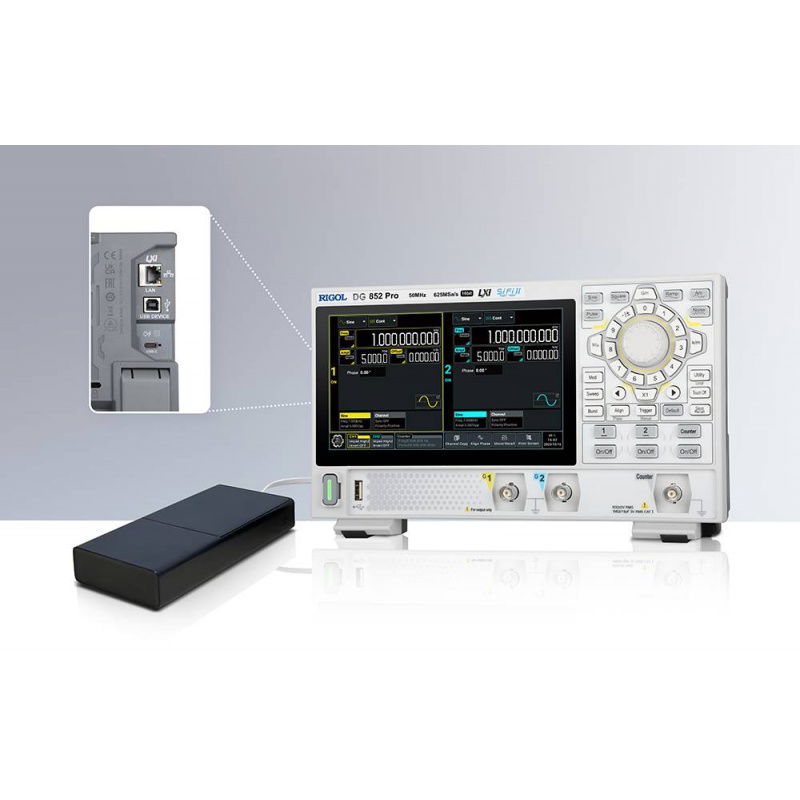

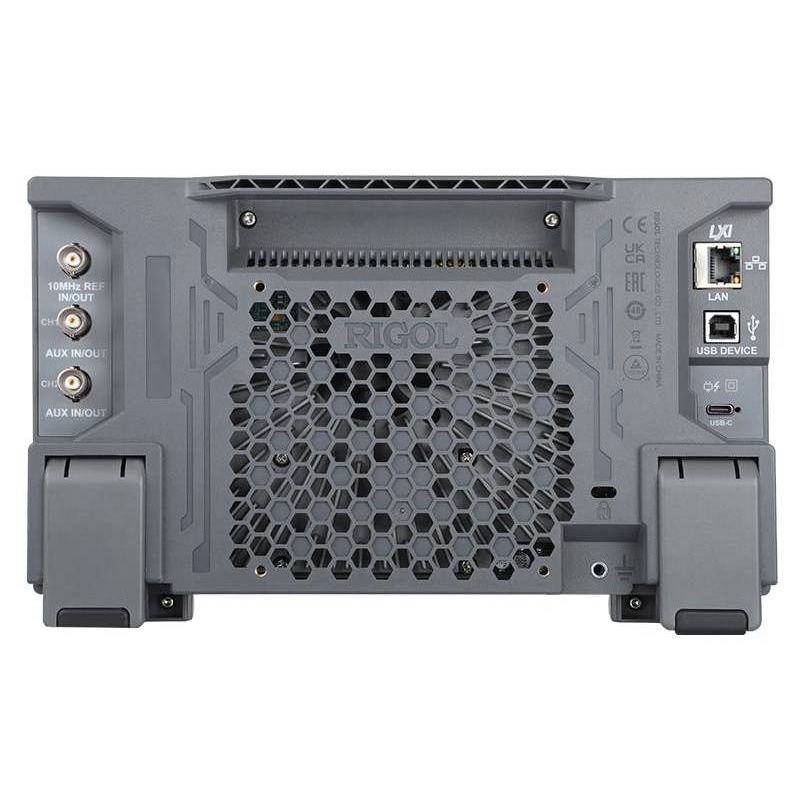

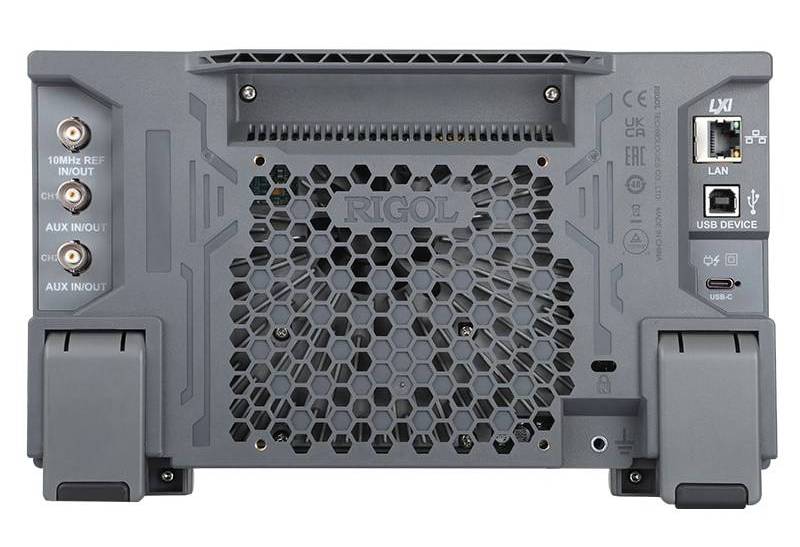

The DG852 Pro is equipped with USB and LAN interfaces for remote control, as well as a USB Type-C connector for powering from a mobile power source when working in the field.
