Product description: DDS Function Generator JDS6600 60 MHz - 2 channels
Two channelfunction generator with waveform generation up to 60 MHz, 200 MSa/s with 12 bit vertical resolution, 17 standard waveforms and 60 built-in 2048 point arbitrary waveforms. It has a set of modulating functions, a built-in frequency counter and a 2.4" TFT LCD display.
A power supply with type A plug is included. For proper use with E / F type sockets, an adapter must be used.
Example application
- Didactics - education
- The JDS6600 function generator offers higher measuring ranges than analogue generators.
- Allows students to become familiar with modern measuring equipment at a relatively low price
- Simulation of electrical waveforms
- Checking the correct functioning of electrical devices
- In combination with oscilloscope it allows to observe electrical waveforms
|
An example of a program to operate the generator via USB using a computer. |
Specification
- Number of channels: 2
- Digital frequency synthesis DDS technology
- Output frequency: up to 60 MHz
- Sampling rate: 200 MSa/s
- Waveform length: 2048 pts
- Frequency resolution: 0.01 μHz
- Vertical resolution: 12 bits
- Waveforms: Sine, Square, Triangle, Pulse (duty-cycle correction),Batch Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 different user-defined waveforms.
- Sinusoidal range: 0 to 60 MHz
- Range - Rectangle: 0 to 15 MHz
- Triangle range: 0 to 15 MHz
- Spectrum - Pulse: 0 to 6MHz
- CMOS/TTL digital range: 0 to 6 MHz
- Arbitrary waveform: 0 to 6 MHz
- Modulation functions: SWEEP, frequency sweep, BURST periodic waveform parcel generation, PULSE, pulse generation function
- Other functions: frequency counter up to 100 MHz
- Standard interface: USB
- Number of arbitrary waveforms: 60
- Number of output waveform types: 15
- Display: 2.4" TFT LCD
Included:

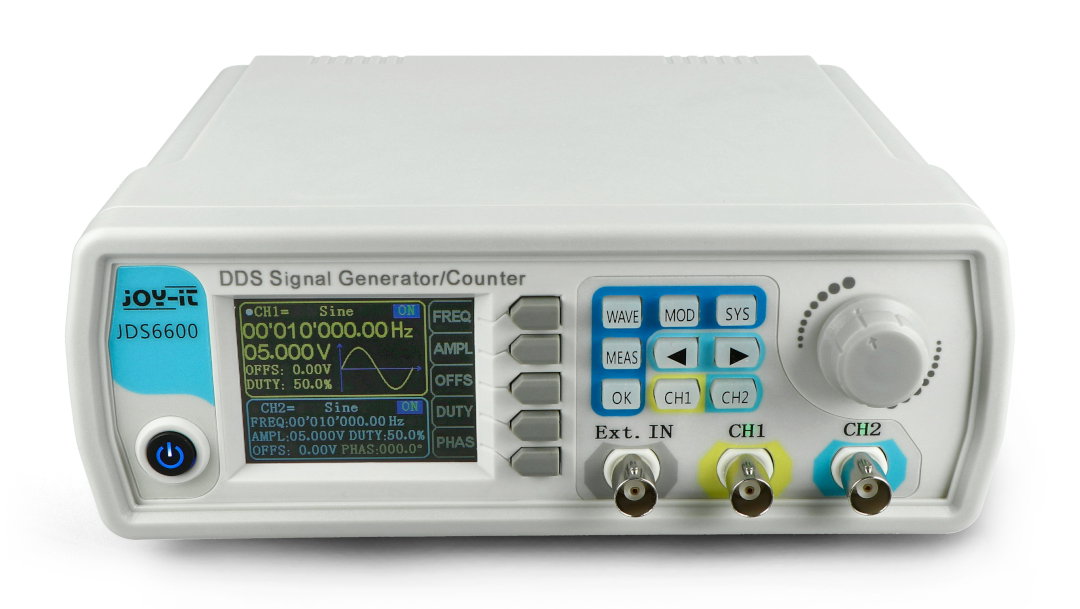

- DDS function generator JDS6600
- USB cable
- AC adapter
- BNC-cable x 2
DDS Function Generator JDS6600 60 MHz - 2 channels.
